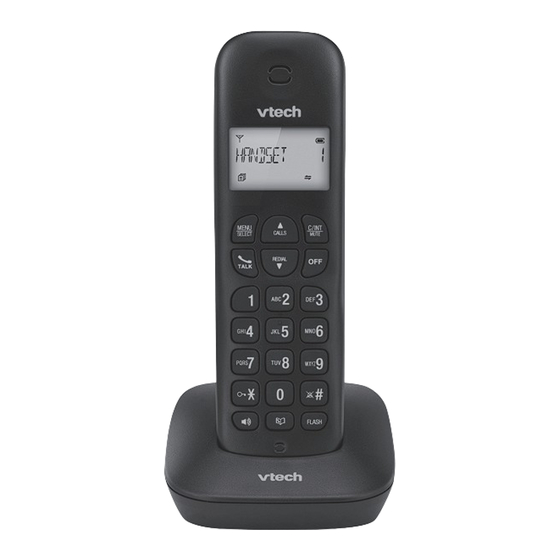

- Page 1 User’s manual Models: ht tp: // hk phones.v tec h.c om ES2310A/ES2310-2A/ ES2310-3A...
-
Page 2: Table Of Contents
Table of conTenTs IMportAnt SAfEty InStructIonS ....1 SEt up tHE tELEpHonE ........3 Package Contents ............3 Location ..............4 Connect the Base Station ..........5 Connect the Charger ..........6 Install and Charge the Handset Battery .....7 GEt to KnoW your pHonE ..........8 Overview of the Handset ..........8 Overview of the Base Station ........12 Handset LCD Display Icons and Symbols .......13... - Page 3 Turn the Keypad Lock ON/OFF ........20 4.10 Redial the Last number ..........20 4.10.1 Redial a Number from the Redial List ..21 4.10.2 Store a Redial Number into the Phonebook..........21 4.10.3 Delete a Redial Number......21 4.10.4 Delete the Entire Redial List .......22 4.11 Find the Handset (PAGING) ........22 4.12...
- Page 4 6.2.4 Set the Ringer Volume ....... 32 6.2.5 Set Alert Tones ........... 32 6.2.6 Rename the Handset ......... 32 6.2.7 Choose the information to be Displayed in Idle............33 6.2.8 Set the AUTO Answer ....... 33 Base Settings ............33 6.3.1 Set the Dial Mode ........
-
Page 5: Important Safety Instructions
Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. Unplug this product from the wall outlet and refer servicing to VTech/distributor under the following conditions: • When the power supply cord or plug is damaged or frayed. - Page 6 Use only the supplied NiMH (Nickel Metal Hydride) batteries! The operation periods for the handsets are only applicable with the default battery capacities. The use of other battery types or non-rechargeable batteries/primary cells can be dangerous. These may cause interference and/or unit damages. The manufacturer will not be held liable for damage arising from such non-compliance.
-
Page 7: Set Up The Telephone
seT UP THe TelePHone Package contents The package contains the following items: • Handset ( for ES30A; for ES30-A; 3 for ES30-3A) • Base station • Power adaptor for base • Charger with power adaptor connected ( for ES30-A; for ES30-3A) •... -
Page 8: Location
location For maximum coverage and reduce the interference, here are some guidelines you should consider when you place the base unit: - place it at a convenient, high, and central location with no obstructions between the handset and base unit in an indoor environment. -
Page 9: Connect The Base Station
connect the base station To wall power outlet To telephone wall socket Plug the power cable into the base station, plug the other end of the power adapter into the wall outlet not controlled by a wall switch. Plug one end of the telephone line cord into the base station and the other end into a telephone wall jack. -
Page 10: Connect The Charger
connect the charger To wall power outlet • Plug the end of the power cable into the power wall socket and switch the power on. NOTE Ensure power cord is fed through the slot on the base so unit sits flush with the desk. -
Page 11: Install And Charge The Handset Battery
Install and charge the Handset battery Slide open the battery compartment cover. Place the AAA batteries as indicated following the polarity signs. Slide the battery compartment cover back in position. 4. Put the handset on the base or charger to charge for at least 4 hours for the first time. -
Page 12: Get To Know Your Phone
geT To Know YoUR PHone overview of the Handset... - Page 13 (MenU/selecT) In idle mode: Press to access the main menu. In sub-menu mode: Press to confirm the selection. During a call: Press to access Intercom/Phonebook/Redial List/ Call List. (DeleTe/bacK/MUTe/InTeRcoM) In main menu mode: Press to go back to idle screen. In sub-menu mode: Press to go back to previous level, or press and hold to go back to idle screen.
- Page 14 (TalK on) In idle / predialing mode : Press to make a call. In Redial list / Call List / Phonebook entry: Press to make a call to the selected entry in the list. During ringing: Press to answer a call. (TalK off) During a call: Press to end a call and go back to idle screen.
- Page 15 (sPeaKeRPHone) During a call: Press to turn on / off the speakerphone. In Idle mode / predialing mode / Redial list / Call List / Phonebook entry: Press to make a call with speakerphone. During ringing: Press to answer a call with speakerphone. (PHonebooK) In idle mode: Press to access the phonebook list.
-
Page 16: Overview Of The Base Station
overview of the base station 1. cHaRgIng cRaDle For charging the handset. (Page) Press to page all registered handset(s). Handset(s) will ring for approximately 60 seconds. Press and hold for seconds to enter the registration mode. -
Page 17: Handset Lcd Display Icons And Symbols
Handset lcD Display Icons and symbols The LCD display gives you information on the current status of the telephone. Display icons Icons can be Steadily On (visible), Flashing or Off (not visible) Scroll up / down the menu items / Phonebook list / Redial list / Call List. - Page 18 Steadily on when the battery is fully charged. Whole icon flashes when the battery is charging. Flashes when low battery power level is detected and the handset needs charging. Steadily on when more characters are existed before the text currently displayed. Steadily on when more characters are existed after the text currently displayed.
-
Page 19: Menu Structure
Menu structure When the handset is switched on and in idle mode: Press to enter the main menu. Press to move through the available options. Press to select a menu option or to return to the previous screen, or press and hold to return to standby mode. -
Page 20: Text And Digit Entry Table
Text and Digit entry Table The following table shows you where each letter and punctuation character can be found. Respective character table will be used when corresponding menu language is selected. This will be helpful when storing a name in the phonebook and renaming your handset. -
Page 21: Use Your Phone
Use YoUR PHone switch on/off the Handset When the handset is in idle mode, press and hold for about seconds to switch the handset off. To switch the handset on, press and hold for about seconds. Make a call 4.2.1 Preparatory Dialling Enter the phone number, maximum 0 digits. -
Page 22: Search Alphabetically For Phonebook Entries
4.2.4 search alphabetically for Phonebook entries In idle mode, press to access the phonebook list. to select PHonebooK. Press Press then Press the numeric key containing the first letter of the name you want. For example, pressing 2 will show the entries starting with A. -
Page 23: Out Of Range Warning
4.2.8 out of Range warning When the handset goes out of range of the base, the screen will display “oUT of Range”, and the call will be disconnected if you are on a call. When you move back within range, the handset will automatically reconnect to the base. -
Page 24: End A Call
end a call During a call connection, press to end the call. Put the handset on the base or charger to end the call. call Timer Your handset automatically times the duration of every call. The call timer will display for a few seconds after the call has been made. -
Page 25: Redial A Number From The Redial List
4.10.1 Redial a number from the Redial list In idle mode, press to access the redial list. Remarks: If redial entry with name, press to view the number. Press to browse the redial list. 3. Press to dial to the selected redial number. NOTE If there are no numbers in the redial list, the display shows “eMPTY”. -
Page 26: Delete The Entire Redial List
4.10.4 Delete the entire Redial list Follow Steps and in the section of Redial a number from the Redial list. to select DeleTe all. Press Press to confirm and to confirm again. 4.11 find the Handset (PagIng) Paging is a useful way for finding lost handset(s). Press on the base station. -
Page 27: Call Another Handset
4.12.1 call another Handset In idle mode, press . The screen displays all registered handsets except the calling handset. Enter the desired handset number to intercom with. The called handset rings and press on the called handset to establish the internal call. NOTEs •... -
Page 28: Make A 3-Way Conference Call
4.12.4 Make a 3-way conference call The conference call feature allows one external call to be shared with two handsets (in intercom). The three parties can share the conversation and no network subscription is required. During an external call: Follow Steps to 4 in the section of Transfer an external call to another Handset in page 3. -
Page 29: Private Phonebook
PRIVaTe PHonebooK Your phone can store up to 0 private phonebook entries with names and numbers. Each phonebook entry can have a maximum of 0 digits for the phone number and characters for the name. You can also select different melodies for your phonebook entries. -
Page 30: Writing Tips
5.1.2 writing Tips Press to delete the last character or digit. Press and hold to delete all characters or digits. Press to move backward or forward through the characters / digits. Press and hold 0 to insert to pause (will appear as P) Review an entry In idle mode, press . -
Page 31: Edit A Phonebook Entry
edit a Phonebook entry In idle, press to access the phonebook. Press to select the entry you want to edit. to select eDIT. Press then Press then use the keypad to edit the name (if applicable). Press then use the keypad to edit the number (if applicable). Press then to edit the melody (if applicable). -
Page 32: Phone Settings
PHone seTTIngs Your phone comes with a selection of settings that you can change to personalize your phone the way you like it to work. Date and Time settings You will need to set the correct time and date so that you know when you received answering machine (applicable to model with answering machine) or call list entries. -
Page 33: Set The Date
6.1.3 set the Date to select Hs seTTIngs. Press to select DaTe & TIMe. Press to select seT DaTe. Press then enter the date according to DD-MM-YY or Press MM-DD-YY format. The date will be in the format you set. Press to confirm. - Page 34 • The alarm volume level is the same as the settings of the handset ringer volume. If the handset ringer is set to VolUMe off, the alarm still sounds at VolUMe 1 level. • During an external call or an internal call, if an alarm is set and when the alarm time is reached, “alaRM on”...
-
Page 35: Set The Ringer Melody For External Calls
6.2.2 set the Ringer Melody for external calls You can set the melody to personalize your internal ringer. A total of 0 melodies are provided for your selection. Press to select Hs seTTIngs. Press to select RIng seTUP. Press to select eXT RIng. Press to select the desired ringer melody. -
Page 36: Set The Ringer Volume
6.2.4 set the Ringer Volume You can set the ringer volume level. A total of 6 ringer volume levels including VolUMe off are provided for your selection. Press to select Hs seTTIngs. to select RIng seTUP. Press to select RIng VolUMe. Press Press to select the ringer volume... -
Page 37: Choose The Information To Be Displayed In Idle
6.2.7 choose the information to be Displayed in Idle You can choose to display time or handset name in your idle screen. to select Hs seTTIngs. Press to select Hs DIsPlaY. Press to select HanDseT naMe or TIMe. Press Press to confirm. -
Page 38: Change The System Pin Code
6.3.3 change the system PIn code A 4-digit system PIN code is used for changing the system settings of the base station. It is used to protect your phone against unauthorized use. The default system PIN code is 0000. Press then to select bs seTTIngs. -
Page 39: Reset Your Phone
Reset Your Phone You can reset your phone to the default settings. After reset, all your personal settings, call list entries and redial list entries will be deleted, but your phonebook remains unchanged. to select DefaUlT. Press Press and you are requested to enter the 4-digit system PIN. -
Page 40: Deregister A Handset
Deregister a Handset You may need to deregister your handsets if you wish to change the designated handset number of your registered handsets. You are requested to enter the 4-digit PIN in order to de-register a handset from the base station. NOTE You cannot deregister the handset that you are currently using. -
Page 41: Caller Display (Network Dependent)
calleR DIsPlaY (neTwoRK DePenDenT) call list This feature is available if you have subscribed to the Caller Line Identification service from your telephone company. Your phone can store up to 0 received calls with date/time information in the Call List. The number will be shown on the LCD when the phone is ringing. -
Page 42: Store A Call List Number Into The Phonebook
store a call list number into the Phonebook Follow Steps and in the section of View the call list. to select aDD To Pb. Press to enter the name. (See entering names on Press page ) Press and the selected call list number is displayed. Edit the number if necessary. -
Page 43: View The Details Of The A Call Entry
View the Details of the a call entry Follow Steps and in the section of View the call list in page 3. to select DeTaIls. Press Press , and the date and time of the desired entry is displayed. -
Page 44: Default Settings
DefaUlT seTTIngs ITeMs Default Values Default settings of Handset EXT RING MELODY INT RING MELODY RING VOLUME VOLUME 3 EARPIECE VOLUME VOLUME SPEAKER VOLUME VOLUME 3 HANDSET NAME HANDSET KEY TONE LOW BATTERY BEEP OUT OF RANGE BEEP AUTO ANSWER DATE FORMAT DD--MM--YY... -
Page 45: Troubleshooting
TRoUblesHooTIng If you have difficulty with your phone, please try the suggestion listed below. Problem solutions My telephone • Make sure the batteries are installed and does not charged correctly. For optimum daily work at all. performance, return the handset to the telephone base after use. - Page 46 low battery • Place the handset in the telephone base for recharging. shows on screen. • Remove and re-install the batteries and use it until fully depleted, then recharge the handset in the telephone base. • If the above measures do not solve the problem, replace the batteries.
- Page 47 There is • Other electronic products may cause interference to your cordless telephone. interference Install your telephone as far away as during a possible from the following electronic telephone devices: wireless routers, radios, radio conversation. towers, pager towers, cellular telephones, My calls fade digital telephones, intercoms, room out when I...
- Page 48 common cure If the telephone is not responding normally, for electronic put the handset in the telephone base. If it equipment. does not respond, try the following (in the order listed): • Disconnect the power to the telephone base. • Disconnect the batteries on the handset.
-
Page 49: Technical Specifications
10. tEcHnIcAL SpEcIfIcAtIonS basIc InfoRMaTIon Dimensions Handset: width / depth / height = 3 X 4 X 60 mm Base: width / depth / height = 0 X 4 X 3 mm Charger: width / depth / height = 0 X 4 X 3 mm Weight Handset: 0g with battery, 94g without battery Base: g... -
Page 50: Care And Maintenance
11. cArE AnD MAIntEnAncE Take care of your telephone • Your cordless telephone contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it. - Page 51 VTecH TelecoMMUnIcaTIons lTD. a member of THe VTecH gRoUP of coMPanIes. © 06 VTech Telecommunications Ltd. All Rights Reserved. 06/6. V.0.
