- Page 1 Instructions for use W0810P W0832P W0854P W0870P W3810P W3811P Temperature, relative humidity, voltage and number of pulses transmitters for the SIGFOX network...
- Page 2 © Copyright: COMET SYSTEM, s.r.o. This manual is forbidden to copy and make changes of any nature without the express consent of COMET SYSTEM, s.r.o. All rights reserved. COMET SYSTEM, s.r.o. constantly developing and improving its products. Therefore, it reserves the right to make technical changes to the device / product without prior notice.
-
Page 3: Table Of Contents
Content CONTENT ....................3 INTRODUCTION ..................4 SAFETY PRECAUTIONS AND PROHIBITED HANDLING......5 INSTALLATION ..................6 Mounting ..................6 Switching the device on ..............8 Displaying the device data ............8 Device usage and settings ............9 Alarm functions ................11 MANUFACTURED MODELS .............. -
Page 4: Introduction
Introduction The Sigfox network is used to transmit very short data messages and is optimized for low power consumption. It operates in the unlicensed radio band, which brings cheaper traffic, but also legislative restrictions - messages can not be sent faster than with a 10 minute interval. Ideal applications for transmitters working in the Sigfox network are those where it is sufficient sending measured values with longer intervals (eg 1 h or longer). -
Page 5: Safety Precautions And Prohibited Handling
Safety Precautions and Prohibited Handling Read the following safety precautions carefully before using the appliance, and keep it in mind during use! • The device includes a radio transmitter operating in the non-license frequency band with the power specified in the Technical Parameters. This band and performance are used in the countries of the European Union. -
Page 6: Installation
Installation Installation, commissioning and maintenance must only be carried out by a qualified person in accordance with applicable regulations and standards. Mounting For the optimum operation of the Wx8xxP Series, it is necessary to ensure their vertical position. Models without external probes or sensors may loosely stand on their bottom base as required, other... - Page 7 Optimal positioning of the transmitter in terms of radio range: All materials absorb radio waves if they must pass through them. The most significant in terms of radio wave propagation are metal objects, concrete, reinforced concrete and walls. If you install the device at a greater distance from the base station or in locations where the radio signal difficult to penetrates, observe the following recommendations: •...
-
Page 8: Switching The Device On
Switching the device on The device is supplied with installed battery, but in off state. To turn on: • Unscrew the four screws at the corners of the box and remove the cover. Avoid damaging the light guide that is part of the cover. •... -
Page 9: Device Usage And Settings
Cloud is an internet storage of data. You need a PC with internet connection and a web browser to work with. Navigate to the cloud address you use and sign in to your account - if you use COMET Cloud by a transmitter manufacturer, enter www.cometsystem.cloud... - Page 10 The function can only be used once every 24 hours. If you use COMET Cloud and you want to be informed about the change of alarm status, eg by e-mail, it is necessary to set at least one alarm profile correctly.
-
Page 11: Alarm Functions
Alarm functions The transmitter sends the measured values in regular messages, according to the set sending interval. In addition, the transmitter can also send extraordinary alarm messages when a new alarm is generated on a tracked channel or the alarm in progress is extinguished. This feature allows you to extend the battery life by setting a longer sending interval for regular messages, and the user is informed about changes in the alarm status by extraordinary messages according to the current situation. - Page 12 After a new alarm is triggered, an extraordinary alarm message is sent within 10 minutes at the latest. Temporary interruption of the current alarm (max. 10 min) is not indicated. After ended of alarm, an extraordinary alarm message is sent within 10 minutes at the latest. (A) regular message sent in sending interval (B) extraordinary message - start of alarm (C) extraordinary message - end alarm...
-
Page 13: Manufactured Models

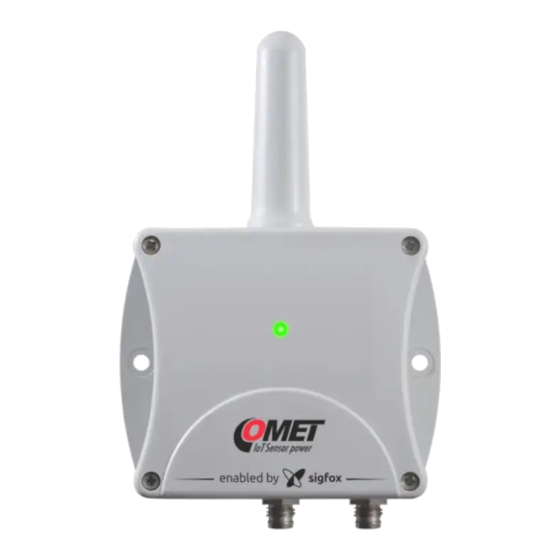

Manufactured models COMET's Wx8xxP transmitters differ in the type of measured quantities (temperature, relative humidity, DC voltage) and the location of the sensors (compact design with internal sensors or external probes on the cable). The enclosure covers electronic circuits, internal sensors, and a battery. - Page 14 (indication of wind gusts, maximum minut electrocity consuption…). The obtained counter values can be recalculated in COMET Cloud according to the entered conversion relation and displayed directly in the values of the measured quantity.
- Page 15 The input can also be used to connect sensors of various quantities with a standard output, eg 0-10 V. In the COMET Cloud (after entering the conversion relationship) the measured voltage signal is recalculated and displayed directly in the values of the measured quantity.
- Page 16 Digi/E probes The transmitter measures the temperature, relative humidity and dew point temperature from the COMET Digi/E external probe (the probe is not part of the instrument). Response to jump-change of temperature and relative humidity is significantly faster than models with internal sensor.
-
Page 17: Application Notes
Application notes Operation of transmitter in various applications____________ Prior to commissioning, it is first necessary to assess whether its use is appropriate for the purpose, to determine its optimum setting and, if it is part of a larger measuring system, to prepare a metrological and functional control. - Page 18 Problems with measurement accuracy ___________________ Incorrect measured values of temperature and relative humidity are most often caused by inadequate probe position or measurement methodology. Some notes on this issue are listed in the chapter Operation of transmitter in various applications. Another group of problems are random peaks in the measured values.
-
Page 19: Operating And Maintenance Recommendations
In this case, it is not necessary to change the battery. A critically weak battery that can fail at any time is indicated by a blank battery symbol in the COMET cloud and on the front panel of the device by double flashing of the LED with an interval of 10 s. - Page 20 Make sure that the seal in the cover groove is clean. Carefully tighten the cover of the device. The batteries can be purchased under their designation (SL2770/S) or, if purchased from the device manufacturer (COMET SYSTEM, s.r.o.), under order code A4206. Service Recommendations ____________________________ Technical support and service are provided by the distributor of this device.
-
Page 21: Technical Parameters
Technical parameters Power supply The device is powered by an internal lithium battery, accessible after unscrewing the cover (see the section How to replace the battery). Power batteries __________________________________ Battery type: Lithium battery 3.6 V, C size, 8500 mAh Recommended type: Tadiran SL-2770/S, 3.6 V, 8500mAh Battery life: Message sending interval... -
Page 22: Radio Part
Radio part Working frequency: Transmission is in the band 868.130 MHz Reception is in the band 869.525 MHz Maximum transmission power: 25 mW (14 dBm) Antenna: Internal, gain 2 dBi Minimum receiver sensitivity: -127 dBm @600bps, GFSK Sigfox radiation class: Radio configuration zone: Typical range from base station: 50 km in open field, 3 km in urban area... -
Page 23: Operating And Storage Conditions
(see dimensional drawings in detail below) Weight including battery: W0810P 185 g W3810P/W3811P 190 g W0832P 190 g W0854P, W0870P 250 g (including cable) Case material: Protection: W0810P, W0832P, W0854P, W0870P, W3811P: IP65 W3810P: IP65, sensors under the cap IP40 ie-wfs-Wx8xxPower-03... -
Page 24: Transmitter Input Parameters
0.1 °C Recommended calibration interval: 2 years W0832P________________________________________ Measured variable: 1 x internal temperature (input No. 3) 2 x temperature from external probe COMET Pt1000/E Range: (30 až +60) °C Temperature internal: (-200 až +260) °C, Temperature external: sensor Pt1000/3850 ppm Accuracy of internal sensor: ±... - Page 25 Connection method: Two-wire connection with compensation of errors caused by resistance wire cable. The probe is terminated by a 3-pin M8 ELKA 3008V connector. The connection method shown Appendix 1. Recommended length of probes Pt1000/E is up to 15 m, do not exceed a length of 30 m. Response time of internal sensor: t90 <...
- Page 26 Counter input: Input voltage for the „L“ level: 0 to 0.6 V Input voltage for the „H“ level: 1.8 to 30 V Maximum pulse frequency: 60 Hz Minimum lenght of input pulse: 6 ms Connection method: 2 wired shieldied cable width lenght of 1.5 m In case of cable extension is the maximum cable length 3 m.
- Page 27 Connection method: 2 wired shielded cable with length of 1.5 m In case of cable extension is the maximum cable length 3 m. It is recommended to use shielded cables. Do not connect the shield at the end of the cable, use it only to extend the cable.
- Page 28 Resolution: Temperature including dew point temperature: 0.1 °C Relative humidity: 0.1 %. Recommended calibration interval: 1 year W3811P________________________________________ Measured variables: The temperature and relative humidity measured by Digi/E series external probe. point temperature calculated from measured temperature and relative humidity. Range, accuracy and response time: According to the connected Digi/E series probe Connection method:...
-
Page 29: Dimensional Drawings
Dimensional drawings W0810P W3811P ie-wfs-Wx8xxPower-03... - Page 30 W0832P W3810P ie-wfs-Wx8xxPower-03...
-
Page 31: Declaration Of Conformity
W0854P W0870P Declaration of Conformity The transmitter complies with the requirements of Directive 2014/35 / EU. The original Declaration of Conformity can be found at www.cometsystem.com. ie-wfs-Wx8xxPower-03... -
Page 32: Appendices
Appendices Appendix 1: Connecting the Pt1000/E probe connector Appendix 2: Connection of the Digi/E probe connector Appendix 3: Accuracy of dewpoint temperature measurement ie-wfs-Wx8xxPower-03... - Page 33 Appendix 4: W0870P input wiring details Appendix 5: W0854P input wiring details ie-wfs-Wx8xxPower-03...
