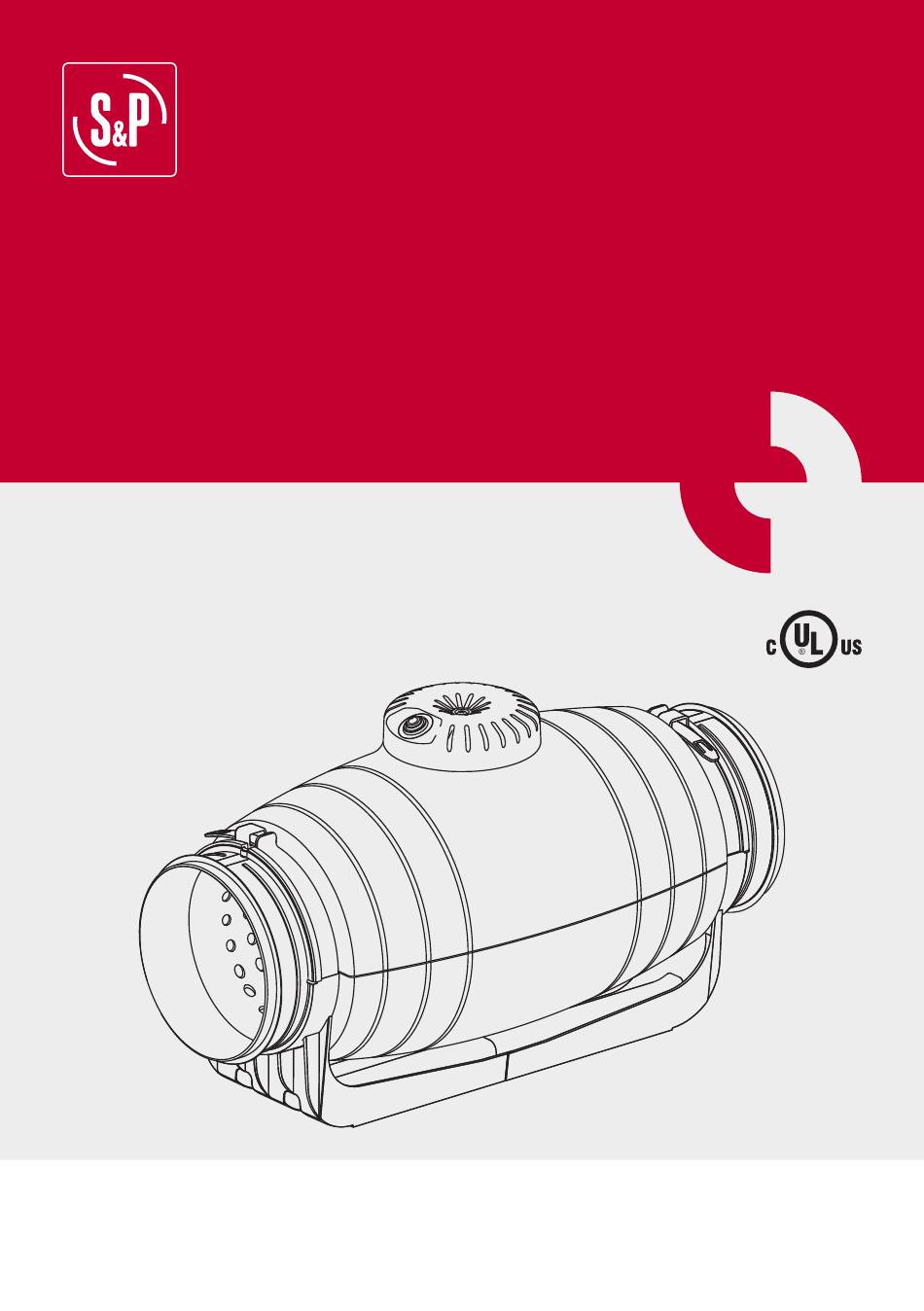

TD-SILENT SERIES (TD)
MIXED FLOW IN LINE DUCT EXHAUST FANS
VENTILADORES HELICOCENTRIFUGOS EN LINEA
VENTILATEURS HELICOCENTRIFUGES EN LIGNE
TD-125XS, TD-150S, TD-200S
Installation and wiring instructions
Instrucciones de montaje
Instructions de montage
(English / español / français)
Read and save these instructions
Leer y guardar estas instrucciones
Lire et conserver ces instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD-125XS and is the answer not in the manual?

Questions and answers

Summary of Contents for S&P TD-125XS

  • Page 1 TD-SILENT SERIES (TD) MIXED FLOW IN LINE DUCT EXHAUST FANS VENTILADORES HELICOCENTRIFUGOS EN LINEA VENTILATEURS HELICOCENTRIFUGES EN LIGNE TD-125XS, TD-150S, TD-200S Installation and wiring instructions Instrucciones de montaje Instructions de montage (English / español / français) Read and save these instructions...
  • Page 3 Figure 1. Typical Applications / Aplicaciones Clásicas / Applications Classiques: TD-SILENT SERIES. • Single Point Exhaust System / Sistema con un solo punto de extracción / Système à un seul point d’extraction. Note: • Multi-Point Exhaust System / Sistema con varios puntos de extracción / Système à plusieurs points d’extraction.
  • Page 4 Figure 3. Electrical Wiring / Conexión Eléctrica / Branchement Electrique: TD - SILENT flow. • Motor without Speed Controller / Motor sin regulador de velocidad / Moteur sans régulateur de vitesse. • Models TD are double insulated and are not provided with external ground wire •...
  • Page 5: Installation

    ENGLISH TD - SILENT SERIES The TD - SILENT mixed flow range of in-line duct exhaust fans have been manufactured in accordance with the rigorous standards of production as defined by the International Quality Standards ISO 9001. All the components have been checked and tested at the end of the manufacturing process.
  • Page 6: Electrical Connection

    Seal penetrations, duct, and fan with duct fast clamps, duct tape, or other similar material (available through your local distributor) to create an air-tight path from the ventilated space to the building exterior. Use flexible or rigid insulated duct and wrap the fan with insulation where allowed by code in order to reduce: heard noise, building heat loss/gain, and condensation.
  • Page 7: Warranty Validation

    THE FOLLOWING WARRANTIES DO NO APPLY Damages from shipping, either concealed or visible. Claim must be filed with the carrier. Damages resulting from improper wiring or installation Damages caused by acts of nature, or resulting from improper consumer procedures such as: Improper Maintenance;...
  • Page 8: Instalación

    Los ventiladores de la serie TD - SILENT son adecuados tanto para instalaciones en el interior. Todos los modelos pueden trabajar en extracción / impulsión de aire a temperaturas (incluso para el flujo pasando por el ventilador) de -40°C hasta 40°C para el modelo TD-125XS; y de -40°C hasta +60°C para los modelos TD-150S, TD-200S. INSTALACIÓN ATENCIÓN: PARA REDUCIR EL RIESGO DE INCENDIO, DE DESCARGA ELÉCTRICA O DAÑOS A PERSONAS,...
  • Page 9: Conexion Eléctrica

    CONEXION ELÉCTRICA Todos los ventiladores de la serie TD - SILENT funcionan con una alimentación estándar AC 120V 60Hz . Todas las conexiones deben hacerse de acuerdo con el National Electrical Code, el código local y el estado de la construcción. Las conexiones eléctricas tienen que hacerse siguiendo los diagramas eléctricos de la Figura (3) MANTENIMIENTO IMPORTANTE: ANTES DE MANIPULAR EL APARATO PARA SU MANTENIMIENTO, ASEGURARSE QUE ESTÉ...
  • Page 11 FRANÇAIS TD - SILENT SERIES Les ventilateurs centrifuges en ligne de la gamme TD-SILENT sont fabriqués conformément à de rigoureuses normes de production et de contrôle de qualité, telles qu’ISO 9001. Tous les composants ont été vérifiés et les appareils ont été...
  • Page 12: Branchement Electrique

    BRANCHEMENT ELECTRIQUE Tous les ventilateurs de la série TD-SILENT fonctionnent avec une alimentation standard AC 120V 60Hz. Tous les branchements seront réalisés conformément au Code National Electrique local et national de la construction. Les branchements électriques doivent être exécutés conformément aux diagrammes électriques de la Figure (3) ENTRETIEN IMPORTANT: AVANT DE MANIPULER L’APPAREIL POUR SON ENTRETIEN, ASSUREZ-VOUS QU’IL EST BIEN DÉBRANCHÉ...
  • Page 16 S&P USA VENTILATION SYSTEMS, LLC 6393 Powers Avenue Jacksonville, FL 32217 P. 904-731-4711 F. 904-737-8322 www.spvg-northamerica.com S&P CANADA VENTILATION PRODUCTS, INC. 5600 Ambler Drive Mississauga, ON L4W 2K9 - Canada Tel. 416-744-1217 Fax 416-744-0887 www.solerpalaucanada.com...
