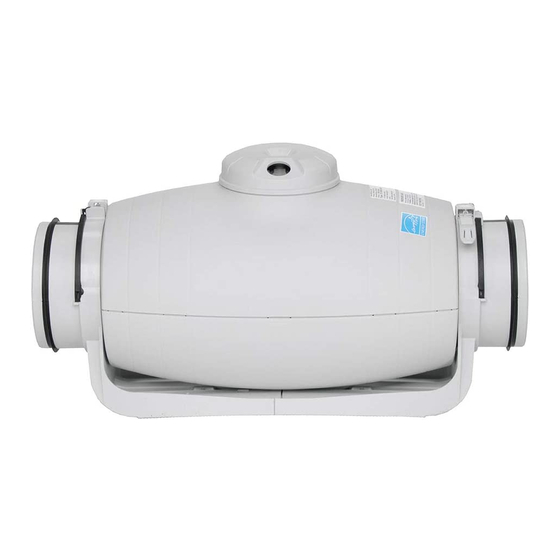

TD-SILENT SERIES (TD)
MIXED FLOW
IN LINE
DUCT EXHAUST
FANS
VENTILADORES HELICOCENTRIFUGOS EN-LINEA
VENTILATEURS HELICOCENTRIFUGES EN LIGNE
Models TD-100XS, TD-150S, TD-200S
INSTALLATION
AND WIRING
INSTRUCTIONS
INSTRUCCIONES DE MONTAJE
INSTRUCTIONS DE MONTAGE
(English / Español / Français)
READ AND SAVE THESE INSTRUCTIONS
LEER Y GUARDAR ESTAS INSTRUCCIONES
LIRE ET CONSERVER CES INSTRUCTIONS
1
Advertisement
Table of Contents
Related Manuals for S&P TD Series
Summary of Contents for S&P TD Series

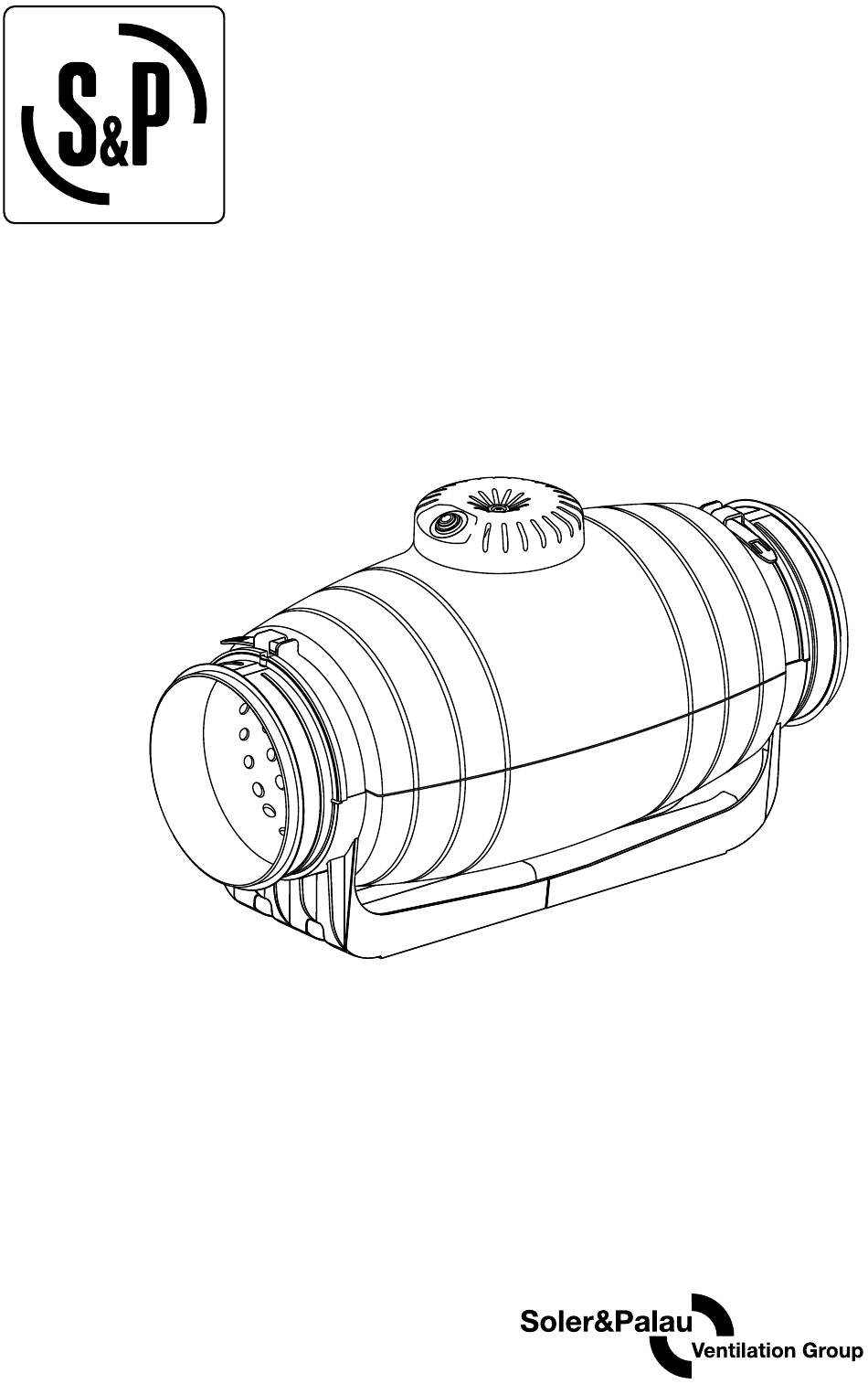

- Page 1 TD-SILENT SERIES (TD) MIXED FLOW IN LINE DUCT EXHAUST FANS VENTILADORES HELICOCENTRIFUGOS EN-LINEA VENTILATEURS HELICOCENTRIFUGES EN LIGNE Models TD-100XS, TD-150S, TD-200S INSTALLATION AND WIRING INSTRUCTIONS INSTRUCCIONES DE MONTAJE INSTRUCTIONS DE MONTAGE (English / Español / Français) READ AND SAVE THESE INSTRUCTIONS LEER Y GUARDAR ESTAS INSTRUCCIONES LIRE ET CONSERVER CES INSTRUCTIONS...
- Page 2 Figure 1. Typical Applications / Aplicaciones Clásicas / Applications Classiques: TD-SILENT SERIES. • Single Point Exhaust System / Sistema con un solo punto de extracción / Système à un seul point d’extraction. • Multi-Point Exhaust System / Sistema con varios puntos de extracción / Système à plusieurs points d’extraction.
- Page 3 Figure 3. Electrical Wiring / Conexión Eléctrica / Branchement Electrique: TD - SILENT flow. • Motor without Speed Controller / Motor sin regulador de velocidad / Moteur sans régulateur de vitesse. • Models TD 100XS, 125S, 150S, 200S & 200XS are double insulated and are not provided with external ground wire •...
- Page 4 ENGLISH TD - SILENT SERIES The TD - SILENT mixed flow range of in-line duct exhaust fans have been manufactured in accordance with the rigorous standards of production as defined by the International Quality Standards ISO 9001. All the components have been checked and tested at the end of the manufacturing process.
- Page 5 Before installing the product check the following points: (1) the fan impeller turns freely and (2) there are no obstructions to the airflow. All models include a robust mounting bracket which enables easy and quick installation of the fan. See Figure (2) Installation Diagrams For TD-SILENT Duct Fans Ductwork connection should be made with duct tape or duct fast-clamps (available through your local stocking dist) to ensure a good seal and secure connection.
