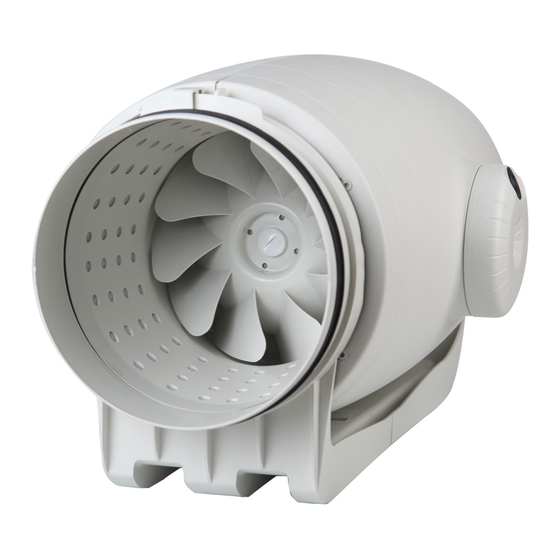

TD-mixvenT series (TD)
mixeD FLOW in Line DUCT exHAUsT FAns
venTiLADOres HeLiCOCenTriFUGOs en-LineA
venTiLATeUrs HeLiCOCenTriFUGes en LiGne
models TD-100, TD-100x, TD-125, TD-150, TD-200,
TD-200x, TD-250, TD-315.
insTALLATiOn AnD WirinG insTrUCTiOns
insTrUCCiOnes De mOnTAJe
insTrUCTiOns De mOnTAGe
(English / Español / Français)
READ AND SAVE THESE INSTRUCTIONS
LEER Y GUARDAR ESTAS INSTRUCCIONES
LIRE ET CONSERVER CES INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for S&P TD-125
Summary of Contents for S&P TD-125
- Page 1 TD-mixvenT series (TD) mixeD FLOW in Line DUCT exHAUsT FAns venTiLADOres HeLiCOCenTriFUGOs en-LineA venTiLATeUrs HeLiCOCenTriFUGes en LiGne models TD-100, TD-100x, TD-125, TD-150, TD-200, TD-200x, TD-250, TD-315. insTALLATiOn AnD WirinG insTrUCTiOns insTrUCCiOnes De mOnTAJe insTrUCTiOns De mOnTAGe (English / Español / Français)
- Page 2 Figure 1. Typical Applications / Aplicación Clasica / Application Classiques: TD - MIXVENT SERIES. • Single Point Exhaust System / Sistema con un solo punto de extracción / Système à un seul point d’extraction. • Multi-Point Exhaust System / Sistema con varios puntos de extracción / Système à plusieurs points d’extraction.
- Page 3 Figure 3. Electrical Wiring / Conexión Eléctrica / Branchement Electrique: TD - MIXVENT FLOW. • Motor without Speed Controller / Motor sin regulador de velocidad / Moteur sans régulateur de vitesse. • Models TD 100, 100x, 125, 150 & 200x are double insulated and are not provided with external ground wire •...
- Page 4 ENGLISH TD - MIXVENT SERIES The TD - MIXVENT mixed flow range of in-line duct exhaust fans have been manufactured in accordance with the rigorous standards of production as defined by the International Quality Standards ISO 9001. All the components have been checked and tested at the end of the manufacturing process.
- Page 5 All models include a robust mounting bracket which enables easy and quick installation of the fan. See Figure (2) Installation Diagrams For TD - MIXVENT Duct Fans. Ductwork connection should be made with duct tape or duct fast-clamps (available through your local distributor) to ensure a good seal and secure connection.
