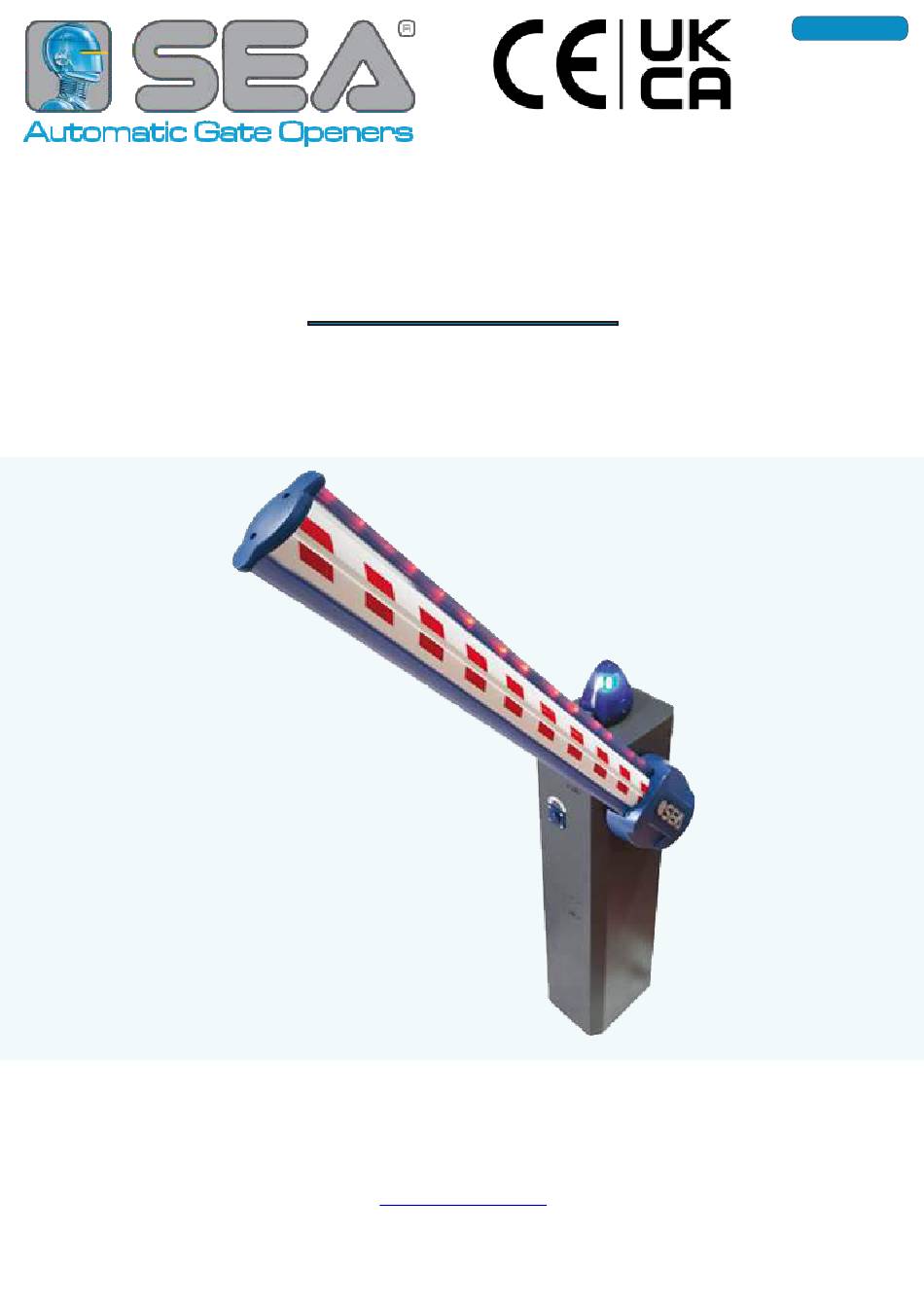

- Page 1 ENGLISH International registered trademark n. 804888 SPRINT HYDRAULIC BARRIER S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Telephone: + 39 0 861 588341 - Fax: + 39 0 861 588344 www.seateam.com 67411055-A REV. 04 - 03/2023...
-
Page 2: Technical Features

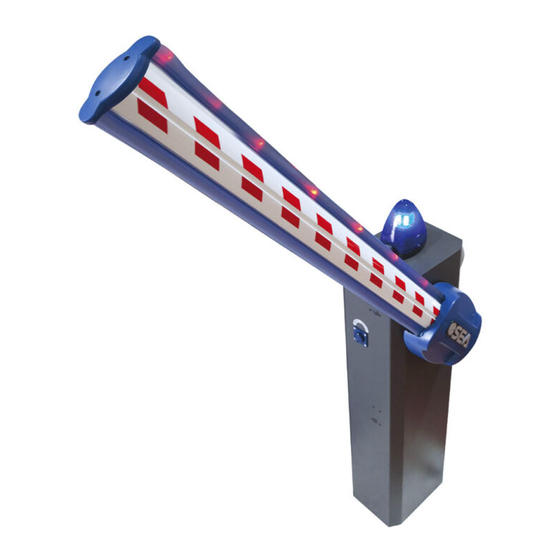

ENGLISH International registered trademark n. 804888 TECHNICAL FEATURES SPRINT is an high speed hydraulic barrier for intensive application, designed for arms up to 6 m All models are , to allow a perfect and safe closing of the arm IRREVERSIBLE... - Page 3 ENGLISH International registered trademark n. 804888 TECHNICAL DATA SPRINT IV SPRINT (1 L) SPRINT (2 L) SPRINT FAST SPRINT BR 36V 230V (±5%) 50/60 Hz OWER SUPPLY 230V YDRAULIC UNIT 36Vac 270 W 220 W OWER 220 W 250 W...
- Page 4 ENGLISH International registered trademark n. 804888 1 - LEFT OR RIGHT HAND ARM ARRANGEMENT The SPRINT barrier can be installed either for left or right-hand opening The opening direction depends on the position of the balancing spring - see LEFT...
- Page 5 International registered trademark n. 804888 4 - LEFT OR RIGHT HAND INSTALLATION OF THE PISTON AND SPRING SPRINT barrier is supplied with left-hand opening arm as standard; it is possible to change the opening direction by moving both the piston and the balancing spring.
- Page 6 5 mm Fig. 13 The «LIGHT TH» arm for SPRINT barrier is supplied in a single module for lengths up to 3 meters, and in two modules «FIX» + «MB» with joint, for lengths over 3 meters. For the assembly of the modules, please refer to the arm technical instructions.
-
Page 7: Skirt Installation
ENGLISH International registered trademark n. 804888 6 - SKIRT INSTALLATION (OPTIONAL) Fig. 14 7 - ARM BALANCING OPERATION For the correct balancing of the arm, it is recommended to unscrew the piston from the rocker arm, as shown in 4 - Fig. CHAPTER 8 or Fig. - Page 8 8.5. Re-lock the arm as shown in chapter 13 Fig. 16 9 - ADJUSTMENT OF THE THRUST FORCE ( PASS VALVES The SPRINT barrier is factory set to a force of 15 KgF in order to ensure the anti-crushing safety, so it is...
-
Page 9: Electric Wirings
The cap is on the top of the hydraulic unit WITH THE BLACK BREATHER CAP - Fig. 18 model the cap is hidden SPRINT BR behind the switching, so pass the hand behind the metal support to unscrew the cap. Fig. 18 11 - DRILLING HOLES DIAGRAM FOR LED LIGHTS CABLES PASSAGE 11.1. -
Page 10: Periodic Maintenance
ENGLISH International registered trademark n. 804888 PART FOR BOTH INSTALLER AND END-USER ALL THE UNLOCKING AND LOCKING OPERATIONS AND ALL PERIODIC MAINTENANCE OPERATIONS MUST BE CARRIED OUT IN ABSENCE OF POWER SUPPLY 13 - RELEASE SYSTEM 13.1. T O RELEASE THE BARRIER - Open the barrier housing door, using the special key supplied - Fig. - Page 11 14. Transit through the leaves is allowed only when the gate is fully open. 15. The User must not attempt to repair or to take direct action on the system and must solely contact qualified SEA personnel or SEA service centers. The User can apply only the manual function of emergency.
- Page 12 International registered trademark n. 804888 SEA S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Tel. +39 0 861 588341 r.a. Fax +39 0 861 588344 www.seateam.com...
