ITALIANO
ENGLISH
FRANÇAIS
International registered trademark n. 804888
VELA INDUSTRIAL
BARRIERA OLEODINAMICA
HYDRAULIC BARRIER
BARRIERE HYDRAULIQUE
SEA
S.p.A.
Zona Industriale Sant'Atto - 64100 - Teramo - ITALY
Telephone: + 39 0 861 588341 - Fax: + 39 0 861 588344
www.seateam.com
67411050
REV. 04 - 07/2023
Advertisement
Table of Contents
Related Manuals for SEA VELA INDUSTRIAL
Summary of Contents for SEA VELA INDUSTRIAL

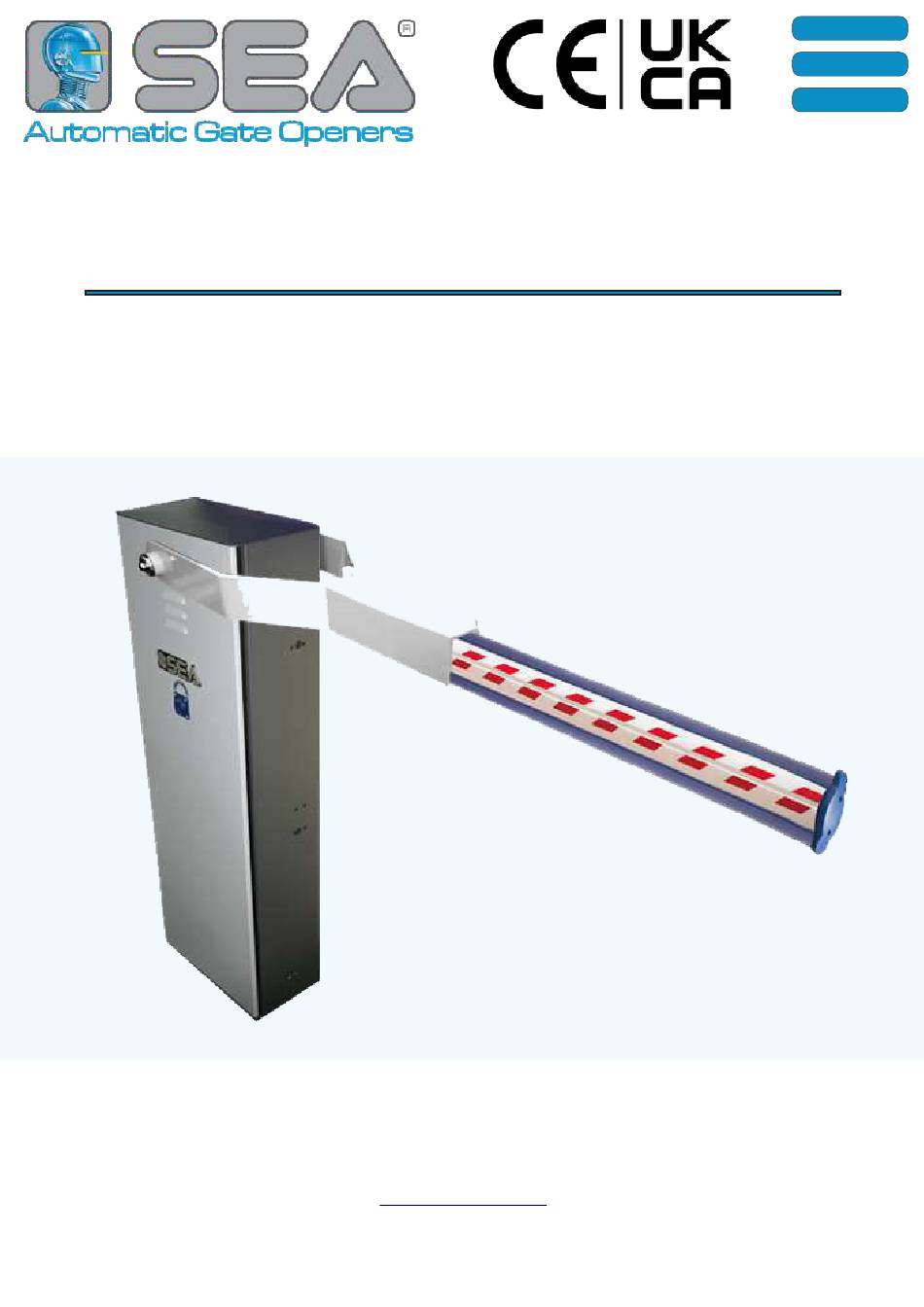

- Page 1 ITALIANO ENGLISH FRANÇAIS International registered trademark n. 804888 VELA INDUSTRIAL BARRIERA OLEODINAMICA HYDRAULIC BARRIER BARRIERE HYDRAULIQUE S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Telephone: + 39 0 861 588341 - Fax: + 39 0 861 588344 www.seateam.com 67411050 REV.
-
Page 2: Technical Features
ENGLISH International registered trademark n. 804888 TECHNICAL FEATURES VELA INDUSTRIAL is an hydraulic barrier for semi-intensive applications in large driveways, designed for arms up to 8 m All models are , to allow a perfect and safe closing of the arm... - Page 3 ENGLISH International registered trademark n. 804888 TECHNICAL DATA VELA INDUSTRIAL 230V - IV VELA INDUSTRIAL 120V - IV 230V (±5%) 50/60 Hz 120V (±5%) 50/60 Hz OWER SUPPLY 220 W 220 W OWER 1430 rpm 1550 rpm OTOR ROTATION SPEED SAGE RATE - 20°...
- Page 4 ENGLISH International registered trademark n. 804888 1 - LEFT OR RIGHT HAND ARM ARRANGEMENT The VELA INDUSTRIAL barrier can be installed either for left or right-hand opening The opening direction depends on the LEFT HAND RIGHT HAND position of the balancing spring - see...
- Page 5 4 - LEFT OR RIGHT HAND INSTALLATION OF THE PISTON AND SPRING VELA INDUSTRIAL barrier is supplied with left-hand opening arm as standard; it is possible to change the opening direction by moving both the piston and the balancing spring.
- Page 6 PLASTIC PROFILE FOR ED INSERTION The arm of the VELA INDUSTRIAL barrier is made up of two modules «SPLIT» and «JUICE», joined by a joint. «SPLIT» has a fixed length of 4 metres; «JUICE» is of variable length, depending on your needs.
-
Page 7: Skirt Installation
ENGLISH International registered trademark n. 804888 6 - SKIRT INSTALLATION (OPTIONAL) Fig. 13 7 - ARM BALANCING OPERATION Fig. 14 For the correct balancing of the arm, it is recommended to unscrew the piston from the rocker arm, as shown in 4 - Fig. - Page 8 8.7. Lift and screw the plate back on PLATE DOWN 9 - ADJUSTMENT OF THE THRUST FORCE ( PASS VALVES The VELA INDUSTRIAL barrier is factory set to a force of 15 KgF in order to ensure the anti-crushing safety, so...
-
Page 9: Electric Wirings
ENGLISH International registered trademark n. 804888 10 - BREATHER CAP REPLACEMENT 10.1. Before starting the barrier, remove REMOVE THE RED the red transport cap and replace it with TRANSPORT CAP the black one supplied and equipped with the airhole; REPLACE IT The cap is on the top of the hydraulic unit WITH THE BLACK BREATHER CAP... -
Page 10: Periodic Maintenance
ENGLISH International registered trademark n. 804888 PART FOR BOTH INSTALLER AND END-USER ALL THE UNLOCKING AND LOCKING OPERATIONS AND ALL PERIODIC MAINTENANCE OPERATIONS MUST BE CARRIED OUT IN ABSENCE OF POWER SUPPLY 12 - RELEASE SYSTEM 12.1. T O RELEASE THE BARRIER - Open the barrier housing door, using the special key supplied - Fig. - Page 11 14. Transit through the leaves is allowed only when the gate is fully open. 15. The User must not attempt to repair or to take direct action on the system and must solely contact qualified SEA personnel or SEA service centers. The User can apply only the manual function of emergency.
- Page 12 International registered trademark n. 804888 SEA S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Tel. +39 0 861 588341 r.a. Fax +39 0 861 588344 www.seateam.com...
