SEA VERG 24V Manual

Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888

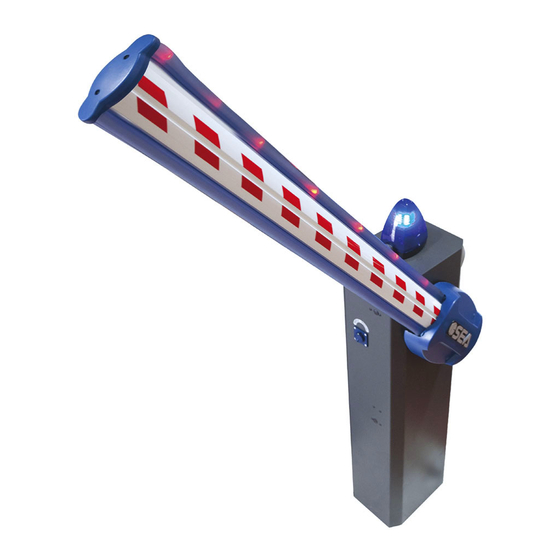

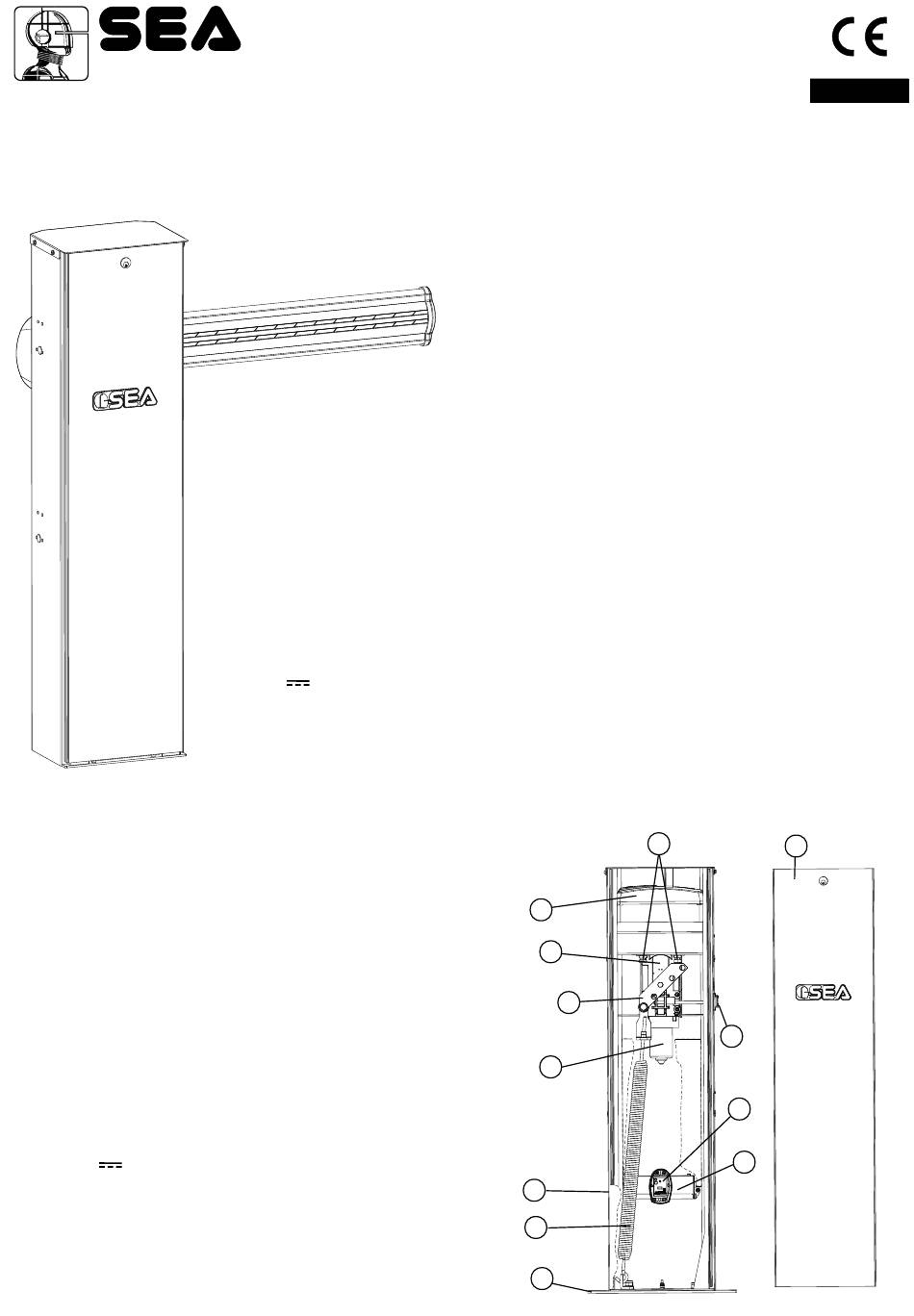

VERG 24V BARRIER

Main components:

1) Adjustable mechanical stop
2) Manual release system
3) Rocker arm
4) VERG 24V casing cover
5) Balancing spring
6) Electronic control unit
7) VERG anchoring plate (optional)
8) Emergency batteries 2x12V 2Ah (optional)
9) 24V electric motor
10) Gearbox
11) VERG casing
12) Battery charger circuit (optional with battery kit)
Cod. 67411465
®
The automation system is composed of the following elements:
1 Adjustable mechanical stop
2 Manual release with key
3 Galvanised steel rocker arm.
4 VERG 24V, casing cover with lock and DIN key
5 Balancing spring.
6 Electronic control unit.
7 Foundation plate out of galvanized steel
8 Emergency batteries 2x12V 2Ah.
9 24V - 2400 rpm electric motor
10 Reduction gear
11 Cataphoresis-treated and polyester painted VERG 24V casing, for outside, protects
all included mechanical and electronic devices from fire, flood, lightning, etc.
Predisposed for the application of photocells, key switch, proximity reader. Stainless
steel casing available on request.
12 Battery charger circuit
Rev.00 - 12/2012

General features

VERG 24V is an electro-mechanical barrier (2, 3, 4, 5 m)
recommended for the automation of access points which
require a high opening/closing speed (parking lots,
motorways, airports, etc.) and frequent use features. The
automation includes an anti-crush security system with
adjustable sensitivity, which guarantees a barrier force
value not exceeding 15 kg, thus protecting people and
objects from any accidents. A highly reliable slowdown
device guarantees the total control of the forces of inertia.
The emergency batteries guaranty at least 15 opening
cycles (depending on the installed accessories) in case of
power failure and a release system allows the manual
opening in case of emergency.
