O P E R AT I N G I N S T R U C T I O N S
Use these Operating Instructions to assemble and use
the 6054 Network Control Module and the 6055 Docking
Module.
The 6054 Network Control Module controls one to four
6055 Docking Modules, which provides Pathfinder® 6057
printer charging and Ethernet communication capability
The 6054 Network Control Module and 6055 Docking
Module can only be used with printers that contain the
approved battery as listed in the printer documentation.
Refer to the Operator's Handbook for additional important
battery safety information.
Follow the operating and storage limit specifications
listed at the end of these instructions. Otherwise, the
battery may permanently lose its charge capacity.
Note:
You must charge the printer before using it.

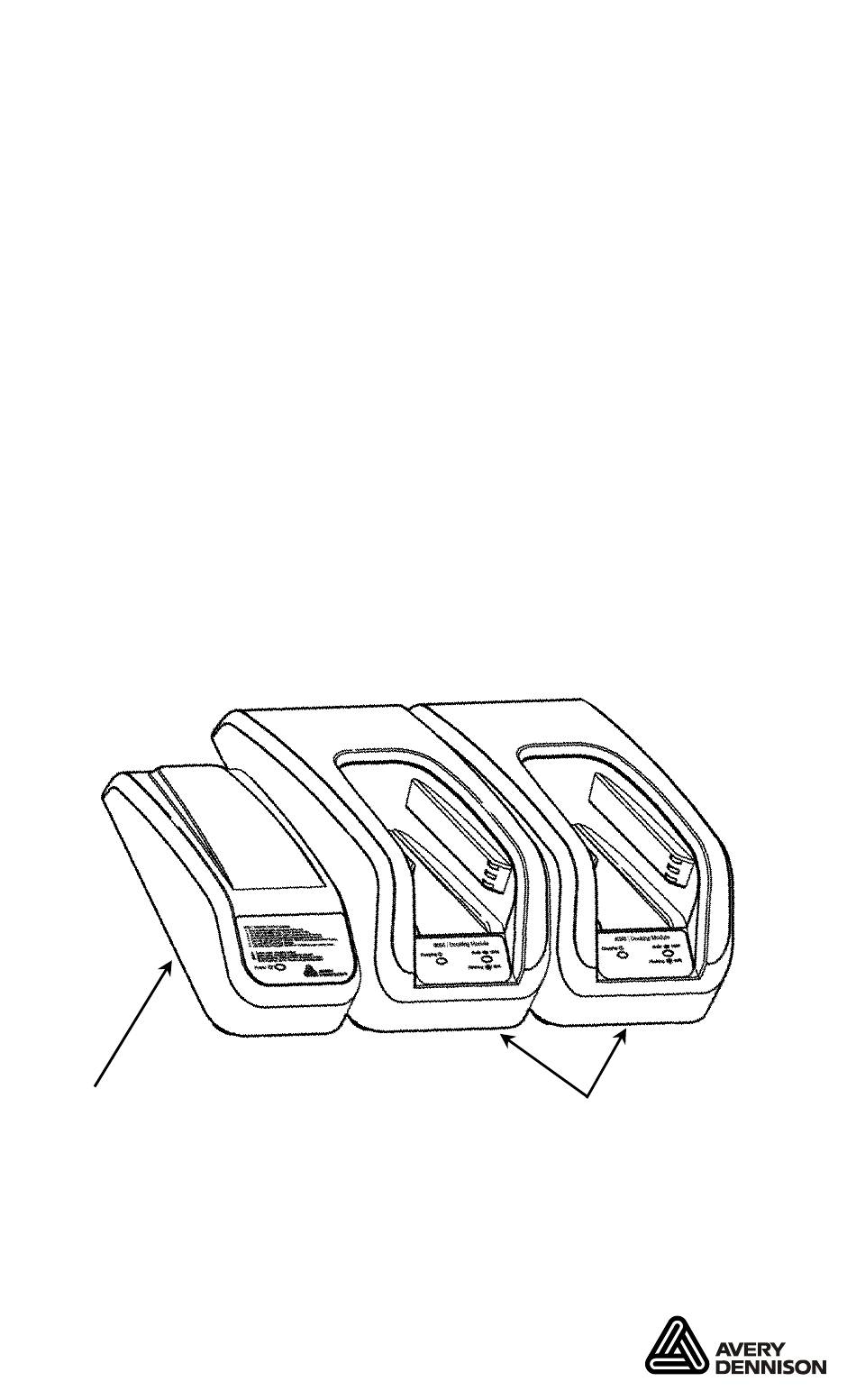

6054 Netw ork
Control Module
TC6054OI Rev. AD 9/13
6055 Docking Modules
©2010 Avery Dennison Corp. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avery Dennison 6054
Summary of Contents for Avery Dennison 6054
- Page 1 O P E R AT I N G I N S T R U C T I O N S Use these Operating Instructions to assemble and use the 6054 Network Control Module and the 6055 Docking Module. The 6054 Network Control Module controls one to four 6055 Docking Modules, which provides Pathfinder®...
- Page 2 A s s e m b l i n g t h e N e t w o r k C o n t r o l M o d u l e 1. Turn over the 6055 Docking Module and 6054 Network Control Module.
- Page 3 4. Loosen the two screws on the 6054 Network Control Module and slide the 6054 Network Control Module onto the Docking Module’s connector plate. Tighten the screws. 5. Using a Philips screwdriver, attach the end cap to the end of the 6055 Docking Module.
- Page 4 80W, LPS. along with the surge protector model Clone F1W. A fim de atender aos requisitos de conformidade do Brasil, o Network Module, cujo modelo é 6054, deve ser alimentado pela fonte de modelo: FSP FSP084-DMAA1, Input: 100-240Vac, 50-60Hz, 1.3A, Output: 12Vdc, 7.0A, LPS.
- Page 5 Docking Module until you hear a click. Pow er LED The green power LED on the 6054 Network Control Module turns on when there is power to it. Charging time can take up to three hours. It takes approximately 1 hour to reach the 80% level (where it is now usable).
- Page 6 Status Printer Error White Out of Supply Blue Low Battery When printer is docked (with charger model 6054/6055) Blinking green Network connection Blinking magenta No network connection Note: When the LED is blinking red, the printer is receiving information and should not be turned off, removed from or placed in the docking station.
- Page 7 S p e c i f i c a t i o n s Operating Limits: Temperature 32°F to 104°F (0°C to 40°C) Humidity 5% to 90% non-condensing Storage Limits: Temperature -40°F to 158°F (-40°C to 70°C) Humidity 5% to 90% non-condensing One Docking Module 8.6”...
