O P E R AT I N G I N S T R U C T I O N S
Use these Operating Instructions to assemble and use
the 6054 Network Control Module and the 6055 Docking
Module.
The 6054 Network Control Module controls one to four
6055 Docking Modules, which provides Pathfinder® 6057
printer charging and Ethernet communication capability
The 6054 Network Control Module and the 6055 Docking
Module can only be used with printers that contain the
approved battery as listed in the printer documentation.
Refer to the Operator's Handbook for additional important
battery safety information.
Follow the operating and storage limit specifications
listed at the end of these instructions. Otherwise, the
battery may permanently lose its charge capacity.
Note:
You must charge the printer before using it.

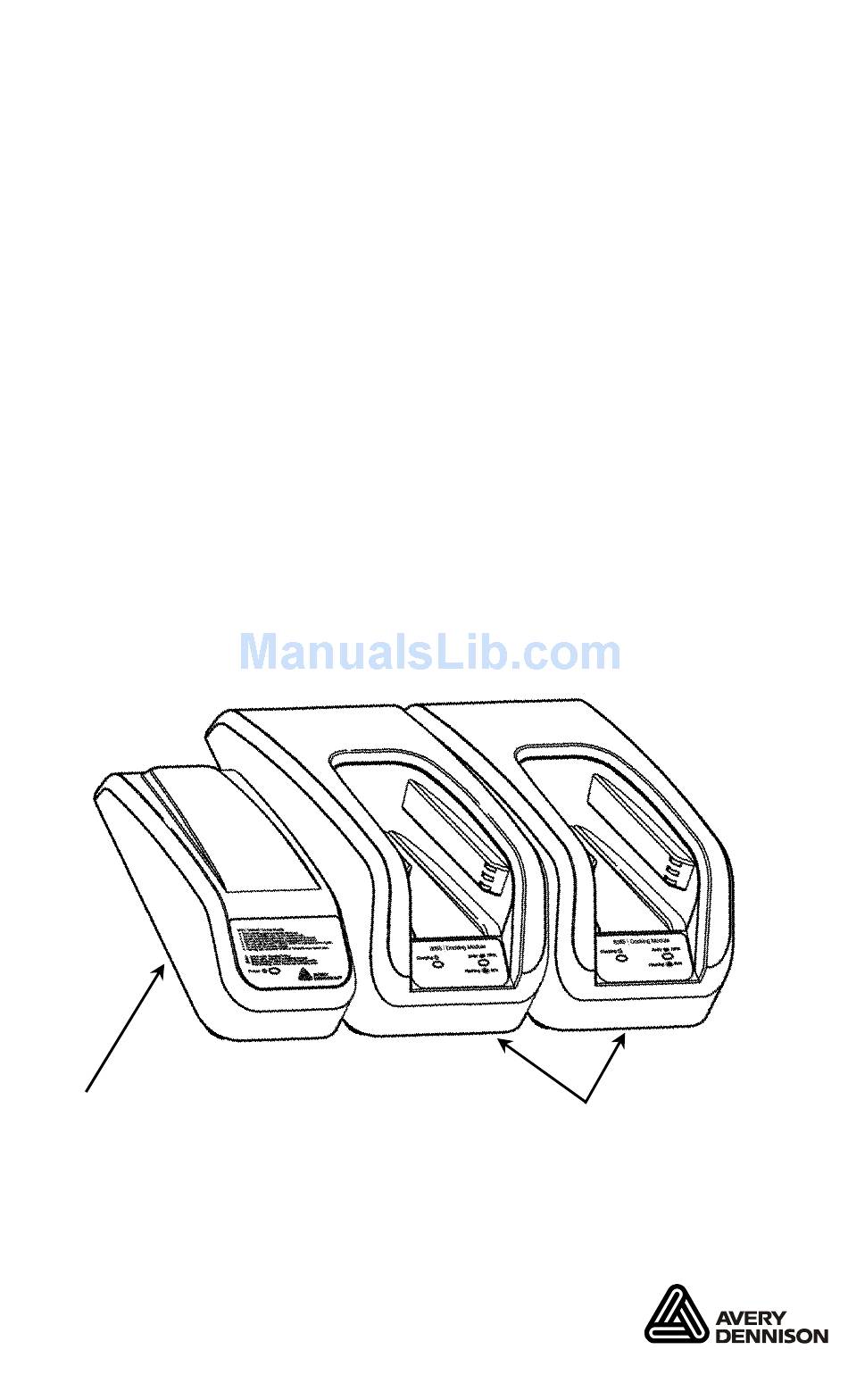

6054 Netw ork
Control Module
TC6054OI Rev. AA 5/11
6055 Docking Modules
©2010 Avery Dennison Corp. All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Avery Dennison 6055
Summary of Contents for Avery Dennison 6055
- Page 1 O P E R AT I N G I N S T R U C T I O N S Use these Operating Instructions to assemble and use the 6054 Network Control Module and the 6055 Docking Module. The 6054 Network Control Module controls one to four 6055 Docking Modules, which provides Pathfinder®...
- Page 2 A s s e m b l i n g t h e N e t w o r k C o n t r o l M o d u l e 1. Turn over the 6055 Docking Module and 6054 Network Control Module.
- Page 3 Docking Module’s connector plate. Tighten the screws. 5. Using a Philips screwdriver, attach the end cap to the end of the 6055 Docking Module. 6. Carefully turn over the Network Control Module. You can connect up to four Docking Modules with each Network Control Module.
- Page 4 S e t t i n g u p t h e N e t w o r k C o n t r o l M o d u l e 1. Plug the supplied power cable into the Network Control Module.
- Page 5 Reading the Ethernet LEDs When the communication port is connected, two LEDs indicate the following: Green Yellow LED Blinking Yellow Full Duplex Mode Half Duplex Mode Green Active Ethernet Link Receiving/Transmitting data C h a r g i n g t h e B a t t e r y Charge the battery while it is inside the printer.
- Page 6 The green power LED on the 6054 Network Control Module turns on when there is power to it. Charging time can take up to three hours. It takes approximately 1 hour to reach the 80% level (where it is now usable). To reach 100%, it takes approximately 2 hours more.
- Page 7 S p e c i f i c a t i o n s Operating Limits: Temperature 32°F to 104°F (0°C to 40°C) Humidity 5% to 90% non-condensing Storage Limits: Temperature -40°F to 158°F (-40°C to 70°C) Humidity 5% to 90% non-condensing One Docking Module Length: 8.6”...
