Philips Consumer Lifestyle

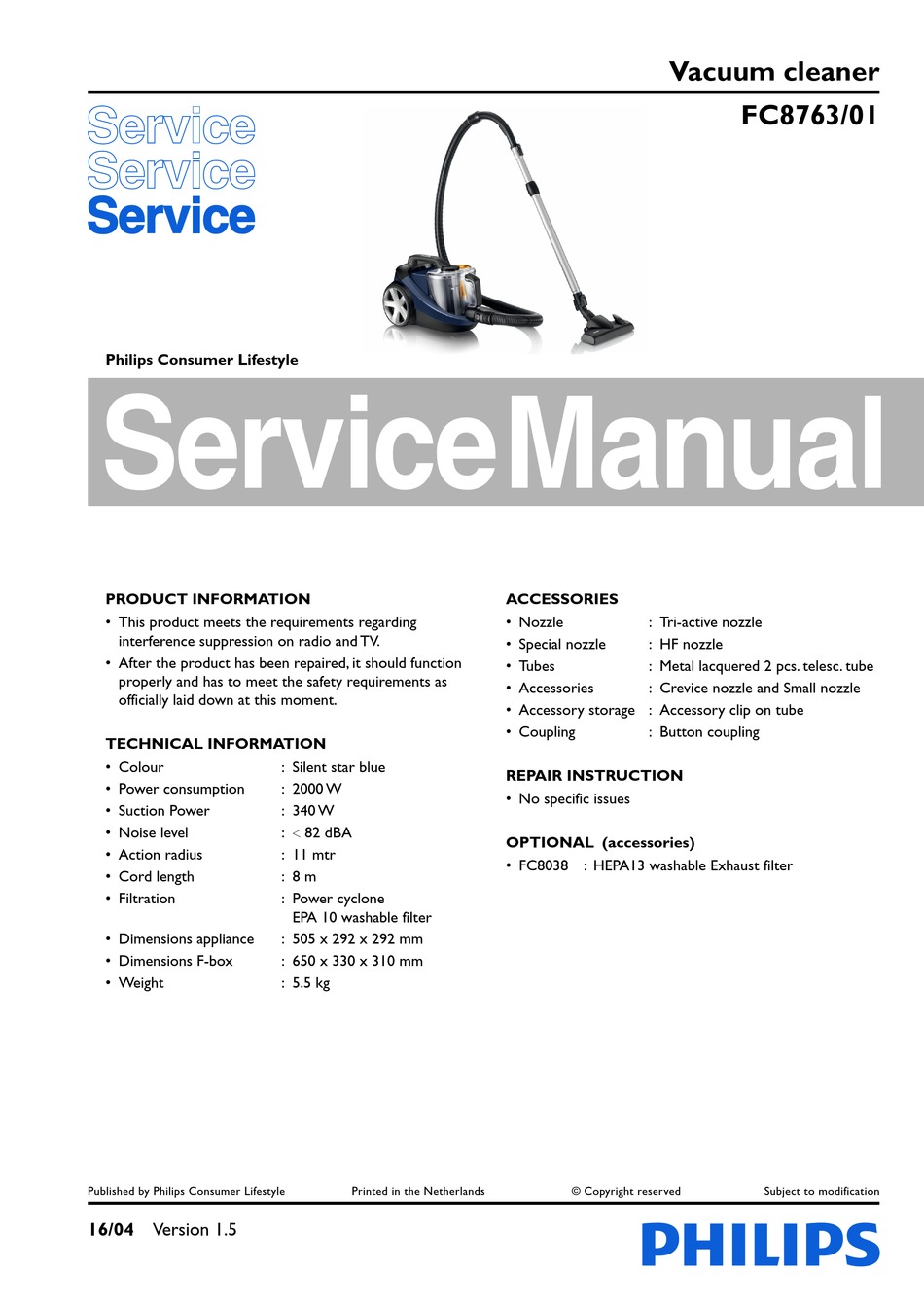

Service Manual
PRODUCT INFORMATION
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
• Colour
• Power consumption
• Suction Power
• Noise level
• Action radius
• Cord length
• Filtration
• Dimensions appliance
• Dimensions F-box
• Weight
Published by Philips Consumer Lifestyle
16/04 Version 1.5
: Silent star blue
: 2000 W
: 340 W
: 82 dBA
: 11 mtr
: 8 m
: Power cyclone
EPA 10 washable filter
: 505 x 292 x 292 mm
: 650 x 330 x 310 mm
: 5.5 kg
Printed in the Netherlands
Vacuum cleaner
ACCESSORIES
• Nozzle
: Tri-active nozzle
• Special nozzle
: HF nozzle
• Tubes
: Metal lacquered 2 pcs. telesc. tube
• Accessories
: Crevice nozzle and Small nozzle
• Accessory storage : Accessory clip on tube
• Coupling
: Button coupling
REPAIR INSTRUCTION
• No specific issues
OPTIONAL (accessories)
• FC8038 : HEPA13 washable Exhaust filter
© Copyright reserved
FC8763/01
Subject to modification
Advertisement
Related Manuals for Philips FC8763/01
Summary of Contents for Philips FC8763/01
- Page 1 : 505 x 292 x 292 mm • Dimensions F-box : 650 x 330 x 310 mm • Weight : 5.5 kg Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 16/04 Version 1.5...
- Page 2 FC8763/01 DISASSEMBLY- AND RE-ASSEMBLY ADVISE • To remove the Bucket, unlock the top handle by pushing • The foam in the Inlet filter assy can be cleaned. the button on the lid of Bucket (see picture). By pulling the plastic ring the foam filter can be removed without touching the dirt on the filter (see picture).
- Page 3 FC8763/01 DISASSEMBLY- AND RE-ASSEMBLY ADVISE • To reach the inner parts for repair, Upper housing (18) • When lifting at position push the button a little has to be removed. First the On/Off button (17) and towards the front side.
- Page 4 FC8763/01 DISASSEMBLY- AND RE-ASSEMBLY ADVISE • After removing the two buttons remove the 4 screws • After removing the upperhousing, Hose connection (10) at the back and the 5 screws at the front of the upper and Bucket inlet sealing (13) are accessible. To replace housing (see pictures).
-
Page 5: Electrical Diagram
FC8763/01 ELECTRICAL DIAGRAM ACIN Fuse 2W12k 2W12k 180k M Motor 1N4007 0.33F 275V BTA16-600B HV R37 HV R37 ½ W 1N4007 470F 100R ACIN 5-11... -
Page 6: Parts List
FC8763/01 PARTS LIST Service code Description Remark 9965 100 51329 Bucket assy Smoke bl. transp. / Met. silver 9965 100 51299 Lid assy Smoke bl. transp. / Met. silver 9965 100 51311 Unlock button Deep black 4322 005 33153 Inlet fi lter assy... - Page 7 FC8763/01 EXPLODED VIEW 7-11...
- Page 8 FC8763/01 EXPLODED VIEW 8-11...
- Page 9 FC8763/01 EXPLODED VIEW 9-11...
- Page 10 FC8763/01 EXPLODED VIEW 10-11...
- Page 11 FC8763/01 Version history 13/12 Version 1.1 : FC8763/01 initial release. 14/07 Version 1.2 : On page 1 at Technical Information, changed Hepa 12 Super Clean Air into EPA 10 washable fi lter. In Parts List at Pos. 6, removed 4322 004 93711 HEPA 12 Filter Cougar and changed 4322 004 93791 HEPA 10 Filter Cougar into 4322 004 93792 EPA 10 Filter.
