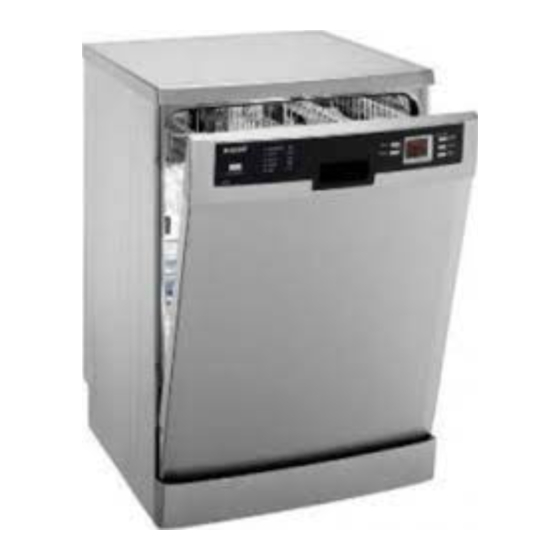

- Page 1 Dishwasher Instruction Manual 6551 H 6551 HI 6551 HS...
- Page 2 Dear customer, Please read carefully right through this instruction booklet before installing or operating your dishwasher. The following instructions should prevent the risk of personal injury and/or damage to the appliance. Please keep these documents in a safe place for later reference. This operating manual has been written for several different machines, and some of the features mentioned here may not apply to your particular model.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Getting To Know Your Changing a Program Programming the Delayed Start Machine Usage of Child Lock View of the Machine Salt Indicator Rinse Aid Indicator 2 Safety Instructions Rinse Aid Indicator Setting Before Installation Starting Your Machine Before First Use Child Safety 6 How to clean your... -
Page 4: Getting To Know Your Machine
Getting To Know Your Machine View of the Machine �� � � �� � � �� � � � � � Upper dish basket with shelf �� Guide rail for the upper dish basket Salt container Cutlery basket Detergent dispenser Door Control panel Filters... -
Page 5: Safety Instructions
The request can be Heat output: 1800 W done by e-mail through: This device corresponds to standard.test@arcelik.com the following EU directives: Please do not forget to write the model 2006/95/EC: Low Voltage Directive code and stock code information of... -
Page 6: For Daily Operation
detergent leftovers. Problems • The water in the dishwasher is not • Repairs and modifications to the drinking water. Danger of caustic appliance may only be carried injuries. out by qualified customer service • Always place long and sharp/ personel. pointed objects (e.g. -
Page 7: Directions For Assembly
Directions for Assembly Safety notes for installation Installing Your Dishwasher • Prior to installing and using your Choose a suitable location for your appliance, please check it for possible dishwasher. Take care to ensure transit damage. that the appliance is stable on a If the appliance is damaged, please level surface. -
Page 8: Water Connection
Water connection required, use a filter insert to filter • deposits from the pipes. There are two different types of water inlet hoses: Check that the connection does not - Cold water inlet hose (up to 25°C) leak. - Hot water inlet hose (up to 60°C)please check which one is Important applicable to your model. -
Page 9: Water Drainage
Water drainage Extension hoses If a hose extension is required, a Connecting the drainage hose. drainage hose of equal quality must be used. Take care to ensure that the drainage hose is not bent or squeezed. The maximum length must not exceed 4m. -
Page 10: Using Your Dishwasher
Materials used are recyclable Packaging materials may be according to their labelling. Reuse, dangerous to children. Reusable recycling of materials and further substances may be dropped off at your reutilization of used products are local disposal facilities. You may obtain important contributions to protect our further information from your local environment. -
Page 11: When Operating For The First Time
When operating for the first � time: • Pour 1 litre of water into the salt container (Fig. C). • Pour the salt into the container with the aid of the salt funnel provided (Fig. D). • Pour in enough salt to fill the container. - Page 12 Important The electricity and water connections of the dishwater must be in compliance with the instructions in this booklet. Softening the water Dishwashers require fairly soft water. If the hardness exceeds 6°dH lime scale will form on crockery. To avoid this an automatic system adds a special salt to soften the water so that you obtain the best possible cleaning and drying performance.
-
Page 13: Filling The Rinse Aid Dispenser
Filling the Rinse Aid Dispenser Rinse aids allow washing water to rinse off more cleanly and prevent watermarks or streaks on the dishes. Only use rinse aid designed for use in dishwashers. If you use “2 in 1” or “3 in 1“ 1013 �... -
Page 14: Detergent
Detergent The detergent container holds a total of 40 cm³ of detergent (1). Please use detergents produced specially for the dishwashers in your When the dishwasher is fully loaded machine. and the dishes are very dirty, we recommend filling the detergent Keep the opened detergent container up to the 25 cm³... -
Page 15: Multipurpose Detergents
Excessive usage of powder detergents Contact the detergent producer if your can cause the detergent not dissolve dishes are wet and/or if you notice lime completely and can also cause spots particularly on your glasses after scratches on the glassware. the washing program is over. -
Page 16: Suggestions For Loading The Dishwasher
• 4 folding plate support rods The movement of the spray arms (depends on the model) must not be hindered • There are four separate "folding plate Place all large and very dirty items support rods" in the lower basket of in the lower basket. - Page 17 2 folding plate support rods � (depends on the model) � There are two separate "folding plate support rods" in the lower basket of your dishwasher designed to allow 1054 you more space to accommodate saucepans and large bowls in the lower basket.
- Page 18 Variable cutlery basket (depends on the model) The variable cutlery basket can be separated into 3 parts depending on the amount of cutlery and the degree of dirtiness. Small cutlery basket sections also fit into the upper basket. � To do this, turn the lock on the handle to the right (A).
- Page 19 Cutlery Basket Movable Cutlery Basket (depends on the model) (depends on the model) Designed to allow free placement of the dishes according to their size, the movable cutlery basket can slide over the tines to the left (A) and right (B) side.
- Page 20 Basket insert with variable height settings (depends on the model) You can also use this insert in the lower basket for glasses and long- handled cutlery / utensils. If you do not need the insert, fold the rack upwards at the angle shown (A). Push the entire insert upwards (B).
-
Page 21: Loading Suggestions
Loading suggestions Load the upper basket with dessert plates, cups, glasses etc. 1027 Upper basket with variable height setting (depends on the model) The upper basket is equipped with a lifting mechanism which enables you to change the height of the basket without having to remove it from the dishwasher, even if it is fully loaded. - Page 22 Upper basket with variable height setting (depends on the model) The upper basket is equipped with a lifting mechanism which enables you to change the height of the basket without having to remove it from the dishwasher, even if it is fully loaded. �...
- Page 23 Height setting with empty basket (depends on the model) In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights. Release the latches on both the right � and left tracks of the upper basket by pushing them outwards (C).
- Page 24 Glass Support (depends on the model) When placing the glasses or goblets with a long grip, lean them against the glass support, the edge of the basket or the shelf but not against the other pieces. Do not lean the long glasses against each other, otherwise they do not remain stable during washing cycle and may get damaged.
-
Page 25: Program Selection And Operating Your Machine
Program Selection and Operating Your Machine � � � � � � � � � On / Off Button Extra Drying Button (depends on Start/Pause/Cancel Button the model) Display Combi Tablet Button Program Selection Button Delayed Start Button Half Load Button Handle ��... -
Page 26: Button And Button Descriptions
Button and Button programs can change depending on the model you have purchased. Descriptions On / Off Button (1) Half Load Button (5) When you press the On/Off button, If you want to run your machine without the display switches on with the last loading it completely, place your dishes program used and it dims when you into the machine as you desire. -
Page 27: Program Selection
Delayed Start Button (8) Tablet (7) and Delayed Start (8) You can delay the start of the selected functions. program until 24 hours with increments You will obtain a better drying of 1 hour by means of the Delayed performance if you select the Combi Start Function. -
Page 28: Changing A Program
(11) displays “00:00”. You may select indicator sand glass (13) and play and operate a new program following icon (12) will remain lit on the display the program cancellation process. during the delayed start countdown There might be residues of detergent and the delay time indicator (11) will or rinse aid left in the machine and/or display the remaining time. -
Page 29: Usage Of Child Lock
Pause / Cancel button (2). Set the come on even if the rinse aid container desired time by pressing the Delayed is empty. Start Button (8). Start the countdown for the new time by pressing the Start / Rinse Aid Indicator Setting Pause / Cancel button (2) again. - Page 30 • Press On/Off button. for about 15 minutes after they • Check if the salt and rinse aid are washed in order to have them warning indicators (18,14) light cooled down. Your dishes will dry and add salt and/or rinse aid if in a shorter time if you leave the needed.
- Page 31 30 GB...
-
Page 32: How To Clean Your Dishwasher
How to clean your dishwasher Cleaning your machine at regular intervals ensures longer product life and reduces the risk of reccurring problems. Always unplug the machine and � turn off the water supply before � cleaning. Use a gentle household cleaner for the outside and the door seals. -
Page 33: Cleaning The Spray Arms
Cleaning the spray arms Cleaning the filter inset in the water inlet hose (depends on the model) Dirt or calcium residue may block the Dirt from deposits in the water pipes is nozzles on the spray arms. For this prevented by a filter in the water inlet reason, regularly check the spray hose. -
Page 34: Troubleshooting
Troubleshooting: What to do if the dishwasher will not run • Check that the mains plug is properly connected. • Are all fuses working? • Is the water supply fully turned on? • Is the dishwasher door closed firmly? • Have you pressed the On/Off button? •... - Page 35 Inadequate rinse aid Increase rinse aid setting or add rinse aid into rinse aid compartment. Unsealed detergent dispenser lid Always ensure that the detergent compartment lid is closed tightly after every detergent filling process. Drying Disorderly placement Load your dishes as described in the manual. Inadequate rinse aid Increase rinse aid setting or add rinse aid into rinse aid compartment.
- Page 36 1035 Lime Stains, Hazy Look Inadequate rinse aid Increase rinse aid setting or add rinse aid into rinse aid compartment. Insufficient water softening In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.
- Page 37 1041 Scratch / Break In Glassware Kitchenware containing Aluminum Kitchenware that contains aluminum should not be washed in dishwashers. Salt leakage* Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine.
- Page 38 1038 Detergent Remains In The Detergent Dispenser Damp detergent compartment Make sure that the detergent dispenser is well dried prior to filling it with detergent. Putting detergent in the detergent dispenser long before washing Take care that detergent is put shortly before startup of washing. Blocking the opening of detergent dispenser lid dwing washing Ensure that the lid of detergent dispenser is not blocked by improper loaded dishes.
- Page 39 Leaving the dishes in the dishwasher for a long time If you are not going to run your dishwasher immediately, load the dishes into your machine after scraping the excessive soil on them and do not tightly close the door of the machine. Every other day, perform washing without detergent in the shortest program for products with program selecting feature.
-
Page 40: Service
Service If your appliance ever malfunctions, check the notes and advice given in the operating manual. If this does not fix the problem, our customer service staff are available to assist you. 39 GB...
