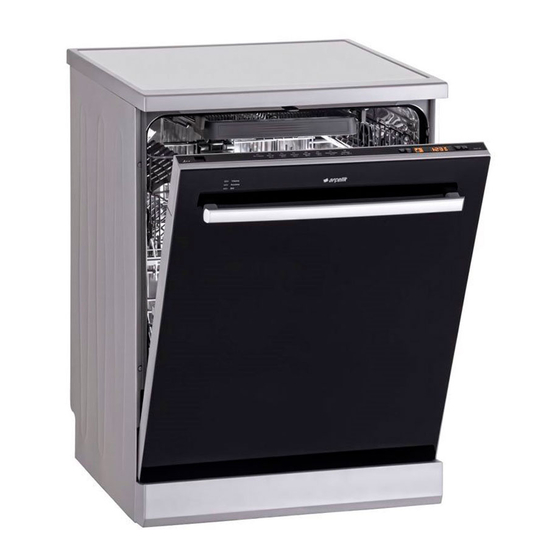

6384 HC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6384 HC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for arcelik 6384 HC

Summary of Contents for arcelik 6384 HC

  • Page 1 6384 HC...
  • Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure. Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use.

  • Page 3: Table Of Contents

    CONTENTS Dishwasher Maintenance and cleaning Cleaning the outer surface of the product 24 Important safety instructions Cleaning the interior of the machine General safety Cleaning the filters Intended use Cleaning the hose filter Children’s safety Cleaning the impellers Installation Troubleshooting Appropriate installation location Connecting water supply Connection to the drain...

  • Page 4: Dishwasher

    Dishwasher Overview �� �� �� � �� � � �� � �� � � � � � 1.Upper basket with rack �� 2.Upper impeller 3.Lower impeller 4.Filters 5.Lower basket 6.Control panel 7.Door 8.Detergent dispenser 9.Silverware basket 10.Lower impeller slot 11.Salt reservoir lid 12.Upper basket rail 13.Ceiling silverware basket 14.Tabletop (depends on the model)
  • Page 5 Technical specifications This product complies with the following EU directives: Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2006/95/EC, 2004/108/EC, 93/68/EC, IEC 60436, EN 50242 Power input 220-240 V, 50 Hz Total power consumption 1900-2200 W Heater power consumption...

  • Page 6: Important Safety Instructions

    Important safety instructions This section contains safety cleaning and repairing procedures. • Always have the installation and instructions that will help to get protected from risk of personal injury repairing procedures carried out by the Authorised Service Agent. or property damage Failure to follow these instructions shall void all Manufacturer shall not be held warranties.

  • Page 7: Children's Safety

    • This product should not be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product.

  • Page 8: Installation

    Installation Refer to the nearest Authorised flat floor that has sufficient load Service Agent for installation of your carrying capacity! The product product. To make the product ready must be installed on a flat surface for use, make sure that the electricity, in order for the door to be closed tap water supply and water drainage comfortably and securely.

  • Page 9: Connection To The Drain

    Permitted water temperature: up to Connection to the drain 25°C Water discharge hose can directly be The dishwasher may not be connected connected to the drain hole or sink’s to open warm water devices or flow- drainage. The length of this connection through water heaters.

  • Page 10: Adjusting The Feet

    Adjusting the feet Electrical connection If the door of the product cannot be Connect the product to a grounded closed properly or if the product swings outlet protected by a fuse complying when you push it slightly, then you with the values in the “Technical need to adjust the feet of the product.

  • Page 11: Disposing Of Packaging Material

    detergent while the machine is Disposing of the old empty. During the initial use, fill the product salt reservoir with 1 litre of water Dispose of the old product in prior to filling it with salt. an environmentally friendly Some water might have remained manner.

  • Page 12: Prewashing

    Prewashing Tips for energy saving Following information will help you use the product in an ecological and energy-efficient manner. • Wipe away any coarse food remnants on the dishes before putting them in the product. • Operate the product after filling it completely.

  • Page 13: Adding Salt

    Adding salt � Water softening system needs to be regenerated in order for the product operates with the same performance continuously. Dishwasher salt is used for this purpose. Use in your product only the special softening salts produced particularly for use in dishwashers. We recommend using granular or powder softening salts.

  • Page 14: Detergent

    5. If you will not start a washing Put the detergent into the detergent dispenser just before operating the programme immediately after adding the salt, run the machine machine as illustrated below. empty in the shortest programme 1. Push the latch to right to open the detergent dispenser lid (A).

  • Page 15: Tablet Detergents

    3. Close the detergent dispenser lid rinse aid and water softening salt by pressing on it lightly. A "click" individually. will be heard when the lid is closed. Information about suitable places In programmes with prewash and (detergent dispenser, basket etc.) at high temperature, in which you in the dishwasher to place the use tablet detergents, make sure...

  • Page 16: Rinse Aid

    Rinse aid The rinse aid used in dishwashers is a special combination used to increase drying efficiency and prevent water or limescale stains 1013_redaksiyon on the washed items. For this reason, care must be paid to have rinse aid in the rinse aid reservoir and to use rinse aids produced specially for dishwashers only.
  • Page 17 time. We strongly recommend you to check if the tableware you are going to purchase is suitable for washing especially in the dishwasher. Placing the dishes into the dishwasher You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way.
  • Page 18 Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware 17 EN...

  • Page 19: Silverware Basket

    Silverware basket Movable silverware basket (depends on the model) (depends on the model) Silverware basket is designed to wash Since the cutlery basket can be moved (A, B), you can create a wider space your dishes such as fork, spoon and etc.

  • Page 20: Collapsable Lower Basket Wires

    Collapsable lower basket wires spaces by folding each wire individually or all of them at once. Lay the foldable (2 pieces) wires down by pressing on the latch (depends on the model) (A). The two piece foldable wires located at the lower basket of the machine are �...

  • Page 21: Lower Basket Multipurpose / Height Adjustable Service Rack

    Lower basket multipurpose / � height adjustable service rack � � (depends on the model) This accessory located at the lower � basket of the machine allows you � to easily wash pieces such as extra � � glasses, long ladles and bread knives. �...

  • Page 22: Upper Basket Drawer

    Upper basket drawer the tab of the glass support piece from the upper basket wire it is hooked to. (depends on the model) Thus, you can obtain a wider space. � You can easily place additional desert spoons, small forks and knives into the basket drawer installed to the upper basket of your machine.

  • Page 23: Adjusting The Height Of Loaded Upper Basket

    � 2. Repeat the same process to lower To lower the basket: the other side of the basket. 1. Press the latch on the basket adjustment mechanism (right or 3. Make sure that both sides of the basket height adjustment left) to lower the basket (B).

  • Page 24: Ceiling Silverware Basket

    Ceiling silverware basket drawers and racks. Thus, there is no need to take the dishes out of the Ceiling silverware basket is designed basket and lay them anymore. to wash small items or items that are too long to fit into the lower silverware Removing and installing the ceiling basket.

  • Page 25: Maintenance And Cleaning

    Maintenance and cleaning Service life of the product extends and 1. Turn the micro filter (3) and frequently faced problems decrease if it coarse filter (2) assembly counter is cleaned at regular intervals. clockwise and pull it out from its seating (A).

  • Page 26: Cleaning The Hose Filter

    3. Press the two pawls on the coarse Cleaning the impellers filter inwards and separate the Clean the impellers at least once a coarse filter from the assembly (C). week in order for the machine operates efficiently. Lower impeller Check if the holes on the lower impeller (1) are clogged.
  • Page 27 Upper impeller Ceiling impeller Check if the holes on the upper Check if the holes on the top ceiling impeller (2) are clogged. If they impeller (3) of your machine are are clogged, remove and clean the clogged. If they are clogged, remove impeller.
  • Page 28 Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •...
  • Page 29 Dishes are not dry at the end of cycle • Dishes are not placed orderly in the machine. >>> Place your dishes in a way that no water will accumulate in them. • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary.
  • Page 30 Lime traces remain on dishes and glassware gains a misty appearance • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
  • Page 31 Rust, discoloration or surface deterioration occurs on dishes • Salt leakage exists. >>> Salt may cause deterioration and oxidation on metal surfaces. Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that the salt reservoir lid is tightly closed after finishing the filling process.
  • Page 32 Detergent remains in detergent dispenser. • Detergent dispenser was damp when adding detergent. >>> Make sure that the detergent dispenser is dried well prior to filling it with detergent. • Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing.
  • Page 33 A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. • Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
