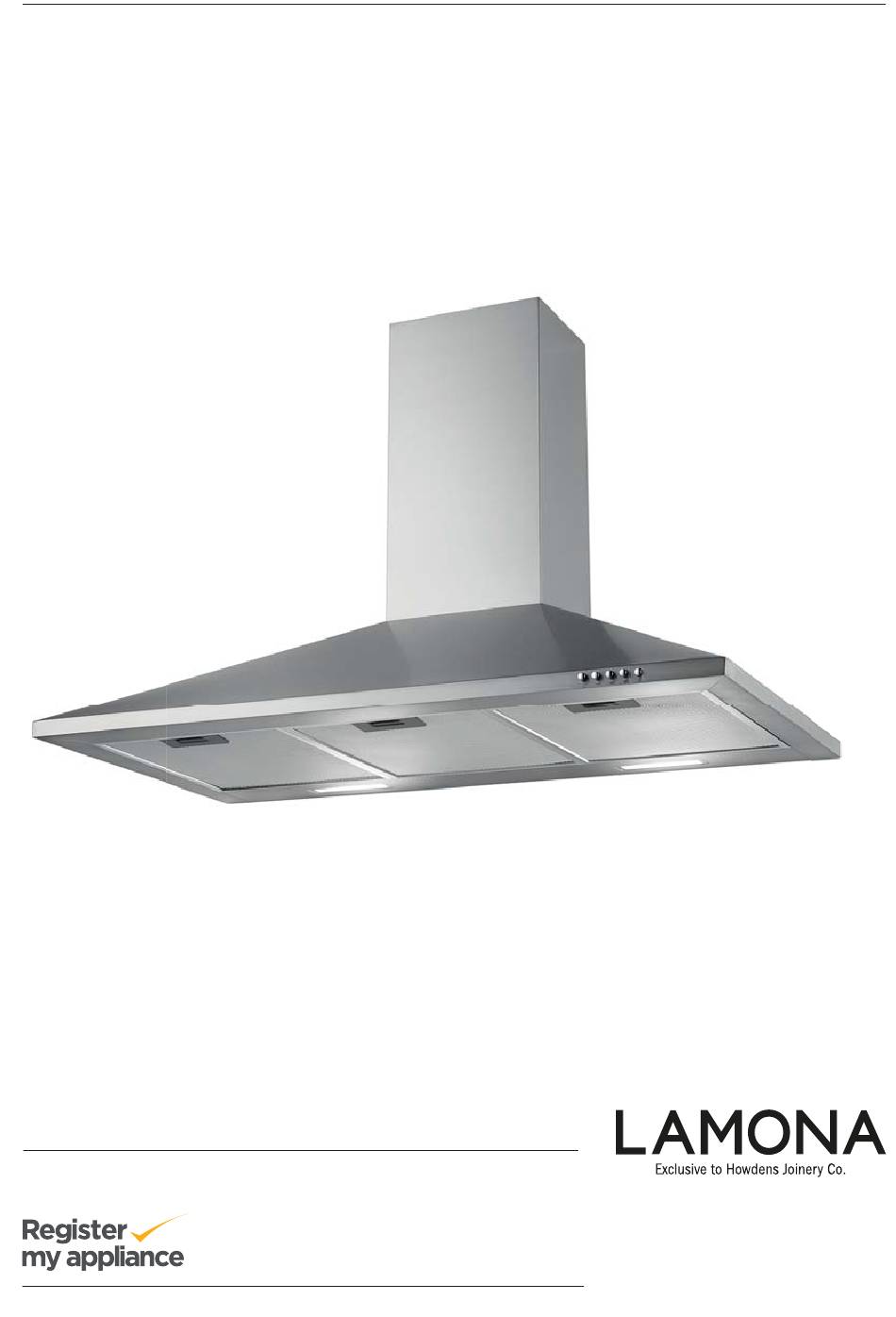

- Page 1 90cm Chimney Extractor LAM2412 Stainless Steel LAM2413 Black Instructions and Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 LAMONA Appliances Dear Customer, Congratulations on your choice of a LAMONA domestic appliance. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the product. • Always follow the safety instructions.
-
Page 4: Table Of Contents
User manual LAM2412 LAM2413 Index Before Using The Extractor Safety General Safety for children when working with electricity General Information and Operation r layout Control panel layout Care and maintenance General cleaning Grease filters Carbon filters Replacing the lamps Installation Methods of extraction Extraction via ducting Extraction via recirculation... -
Page 5: Before Using The Extractor
LAMONA Appliances Before Using the Extractor • Make sure that you have removed all packaging, wrappings, stickers and from the Extractor • It is recommended that you clean the extractor’s surface before using for the time. Safety • Keep all ventilation slots clear of obstructions,... -
Page 6: General Information And Operation
User manual LAM2412 LAM2413 General Information & Operation Extractor layout Upper Chimney Section Recirculation Vent Lower Chimney Section Fan and Light Controls Extractor Body Grease Filters Lights Control panel layout Extractor Power Off Extractor Power Level 1 Extractor Power Level 2 Extractor Power Level 3 Extractor Light On/Off Exclusive to Howdens Joinery.co... -
Page 7: Care And Maintenance
LAMONA Appliances Care and Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. CAUTION: Accessible parts may become hot when used with cooking appliances. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. -
Page 8: Carbon Filters
User manual LAM2412 LAM2413 The carbon filters (supplied separately) Before attempting to change or fit the charcoal filters ensure power to the extractor is switched off. Carbon filters only required for recirculation mode. Carbon have a limited life. We advise you to change them when there is a noticeable drop in performance. -
Page 9: Installation
LAMONA Appliances Installation Methods of extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits may be purchased from the depot where you bought the extractor.) You do not need charcoal... -
Page 10: Parts Indentification
User manual LAM2412 LAM2413 Part indentification On opening your box you will the extractor body, a two-piece telescopic decorative chimney, a bag of wall and screws, two brackets, a ducting connector and reducer. 1. Main Extractor Body 6. Chimney Brackets 2. -
Page 11: Hanging Your Extractor
LAMONA Appliances Hanging your extractor This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. Before drilling or chiselling the ceiling or wall, check for pipes and power cables. -
Page 12: Decorative Chimney Fitting
User manual LAM2412 LAM2413 Decorative chimney fitting Connect the extractor to the electricity supply (see electrical connections page). We recommend an isolation switch that is accessible after installation. The outlet reducer ‘5’ maybe required depending on your ducting kit (supplied separately). Fit the appropriate ducting kit if venting externally. -
Page 13: Electrical Connections
LAMONA Appliances Electrical connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. When fitting in recirculation mode (with carbon filters) ensure the cable is shortened or securely held in place to prevent the loose cable from falling back into the motor. -
Page 14: Troubleshooting
User manual LAM2412 LAM2413 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions • Motor temp has exceeded and • Switch off the extractor and allow it to cool down Light functions but fan thermal fuse has tripped. and the fuse will auto reset. does not •... -
Page 15: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 16 Product serial number (Place sticker here) ISSUE v2 190219...
Need help?
Do you have a question about the LAM2412 Stainless Steel and is the answer not in the manual?
Questions and answers
What height should my lamona 2412 be above my gas hob
The recommended height for the Lamona LAM2412 stainless steel cooker hood above the worktop is 750mm, but it can be reduced to a minimum of 650mm if required.
