60cm deluxe conventional extractor

Advertisement

60cm Deluxe Conventional
HJA2180-1
Extractor
User & Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HJA2180-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lamona HJA2180-1

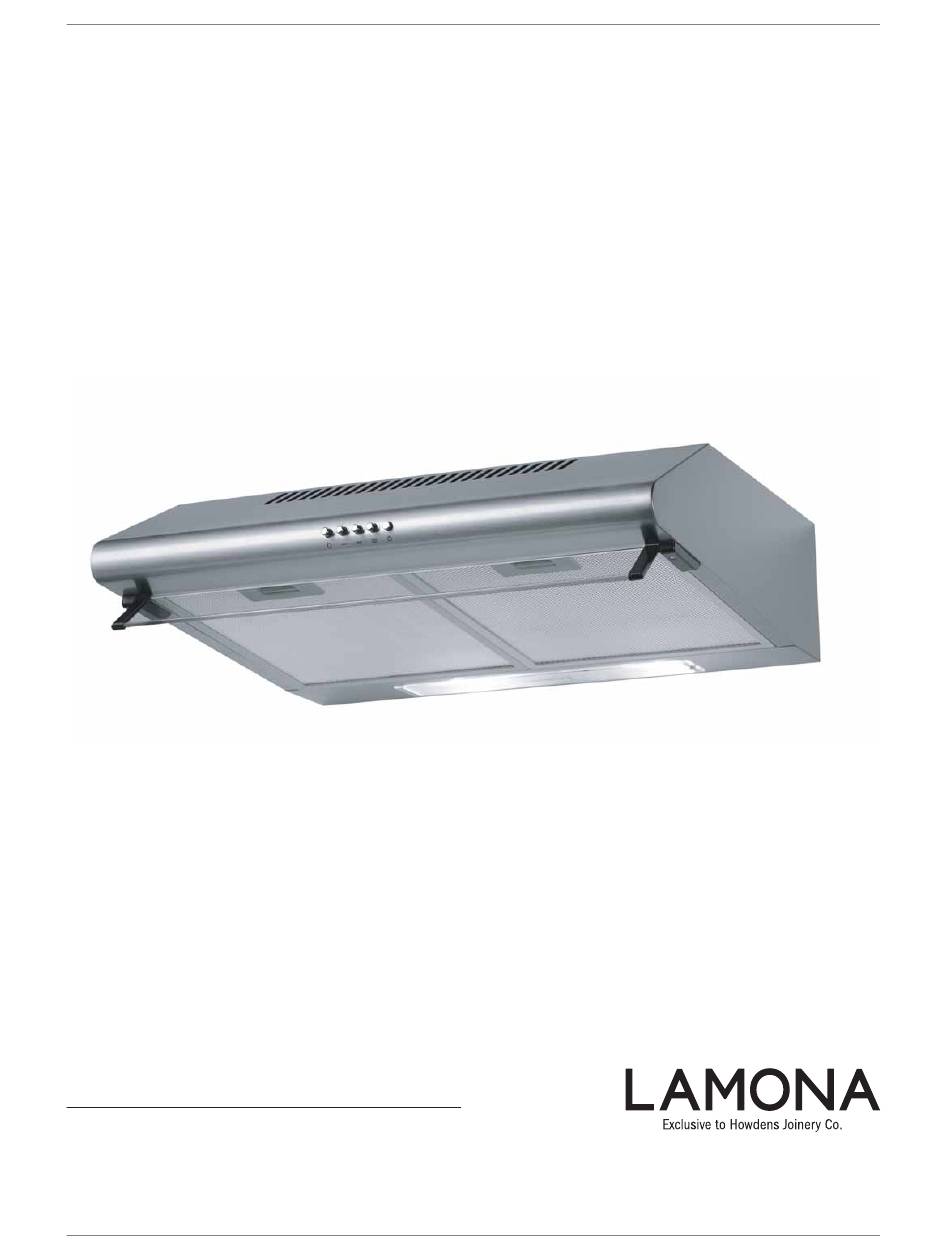

  • Page 1 60cm Deluxe Conventional HJA2180-1 Extractor User & Installation Guide...
  • Page 2: Table Of Contents

    Contents Environmental note IMPORTANT SAFETY INFORMATION 3 – 4 Know Your Extractor Specifications Control panel Care and Cleaning 6 - 8 The grease filters Changing a light bulb Fitting the carbon filter Installation 9 - 13 Before beginning installation Extraction mode or recirculation mode? Setting the cooker hood to recirculation mode Connecting to external ducting (extraction mode) Installing your cooker hood (wall mounted)
  • Page 3: Important Safety Information

    Important Safety Information Your safety is of the utmost importance; please make sure that you read this instruction booklet before attempting to install or use the appliance. IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person. The hood must be installed in accordance with the installation instructions and all measurements followed.
  • Page 4 Important Safety Information Ensure the ducting for the extractor function has the same diameter as the outlet hole all the way through. Keep young children from using, playing with or tampering with the cooker hood. Older children and vulnerable people should be supervised if they are using the cooker hood.
  • Page 5: Know Your Extractor

    Know Your Extractor Dimensions: Features: Push button control operation Ducted-out or recirculation modes 3 speed extraction 2 x Metallic grease filter. 2 x 28W lights 1 x Carbon filter HJA2906 (optional for recirculation mode only) Visor Specifications: Max. Extraction capacity: 250 m³/hr Electrical Supply: 220 - 240V ~ 50Hz...
  • Page 6: Care And Cleaning

    Care and Cleaning IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE MAINS SWITCH. Clean the external parts of your cooker hood with mild liquid detergent and a damp cloth. Never use abrasive powder, corrosive solvents or brushes. Never insert pointed objects into the motor’s protective grid.
  • Page 7: The Grease Filters

    Care and Cleaning Removing and cleaning the grease filters First remove the grease filters by pushing in the button on the handle and pulling the filter away from the cooker hood. Soak the grease filters in hot water and washing up liquid for at least 3 minutes.
  • Page 8: Fitting The Carbon Filter

    Care and Cleaning Fitting the carbon filter If the appliance is to be used in recirculation mode then it is necessary to fit a carbon filter. This will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTER, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.
  • Page 9: Installation

    Installation We recommend that at least two people install this hood. IMPORTANT: YOUR COOKER HOOD SHOULD ONLY BE CONNECTED TO YOUR MAINS SUPPLY AFTER COMPLETION OF THE INSTALLATION PROCESS Before beginning the installation Check that the product purchased is of a suitable size for the chosen installation area.
  • Page 10: Extraction Mode Or Recirculation Mode

    Installation Ducted out or Recirculating ? In ducted-out mode, the stale air will be taken out of the room via external ducting. In recirculation mode stale air is taken via the grease filter(s), and passed through a charcoal filter to remove odours. The air then re-enters the kitchen via an opening in the hood.
  • Page 11: Connecting To External Ducting (Extraction Mode)

    Installation Connecting to external ducting (ducted-out mode) IMPORTANT: To use the cooker hood in ducted-out mode, you must ensure that the adjuster which is behind the grease filter is set in the position shown. IMPORTANT: The cooker hood can be ducted from the rear or from the top. The following steps should be taken before fitting the appliance.
  • Page 12: Installing Your Cooker Hood (Wall Mounted)

    Installation Installing your cooker hood (wall mounted) Remove the grease filters (see page 7). Hold the hood against the wall in the intended position and mark the position of the screw holes that are to be drilled. Using an 8mm diameter drill, drill holes in the wall in these positions.
  • Page 13: Electrical Connection

    Electrical Connections IMPORTANT: ENSURE THAT THE ELECTRICITY SUPPLY IS SWITCHED OFF BEFORE CONNECTING. Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, with a pilot lamp. The isolation switch must be accessible after installation.
  • Page 14: Something Wrong With Your Extractor

    Something Wrong with your Extractor ? IMPORTANT: If your cooker hood appears not to be operating correctly, please refer to the checklist below before contacting the Customer Service number. My extractor will not start. Check that the extractor hood is connected to the electricity supply Check that the fan speed control is set correctly.
  • Page 15 Product Informa on Commission Regula on (EU) No 66/2014 Model HJA2180-1 95.1 kWh/a hood 104.9 hood 85.2 m 158 Pa 173.8 m 81 W 56 W 53 lux middle 65dB...
  • Page 16 - Howdens Proof of Purchase document - Your full contact details. Call the Lamona Service Line on 0845 00 60 006 This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health.
