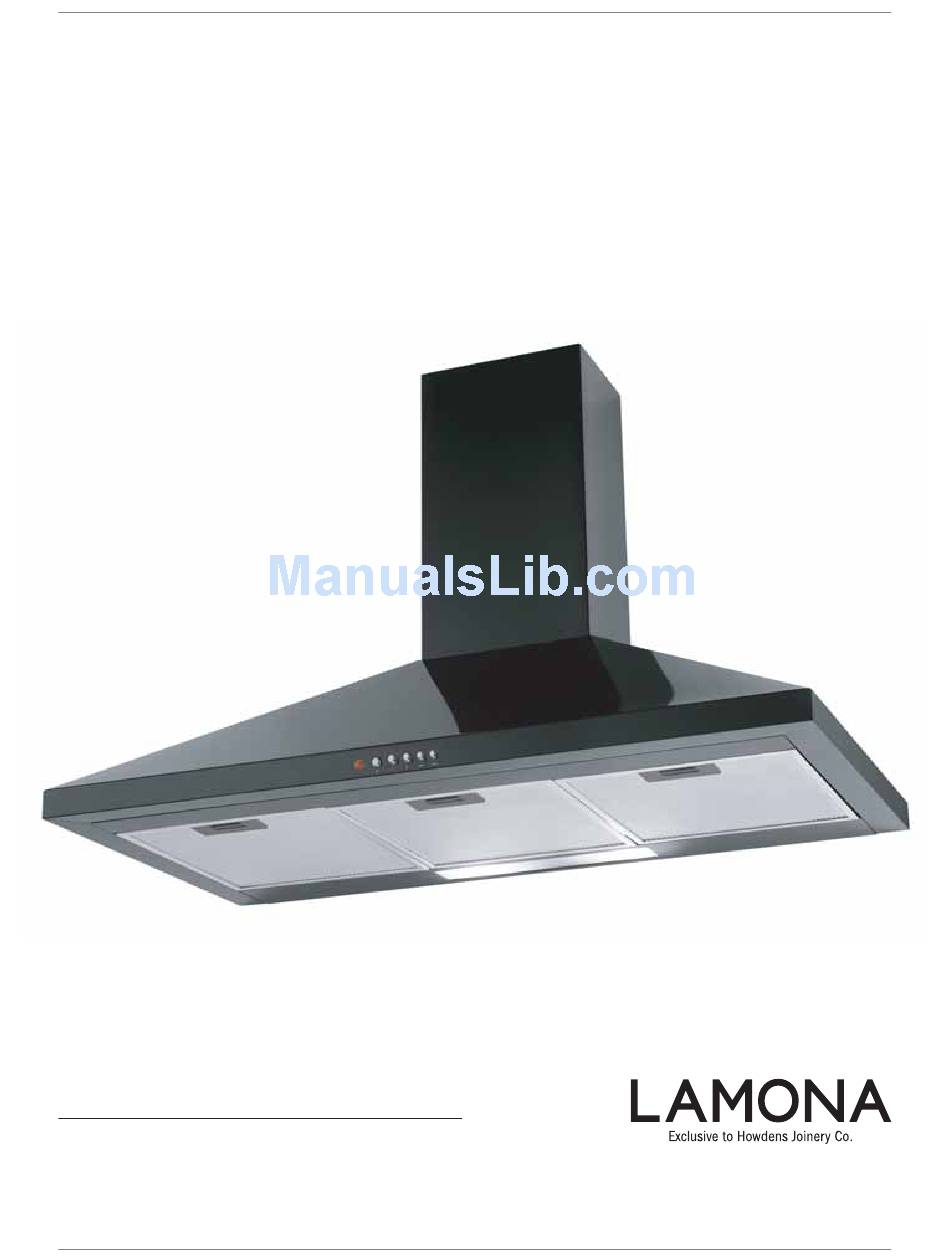

- Page 1 LAM2543 Black 90cm Chimney Extractor User & Installation Guide...
- Page 2 LAMONA Appliances Dear Customer, Congratulations on your choice of a LAMONA domestic appliance which has been designed to give you excellent service. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the product.
-
Page 3: Table Of Contents
User manual LAM2543 Index Before Using the Extractor Safety General Safety for Children Safety When Working with Electricity General Information and Operation Extractor Layout Control Panel Layout Care and maintenance General Cleaning Grease Filters Carbon Filters Replacing the Lamps Installation... -
Page 4: Before Using The Extractor
LAMONA Appliances Before Using the Extractor Make sure that you have removed all packaging, wrappings, stickers and from the Extractor It is recommended that you clean the extractor’s surface before using for the time. Safety Repair procedures must always be performed This appliance is for domestic extraction service agents. -
Page 5: General Information And Operation
User manual LAM2543 General Information & Operation Extractor Layout Upper Chimney Section Recirculation Vent Lower Chimney Section Fan and Light Controls Extractor Body Grease Filters x3 Light Control Panel Layout Extractor Off Extractor Power Level 1 Extractor Power Level 2... -
Page 6: Care And Maintenance
LAMONA Appliances Care and Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. -
Page 7: Replacing The Lamps
User manual LAM2543 Replacing the Lamps need to be replaced periodically. To do this, ensure that the power is switched off and the lamps have had time to cool. Unscrew the lamps and replace with new lamps of the same type and wattage. -
Page 8: Installation
LAMONA Appliances Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits using the external ducting mode. - Page 9 User manual LAM2543 PARTS IDENTIFICATION On opening your box you will the extractor body, a two-piece telescopic decorative chimney, a bag of wall and screws, two brackets, a ducting connector and reducer. Main Extractor Body 32mm Screw Lower Chimney 38mm Screw...
- Page 10 LAMONA Appliances Hanging Your Extractor This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. Before drilling or chiselling the ceiling or wall, check for pipes and power cables.
-
Page 11: Decorative Chimney Fitting
User manual LAM2543 Decorative Chimney Fitting Connect the extractor to the electricity supply (see electrical connections page). We recommend an isolation switch that is accessible after installation. Fit the outlet cap ‘10’ and any ducting kits (if ducting externally) the outlet reducer ‘11’ maybe required depending on your ducting kit. -
Page 12: Electrical Connections
LAMONA Appliances Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your Extractor is intended for permanent installation. Your appliance must be connected to wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, The isolation switch must be accessible after installation. -
Page 13: Troubleshooting
User manual LAM2543 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Lamps fail to operate? A replacement lamp is probably Disconnect the mains electricity supply before adjusting or replacing the lamps. The extractor lamps may become hot; therefore ensure (Remember that the lamps are not covered by the guarantee.) -
Page 14: Your Guarantee
LAMONA Appliances Your Guarantee Product Guarantee Details (UK only) breakdown repairs. (Details of which are shown on your Proof of Purchase Document). Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE) The product must be correctly installed and operated in accordance with the manufacturer’s instructions and used for normal domestic purposes. -
Page 15: Exclusive To Howdens Joinery.co
User manual LAM2543 Exclusive to Howdens Joinery.co Page _ 15... - Page 16 Issue: 12/2014 If supplied, please stick your self adhesive product rating plate here, or make a note of the product serial number below in the box below for future reference. Serial Number : ...................
