T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS
More comfortable operation will be provided by
these new angle grinders with the following features.
*800g (1.8 lbs) lighter than the current 9067/9069
series models in weight.
*Yet still features the same high power as 9067/9069
series models.
*Electronic with soft start, current limiter and
constant speed under load
S
pecification
Voltage (V)
110
120
a) 220
b) 230
c) 240
a) 220: China
c) 240: Australia
Model No.
Wheel size: mm (")
No load speed: min.
Electronic features
Cord length: m (ft)
Net weight: kg (lbs)
S
tandard equipment
*Lock nut wrench 35 ..................................... 1 pc.
< Note > The standard equipment for the tool shown may differ from country to country.
O
ptional accessories
*Dust cover attachment
For GA7010C, GA7011C
*Assorted accessories for 180mm (7") angle grinder
For GA9010C
*Assorted accessories for 230mm (9") angle grinder
GA7010C, GA7011C
GA9010C

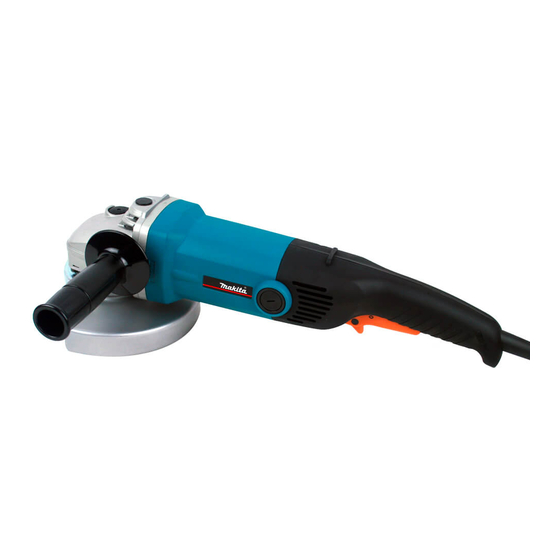

180mm (7") Angle Grinders
230mm (9") Angle Grinder
Current (A)
Cycle (Hz)
16
50 / 60
50 / 60
15
8.6
50 / 60
9.2
50 / 60
50 / 60
7.9
b) 230: Europe and high voltage area of the Middle East countries
Diameter
Hole diameter
Thickness
= rpm.
-1
Current limiter
Soft start
Constant speed
Australia
Others
W
Model No.
Length ( L )
Width ( W )
Height ( H )
Continuous Rating (W)
Input
1,650
1,650
1,800
2,000
1,800
GA7010C
180 (7)
8,400
L
H
Dimensions: mm (")
GA7010C GA7011C GA9010C
453 (17-7/8)
200 (7-7/8)
137 (5-3/8)
Max. Output(W)
Output
700
700
1,000
1,200
1,000
GA7011C
180 (7)
22.23 (7/8)
6 (1/4)
6,000
Yes
Yes
Yes
2.0 (6.5)
2.5 (8.2)
3.4 (7.5)
PRODUCT
P 1 / 6
250 (9-7/8)
2,600
2,600
3,000
3,000
3,000
GA9010C
230 (9)
6,000
Advertisement
Related Manuals for Makita GA7010C
Summary of Contents for Makita GA7010C
- Page 1 *Yet still features the same high power as 9067/9069 Dimensions: mm (") series models. Model No. GA7010C GA7011C GA9010C *Electronic with soft start, current limiter and Length ( L ) 453 (17-7/8) constant speed under load...
- Page 2 1R340/ Bearing Retainer Wrench Removal/Installation of Bearing retainer [2] Lubrication Fig. 1 Put 40g of Makita grease SG. No.0 into the gear room of Gear housing Gear room for a long gear life. (Fig. 1) [3] Disassembling and Assembling Note: As listed to left, the grinders use different...
- Page 3 DISASSEMBLING Note: Disassembling can be done without disassembling Gear housing section. 1) Using a Makita impact driver and Hex shank bit M5 (No. 1R229), remove four M5x16 Hex socket bolts that fasten Bearing box to Gear housing. 2) Insert two slotted screwdrivers into two diagonal positions on the slit between Bearing box and Gear housing.
- Page 4 P 4 / 6 epair [3]- 2. Replacing Larger Spiral Bevel Gear and Ball Bearing 6202DDW (cont.) DISASSEMBLING 3) Remove Ball bearing 608LLB from spindle using Bearing extractor (No.1R269) as illustrated to left in Fig. 8. 4) Remove Retaining ring S-15 from Spindle using Retaining ring S and R pliers (No.1R291) as illustrated to right in Fig.
-
Page 5: Circuit Diagram
P 5 / 6 ircuit diagram Fig. 13 Blue or white Insulated terminal Field Insulated Controller terminal Switch Insulated terminal Pick up coil Power supply cord Color index of lead wires' sheath Noise Black suppressor White The parts illustrated in this Insulated Orange Choke coil... - Page 6 P 6 / 6 iring diagram [2] Wiring of the Lead Wires of Pickup Coil Motor housing 1) First, route the white lead wire of pickup coil under the rib. And then hold both of the white and the black lead wires with the lead wire holder.
