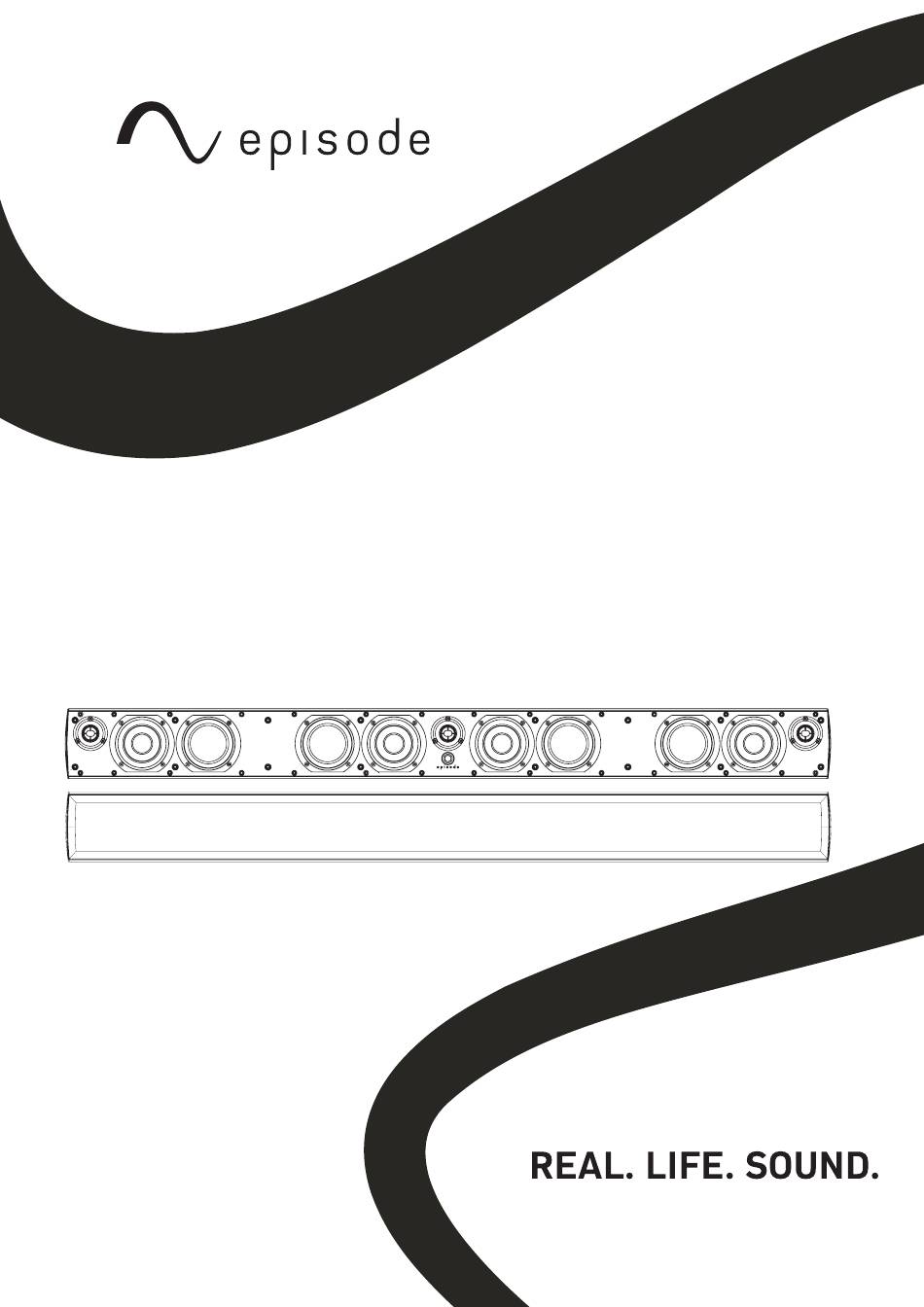

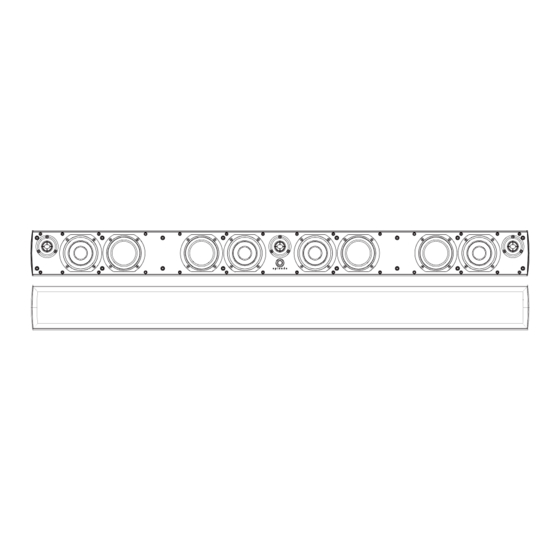

- Page 1 INSTALLATION MANUAL ES-350-SNDBAR-30-BLK ES-350-SNDBAR-40-BLK ES-350-SNDBAR-50-BLK ES-350-SNDBAR-60-BLK ES-550-SNDBAR-40-BLK ES-550-SNDBAR-50-BLK ES-550-SNDBAR-60-BLK ES-550T-SNDBR-40-BLK ES-550T-SNDBR-50-BLK ES-550T-SNDBR-60-BLK *All images show ES-350-SNDBAR-60 inch model unless otherwise noted...
- Page 2 page | 2 www.snapav.com Support 866.838.5052 www.snapav.com Support 866.838.5052...
- Page 3 Welcome to Episode® Speakers. We appreciate your purchase and are committed to providing the highest-quality products possible. The Episode® Soundbar models are a superb choice for almost every type of home theater or home audio installation. They have been designed with advanced technological components that allow for high performance and a lifetime of enjoyment.
- Page 4 page | 4 INSTALLATION SPEAKER PLACEMENT The ES passive series of soundbars are designed to be the Left, Center, and Right speakers of a home theater surround system. For most applications, placement should be below a flat screen TV on a cabinet top or shelf. Other options for placement include On-Wall using the included bracket, or attached to a Flat Panel mount using the optional Strong mount bracket.
- Page 5 If the speakers point away from the listener’s ears, slide the kickstand up or down to achieve the proper angle. Note that the kickstand can be inverted when the Soundbar is pointing down. Mounting on a Wall © 2019 Episode®...
- Page 6 page | 6 CONSIDERATIONS FOR WALL MOUNTING To maintain a high level listening experience, the Soundbar should be as close to the TV as possible. Placing To maintain a proper listening experience, the Soundbar should be as close to the TV as possible. Placing the Soundbar more than 3”...
- Page 7 Note: Due to the extremely low profile of the ES-500T soundbars, most IR tube receivers will protrude through the rear of the Soundbar. An opening in the wall may be needed for clearance. Front R ear IR R eceiver Pass-through © 2019 Episode®...
-
Page 8: General Maintenance
page | 8 To maintain accurate IR reception, a spacer has been included to allow for the front edge of the IR receiver to be flush with the back of the grille cloth. This will ensure that IR reception is at its maximum level. TIP: With some IR receivers, a layer of electrical tape around the threads can create a more snug fit within the Soundbar... -
Page 9: Specifications
Top, TV Mount Top, TV Mount (optional) (optional) (optional) (optional) Gold-Plated Push Gold-Plated Push Gold-Plated Push Gold-Plated Push Connector Type Terminals Terminals Terminals Terminals Wire Size Accepted Up to 14AWG Up to 14AWG Up to 14AWG Up to 14AWG © 2019 Episode®... - Page 10 page | 10 Model ES-550-SNDBAR-40 ES-550-SNDBAR-50 ES-550-SNDBAR-60 Woofer Construction 4" Polypropylene 4" Polypropylene 4" Polypropylene Injection Cones w/ High Injection Cones w/ High Injection Cones w/ High Temperature Voice Coil Temperature Voice Coil Temperature Voice Coil Woofer Magnet Diameter 35mm OD Neo magnet 35mm OD Neo magnet 35mm OD Neo magnet Voice Coil Size...
-
Page 11: Contacting Technical Support
Up to 14AWG CONTACTING TECHNICAL SUPPORT As a thank you for purchasing Episode® Electronics products, direct technical support services are available via phone or e-mail. We encourage you to use this resource for any questions or concerns about our products. Visit our website for more support documentation. - Page 12 © 2019 Episode® Rev: 191023-0900...
