Episode ES-PWR-SNDBR-180-BLK Control Protocol

ES-PWR-SNDBR-180-BLK
Episode Powered Soundbar IR Control Protocol
Overview
This protocol provides the information required to control an ES-PWR-SNDBR-180-BLK via IR through a
connected IR receiver or automation system. Follow the instructions carefully to ensure that IR functions at
the highest level and does not cause damage to the soundbar or other components.
IR Applications
In-Room IR Receiver with IR Remote and IR Repeater
To control the soundbar with an in-room IR remote (commands transmit directly from the remote):

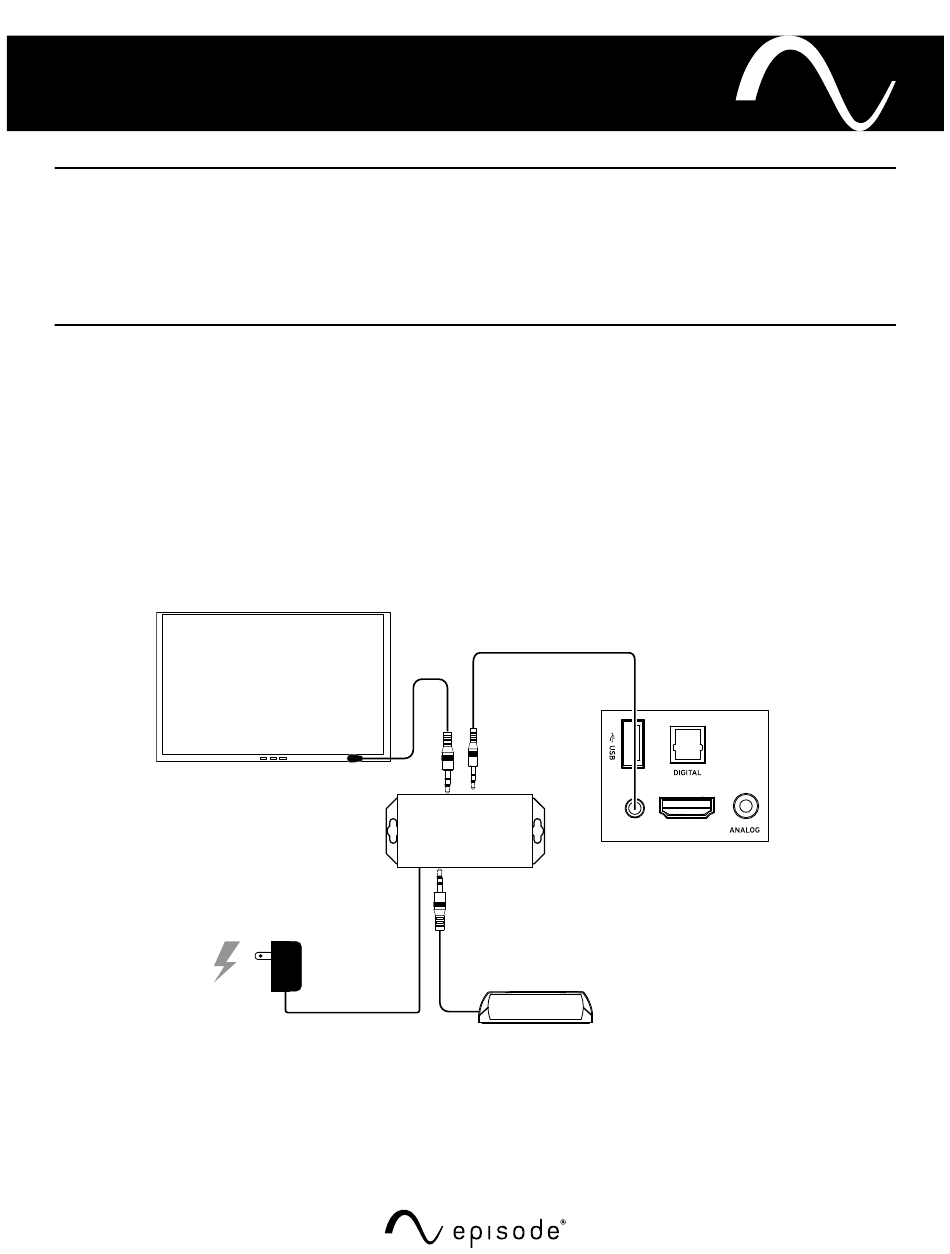

1. Connect an IR receiver via IR repeater. Position the receiver so that commands are received
reliably.
2. Connect the IR repeater to the IR In port on the soundbar with a 3.5 mm mono mini cable.
3. Control additional equipment by attaching an IR flasher to the IR Out port of the repeater.
TV
IR Repeater
Power IR IN
Power Cord
3.5 mm Mono Mini
1 2 Emitter
IR INPUT
ES-PWR-SNDBR-180-BLK
IR Receiver
HDMI / ARC
