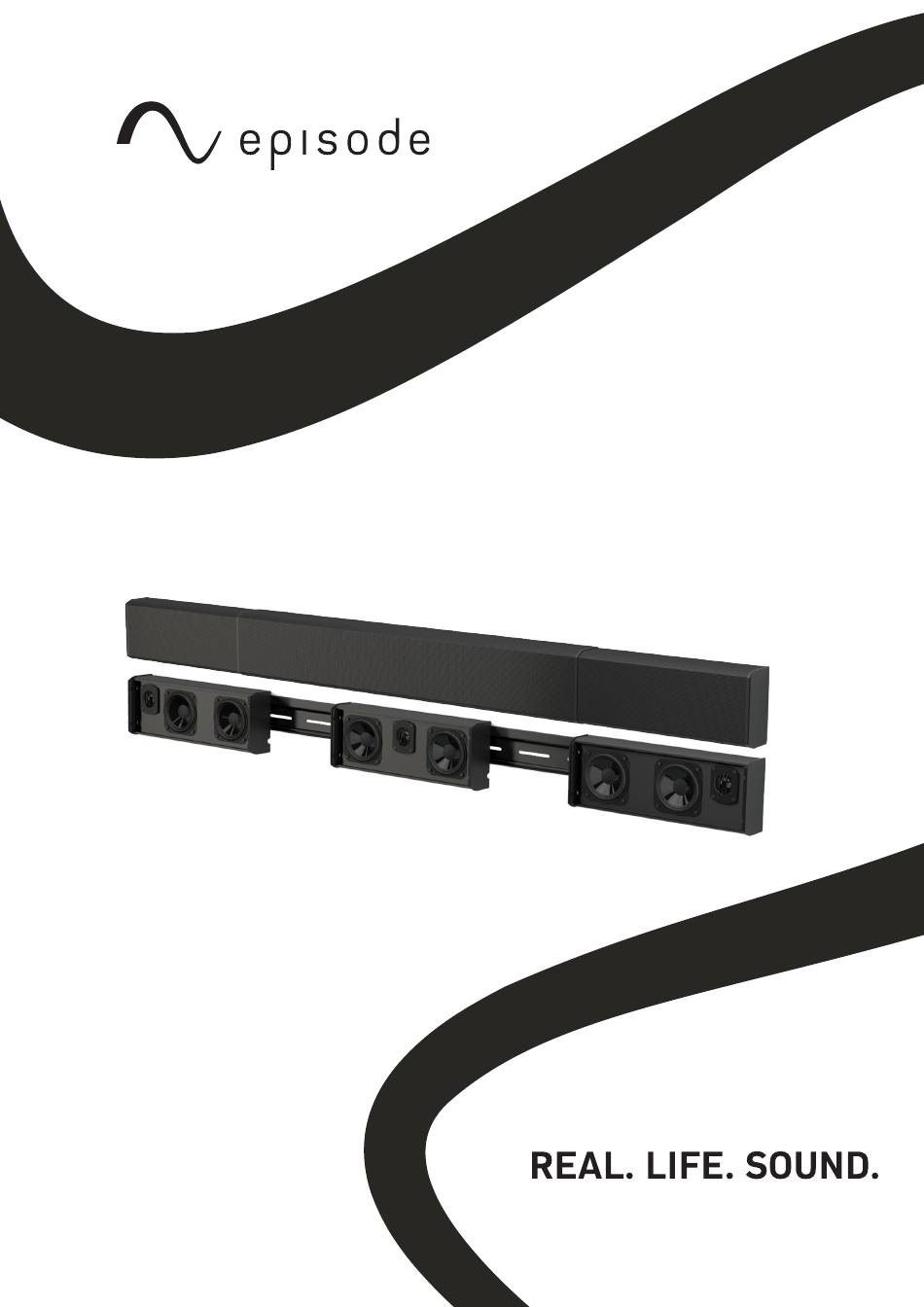

- Page 1 INSTALLATION MANUAL ES-EXP-SNDBAR-M-BLK...
- Page 2 page | 2 www.snapav.com Support 866.838.5052 www.snapav.com Support 866.838.5052...
- Page 3 S. The product shall be used on open bench. No naked flame sources, such as lighted candles, should be placed on the apparatus. The apparatus should be connected to a mains socket outlet with a protective earthing connection. © 2019 Episode®...
- Page 4 The Episode expandable soundbar is a 3 channel passive soundbar requiring an amplifier capable of powering left, center and right channels. To get the best performance from the soundbar, an amplifier, such as the Episode EA-MINI-3D-35, or a receiver with a power rating between 20 and 100 Watts RMS per channel is recommended.
- Page 5 SPEAKER PLACEMENT The Episode Expandable Soundbar is designed to be the Left, Center, and Right speakers of a home theater surround system. For most applications, placement should be above or below a flat screen TV either mounted to the wall using the included rail system or to the TV / Flat Panel mount using the optional Strong mount bracket.
-
Page 6: Installing The Mount
page | 6 Before Installing the Mount • Position and install the TV mount. • With the TV on the mount • Mark the position of the bottom of the TV. • Mark the position of the TV’s Center Point. •... - Page 7 Installing on a Flat Panel Mount The Episode expandable soundbar can be mounted directly to a Flat Panel Mount with the Strong™ SM-SBAR2-BKT-UNIV (available separately). Using the Flat Panel mount bracket allows for the speaker to move with the TV when mounted to articulating arm mounts.
-
Page 8: General Maintenance
page | 8 Verifying Phase When proper polarity is not maintained, the speakers play at the opposite ‘time’ from each other, or out of phase. The result is audio with lack of bass and vocals that sound thin or distant. If during or after calibrating your receiver you suspect the sound is not right and you cannot see any markings on the wire to verify polarity is correct, try this simple test: 1. -
Page 9: Specifications
Painted Steel with Acoustically Transparent Scrim Cloth Grill Type Finished Dimensions 44" up to 62" W × 5.5" H x 3" D Mounting Options Wall-Mount, Table-Top, TV Mount (optional) Connector Type Gold Plated, Push-Down Binding Posts Wire Size Accepted Up to 14AWG © 2019 Episode®... -
Page 10: Troubleshooting
TROUBLESHOOTING Episode amplifiers are designed to function trouble-free. Most problems that occur are due to simple issues. If having trouble, check the list of simple fixes below. If the problem persists, contact Episode technical support at 866-838-5052. • Power cable to the amplifier is incorrectly connected or plugged into an outlet that does not have power. - Page 11 | 11 © 2019 Episode®...
- Page 12 © 2019 Episode® Rev: 190904-1525...
