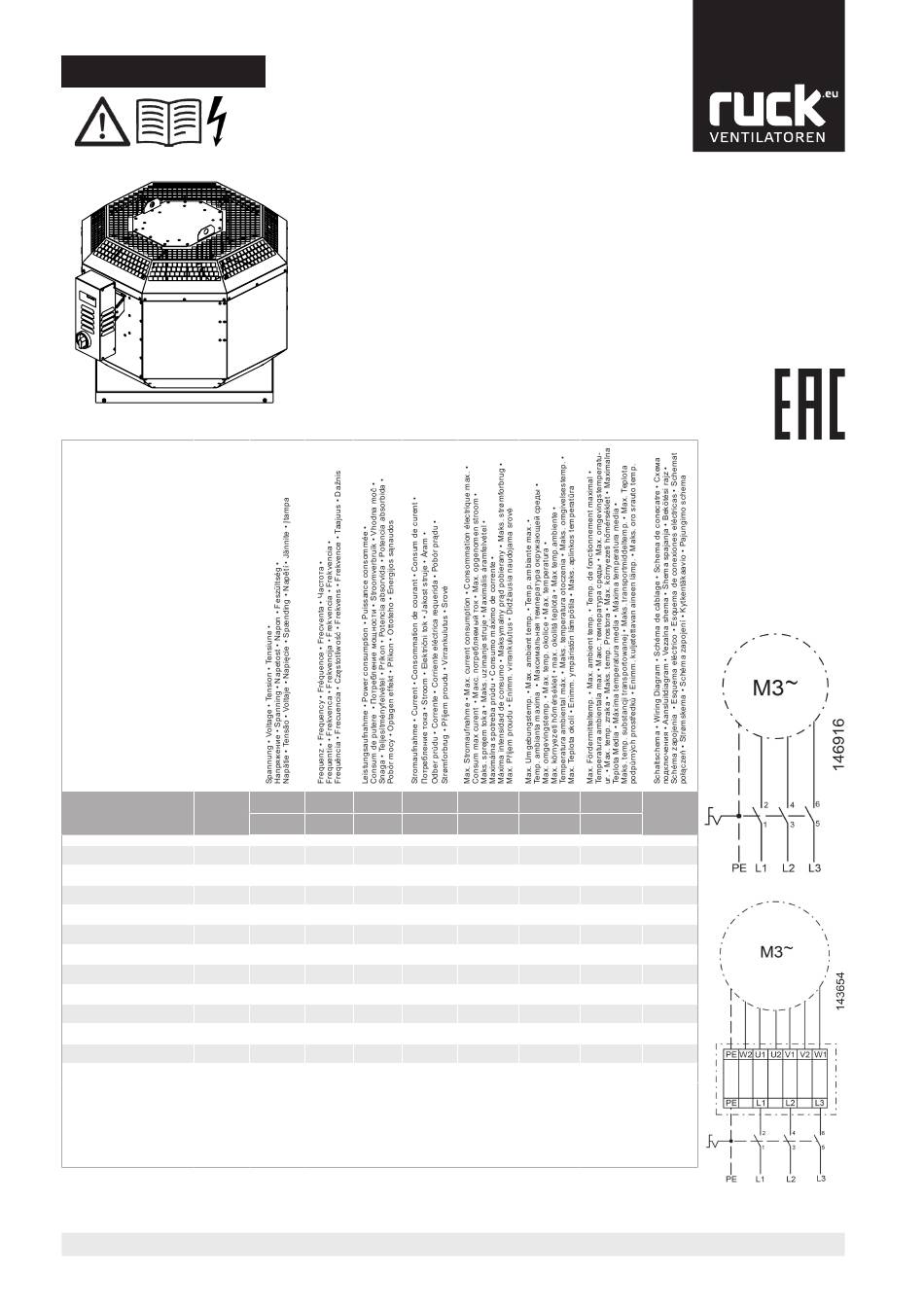

Ruck Ventilatoren DVNI D Series Assembly Instruction Manual

Ruck Ventilatoren DVNI D Series Assembly Instruction Manual

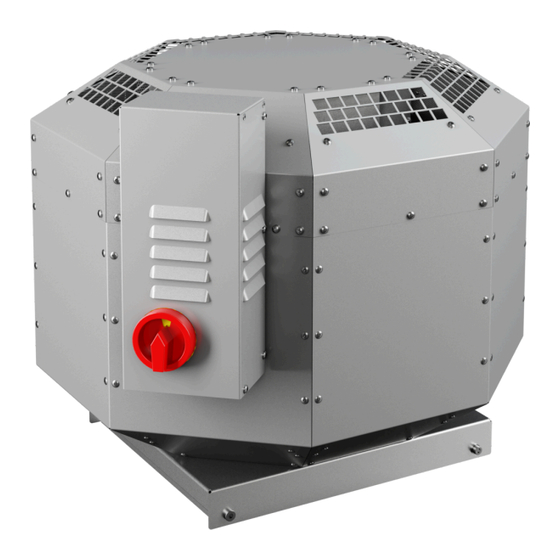

Roof fan

Advertisement

Quick Links

Assembly Instruction
ID
DVNI 225 D2 30 **
145034
DVNI 250 D2 30 **
145035
DVNI 280 D2 30 **
145036
DVNI 315 D2 30 **
145037
DVNI 315 D4 30 **
145038
DVNI 355 D4 30 **
145039
DVNI 400 D4 30 **
145040
DVNI 450 D4 30 **
145041
DVNI 500 D4 30 **
145042
DVNI 560 D4 30 **
145043
DVNI 630 D4 30 **
145044
DVNI 710 D6 30 **
145045
** Ventilator ist nicht spannungssteuerbar! / The fan is not voltage controllable! / Le ventilateur n´est pas réglable par la tension! / Ventilatorul nu este
cu tensiune reglabila! / Вентилятор не имеет управления по напряжению! / Ventilator geeft geen spanningsregeling! / Ventilator ni primeren za
napetostno regulacijo! / Ventilator nije namijenjen za naponsku regulaciju! / A ventilátor nem vezérelhető feszültséggel! / Ventilátor nemá napäťové
riadenie! / A tensão do ventilador não pode ser regulada! / ¡No es posible controlar el ventilador por medio de tensión! / Wentylator nie jest
sterowany napięciem! / Ventilatorens spænding kan ikke styres! / Ventilátor není říditelný napětím! / Puhallin ei ole jänniteohjattava! / Ventiliatorius
nėra reguliuojamas įtampa!
Änderungen vorbehalten • Modification reserved • Sous réserve de modifications • Sub rezerva modificarilor •
Компания оставляет за собой право вносить изменения без предварительного уведомления. • Wijzigingen voorbehouden •
Pridržujemo si pravico do sprememb. • Zadržano pravo izmjena • Változtatások joga fenntartva • Zmeny sú vyhradené • Modificação reservada •
Reservado el derecho de modificaciones • Zmiany zastrzeżone • Med forbehold for ændringer • Změny vyhrazeny • Oikeus muutoksiin pidätetään • Galimi pakeitimai
ruck
Ventilatoren GmbH
Max-Planck-Str. 5
mdni_pb_ 09b print 16.05.2019
Dachventilator • Roof Fan • Tourelle d'extraction
Ventilator de acoperis • Вентилятор монтируемый на крыше
Dakventilator • Strešni ventilator • Krovni ventilator
Tetőventilátor • Strešný ventilator • Ventilador de cobertura
Ventilador de tejado • Wentylator dachowy • Tagventilator
Střešní ventilátor • Huippuimuri • Stoginis ventiliatorius
DVNI...D.30
U
f
P
[V]
[Hz]
[W]
[A]
400V 3~Y
50
431
0,71
400V 3~Y
50
425
0,85
400V 3~Y
50
627
1,08
400V 3~Y
50
1100
2,19
400V 3~Y
50
202
0,75
400V 3~Y
50
725
0,81
400V 3~Y
50
492
0,99
400V 3~Y
50
1139
2,04
400V 3~Y
50
1342
2,58
400V 3~Y
50
2420
4,45
400V 3~Y
50
4115
8,08
400V 3~Y
50
2768
6,72
D-97944 Boxberg-Windischbuch
I
I
t
max
A
[A]
[°C]
[°C]
0,8
50
120
1,1
50
120
1,1
50
120
2,3
50
120
1,0
50
120
1,3
50
120
1,0
50
120
2,3
50
120
2,7
50
120
4,7
50
120
8,5
50
120
6,9
50
120
Tel. +49 (0)7930 9211-0
Fax. +49 (0)7930 9211-150
t
M
143654
143654
143654
143654
143654
143654
143654
143654
143654
143654
146916
143654
info@ruck.eu
www.ruck.eu
