Dynabrade 18050 Manual

Model:
18050 – 5/8"-11 External Spindle
18053 – M-14 External Spindle

Index Key

No. Part # Description
1 18564 Spindle Cap – 5/8"-11
18599 Spindle Cap – M-14
2 18563 Key
3 18562 Retaining Ring
4 18561 Ball Bearing
5 18560 Cap Screw (4)
6 18559 Washer (4)
7 18558 Spindle Cap
8 18593 Bevel Gear
9 18557 Wave Washer
10 18556 Retaining Ring
11 18555 Ball Bearing
12 18554 Spacer
13 18552 Motor Housing
14 18551 Plug
15 18553 Handle
16 18594 Pinion Gear
17 18568 Ball Bearing
18 18555 Ball Bearing
19 18569 Front Plate
20 18595 Rotor
21 18570 Blade (4/pkg.)
22 18571 Cylinder
23 18572 Roll Pin
24 18573 Rear Plate
25 18555 Ball Bearing
26 18567 Retaining Ring
27 18574 O-Ring
28 18576 Motor Gasket
29 18577 Spacer
30 18578 Valve Body Gasket
31 18559 Washer (4)
32 18580 Cap Screw (4)
33 18581 Valve Pin
34 18582 Locking Lever
35 18583 Roll Pin
36 18579 Housing
37 18601 Boot
38 18584 Valve Seat
39 18585 Valve Pin
40 18586 Valve
41 18587 Valve Spring
42 18588 Exhaust Gasket
43 18589 Exhaust Retainer
44 18592 Exhaust Bushing
45 18590 O-Ring
46 18591 Inlet Bushing
47 18596 Spanner Wrench
See reverse side for Accessories and Important Operating, Maintenance and Safety Instructions.
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
14 A
8
13
12
11
10
8
6
5
3
2
1
O
Oil
A Adhesive: A
Torque: N•m x 8.85 = In. - lbs.
T
T = 17 N•m
2
15
21
19
9
17
7
18
16 31
G
4
30
29
28
KEY
G
Grease
= Loctite #567
8
AUTOMOTIVE
Parts Page Reorder No. APD99•07
Effective March, 1999

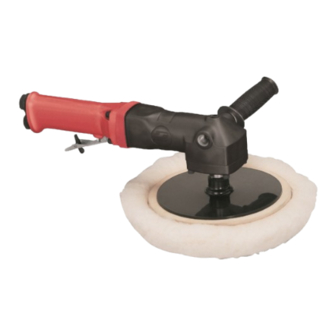

5"– 8" Buffer
0-2,500 RPM
Air Motor and Machine Parts
27
25
23
O
24
22
20
36
32
33
34
35
41
40
39
38
47 Mates to flats on spindle (no. 1)
26
37
A
T
2
2
46
45
44
43
42
