Dynabrade AutobradeRed DynaZip 18255 Operation Instructions

Dynabrade AutobradeRed DynaZip 18255 Operation Instructions

Advertisement

Quick Links

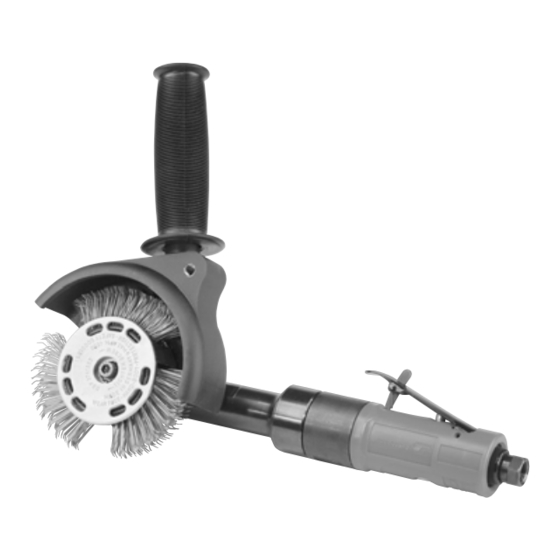

Models:
18255 - Basic Air Tool (w/Wire Wheel)
18256 - Air Tool Kit (w/Wire & Eraser Wheels)
18257 - Deluxe Kit
18258 - Eraser Decal Removal Tool (w/Eraser Wheel)
WARNING
!

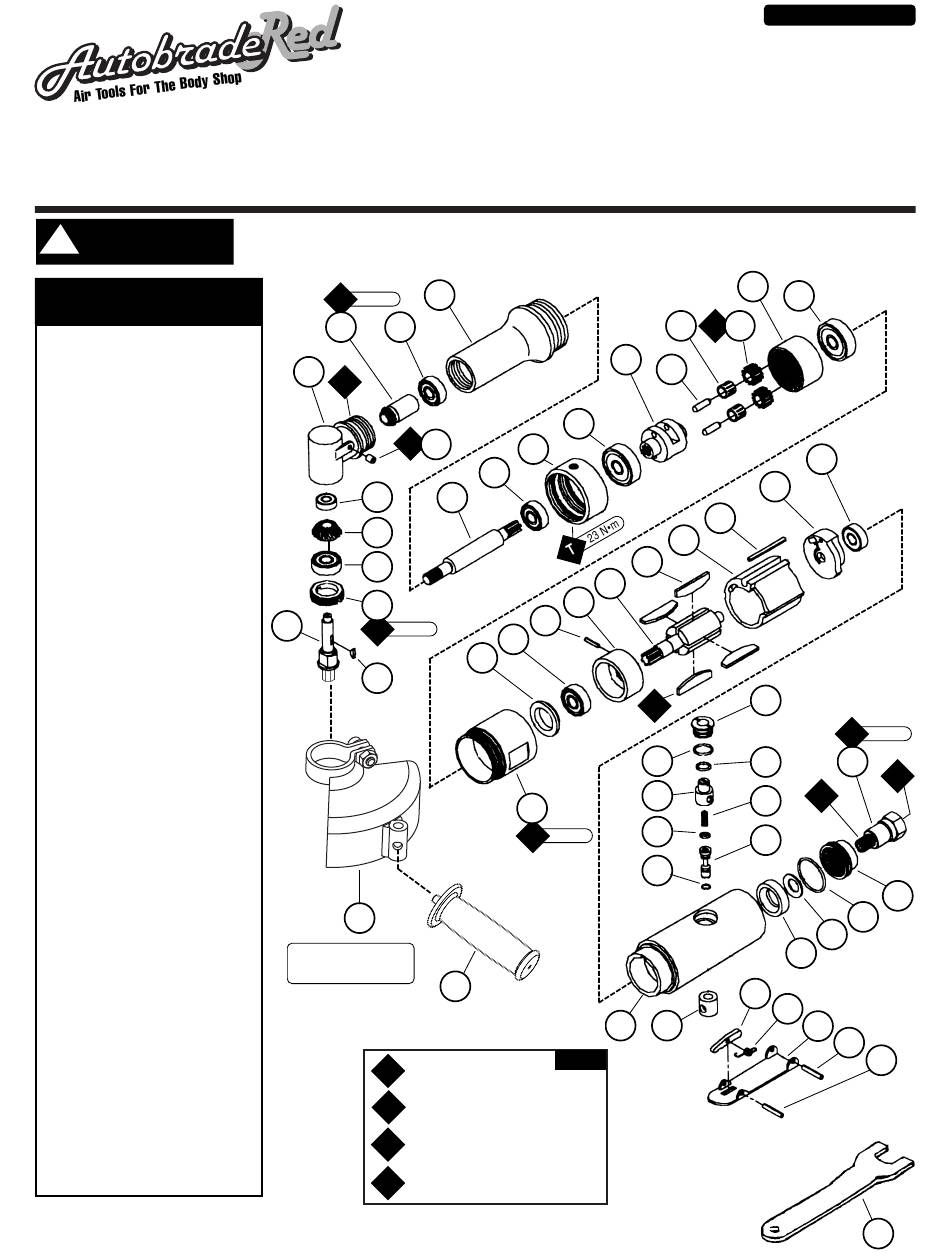

Index Key
No. Part # Description
1 53163 Handle Assembly
2 18270 Guard
3 18269 Spindle
4 18443 Key
5* 18441 Clamp Nut
6 18428 Ball Bearing (4)
7 18267 Bevel Gear
8 18421 Ball Bearing (2)
9 18447 Grease Fitting
10 18747 Angle Head Housing
11 18268 Pinion
12 18745 Socket
13 18746 Transmission Shaft
14 18744 Coupling
15 18741 Ball Bearing (2)
16 18742 Gear Complete
17 18743 Pin (2)
18 18738 Needle Bearing (2)
19 18737 Pinion Gear (2)
20 18736 Annular Gear
21 18740 Housing Lock Ring
22 18438 Rubber Gasket
23 18436 Pin
24 18427 Front End Plate
25 18739 Rotor
26 18426 Rotor Blade (4/pkg.)
27 18424 Cylinder
28 18423 Cylinder Pin
29 18422 Rear End Plate
30 18420 Valve Screw
31 18419 O-Ring
32 18418 O-Ring
33 18417 Regulator
34 18416 Valve Spring
35 18415 O-Ring
36 18413 Valve Stem
37 18414 O-Ring
38 18400 Motor Housing
39 18412 Valve Bushing
40 18401 Silencer
41 18402 Washer
42 18403 O-Ring
43 18404 Deflector
44 18405 Air Inlet
45 18411 Stop Rod
46 18410 Safety Lever Spring
47 18408 Throttle Lever
48 18407 Lever Pin
49 18409 Spring Pin
50 18749 Spanner Wrench
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
T
23 N•m
11
6
10
A
2
G
1
8
7
6
5*
3
T
17 N•m
4
2
For Specific
Accessory see Pg 3.
Oil: O
O
Grease: G
G
A
Adhesive: A
Torque: N•m x 8.85 = In. - lbs.
T
See page 4 for Important Operating, Maintenance and Safety Instructions.
12
15
9
14
6
13
25
24
23
6
22
21
T
23 N•m
1
KEY
= Air Lube
1
= Lubriplate 630AA
1
= Loctite #271
2
*Left Hand Threads
AUTOMOTIVE
Parts Page Reorder No. APD03•01
Effective January, 2003
DynaZip

Air Motor and Machine Parts

20
15
18
G
19
1
16
17
29
28
27
26
30
O
1
31
32
33
34
35
36
37
45
46
38
39
8
T
23 N•m
44
O
1
A
2
43
42
41
40
47
48
49
50
