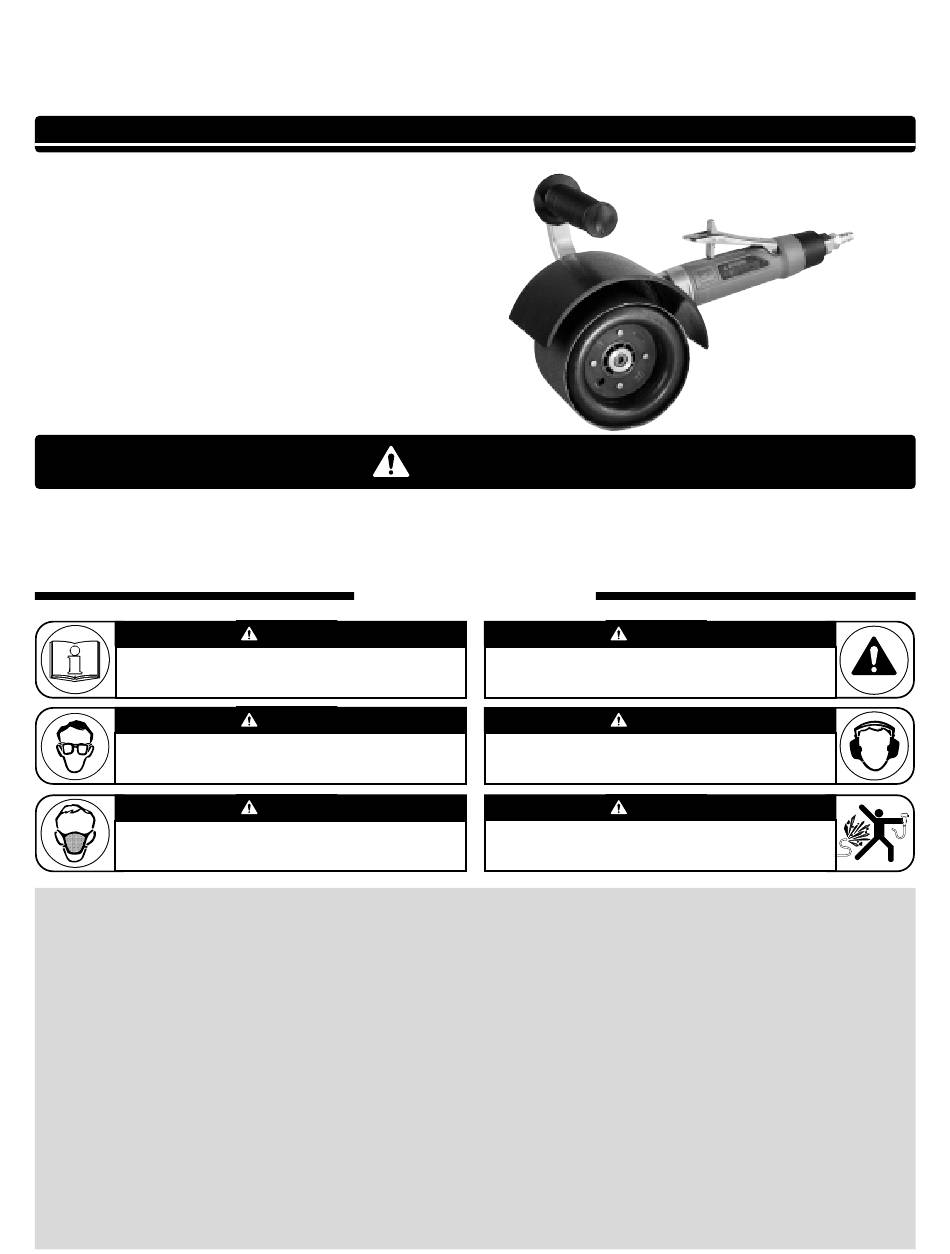

Dynabrade 13450 Safety, Operation And Maintenance Manual

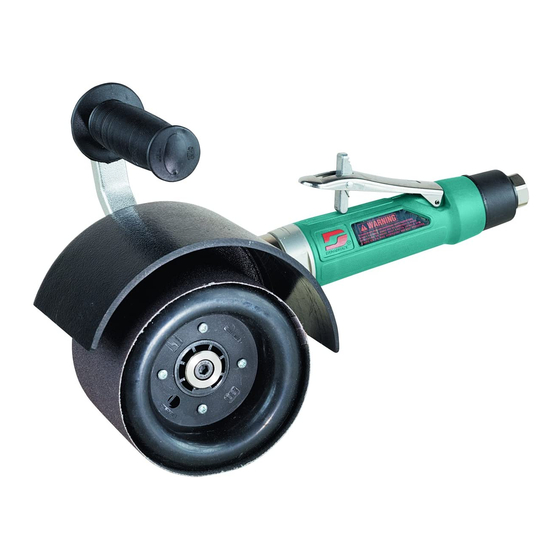

1Hp Right-Angle Dynisher
Governor Controlled
Models:
13450 – 2,800 RPM
13460 – 2,800 RPM, Versatility Kit
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating person-
nel as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Safety
Institute (ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the
Use, Care and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for
Standards (EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1.
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
limit values required by law.
Carefully Read all instructions before operating or servicing any Dynabrade
Products offered by Dynabrade are not to be modified, converted or otherwise altered from the original design without expressed
written consent from Dynabrade, Inc.
Tool Intent: Right-Angle Dynisher
Training: Proper care, maintenance, and storage of your tools will maximize their performance.
• Employer's Responsibility – Provide Right-Angle Dynisher
Accessory Selection:
• Abrasive/accessory RPM (speed) rating MUST be approved for AT LEAST the tool RPM rating.
• Tool is designed for uses with 3/4" & 1" unthreaded bore wheels, the maximum wheel dia. is 6" and the maximum wheel width is 4".
• When mounting 3/4" unthreaded bore wheels use any combination of the 13441 & 13434 Flanges and the 50750 Spacer as required to properly position the wheel.
• Mount 1" Diameter unthreaded bore wheels by using 96037 Adapters (sold separately).
• Before mounting an accessory, visually inspect for defects. Do not use defective accessories.
• Use only recommended accessories. See back page of manual and Dynabrade catalog.
• Follow tool specifications before choosing size and type of accessory.
• Only use recommended fittings and air line sizes. Air supply hoses and air hose assemblies must have a minimum working pressure of 150 PSIG (10
Bars, g) or 150 percent of the maximum pressure produced in the system, whichever is higher. (See tool Machine Specifications table.)
• DO NOT use – cut off wheels, grinding wheels or any bonded product.
Air Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
SAFETY LEGEND
WARNING
WARNING
WARNING

SAFETY INSTRUCTIONS

® is designed for surface preparation, cleaning and finishing using coated abrasives and non-woven nylon products.
Do Not Use Tool For Anything Other Than Its Intended Applications.
® operators with safety instructions and training for safe use of tools and accessories.
WARNING
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
Air line hazard, pressurized supply lines and flexible
hoses can cause serious injury. Do not use dam-
aged, frayed or deteriorated air hoses and fittings.
® Abrasive Power Tool.
Parts Page Reorder No. PD02•43
Effective September, 2002
®
WARNING
WARNING
WARNING
