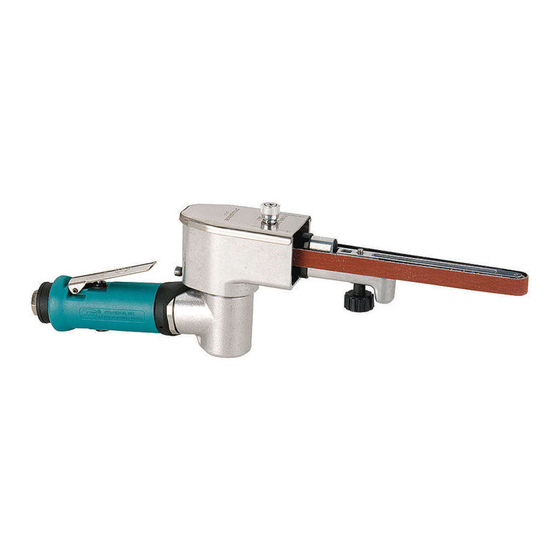

Disassembly Instructions - 0.4 hp. Dynafile II

Models: 40352, 40353
Important: Use these instructions along with the tool parts page or manual.
Notice: Shut off the air supply and depress throttle lever to deplete the remaining air.
• Carefully disconnect the tool from the air supply hose. • Remove the belt housing cover and
abrasive belt. • Use the Special Repair Tools designed for the disassembly and assembly of this
motor.

Motor Disassembly:

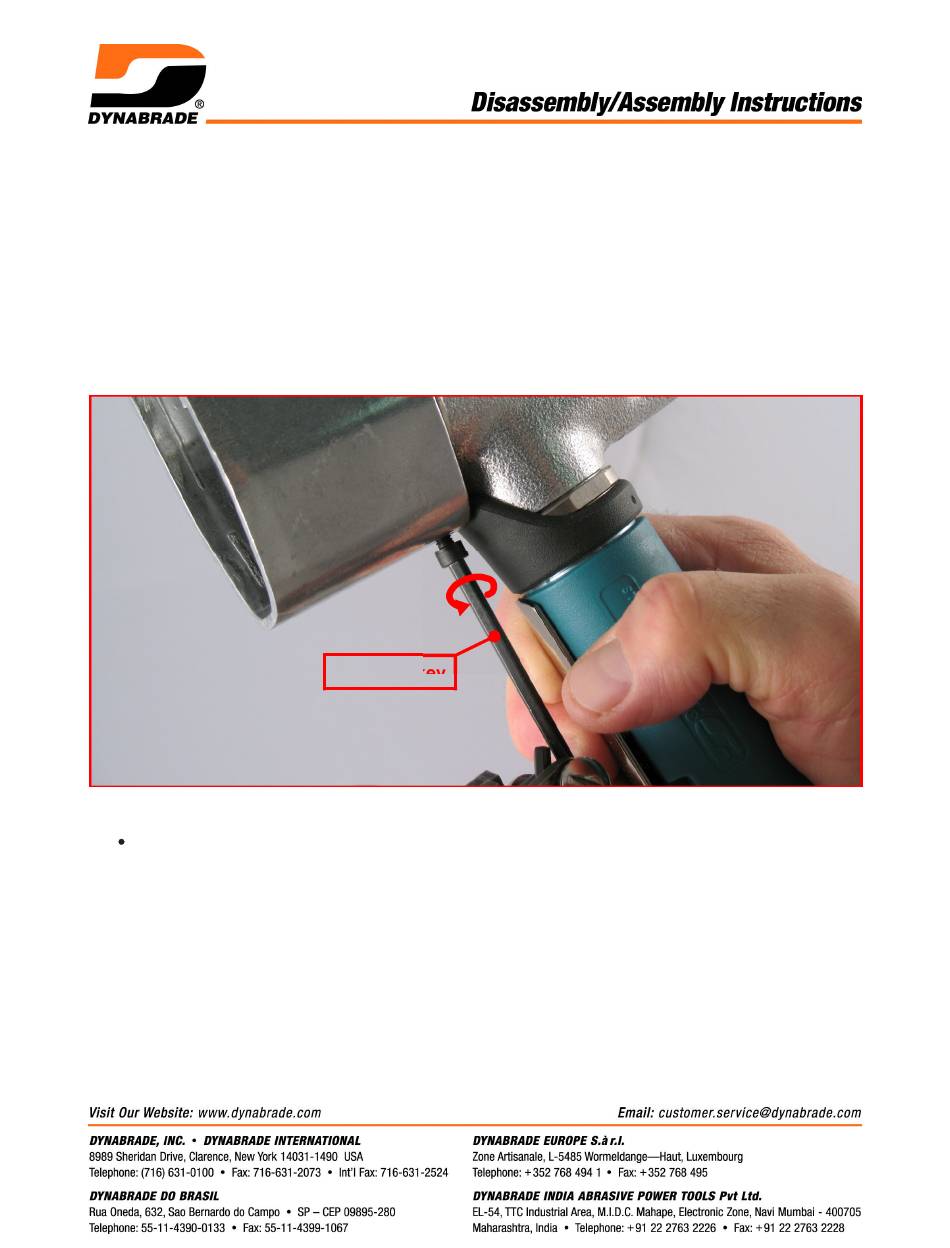

9/64" hex key

1. Use a 9/64" hex key to loosen the 95311 Screw.

Remove the the air motor from the belt housing assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40352 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynabrade 40352

Summary of Contents for Dynabrade 40352

  • Page 1 Disassembly Instructions - 0.4 hp. Dynafile II Models: 40352, 40353 Important: Use these instructions along with the tool parts page or manual. Notice: Shut off the air supply and depress throttle lever to deplete the remaining air. • Carefully disconnect the tool from the air supply hose. • Remove the belt housing cover and abrasive belt.
  • Page 2 2. Carefully fasten the 01546 Housing in a vise with aluminum or bronze jaws so that the drive wheel is pointing up. Notice: Over tightening vise will damage housing. Repair Collar 96461 (designed to protect the 01546 Housing) is available upon order. Use the 96076, 12 mm Wrench to hold the 04117 Adapter stationary.
  • Page 3 3. Use the 50971 Lock Ring Tool or an adjustable 3 mm pin spanner wrench to remove the 04116 Exhaust Cover. Turn counterclockwise.
  • Page 4 02679 Shield 4. Loosen the vise and carefully pull the motor out of the 01546 Housing. Remove the 02679 Shield.
  • Page 5 96232 Arbor Press 96346 Bearing Separator 5. Fasten the 96346 Bearing Separator (2") around the 01476 Cylinder. Place the bearing separator in the 96232 Arbor Press (#2) with the 04117 Adapter pointing down. Use a 3/16" or 5 mm diameter flat end drive punch as a press tool and push the rotor out of the 02696 Bearing.
  • Page 6 96210 Bearing Removal Tool 6. Use the 96210 Bearing Removal Tool and the arbor press to remove the 02696 Bearing from the rear bearing plate.
  • Page 7 12 mm 7. Fasten the rotor in the vise with aluminum or bronze jaws so that the 04117 Adapter is pointing up. Use the 96076, 12 mm, or an adjustable wrench to remove the 04117 Adapter. Turn counterclockwise. Remove the bearing, plate, shims and the 01479 Spacer. Motor Disassembly Complete.

This manual is also suitable for:

40353
