Summary of Contents for Worx MakerX WX739 Series

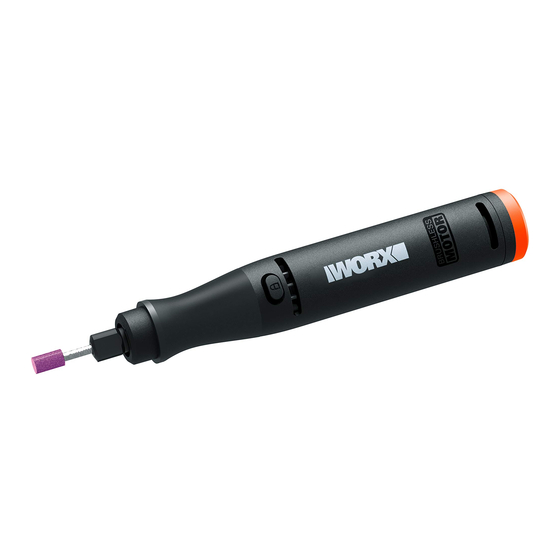

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS WX739 20V Cordless Rotary Tool WX739.X...
- Page 3 PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 5 paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact.
-
Page 6: Further Safety Instructions For All Operations
Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. - Page 7 which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out.
- Page 8 comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel pinching or snagging. Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut.
- Page 9 After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
- Page 10 Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will Li-I on then be recycled or dismantled in order to reduce the impact on the environment.
-
Page 12: Noise Information
COMPONENT LISTS CARVING BIT CHUCK COLLET SPINDLE LOCK BUTTON SPANNER Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type Designation W X739 W X739. X (739-designation of machinery, representative of rotary tool) WX739 WX739.X* Voltage 20 V Max**... -
Page 13: Vibration Information
VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value a =2.162 m/s Uncertainty K = 1.5 m/s² The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure. WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:... - Page 14 =45mm Tighten 1/2h Loosen...
-
Page 16: Operation
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended use This tool is intended for drilling, cutting, sanding, carving, polishing and grinding. ASSEMBLY 1. Press and hold the spindle lock button. Loosen the chuck first to insert the accessory into the collet. -
Page 17: Troubleshooting
ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. TROUBLE SHOOTING Rotation seems to stop or slow for no reason: 1. Do not subject the tool or accessory to heavy load. Use light, constant pressure. 2. -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product Description Battery operated die grinder Type WX739 WX739.X (739-designation of machinery, representative of grinder, polisher and sander) Function Grinding, drilling, sanding, polishing, cutting Complies with the following Directives: 2006/42/EC 2011/65/EU&(EU)2015/863... - Page 19 DECLARATION OF CONFORMITY Positec (UK & Ireland) Ltd. PO Box 6242, Newbury, RG14 9LT, UK On behalf of Positec declare that the product Description Battery operated die grinder Type WX739 WX739.X (739-designation of machinery, representative of grinder, polisher and sander) Function Grinding, drilling, sanding, polishing, cutting Complies with the following Directives: Supply of Machinery (Safety) Regulations 2008...
- Page 20 ACCESORIES “L” represents low speed, and is recommended to maximize accessory performance and life . (See Fig. F) Aluminum, Shell, Description Cork Wood Plastic Steel Ceramic Glass brass, etc. stone Sanding ✓ ✓ ✓ ✗ ✓ ✗ ✗ ✗ paper Sanding ✓...
- Page 21 Aluminum, Shell, Description Cork Wood Plastic Steel Ceramic Glass brass, etc. stone Aluminum oxide Grinding wheels/ ✗ ✗ ✓ ✓ ✓ ✓ ✓ ✗ silicon carbide Grinding wheels Silicon carbide Grinding ✗ ✗ ✓ ✓ ✓ ✓ ✓ ✗ wheels with shank Grinding/ Aluminum...
- Page 22 Aluminum, Shell, Description Cork Wood Plastic Steel Ceramic Glass brass, etc. stone Bristle ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ brushes Stainless ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ steel brushes Brass ✓ ✓ ✓ ✓ ✓ ✓ ✓...
- Page 23 Collets Suitable for size 1/8, 3/32, 1/16 accessories Wrench Fixing the attachments Adjust the concentricity of Grinding Wheels to keep them in Whetstone Accessories good condition Mandrel To link Rubber emery wheel/Sanding paper/Diamond wheel/ for cut off Cut off wheels/Grinding wheels wheel Sanding Use to mount sanding sleeves...
- Page 24 After-sales Service and Application At www.worx.com you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: 0345 202 9679 E-Mail: customerservices@worxtools.com www.worx.com Copyright © 2021, Positec. All Rights Reserved. AR01537903...
- Page 25 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS WX744 WX744.X...
- Page 26 PRODUCT SAFETY GENERAL SAFETY WARNINGS WARNING: Read all safety warnings and instructions. Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been...
-
Page 27: Safety Warnings For Battery Pack
care, therefore – be careful when using the appliance in places where there are combustible materials; – do not apply to the same place for a long time; – do not use in presence of an explosive atmosphere; – be aware that heat may be conducted to combustible materials that are out of sight;... - Page 28 cause burns or a fire. c)Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d)Do not subject battery pack to mechanical shock. e)In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes.
- Page 29 Worx. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Page 30 u)Do not remove battery pack from its original packaging until required for use. v)Observe the plus (+) and minus (–) marks on the battery and ensure correct use. SYMBOLS Read operator’s manual Warning Wear eye protection Wear protective gloves Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem.
-
Page 32: Component List
COMPONENT LIST POWER BUTTON “+” BUTTON LCD DISPLAY “-” BUTTON CRAFTER TIP COMFORT SLEEVE (OPTIONAL) Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type WX744 WX744.X (744 - designation of machinery, representative of crafter) WX744 WX744.X * Rated voltage 20 V... -
Page 35: Operation
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. ASSEMBLY 1. Assemble the crafter tips as shown in Fig. A1-A3. 2. Connect the crafter and the hub. (See Fig. B) WARNING: Before operation, make sure the speed control button on the hub is at the“Min“... - Page 36 enhance the grip, simply slide the sleeve over the nose of the tool. MAINTENANCE Remove the battery before carrying out any adjustment, servicing or mainte- nance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.
-
Page 37: Declaration Of Conformity
DECLARATION OF CONFORMITY Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product Description Wood & Metal Crafter Type WX744 WX744.X (744 - designation of machinery, representative of crafter) Function Wire joining, wood burning Complies with the following Directives: 2014/30/EU, 2011/65/EU &... - Page 38 DECLARATION OF CONFORMITY Positec (UK & Ireland) Ltd. PO Box 6242, Newbury, RG14 9LT, UK On behalf of Positec declare that the product Description Wood & Metal Crafter Type WX744 WX744.X (744 - designation of machinery, representative of crafter) Function Wire joining, wood burning Complies with the following Directives: Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and...
- Page 40 After-sales Service and Application At www.worx.com you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: 0345 202 9679 E-Mail: customerservices@worxtools.com www.worx.com Copyright © 2021, Positec. All Rights Reserved. AR01539502...
- Page 41 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS 20V Hub/HubX WA7160 WA7161...
- Page 43 PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 44 After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
- Page 45 Observe the plus (+) and minus (–) marks on the battery and ensure correct use. SYMBOLS Read the operator’s manual. Caution For indoor use only Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
- Page 47 COMPONENT LIST ON/OFF SWITCH USB PORT * SPEED CONTROL BUTTON BELT CLIP * FLEXIBLE POWER CORD POWER CONNECTOR * Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA WA7160 WA7161 Output: 20 V 10 A, Max. Output 20 V 10 A, Max.
- Page 49 OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. ASSEMBLY 1. Insert battery pack into the hub. (See Fig. A) 2. Connect the hub and MakerX series tools. (See Fig. B) WARNING: Before operation, make sure the speed control button on the hub is at the“Min“...
- Page 50 DECLARATION OF CONFORMITY Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product Description 20V Hub/HubX Type WA7160 WA7161 Complies with the following Directives: 2011/65/EU&(EU)2015/863 2014/30/EU Standards conform to EN 55014-1 EN 55014-2 EN 62368-1 (Only for WA7161) 2021/12/31 Allen Ding...
- Page 51 DECLARATION OF CONFORMITY Positec (UK & Ireland) Ltd. PO Box 6242, Newbury, RG14 9LT, UK On behalf of Positec declare that the product Description 20V Hub/HubX Type WA7160 WA7161 Complies with the following Directives: Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations Standards conform to BS EN 62368-1 (Only for WA7161)
- Page 52 After-sales Service and Application At www.worx.com you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: 0345 202 9679 E-Mail: customerservices@worxtools.com www.worx.com Copyright © 2021, Positec. All Rights Reserved. AR01538002...
- Page 53 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS Battery Charger WA3880...
-
Page 58: Additional Safety Instructions For Your Battery Charger
PRODUCT SAFETY knowledge, unless they have GENERAL SAFETY been given supervision or instruction concerning use WARNINGS of the appliance by a person WARNING: Read all responsible for their safety. safety warnings and all Children should be supervised instructions. Failure to follow to ensure that they do not play the warnings and instructions with the appliance. - Page 59 17. Charge only battery pack of correctly positioned and is the same model provided not obstructed by foreign by Worx and of models bodies. recommended by Worx. 13.Keep battery charger’s slots 18. For charge Li-ion battery are free of foreign objects pack only.
-
Page 60: Technical Data
Protection class Machine weight 0.45kg For the technical data of the types, the number of cells and the rated capacity of the batteries that can be charged, please refer the nameplate of the battery pack supplied by Worx. Battery Charger WA3880... -
Page 61: Charging Procedure
CHARGING PROCEDURE Green on Fully Charged NOTE: Before using the tool, read the instruction book carefully. Green flash CHARGING INSTRUCTIONS - - - - - - Charging 1. CHARGING YOUR BATTERY PACK WARNING: The charger and battery pack are specifically designed to work together so do BATTERY TEMPERATURE PROTECTION not attempt to use any other devices. -
Page 62: Problem Solution
MAINTENANCE battery pack may become warm to touch. If the battery pack does not charge properly: Check current at power outlet by plugging in Remove the plug from the socket before another appliance. carrying out any adjustment, servicing or Plug and unplug to check whether the charger is maintenance. - Page 63 (neutral) Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product, Outer sleeve Cable grip firmly clamped Description Worx Battery Charger WA3880 Type Complies with the following Directives, 2014/35/EU 2014/30/EU 2011/65/EU&(EU)2015/863 Standards conform to...
- Page 64 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China After-sales Service and Application At www.worx.com you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: 0345 202 9679 E-Mail: customerservices@worxtools.com...
