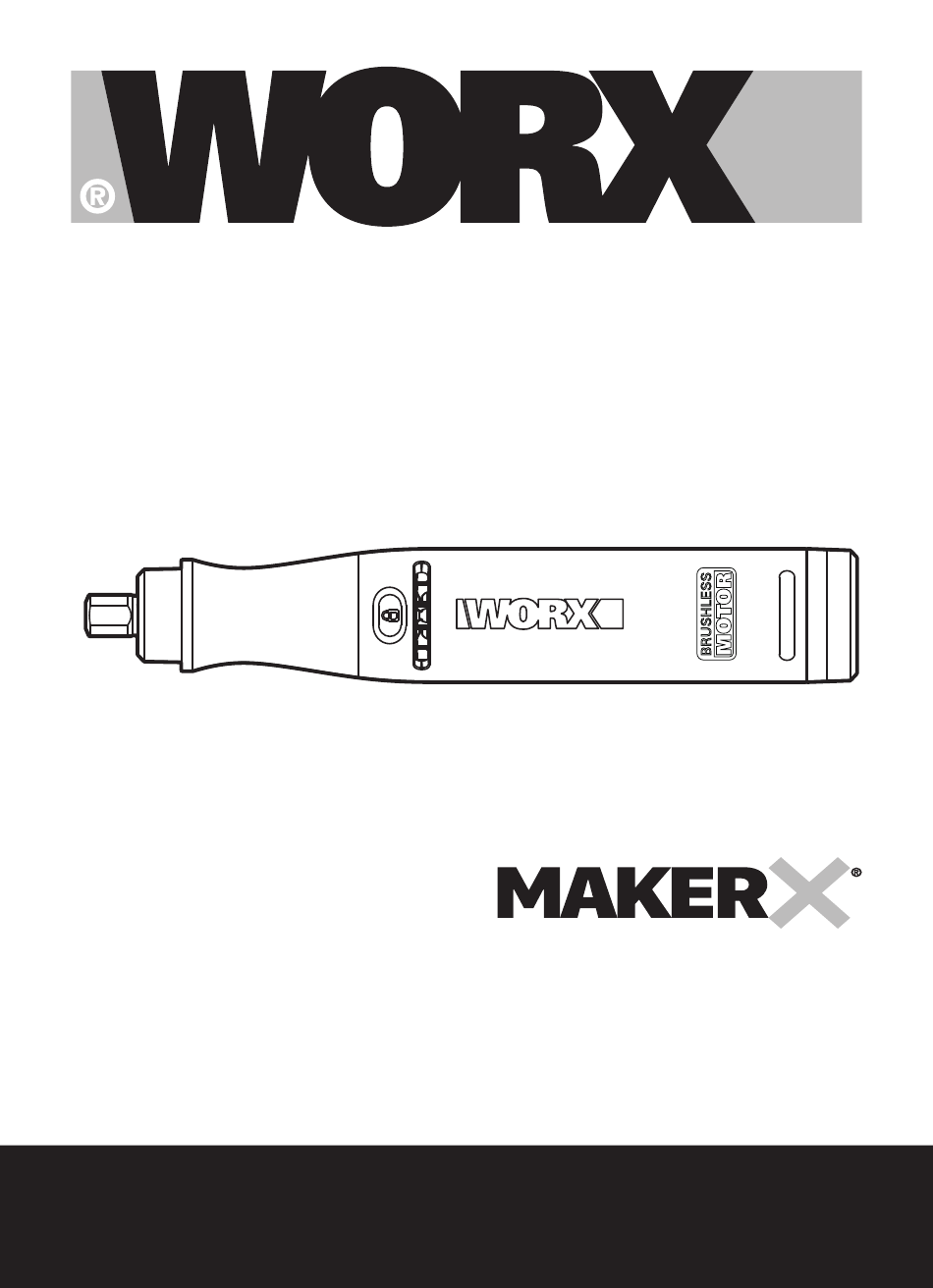

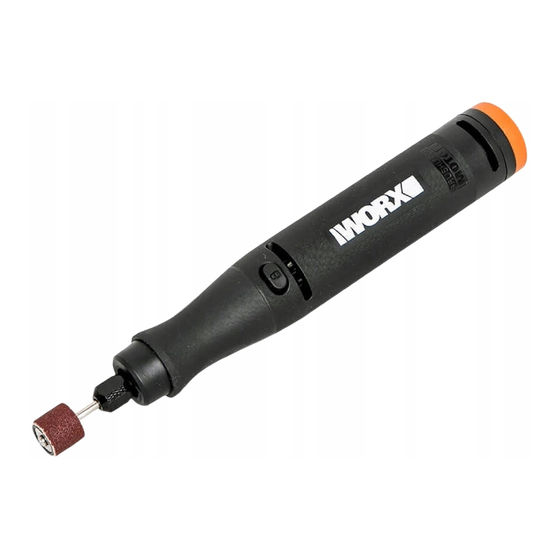

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS WX739 20V Cordless Rotary Tool WX739.X...
- Page 3 PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 5 paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact.
- Page 6 Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations.
- Page 7 which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out.
- Page 8 comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel pinching or snagging. Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut.
- Page 9 After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
- Page 10 Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will Li-I on then be recycled or dismantled in order to reduce the impact on the environment.
-
Page 12: Technical Data
COMPONENT LISTS CARVING BIT CHUCK COLLET SPINDLE LOCK BUTTON SPANNER Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type Designation W X739 W X739. X (739-designation of machinery, representative of rotary tool) WX739 WX739.X* Voltage 20 V Max**... -
Page 13: Vibration Information
VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value a =2.162 m/s Uncertainty K = 1.5 m/s² The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure. WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:... - Page 14 =45mm Tighten 1/2h Loosen...
-
Page 16: Operation
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended use This tool is intended for drilling, cutting, sanding, carving, polishing and grinding. ASSEMBLY 1. Press and hold the spindle lock button. Loosen the chuck first to insert the accessory into the collet. -
Page 17: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. TROUBLE SHOOTING Rotation seems to stop or slow for no reason: 1. Do not subject the tool or accessory to heavy load. Use light, constant pressure. 2. -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product Description Battery operated die grinder Type WX739 WX739.X (739-designation of machinery, representative of grinder, polisher and sander) Function Grinding, drilling, sanding, polishing, cutting Complies with the following Directives: 2006/42/EC 2011/65/EU&(EU)2015/863... - Page 19 DECLARATION OF CONFORMITY Positec (UK & Ireland) Ltd. PO Box 6242, Newbury, RG14 9LT, UK On behalf of Positec declare that the product Description Battery operated die grinder Type WX739 WX739.X (739-designation of machinery, representative of grinder, polisher and sander) Function Grinding, drilling, sanding, polishing, cutting Complies with the following Directives: Supply of Machinery (Safety) Regulations 2008...
- Page 20 ACCESORIES “L” represents low speed, and is recommended to maximize accessory performance and life . (See Fig. F) Aluminum, Shell, Description Cork Wood Plastic Steel Ceramic Glass brass, etc. stone Sanding ✓ ✓ ✓ ✗ ✓ ✗ ✗ ✗ paper Sanding ✓...
- Page 21 Aluminum, Shell, Description Cork Wood Plastic Steel Ceramic Glass brass, etc. stone Aluminum oxide Grinding wheels/ ✗ ✗ ✓ ✓ ✓ ✓ ✓ ✗ silicon carbide Grinding wheels Silicon carbide Grinding ✗ ✗ ✓ ✓ ✓ ✓ ✓ ✗ wheels with shank Grinding/ Aluminum...
- Page 22 Aluminum, Shell, Description Cork Wood Plastic Steel Ceramic Glass brass, etc. stone Bristle ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ brushes Stainless ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ steel brushes Brass ✓ ✓ ✓ ✓ ✓ ✓ ✓...
- Page 23 Collets Suitable for size 1/8, 3/32, 1/16 accessories Wrench Fixing the attachments Adjust the concentricity of Grinding Wheels to keep them in Whetstone Accessories good condition Mandrel To link Rubber emery wheel/Sanding paper/Diamond wheel/ for cut off Cut off wheels/Grinding wheels wheel Sanding Use to mount sanding sleeves...
- Page 24 After-sales Service and Application At www.worx.com you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: 0345 202 9679 E-Mail: customerservices@worxtools.com www.worx.com Copyright © 2021, Positec. All Rights Reserved. AR01537903...
