M-7028
8 Channel Analog Output Data Acquisition
Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/m_7028.html
http://www.icpdas-usa.com/dcon_utility_pro.html
1. Introduction
The M-7028 is a 12-bit, 8-channel analog output module. It provides a programmable
output range on all analog output channels (0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20
mA or 0 ~ +20 mA). Each analog output channel can be configured for an individual
range and the module also features per-channel open wire detection for the +4 ~ +20
mA output, together with 8 kV ESD Protection as well as 3000 VDC intra-module
isolation. Options for configuring power-on and safe values are also included.

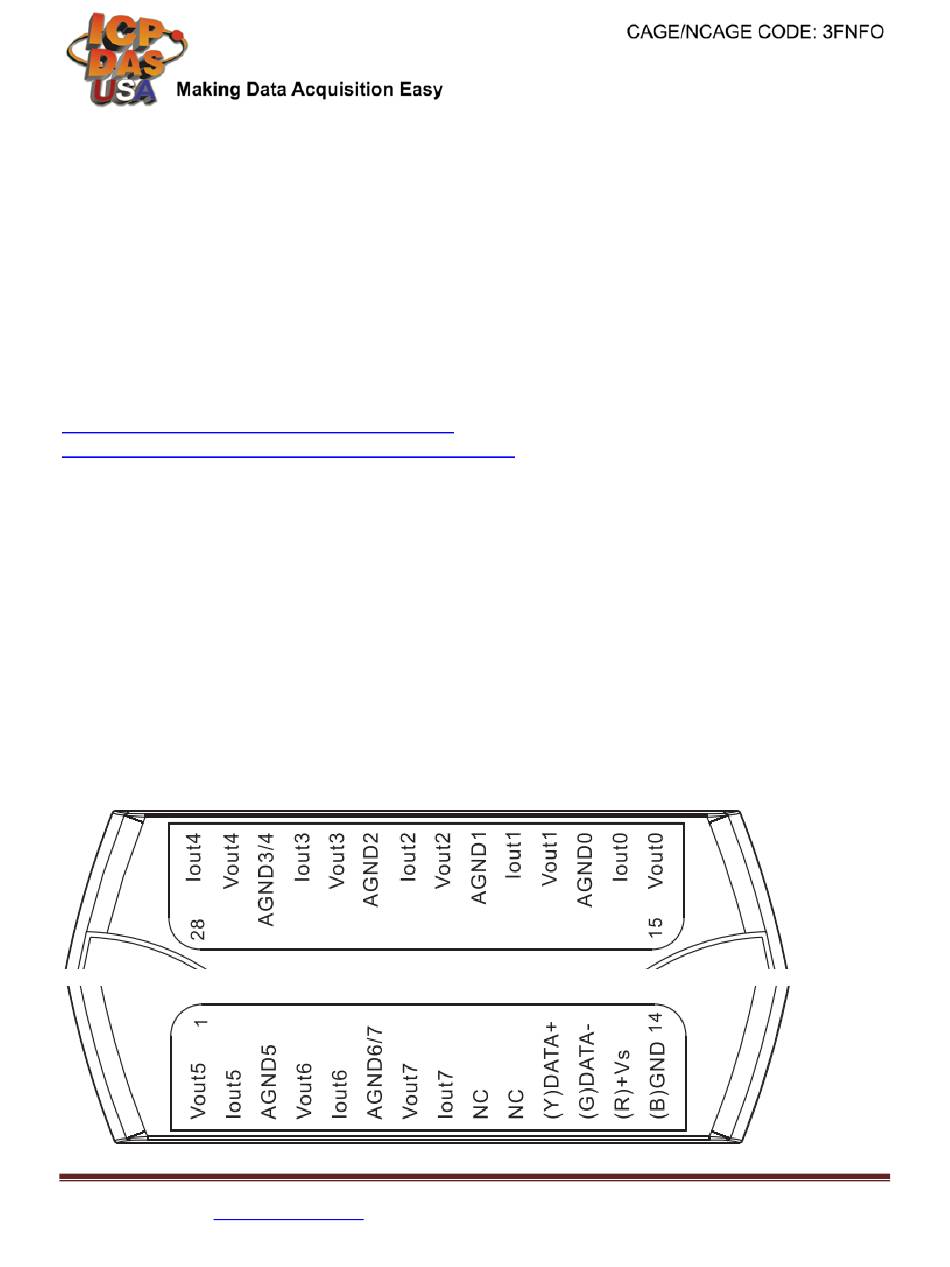

2. Terminal Assignment
M-7028 8 Channel AO DAQ Module - QuickStart (Apr/2018)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
