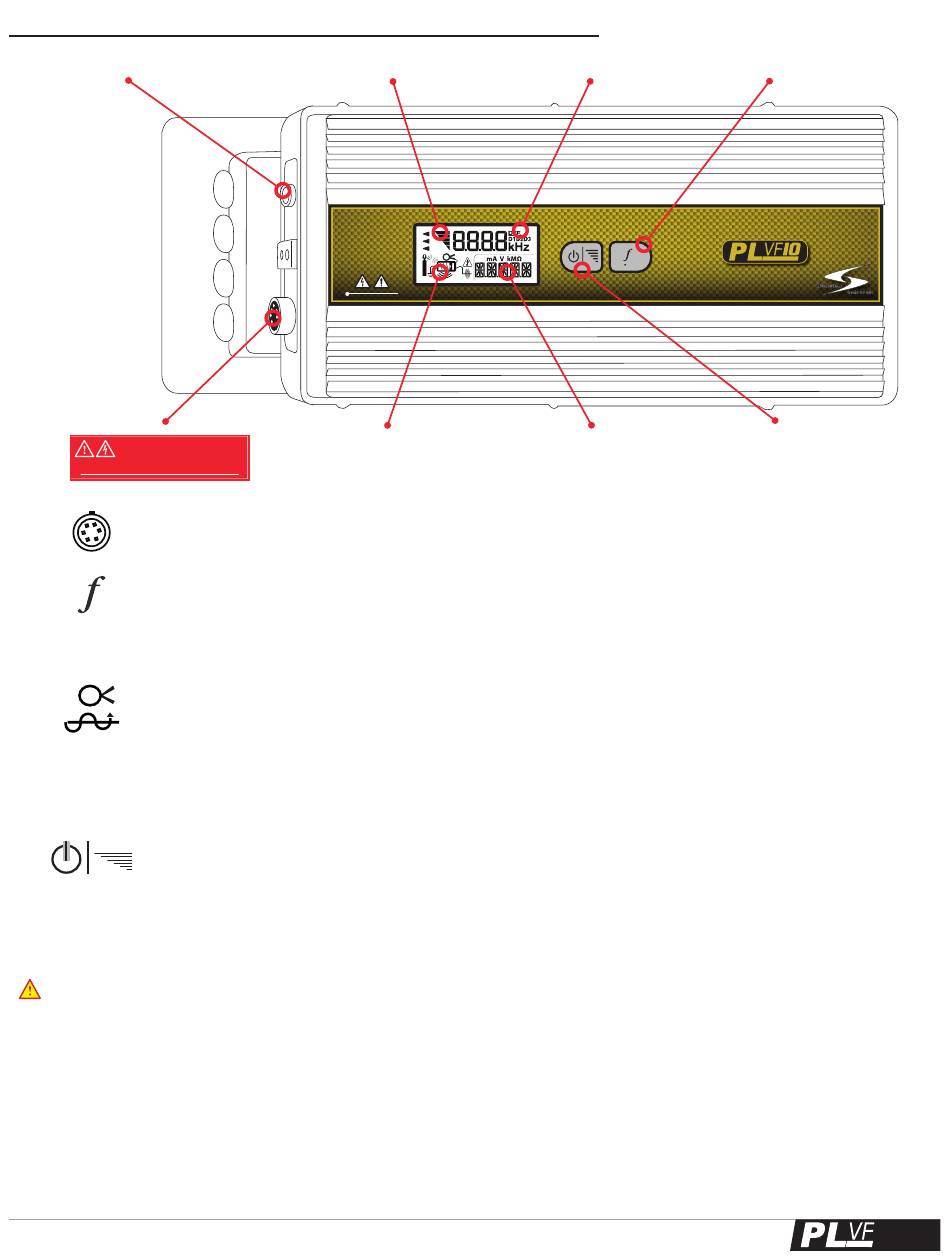

Vf10 Transmitter Controls And Indicators - SubSurface Instruments PL-VF10 User Manual

pl-vf10 t
Li-Ion Battery AC Recharge Port
Tx Output Jack
CAUTION
Lethal Voltages May Be Present
TX OUTPUT JACK
The Red/Black Cord,
FREQUENCY SELECTOR
This button toggles through the available frequencies. The selected frequency is displayed on the LCD.
When dual frequency transmission options are selected, indicated by the F1 & F2 icons to the right
large numeric segments, the frequencies will flash from one to another.
SIGNAL INDICATOR (visual & audible)
The Signal Indicator symbol flashes to indicate signal output.
The quick triple beep audible tone indicates the circuit is open and no signal is being transmitted. A
steady continuous beep indicates a closed circuit and signal is transmitted . When the indicator blinks
4 times per second, it is indicating a nearly short circuit. When the indicator blinks 1 time every 10
seconds, it is indicating a nearly open circuit.
ON/OFF & OUTPUT SIGNAL LEVEL CONTROL
The ON/OFF & OUTPUT SIGNAL LEVEL CONTROL turns the unit on. With a short press it will adjust
the power output from the Transmitter. There are 3 selections on the standard power settings. Holding
down the Output Signal Level button for 2 Seconds will turn the unit off.
High Power Output is a SHOCK HAZARD - Lethal voltages at the transmitter's output. Turn off
transmitter before touching test lead or any un-insulated conductor. Make connection to ground and
WARNING!
target conductor before turning on transmitter.
SIGNAL INFORMATION SELECTOR
The unit can display the relative resistance, current and voltage of the transmitted signal. The resistance
is based on the feed back from the selected frequency and is not an actual impedance meter. The
selections can be toggled by pressing the SIGNAL INFORMATION button.
www.ssilocators.com
C
ransmitter ontrols
Output Level Indicator
OUTPUT JACK
Battery
Condition Indicator
H C connects here to create a circuit on the buried utility.
ard oupler
& i
ndiCators
Load Rate Indicator
Relative Resistance,
Volt, Current
Frequency Selector
SERIES
Power On &
Output Signal
Level Control
