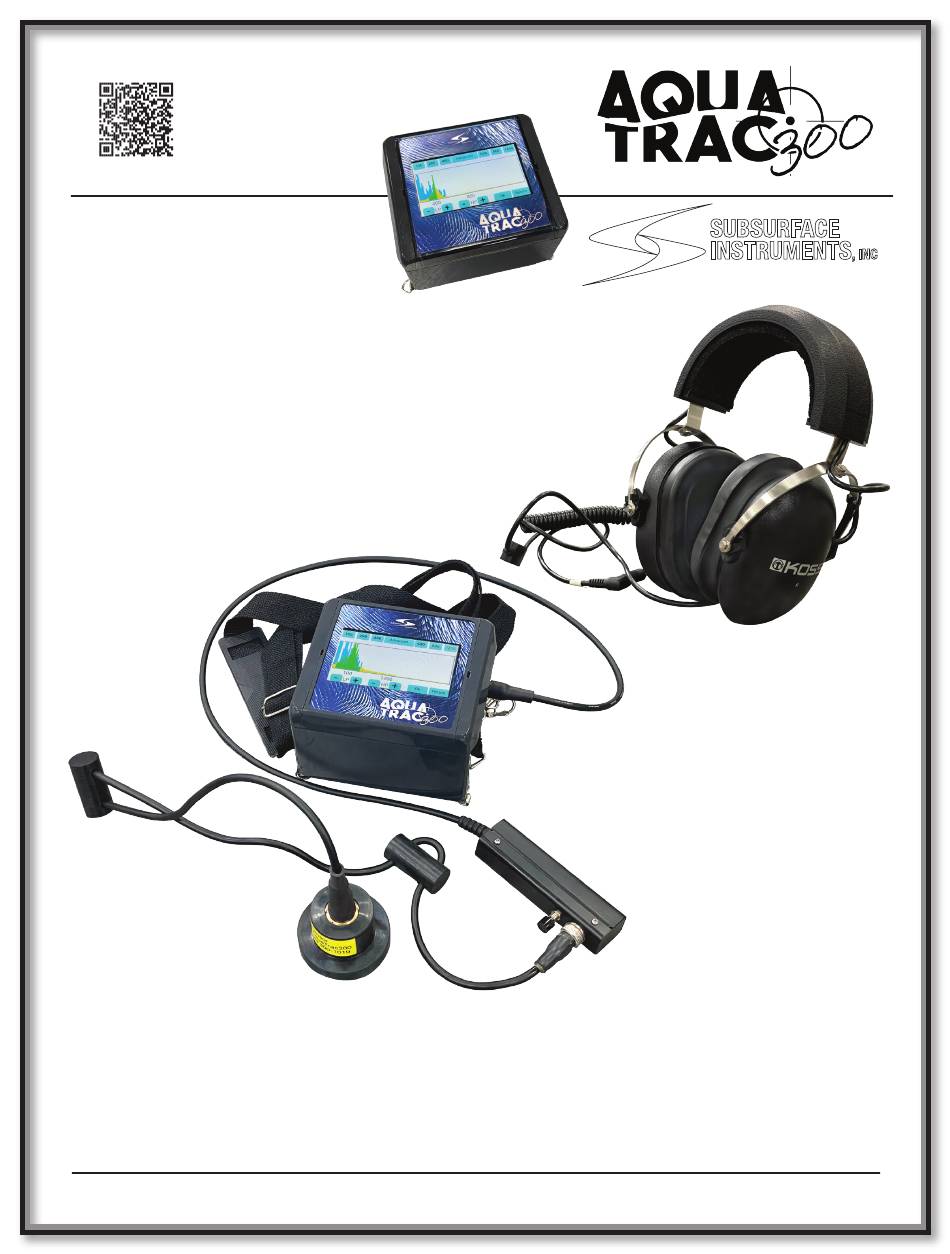

- Page 1 Scan for Digital Version Water Leak Detector User Manual User Manual Instructions, Functions and Warranty Information...
- Page 2 No part of this manual may be reproduced, copied, modified or adapted, without the prior written consent of the SubSurface Instruments, Inc. Please contact SubSurface Instruments, Inc. to request permission for reproduction and use of this manual for training purposes.
-
Page 3: Table Of Contents
able of ontents eneral nformatIon Table of Contents ..............Introduction ................04 Disclaimer of Liability ............. Important Notices ..............Prepare for Use ..............Warranty................05 Features ................Technical Description ............. Product Description ..............Operation ................09 Main Screen Functions ............Audio Frequency Filters ............ -
Page 4: Introduction
SubSurface Instruments, Inc. shall not be liable to Distributor, Re-Seller, or any other person for any incidental, indirect, special, exemplary or consequential damages, or injury of any type whatsoever, either caused directly or indirectly by products sold or supplied by SubSurface Instruments, Inc.. -
Page 5: Prepare For Use
Note: For longer battery life and reliable operation under adverse conditions, use only supplied charger and accessories provided by SubSurface Instruments, Inc. Connect the Sensor/Microphone into the unit and ensure — by screwing the connector until the nut is secure against the unit—... -
Page 6: Features
eatures ersion ummary The AquaTrac™300 provides all the necessary features for detecting water leaks in buried pipes using acoustics. It includes a powerful ground microphone that can detect sounds directly from the pipe and on the ground surface. The equipment's screen displays the sound level in graphical and numerical form. -
Page 7: Technical Description
eChniCal esCription eChniCal heet Type: This is an electronic water leak detector with an electronic sensor. It can be used to identify water leaks on buried pipes or above-ground meters and hydrants Operating frequency: 10-5120 Hz (others on request) Filters: 6 noise filters are pre-set in the unit and also can be customized by the user, allowing infinite combinations Amplifier:... -
Page 8: Product Description
roduCt esCription ™300' dentifying the s physiCal features The AquaTrac™300 is built with an engineer-grade plastic box that encloses its electronic components and control board. It boasts an advanced and highly responsive Color Touch Screen LCD and connections that can be easily identified, making setup time very quick. -
Page 9: Operation
Diagnostics in progress Satisfactory diagnostics result If the screen displays a fail diagnostics message, you must re-start the equipment to run diagnostics again and clear the error. If the problem persist, contact SubSurface Instruments, Inc. repair department at info@ssilocators.com Creen esCription The primary display grants you access to all the necessary controls for the unit, including adjusting the volume for your headset, regulating your microphone sensitivity, managing filters, storage memory, and configuring settings. -
Page 10: Main Screen Functions
Creen unCtions nformation on the Creen The main screen displays all the information needed for the operator to successfully locate water leaks. umeriC alues At the top of the screen, there is a bar that constantly moves left and right, at the same time that the numeric value located next to it changes accordingly. -
Page 11: Audio Frequency Filters
Creen unCtions eadphones olume Adjust the value of the headphones by pressing the plus and minus buttons on the right of the screen, the bar in-between shows the current volume level. The volume varies the amplitude with which the sound is sent to the headphones, when turning the equipment ON, the volume is reset to a default level, adjusting the volume so that it is safe for the user’s hearing. - Page 12 udio reQuenCy ilters Advanced 1200 1200 Return Low frequency predetermined filters Yellow: Reduced sound (choose 100Hz - 200Hz - 400Hz) Currently selected low frequency filter Basic/Advance filtering system Custom low frequency filters (LF) High frequency predetermined filters manually increase or decrease the filter value in Hz (choose 600Hz - 800Hz - 1200Hz) Currently selected high frequency filter Blue: Advanced filtration system especially for leaks that...
- Page 13 NOTE: Please use this screen only as a last resort. It is designed to apply higher digital filters to the frequencies. Most situations encountered in the field can be resolved by adjusting the normal filters on the main filter screen. These advanced features are rarely used in conventional Water Leak Detection and are intended for audio professionals to have additional control over the sounds being collected.
-
Page 14: Recommendations
eleCting redefined ilter hortCuts The AquaTrac™300 Leak Detector offers the flexibility to create multiple custom frequency configurations. However, for beginners, it is advisable to utilize the PREDEFINED FILTERS that come with the unit. The following table can be referenced to select the appropriate filter based on the job and conditions. LOWER BAND HIGHER BAND FREQUENCY... -
Page 15: Memory Data Recording
emory eCording ™300 m hy to use the emory In order to successfully pinpoint the location of a water leak, it is essential to gather information from multiple points along the pipe. By closely analyzing the noise levels at each of these points, one can identify the section with the highest and most continuous noise. -
Page 16: Advanced Settings
dVanCe ettings onfig Creen The AquaTrac™300 allows the user to change advanced settings under the configuration menu, some of these settings control how the unit's sound performs, so please be aware of the changes you make on this screen. The available settings are: Brightness The level of brightness on the AquaTrac™300 device affects its battery life directly. -
Page 17: Factory Service
The AquaTrac™300 uses a rechargeable battery. To recharge the battery, simply plug the charger that is supplied with the equipment in the unit's AC power input, located on the side of the plastic enclosure. Contact SubSurface Instruments, Inc. if you have any problems re-charging the Li-Ion Battery The total charging time is between 4-6 hours. - Page 18 nCluded The AquaTrac™300 ships inside of a hard padded case for shock and weather protection. Includes: • The "AquaTrac™300" Amplifier • Electronic sensor with 5' (1.5m) of cable • Koss Headphones with 3.5mm jack • Collapsible contact rod (3 pieces) •...
-
Page 19: What's Included
nCluded Main Box Digital Amplifier Koss stereo headphones 3 section rod Piezo Geophone Hand-held trigger Microphone/Sensor Magnet Hard IP68 Certified, shock proof ABS custom carrying case. David Clark Headphones *Optional - Sold Separately www.ssilocators.com... -
Page 20: Company Information
Our customers from the petroleum, water, sewer, power, telecom, cable and gas industries rely on SSI’s high quality and dependability to make crucial measurements in the world’s most challenging conditions. SubSurface Instruments’ products are proudly made in the U.S.A. and offer an industry-leading warranty.
