- Page 1 Congratulations on making the smart decision: SAVINGS REBATE ENVIRONMENT EG-330FR EG-290FR EG-260FR EG-215FR HEAT PUMP WATER HEATER PRODUCT & INSTALLATION GUIDE...
- Page 2 Australian homes and businesses. The Technical bit The Ecogenica 215FR, 260FR, 290FR and 330FR models are fully dedicated, quick connect heat pumps using the most advanced reverse cycle heating technology which directly heats the water instead of the air, like other traditional gas or electric hot water pumps.
-
Page 3: Table Of Contents
9 Wiring Diagram Page 23 10 Installation Page 24-26 11 System Operation Page 27 12 System Troubleshooting Page 28 13 System Maintenance For all Models Page 29-30 14 Warranty For all Models Page 31 ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 4: Reference Performance & Specifcations
COMMERCIAL MODELS are available. 215FRC and 290FRC. Parameters are the same as above. Commercial models have a higher set temperature. The commercial models only need the top sensor installed. Please contact us for details on commercial installations. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... - Page 5 • The PTR valve should be operated every 6 months to ensure that the valve does not have any restrictions. The drain pipe should be well insulated to prevent the water in the pipe from freezing in cold weather. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
-
Page 6: Warnings Notice To Customer
WARNING — This appliance may deliver water at high temperature. Refer to the Plumbing Code of Australia (PCA), local requirements and installation instructions to determine if additional delivery temperature control is required. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 7: Before Installation For All Models
• Areas where flammable gases or materials are present. • Factories with large voltage fluctuations. • Areas where acidic or alkaline gases are present. • In a cabin without a large enough • Other special environments. exhaust system. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 8: System Debugging For All Models
After adding, please record the final where (L) is the length of the double-pass charging amount (at right), and keep it working fluid tube, noted in m. properly for subsequent maintenance. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 9: Split Quick Connection Models 215Fr 290Fr 330Fr
Split Quick Connection Models 215FR / 290FR / 330FR Split Quick Connection Models 215FR 290FR 330FR ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 10: Components And Connections
Hot Water Outlet G 3/4 internal thread P/T valve-850kPa Temperature Sensor Refrigerant Inlet Refrigerant Outlet Temperature Sensor Cold Water Inlet G 3/4 internal thread Tank 215FR Connections Tank 290FR Connections Tank 330FR Connections ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 11: Wiring Diagram
7 - Gas Recovery Temperature Sensor 16 - Compressor Startup Capacitor 8 - Coiler Temperature Sensor 17 - Connection Terminal Station 9 - High Pressure Switch 18 - Water Tank Temperature Sensor (lower) ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 12: Installation
• To ensure the safe use of the water tank, when the water inlet pressure exceeds 500 kPa, a pressure reducing valve should be installed on the water inlet pipe. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... - Page 13 Once the couplings are connected a refrigeration charge in the condenser pipe is released into the heat pump and the fully charged heat pump is ready for plumbing connections. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
- Page 14 Hot Water Outlet PTR Relief Valve Water Temperature Sensor Refrigerant Inlet Refrigerant Outlet Cold Water Supply Heat Pump Pressure Reduction Valve One-way valve Water Temperature Creepage Switch 30A Sensor 2 220~240V/50Hz ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
- Page 15 6 - Connector (female) 3/8 7 - Connector (male) 1/4 8 - Connector (male) 3/8 9 - Hexagon spanner Welded to the tank 6.35 ø 9.52 ø copper tube copper tube (2m) (2m) ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
-
Page 16: System Operation
Time setting: press this key to set the current time Set timed power on/off Increase: To increase the set temperature or increase a certain value, press this key to proceed This key is invalid ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... - Page 17 LEGIONELLA CONTROL METHOD Compressor opens automatically at 2:00 a.m. every monday (constant temperature shutdown and standby status can be opened). Disinfect once a week. The default is: 61ºC, 32 min. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
-
Page 18: System Troubleshooting
-7. The electronic expansion valve is not 3.The working environment has open exceeded the limit operating range of the compressor. Check whether the electronic valve coil and port are loose; ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... - Page 19 Check the water working, and it needs to volume of the water tank and be powered on again to whether the pump is running resume the re-detection ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
- Page 20 The diagnostic codes and usage symptoms listed above are the most common, if the diagnostic codes listed above or other usage issues do not appear, please contact technical assistance ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
-
Page 21: All-In-One Connection Models: 2600Fr
All-in-one Connection Models: 260FR All-in-one Connection Models 260FR ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 22: Connections

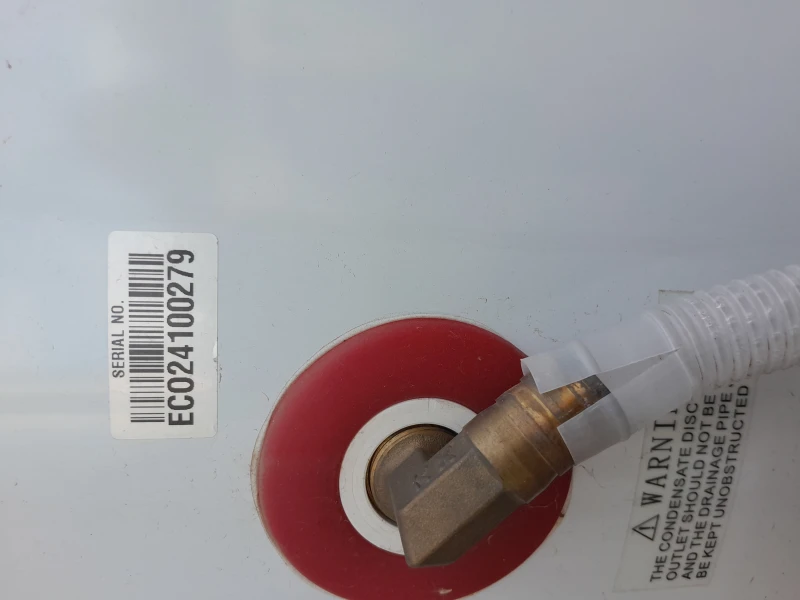

Tank and Heat Pump (included at top of tank) 260FR Air Outlet Air Inlet Display Condensate Drain Hot Water Outlet G 3/4 internal thread P/T valve-850kPa Cold Water Inlet G 3/4 internal thread Tank 260FR Connections ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 23: Wiring Diagram
15 - Compressor Startup Capacitor 7 - Ambient Temperature Sensor 16 - Connection Terminal Station 8 - Electronic Expansion Valve 17 - Connection Terminal Station 9 - Display 18 - (Not in use) ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 24: Installation
Therefore, it is strongly recommended that the pipe work connected to the relief valve is able to withstand water temperatures exceeding 99˚C. Failure to follow this recommendation may result in a dangerous situation. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... - Page 25 Always use a valve of the same rated pressure and temperature as the PTR valve supplied with the unit. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
- Page 26 Proper ground connection is essential. The presence of ť water in the piping and water heater does not provide sufficient conduction for a ground. Nonmetallic piping, dielectric unions, flexible connectors etc, can cause the water heater to be electrically isolated. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
-
Page 27: System Operation
/ off button In the shutdown state, press the combination key for 3 seconds. for 3 seconds to reset the parameters. The reset is successful, and the buzzer rings for 2 times; ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 28: System Troubleshooting
Compressor discharge Notify authorised contractor. temperature sensor error NOTE The diagnostic codes listed above are the most common. If a diagnostic code not listed above is displayed, please contact for technical assistance. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... -
Page 29: System Maintenance For All Models
• To restore the state of use, be sure to fill up the water first and observe whether there is any leakage • Turn on the power, turn on the heat pump to heat the water to the termination temperature, and then observe whethe there is any leakage here, before leaving ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE... - Page 30 Water with a pH value of less than 6.0 can be treated to increase the pH value, so it is recommended to analyze the quality of tap water before connecting to this type of water supply system. ECOGENICA FR MODELS PRODUCT & INSTALLATION GUIDE...
-
Page 31: Warranty For All Models
14.2 WARRANTY EXCLUSIONS 1. Repair and replacement work will be carried out as set out in the ECOGENICA Heat Pump Water Heater System warranty. However the following exclusions may void the warranty and may incur additional service charges and/or cost of parts. - Page 32 Your new Ecogenica Quick Series Heat Pump uses a small amount of energy to move heat from one location to another. Heat is absorbed by ozone-friendly R290, a natural refrigerant which does not contribute to global warming.
