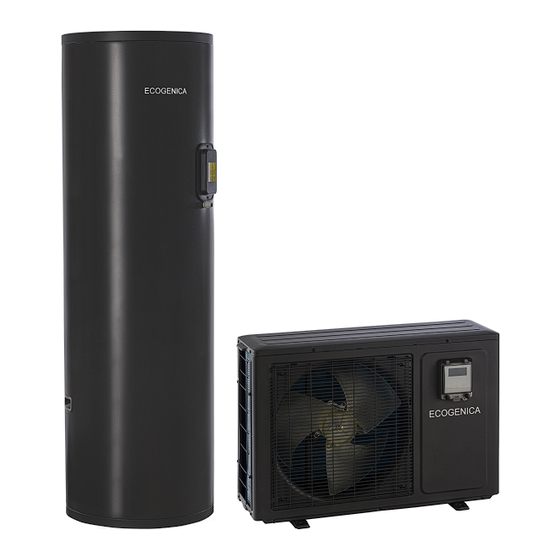

- Page 1 OWNERS MANUAL 1st October BOOSTER ELEMENT EG-330FREC-WR Wi-Fi EG-300FREC-W EG-300FRE-W EG-215FREC-W EG-215FRE-W...
-
Page 2: Table Of Contents
The installation conforms to the Plumbing Code of Australia (PCA). regulations of the local authority. in line with national building regulations and local occupational health and safety regulations Thank you for choosing the Ecogenica The W-Series uses the natural refrigerant W-Series Heat Pump Water Heater. -
Page 3: Warning And Safety Information
1. Warning & Safety Information WARNING – FOR CONTINUED SAFETY OF THIS APPLIANCE IT MUST BE INSTALLED, OPERATED AND Poor electrical circuits and wiring can be dangerous and MAINTAINED IN ACCORDANCE WITH THE may result in death or injury. MANUFACTURER’S INSTRUCTIONS. •... -
Page 4: Installation Cautions
As every home is different pipework plumbing insulation in the home is quoted separately. All installations of Ecogenica Heat Pump systems must comply with the AS3000 electrical standards. It is the responsibility of the licensed electrician to ensure that all wiring, power supply connections, and protective... -
Page 5: Pre-Installation
• Unsafe Installation location: Installation must comply with safety standards and regulations. Including, and not limited to, areas with inadequate ventilation, proximity to hazardous materials, or installations that violate manufacturer guidelines. • Installations indoors are not recommended, and permission must be secured from Ecogenica. -
Page 6: Installation
3/4-inch (20mm) which is normal, but drainage treatment must female connections. be done regardless and must comply with AS/ • EG-330FREC-WR has G11/4-inch (32mm ID) female NZS3500.4. connections, and a reducer to ¾” (20mm), can be supplied. - Page 7 • Wi-Fi: to connect Wi-Fi to the Ecogenica, or TUYA application, pair the heat pump to the Smart device controller (App). The application needs to be down -loaded WATER TANK INSTALL POSITION to your device.
-
Page 8: Operation
• After confirming that the power cord is firmly connected, The Ecogenica Heat Pump Water Heater consists of 3 turn on the power of the water heater. The device is fully main components. 1. The Condenser tank - which heats automatic control. -
Page 9: System Maintenance
6. System Maintenance • The efficiency of the Heat Pump depends on • To avoid the expansion and whether there is dust, mud or other on the deformation of the water tank due to excessive surface of the evaporator. Sundries block the air pressure, the service life of the water tank will be inlet channel and lose the effect of heat affected. -
Page 10: Specifications & Drawings
7. Specifications & Drawings Residential Model EG-330FRE-WR EG-300FRE-W EG-215FRE-W Commercial Model* EG-330FREC-WR EG-300FREC-W EG-215FREC-W Wi-Fi Number of sensors 330 L 290 L 215 L Tank Volume 1020 W 750W 630 W Input Power 75.69% 80.2% 79.00% Energy Savings 3 to 6... - Page 11 7. Specifications & Drawings Magnesium Rod EG-215FRE-W EG-215FREC-W line EG-300FRE-W EG-300FREC-W line EG-330FRE-WR EG-330FREC-WR...
- Page 12 7. Specifications & Drawings W-Series Split Exploded View ITEM HEAT PUMP ASSEMBLE DESCRIPTION Fan protection grill Front cover Controller – Wi-Fi, temperature, timer. Condensation drain Compressor assemble Schrader valve & Quick condenser connection Top cover Rear casing assemble Evaporator Power cable cover Circuit board Condenser tank Condenser pipe (pair coil)
-
Page 13: Electrical & Controls
8. Electrical & Controls - Integrated Circuit Board - Motor - Transformer - Compressor - Display - Motor Capacitance - Water Tank Temperature Sensor T1 (central section) - Compressor Start-up Capacitor - Exhaust Temperature Sensor - Connection Terminal Station - Ambient Temperature Sensor - Water Tank Temperature Sensor (T2) (upper part) - Gas Recovery Temperature Sensor - Electric Heating Relay... - Page 14 8. Electrical & Controls AUTO All-day operation. Press in “Automatic Mode” to switch to “Eco mode” Automatic Mode Run in a fixed period. Press in “Eco Mode” to switch to Energy saving “Automatic Mode” mode When the machine is in the standby state, the “STANDBY” icon is on STANDBY When the machine is in the heat state, the “HEAT”...
- Page 15 8. Electrical & Controls On/Off: • Long press for 3 seconds to turn on (off) Set temperate: • Press to view the temperature set. After setting, press save settings and exit. (It is valid after the key is released). Set working mode: •...
- Page 16 8. Electrical & Controls Setting the Timer on Your Heat Pump - the controller is mounted in weather proof casing on the Heat Pump. 1. Press and hold the clock icon for 5 seconds until ""Timer 1"" appears on the display. 2.
- Page 17 8.Electrical & Controls Startup: Power On: Press “ ” for 3 seconds Factory parameter setting: • Compressor opens automatically at 2:00 P.M. • Power Off: Press “ ” for 3 seconds daily if water temperature is less than 60 °C •...
-
Page 18: Warranty
The person making the claim must notify Ecogenica as soon as they notice any defects without delay, and the product must be within its TERMS OF WARRANTY warranty period as set out in the terms of warranty. -
Page 19: Warranty Exclusions
(b) excessive water pressure. 9. To the extent permitted by law, Ecogenica shall not be liable under this Warranty for any consequential loss or damage (c) no flow of hot water. or any incidental expenses resulting from any breach of this (d) water leakage. - Page 20 This lays the foundation for future generations to enjoy more secure, reliable and affordable energy. You can choose an ECOGENICA® product safe in the knowledge that our innovative technology is focused on energy and environment savings. Our hot water pumps are cfc free and utilise renewable energy, extracted from the air.
