Summary of Contents for ECOGENICA EG-215FR290

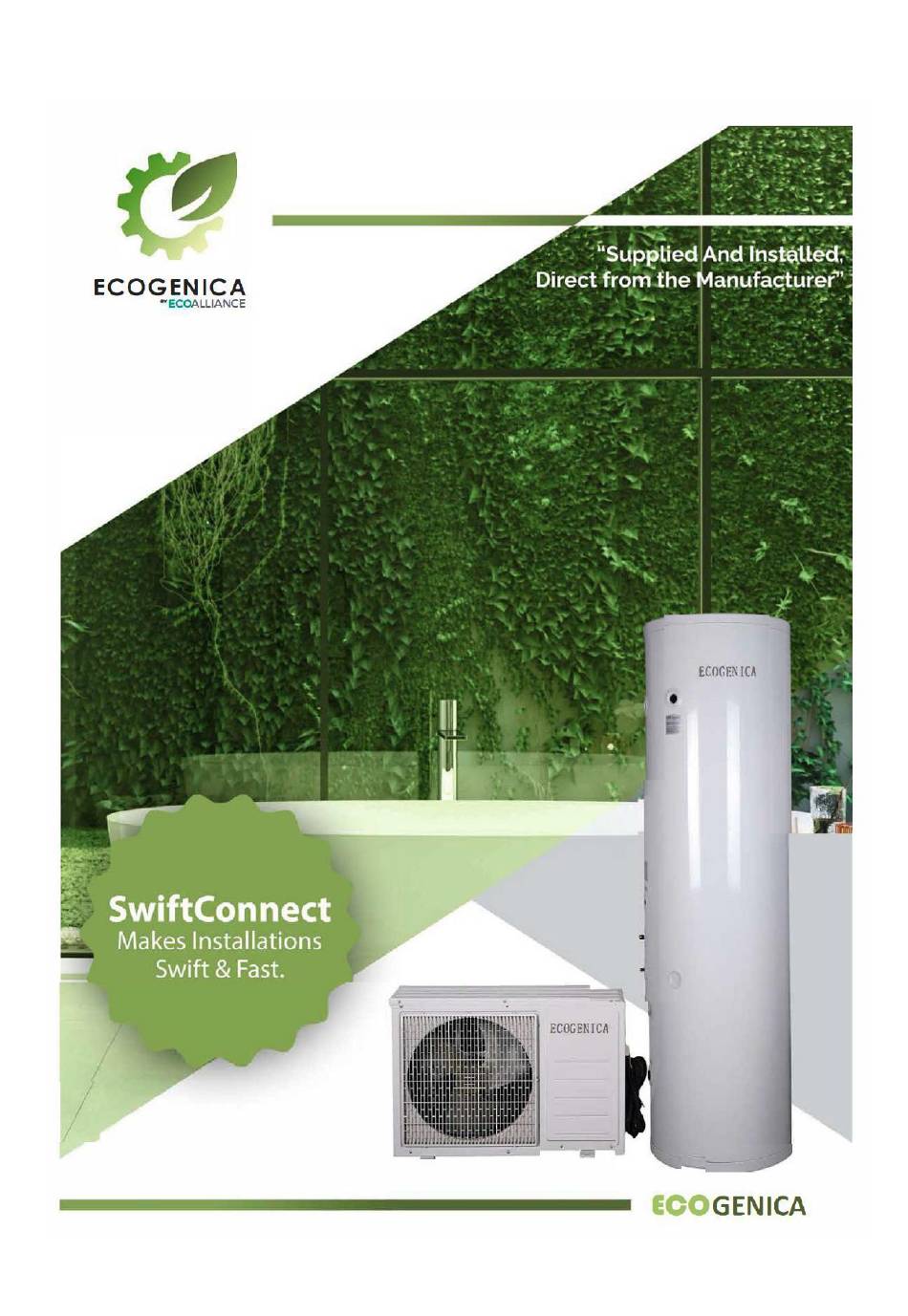

- Page 1 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23...
- Page 2 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 ▪ Do not install this if you cannot ensure that the power supply to the property is properly grounded. ▪ The device must be installed by a licensed professional and must meet the following conditions: ▪...
- Page 3 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 ‖Directory Guidelines The first part: product info 3 -5 The second part: safety info 5- 6 The third part: before installation The fourth part: installation 8-11 The fifth part: debugging 12-13 The sixth part: operation...
-
Page 4: Product Info

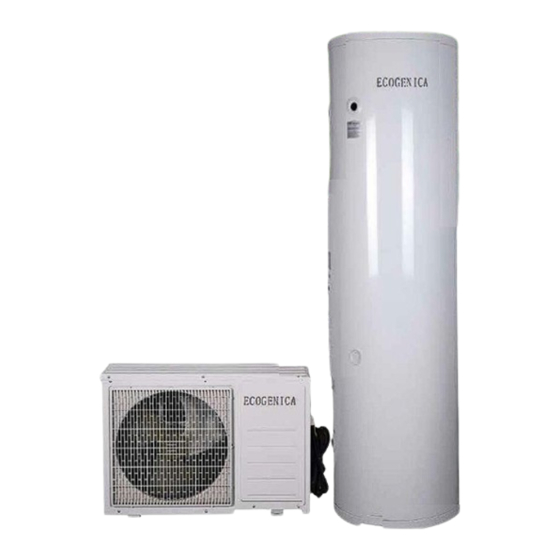

Performance (COP) of 4.8 means that for every 1 kW of power used from the grid (or from your solar power system) the Heat Pump put into the water 4.8 kW of effective power, by extracting heat energy from air. The Ecogenica 215 and 290 models are fully dedicated Heat Pumps and use the most advanced Reverse Cycle Heating Technology to heat the water instead of the air. - Page 5 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 1.4 diagram 780mm 260mm 545mm 505mm 288mm 1.5 components Top cover plate Controller Assembly Rear Fence Axial-flow motor Evaporator Four-way reversing valve Electronic expansion valve Compressor Chassis Middle baffle Air Net (wire) Front panel...
- Page 6 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 1.6 tank (mm) EG-215FR290 / EG-215FR290C EG-290FR290 / EG-290FR290C 1.7 Parameters Model EG-215FR290 / EG-215FR290C EG-290FR290 / EG-290FR290C Thermal capacity 3400W 3400W Average input power 700W 4.85W/W 4.85W/W Max power input 1150W 1150W Circuit Breaker Size 5.0A...
- Page 7 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 - 1 -...
- Page 8 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 1-8 circuit diagram Integrated Circuit Board ○ ○ Low-pressure switch ○ ○ Transformer 11 Electronic expansion valve ○ ○ Display 12 Four-way reversing valve ○ ○ 4 Water tank temperature sensor Motor ○ ○...
-
Page 9: Safety Info
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 2‖safety info The following safety warnings are very important, always read and obey all safety signs: warning • Operation without water in the water tank may cause the water heater to enter a protection state, which may damage components in severe cases. -
Page 10: Before Installation
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 3‖before installation 3-1 disassemble When unpacking, make sure that the items in the accessories list are complete, and whether the model of the main unit and the water tank are correctly matched. 3-2 transport •... -
Page 11: Piping Drawing
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 4‖The installation 4-1 Piping drawing notice • Cold water inlet and hot water outlet are 3/4-inch (20mm) female connections. • The outlet of the PTR valve is a 3/4-inch (20 mm) female fitting. •... - Page 12 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 4-2 Install position Install properly spaced air circulation and duct passages wall upper wall ≥300mm ≥ 300mm Air outlet Installers need to firstly put the tank and condenser in place. The installer needs to work out the best layout strategy for the pipe and consider all site issues before lowering the condenser pipes.
- Page 13 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 4-5 Connecting the couplings: The EG Series comes standard with pre-charged 2-meter refrigeration lines for ease of installation and to prevent leaks. Procedure for connection of the condenser pipe to tank: Remove the packaging and carefully lower the refrigeration lines towards the heat pump.
- Page 14 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 Residential installation Notes: Small commercial installation Notes: - 8 -...
-
Page 15: Electrical Connections
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 4-6 Custom installations If any customization is required, for example the pipes are to run under ground, through wall cavities, or walls, or to a heat pump on a roof, or bracket located above the tank; then a refrigeration mechanic should be arranged to complete the tank and heat pump connection, to the relevant Australian Standard. -
Page 16: Commissioning The System
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 5‖Commissioning the system 5-1 Preparation before operation …. Before trial operation, please follow these steps before starting the machine, please confirm the following items, and mark them in the box after confirmation √ Trial run check list: ●... - Page 17 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 5-4 Electrical Services Guide • The electrical components such as the fan motors, overloads, and start device are sealed to prevent them from igniting R- 290. However, all service work should be conducted only after approval from Eco Alliance has been secured.
- Page 18 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 5-5 Refrigeration Service Guide • All service work should be conducted only after approval from Eco Alliance has been secured and service and repair technicians must be aware of Eco Alliance repair and service procedures.
- Page 19 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 Machine running dynamics There are different heating times at different ambient temperatures. Typically, lower ambient temperatures result in longer run times. hanges in ambient temperature and heating capacity Changes in ambient temperature and energy efficiency ratio Note: The above data is measured in the laboratory to simulate the ambient temperature and humidity.
-
Page 20: System Operation
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 6‖System operation 6-1 display Lock: (this function is blocked) If the control panel is locked, the lock icon will be displayed on the screen AUTO Auto Mode: If auto mode is selected, this icon will be displayed on the screen... - Page 21 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 Shutdown: This icon will be displayed on the screen when the machine is off Fault: When the machine automatically detects fault feedback, this icon will flash on the screen Defrost: This icon will be displayed on the screen when the machine is in defrost state...
- Page 22 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 Reset: Press this key to reset to the original factory setting parameters; model: Press and hold for 3 seconds to activate the electric heating function; Time setting: press this key to set the current time.
- Page 23 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 ● press “ ”for 10 seconds, Then the defrosting is forced to start, and the maximum defrosting time is reached or the protection fault exit. - 20 -...
-
Page 24: System Troubleshooting
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 Refrigerant recovery ” for 3 times continuously ，press “ ”to show “AdF” ， ● press “ ”or“ ”to come to F98, then press“ After the machine is started, first close the low-pressure shut-off valve, then close the high-pressure shut-off valve after the machine runs for 1 minute, and finally press any key to exit this mode ●... -
Page 25: Troubleshooting
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 7-2 trouble shooting Problems Reasons Solution Phenomenon Water temperature ≤ 4 ℃ for more than 5 Freeze protection machine will automatically Make sure the water minutes or ambient temperature ≤ 2 ℃ detect and... - Page 26 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 Environment 1、break or short circuit； 1、Replace the sensor Machine works normally， temperature sensor but cannot enter or exit the defrost Machine works normally 1、break or short circuit； 1、Replace the sensor Suction temperature sensor A26 1、Replace the sensor...
-
Page 27: System Maintenance
EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 Compressor is noisy 1. Water shortage (the pump does 1. Ensure that there is sufficient water. not work), the temperature 2. The distance between the control nut and the top of difference is too large. - Page 28 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 • Cleaning methods include Water flushing: first wash away the dust or other impurities on the surface Water flushing: Rinse off the dust on the fins with clean water again Air conditioner special cleaning agent: choose special cleaning agent for air conditioner fins, evenly. Spray on the surface of the fin for more than 0.5h (determined by the thickness of the dust)
- Page 29 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 ● If the valve needs to be replaced, please contact your plumber or our service team for further assistance - 26 -...
- Page 30 EG-215FR290/EG-215FR290C & EG-290FR290/EG-290FR290C Version: 2C -1/03/23 8-5 check 1. Please check the machine regularly for any damage, if there is obvious damage, please contact our maintenance team. 2. In some cold areas (below zero degrees Celsius), if the system stops working for a long time, all the water in the water tank should be released and re-installed in the water tank.
- Page 31 Warranty Exclusions Repair and replacement work will be carried out as set out in the ECOGENICA Heat Pump Water Heater System warranty. However the following exclusions may void the warranty and may incur additional service charges and/or cost of parts.
- Page 32 Subject to the Warranty Conditions and Exclusions stated above, your ECOGENICA Heat Pump Water Heater System is warranted in a Residential application as follows: Heat pump unit − ECOGENICA warrants all parts labour on the ECOGENICA water heater system for a period of 7 years from date of installation.
