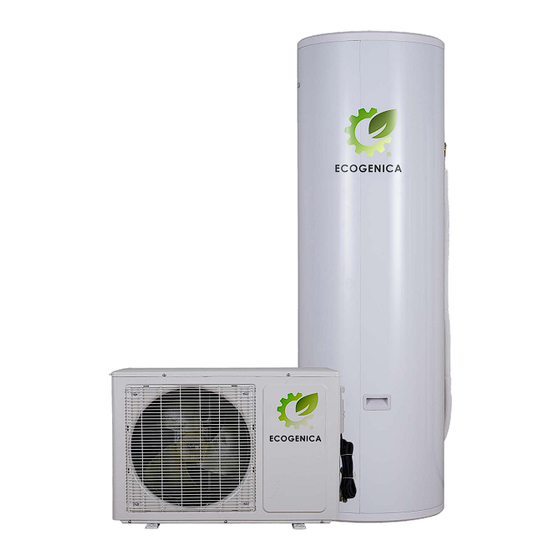

- Page 1 OWNERS MANUAL August 2024 EG-330FREC ■ EG-330FR ■ EG-290FREC ■ EG-290FR ■ EG-215FREC ■ EG-215FR ■...
-
Page 2: Table Of Contents
The ECOGENICA ® FR&FREC Series – Contents The water heater must be maintained in accordance with the Owner’s Guide and Installation. o Care must be taken to ensure the system is installed in accordance to AS/NZS 2712 and must comply with A60335.2.40:2019 - Household and similar electrical appliances. -
Page 3: Warning & Safety Information
1. Warning & Safety Information WARNING – FOR CONTINUED SAFETY OF THIS • Before cleaning, be sure to stop operation and isolate APPLIANCE IT MUST BE INSTALLED, OPERATED the unit (i.e.. turn off the isolating switch or circuit AND MAINTAINED IN ACCORDANCE WITH THE breaker), otherwise, electric shock or injury may occur. -
Page 4: Installation Cautions
As every home is different pipework plumbing insulation in the home is quoted separately. All installations of Ecogenica Heat Pump systems must comply with the AS3000 electrical standards. It is the responsibility of the licensed electrician to ensure that all wiring, power supply connections, and protective... -
Page 5: Pre-Installation
• Unsafe Installation location: Installation must comply with safety standards and regulations. Including, and not limited to, areas with inadequate ventilation, proximity to hazardous materials, or installations that violate manufacturer guidelines. • Installations indoors are not recommended, and permission must be secured from Ecogenica. -
Page 6: Installation
4. Installation PIPING CONNECTIONS • The cold water inlet and hot water outlet are 3/4- During the use of the machine, a small amount of water will leak out at the outlet of PTR Valve, inch (20mm) female connections. which is normal, but drainage treatment must •... - Page 7 4. Installation inlet valve, make sure that a tap is open, within in the HEAT PUMP UNIT INSTALL POSITION home, to ensure that water comes out of the tap at full • The bottom surface should be flat (i.e., no more than 2° capacity tank.
-
Page 8: Operation
The device is fully REFRIGERATION ADDITION automatic control. • Please contact Ecogenica for instructions and approval. • No need to operate the display, the display is in the Only use R290 natural refrigerant. -
Page 9: System Maintenance
6. System Maintenance • The efficiency of the Heat Pump depends on • To avoid the expansion and whether there is dust, mud or other on the deformation of the water tank due to excessive surface of the evaporator. Sundries block the air pressure, the service life of the water tank will be inlet channel and lose the effect of heat affected. -
Page 10: Specifications & Drawings
7. Specifications & Drawings Residential Model EG-330FR EG-290FR EG-215FR Commercial Model* EG-330FREC EG-290FREC EG-215FREC EG330FREC EG-290FREC EG-215FREC Element models 330 L 290 L 215 L Tank Volume Heat Pump Input Power 1020 W 750 W 630 W 79.6% 80.00% Energy Savings 3 to 8 3 to 7 1 to 3... - Page 11 7. Specifications & Drawings Magnesium Rod EG-215FR EG-215FREC line EG-215FR does not have an element assemble EG-290FR EG-290FREC line EG-290FR does not have an element assemble EG-330FR EG-330FREC EG-330FR does not have an element assemble...
- Page 12 Fan protection grill Front cover Wall mounted controller. Condensation drain The controller must be mounted on a wall by a qualified Ecogenica technician in a weather Compressor assemble proof casing. Schrader valve & Quick condenser connection Top cover Rear casing assemble...
-
Page 13: Electrical & Controls
8. Electrical & Controls - Integrated Circuit Board - Motor - Transformer - Compressor - Display - Motor Capacitance - Water Tank Temperature Sensor T1 (central section) - Compressor Start-up Capacitor - Exhaust Temperature Sensor - Connection Terminal Station - Ambient Temperature Sensor - Water Tank Temperature Sensor (T2) (upper part) - Electric Heating Relay - Gas Recovery Temperature Sensor... - Page 14 8. Electrical & Controls AUTO in “Automatic Mode” to switch to “Eco mode” All-day operation. Press Automatic Mode in “Eco Mode” to switch to Run in a fixed period. Press Energy saving “Automatic Mode” mode When the machine is in the standby state, the “STANDBY” icon is on STANDBY When the machine is in the heat state, the “HEAT”...
- Page 15 8. Electrical & Controls On/Off: • Long press for 3 seconds to turn on (off) Set temperate: • Press to view the temperature set. After setting, press save settings and exit. (It is valid after the key is released). Set working mode: •...
- Page 16 NOTE, if not in a weather wall mounted proof box contact Ecogenica to arrange the installation of a wall mounted controller. 1. Press and hold the clock icon for 5 seconds until "Timer 1" appears on the display.
- Page 17 8.Electrical & Controls Startup: Power On: Press “ ” for 3 seconds Factory parameter setting: • Compressor opens automatically at 2:00 P.M. if • Power Off: Press “ ” for 3 seconds water temperature is less than 60 °C • Disinfection control is hard wired into the circuit •...
-
Page 18: Warranty
The person making the claim must notify Ecogenica as soon as they notice any defects without delay, and the product must be within its TERMS OF WARRANTY warranty period as set out in the terms of warranty. -
Page 19: Warranty Exclusions
(b) excessive water pressure. 9. To the extent permitted by law, Ecogenica shall not be liable under this Warranty for any consequential loss or damage (c) no flow of hot water. or any incidental expenses resulting from any breach of this (d) water leakage. - Page 20 This lays the foundation for future generations to enjoy more secure, reliable and affordable energy. You can choose an ECOGENICA® product safe in the knowledge that our innovative technology is focused on energy and environment savings. Our hot water pumps are CFC free and utilize renewable energy, extracted from the air.
Need help?
Do you have a question about the FR Series and is the answer not in the manual?
Questions and answers
We have a new EG260FR heat pump. the neighbours say it's too noisy at night. Can we set a timer to turn it off between 10pm and 8am?
Yes, the ECOGENICA heat pump can be set on a timer. The timer function is available through the controller as described in the Electrical & Controls section. You can set the working period under "Energy-saving mode," which allows operation based on a set schedule. Therefore, it is possible to set the heat pump to turn off between 10pm and 8am.
