UNI FLAME AUTOLIFT
HIT8SS
Automatice Carraige Manual
240 Volt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIT8SS and is the answer not in the manual?

Questions and answers

Related Manuals for Uni-Mig HIT8SS

Summary of Contents for Uni-Mig HIT8SS

  • Page 1 UNI FLAME AUTOLIFT HIT8SS Automatice Carraige Manual 240 Volt...

  • Page 2: Table Of Contents

    YEARS Warranty Machine Model Description Part Number HIT8SS Automatic Carraige UMAWT CONTENTS PAGE No: Safety General Description Specifications Package Application Examples Setup & Operation Maintenance Trouble Shooting UNIMIG pursue a policy of continuous research and development, and therefore reserve the right to change the specifications, or design, without prior notice. * 1 year warranty power source.

  • Page 3: Safety

    SAFETY Welding and cutting equipment can be dangerous to both the operator and people in or near the surrounding working area, if the equipment is not correctly operated. Equipment must only be used under the strict and comprehensive observance of all relevant safety regulations. Please read and understand this instruction manual carefully before the installation and use/operation of this equipment.

  • Page 4: General Description

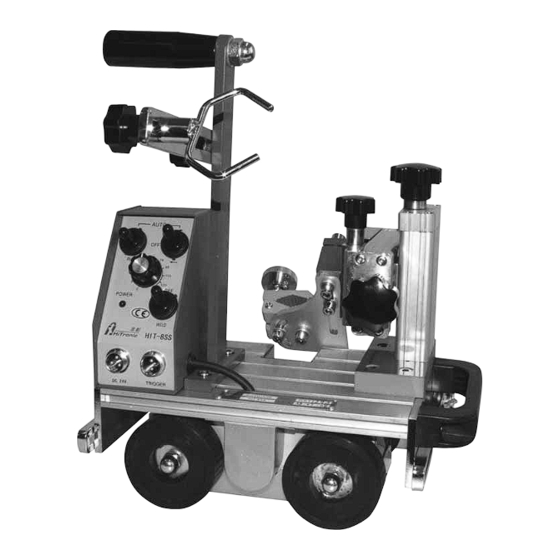

    1-1 ADVANTAGE OF HIT-8SS CARRIAGE Simple operation, easy setup, light weight and small size combine to make the HIT8SS a must have for the productivity conscious operator. Precise carriage movement with four wheel drive, ensures consistant weld quality and appearance. Carriage can be operated in both directions (forward and reverse.)

  • Page 5: Specifications

    SPECIFICATION Model HIT-8SS Input Voltage() AC 220-DC 24 Speed (mm/min) 0-900 Net Weight (kg) Power (W) Attraction force (kg) Torch adjustment range up/down, left/right 50 mm Torch angle adjustment Dimension (mm) 215×275×250 STANDARD PACKAGE Item No. Description Quan. HIT-8SS carriage (with control box) 1set Safe DC 24V Power source (AC220V to DC24V) Input cord x 3m...

  • Page 6: Application Examples

    APPLICATION EXAMPLE CHARTS Carriage runs in vertical position, allowing both sides to be welded. H beam welding, carriage runs in vertical position, single torch. U structure welding, carriage runs in vertical position, single sided welding. Round seam welding vertical running, Min radius 800mm. Flat lap joint for thick plate.

  • Page 7: Setup & Operation

    SETUP CONNECTION AND WELDING OPERATION 1. PREPARATION FOR WELDING Power supply for welder and carriage. MIG Welder / Wire feeder - Wired for automatic operation with HIT8SS. Control power supply AC 220V. HIT-8SS Auto-carriage. Gas. 2. CONNECTION PROCEDURE Supply AC 220V power to the main power box.
  • Page 8 CARRIAGE PANEL OF OPERATION Carriage running speed adjustment knob Weld / OFF selection switch Carriage forward / reverse running direction selection switch Carriage RUN/ OFF/ AUTO selection switch Power lamp 2 pins male socket, use for torch trigger 3 pins male socket, use for DC 24V input power DC24V POWER HIT-8SS...

  • Page 9: Maintenance

    MAINTENANCE WARNING: Exposure to extremely dusty, damp, or corrosive air is damaging to the welding machine. In order to prevent any possible failure or fault of this welding equipment, clean the dust at regular intervals with clean and dry compressed air of required pressure.
