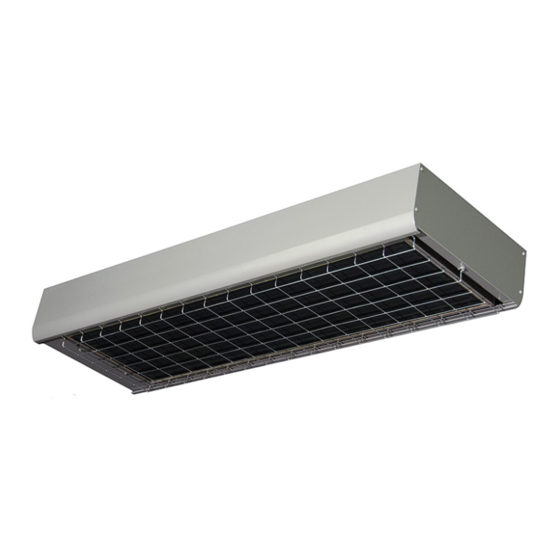

Heavy-Duty Flat panel Emitter
Architectural Electric Overhead Infrared Heaters
FSA-14
FSA-31
IMPORTANT SAFETY INFORMATION
INSIDE
•
Serious injury or death possible
•
Read, understand and follow all safety
information and instructions in this manual
before using or servicing this product.
•
Retain these instructions for future use.
TPI Corporation
P.O. Box 4973
Johnson City, TN 37602
www.tpicorp.com
FSA-Series
FSA-65
EXTREMELY HIGH TEMPERATURES ARE
PRESENT, DURING OPERATION. MAINTAIN
CLEARANCES FROM COMBUSTIBLES AS
STATED IN MANUAL.
REFER TO COMPLETE INDEX OF
1 OF 14
FSA-43
FSA-95
INFORMATION ON PAGE 2.
FORM 9761 REV. A
ECO 1-7899 2/2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fostoria FSA Series
Summary of Contents for Fostoria FSA Series
- Page 1 TPI Corporation P.O. Box 4973 Johnson City, TN 37602 www.tpicorp.com FSA-Series Heavy-Duty Flat panel Emitter Architectural Electric Overhead Infrared Heaters FSA-14 FSA-43 FSA-65 FSA-31 FSA-95 IMPORTANT SAFETY INFORMATION EXTREMELY HIGH TEMPERATURES ARE INSIDE PRESENT, DURING OPERATION. MAINTAIN • Serious injury or death possible CLEARANCES FROM COMBUSTIBLES AS STATED IN MANUAL.
- Page 2 IMPORTANT INSTRUCTIONS 1. Read all instructions before installing or using the heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep away from combustible materials at minimum, the following required distances. DO NOT install closer than 36 inches to a vertical surface or 24 inches to a ceiling.
-
Page 3: Checking Your Shipment
As defined in ANSI Z535-4-2002 THANK YOU!! Thank you very much for selecting Fostoria’s overhead electric infrared heating equipment for your comfort heating needs. These products were engineered with the most reliable components and materials available and are equipped with features to assure ease of installation and maintenance. -
Page 4: Explosion Hazard
GENERAL DESCRIPTION & USE The Fostoria FSA-Series heaters provide safe, efficient electric infrared heat for total area heating or spot heating applications for warehouses, steel mills, machine shops and many other industrial applications They are EXPLOSION HAZARD ideal for use in high vibration environments. - Page 5 SPECIFICATIONS (con’t.) Heater Voltage Amps Amps Number cETLus Watts Btu’s/Hr. Models And Phase 1ph. 3ph. Of Elements Listed FSA-1412-1 120; 1ph 12.1 FSA-1420-1 208; 1ph 6.97 FSA-1424-1 240; 1ph 6.04 1450 4947 FSA-1427-1 277; 1ph 5.23 FSA-1448-1 480; 1ph 3.02 FSA-1457-1 600;...
- Page 6 SPECIFICATIONS (con’t.) FSA-14, FSA-31 FSA-43, FSA-65, FSA-95 Model Dimension A Dimension B Dimension C Series (inches) (inches) (inches) FSA-14 5-3/4 26-1/16 FSA-31 5-3/4 47-1/16 FSA-43 9-1/4 14-3/4 25-1/16 FSA-65 9-1/4 14-3/4 34-1/16 FSA-95 9-1/4 14-3/4 47-1/16 6 OF 14 FORM 9761 REV. A ECO 1-7899 2/2023...
-
Page 7: Installation Planning
INSTALLATION PLANNING Fostoria’s flat panel emitter heaters are equipped with heating elements that are manufactured using materials with exceptional mechanical and thermal performance and are built with precise process control to provide rugged and reliable infrared performance in challenging environments. It is our... - Page 8 INSTALLATION PLANNING (CON’T.) Recommended Amps Supply Wire Size Recommendations AWG Wire Size Heater Model Volts FSA-1412-1 1.45 12.08 The table at the right is provided to assist the FSA-1420-1 1.45 6.97 licensed electrician in sizing the electric supply FSA-1424-1 1.45 6.04 wires required to deliver power to each individual FSA-1427-1...
- Page 9 CHAIN MOUNTING RECOMMENDED SERIES MOUNTING HEIGHTS FSA-14 8-10 Ft. FSA-31 8-12 Ft. FSA-43 10-14Ft. FSA-65 10-14Ft. FSA-95 12-16Ft. SUSPENSION MOUNTING Mounting Centers (In Inches) Series Dim. A Dim. B FSA-14 19-3/4 3-3/4 FSA-31 3-3/4 FSA-43 FSA-65 FSA-95 38-1/4 FSA-43, FSA-65 & FSA-95 FSA-43, FSA-95 FSA-14, FSA-31 9 OF 14...
- Page 10 WALL MOUNTING CEILING 24 INCHES MIN. 4 INCHES MIN. 87 INCHES MIN. FLOOR The clearances as shown above are for all FSA models. 10 OF 14 FORM 9761 REV. A ECO 1-7899 2/2023...
-
Page 11: Recessed Mounting
OF HEATER 87" MINIMUM The FSA Series can be fully recessed providing that all clearances are maintained. The FSA Series must have 36 inches minimum of clearance to adjacent walls, there must be 1 inch of clearance between the ceiling and all sides of the heater and 24 inches of clearance above the back of the heater. -
Page 12: Electrical Shock Hazard
FOR ALL HEATERS Wiring procedures and connections shall be in accordance with the national and local authority having jurisdiction. The FSA series heaters do not have any on board controls and therefore must ELECTRICAL SHOCK be used in conjunction with an applicable control... -
Page 13: Operation
OPERATION When power is provided to these heaters the heat- er elements will take several minutes to achieve full infrared output that can be confirmed by an orange to dull red glow on the element surface. The element under this condition is operating BURN HAZARD between 1,500 and 1,600°F emitting medium wavelength infrared energy. - Page 14 INSTALLATION WIRING (con’t.) FOR FSA-14, FSA-31, FSA-4327-1, FSA-6527-1 AND FSA-9527-1 MODELS L2(N) FOR ALL OTHER FSA MODELS FOR 3PH OPERATION L1-1 & 4,L2-2,L3-3. FOR 1PH OPERATION L1-1 & 3, L2(N)-2 & 4. 14 OF 14 FORM 9761 REV. A ECO 1-7899 2/2023...
