Fostoria MITEY MIDGET Operation Manual

OPERATION OPERATION OPERATION – – – – INSTALLATION OPERATION INSTALLATION INSTALLATION INSTALLATION – – – – PARTS MANUAL
WARNING!
DO NOT ATTEMPT TO INSTALL, OPERATE, OR SERVICE THIS PRODUCT BEFORE READING ALL
INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN
INJURY PROPERTY DAMAGE!
AND/OR

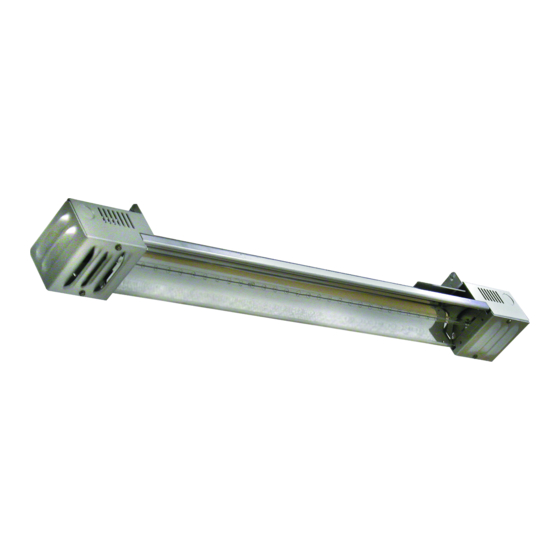

DESCRIPTION

The Mitey Midget heater is available in five lengths, ranging
from 13 inches to 46 inches. Select from a wide variety of
wattage's and voltages, from 500W/120V to 3800W/577V.
These models have a heavy duty aluminum extrusion with
a bright aluminum insert, an aluminum housing, mounting
brackets for permanent installation or chain suspension,
and an end-to-end wireway for single end wiring and easy
installation.
All models are UL and C-UL (USA and Canada) Listed
under file #E32304, for indoor commercial and industrial
comfort heat applications.
Not for indoor residential use.

REQUIRED CLEARANCE

Caution - Spacing: Heaters must be mounted a minimum
of 24" from a vertical surface, a minimum of 24" from the
ceiling, a minimum of 24" from direct radiation to
combustibles, and a minimum of 2.4M (7.87') above the
floor. Heaters must be at least 36" apart.
Read all instructions before using this heater.
1.
Make certain that the power source conforms to the
electrical requirements of the heater.
before installing or servicing. If the power disconnect is out
of sight, lock it in the open position and tag it to prevent
unexpected application of power. Failure to do so could
result in fatal electric shock.
WARNING: DO NOT DEPEND UPON A THERMOSTAT OR
OTHER SWITCH AS
DISCONNECTING POWER
SERVICING THE HEATER.
POWER AT THE MAIN CIRCUIT BREAKER AS DESCRIBED
ABOVE. FAILURE TO DO SO COULD RESULT IN FATAL
ELECTRIC SHOCK.
2.
This heater is intended ONLY for permanent installation in
accordance with the National Electric Code (NEC), all
applicable local codes and ordinances, and all sections of
this manual. Any variance voids the warranty and may
create unsafe conditions. All wiring should be done by a
qualified electrician, using copper wire only.
3.
This heater is intended for general heating applications
ONLY. It must NOT be used in potentially dangerous
locations such as flammable, explosive, chemical-laden or
wet atmospheres.
Issue Date: 10-02-98
PARTS MANUAL PARTS MANUAL PARTS MANUAL
If you have questions about the
product you have purchased or would
like to leave us feedback please
contact us via our website
www.fostoriaindustries.com
or by calling 1-800-495-4525.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT SAFETY INFORMATION

Disconnect power
THE SOLE MEANS
WHEN INSTALLING
ALWAYS DISCONNECT THE
Rev. Date: 11-03-08 Rev. Level: 09
ELECTRIC INFRARED HEATER

SPECIFICATIONS

MODEL WIDTH
NUMBER
MM-13A
MM-18A
MM-18A
MM-24A
MM-24A 3-3/4"
MM-24A
MM-33A
MM-33A
MM-46A
MM-46A
MM-46A
4. Special attention must be given to any bonding (grounding)
information pertaining to this heater. To prevent the risk of
electrocution, the heater must be securely and adequately
bonded. This should be accomplished by connecting a
conductor between the service panel and the green ground
screw provided in the heater. To ensure a proper bond, the
bonding means must be tested by a qualified electrician.
5.
Do not insert fingers or foreign objects into the heater. Do not
OF
block or tamper with the heater while it is in operation. Do not
OR
touch heater while it is in operation or just after it has been
turned off, as some parts may be hot enough to cause injury.
6. Do not attach ductwork to this heater or attempt to use it as a
make-up air heater. Such use voids the warranty and may
create unsafe conditions.
7. In cases where property damage may result from malfunction
of the heater, a back-up system or a temperature alarm
should be used.
CAUTION: Check branch voltage. Heaters should be operated at
voltages no higher than the heating elements and the heater are
designed for. (Lower voltages, however, pose no problem other
than a loss of wattage).
ECN:N/A
MITEY MIDGET
MODEL & PART NO.:
MM-13A
(04440102)
MM-18A
(04427602)
MM-24A
(04495402)
MM-33A
(04427202)
MM-46A
(04420302)
FIRE, PERSONAL
LENGTH WATTS
(in.)
13 500
18 1000
18 1000
24 1600
24 1600
24 1600
33 2500
33 2500
46 3000
46 3800
46 3650
OIPM P/N 3420308 Page 1 of 4
VOLTS
120
208
240
208
240
277
480
577
480
577
480
