FOSTORIA INDUSTRIES, INC. 1200 North Main Street P.O. Box 986 Fostoria, OH 44830-0986 Phone: 800-495-4525 Fax: 419-435-0842 www.fostoriaindustries.com A DIVISION OF OCH Series COMFORT HEATERS INDOOR AND OUTDOOR USE CONTENTS Specifications Page 2 IMPORTANT SAFETY INFORMATION INSIDE Tube Installation Page 3 •... -
Page 2: Issue Date: 7-21-03 Rev. Date: 9

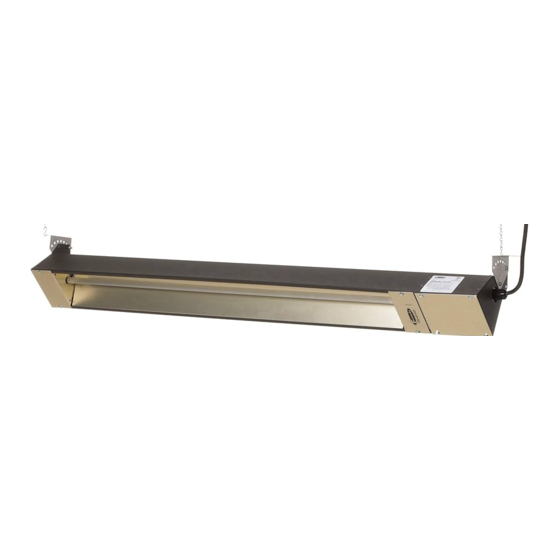

SPECIFICATIONS DESCRIPTION Fostoria multi-purpose OCH series electric infrared heaters are designed to provide efficient spot heating EXPLOSION HAZARD for many commercial and industrial applications. All FIRE HAZARD models operate with a single quartz tube emitter included with the heater, are easily installed, and are •... - Page 3 Each heater is equipped with two hi-temperature 12 gauge silicone lead wires and a ground termination. Make sure power source conforms to the heater requirements. Use only Fostoria quartz tubes. ELECTRICAL SHOCK Insert quartz tube in the “L”-shaped slots in heater HAZARD housing.
-
Page 4: Heater Installation
HEATER INSTALLATION continued Adjustable mounting brackets SUSPENSION ALTERNATIVES Your OCH series heater is shipped complete with hardware for overhead suspension in two different ways. 1. In the hardware bag shipped with your heater you will find two adjustable mounting brackets and fastening screws that should be assembled as shown in figure 1. - Page 5 WIRING INTERNAL WIRING DIAGRAM OCH heaters are equipped with two 12 gauge hi- ELECTRICAL SHOCK temperature silicone lead wires and a ground HAZARD termination. For field wiring, use 12 ga. 90º C rated wire and connect to the two lead wires in the junction •...
-
Page 6: Replacement Parts
WIRE NUT (not shown) OCH-57-208V 04416602 3420367 USER/INSTALLATION MANUAL (not shown) OCH-57-240V 04414702 OCH-57-277V 04419402 OCH-57-480V 04419502 MODEL HOUSING P/N USE ONLY FOSTORIA OCH-57-208V-SS 04416602 OCH-46 Series 8561514 QUARTZ TUBES AS OCH-57-240V-SS 04414702 OCH-46-SS Series 8561539 FACTORY-SPECIFIED OCH-57-277V-SS 04419402 OCH-57 Series 8560614 REPLACEMENT PARTS. -
Page 7: P.o. Box
FOSTORIA INDUSTRIES, INC. - P.O. Box 986, Fostoria, Ohio 44830-0986 - (419) 435-9201 The warranty herein set forth is in lieu of all other warranties expressed or The obligation of Fostoria Industries, Inc. under the terms of this warranty, shall be to implied.
