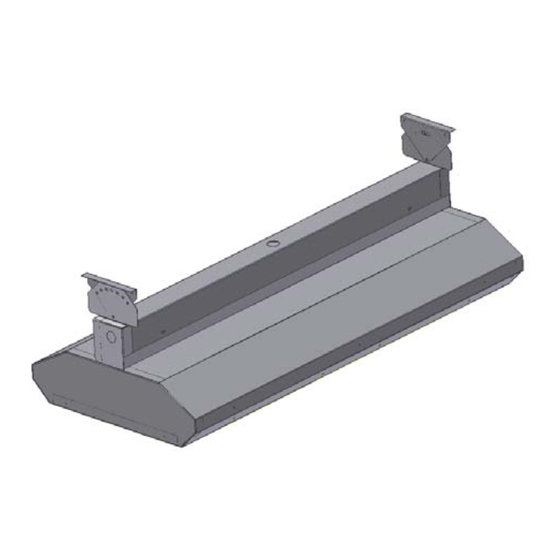

OVERHEAD ELECTRIC INFRARED HEATER
IMPORTANT SAFETY INFORMATION
INSIDE
•
•
•
ISSUE DATE 10-09-03
MTM Series
2 and 3 Lamp Units
Serious injury or death possible
Read, understand, and follow all safety
information and instructions in this
manual before using or servicing this
product.
Retain these instructions for future
reference.
REV. DATE 5-24-05
REV. LEVEL: 03
FOSTORIA INDUSTRIES, INC.
1200 North Main Street
Fostoria, OH 44830-0986
Phone: 800-495-4525
Fax:
419-435-0842
www.fostoriaindustries.com
• INSTALLATION
• OPERATION
• MAINTENANCE
• SERVICE PARTS
• ACCESSORIES
• WARRANTY
ECN
Listed
540L
E32304
OIPM P/N 3420265
PG 1 OF 16
