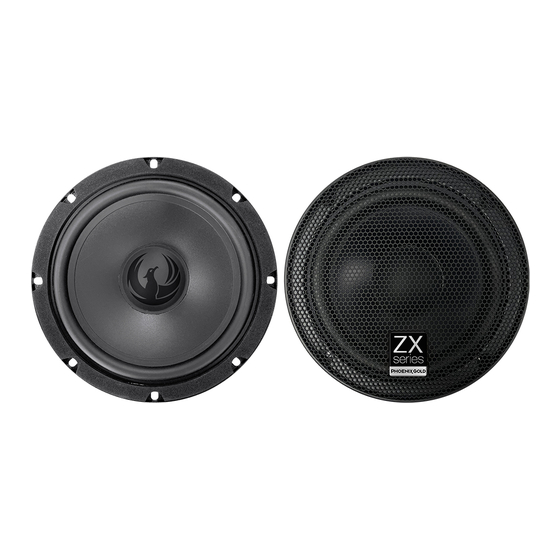

ZX
COMPONENT SPEAKER MANUAL
Model:
ZX65C - ZX35C - ZX1TC - ZX65CS - ZX653CS
Features & Benefits
• High efficiency component speakers
• Make your own component system
• Adjustable tweeter level setting
• High power sound paired with high quality detail
• Play loud and retain the same premium sound at lower levels
• The essence of Phoenix Gold power and sonic performance
• Component kits available
(ZX653CS - ZX65CS)
• Separate cable filters for easy installation
• Each component includes matched cable filters
All specifications subject to change without notice.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Gold ZX Series
Summary of Contents for Phoenix Gold ZX Series
- Page 1 • Adjustable tweeter level setting • High power sound paired with high quality detail • Play loud and retain the same premium sound at lower levels • The essence of Phoenix Gold power and sonic performance • Component kits available (ZX653CS - ZX65CS) •...
-
Page 2: Specification
Please follow the guide below and make sure you use these filters in the right way. Low-pass (6dB) filter for use with a 2-way system. © 2021 Phoenix Gold | A Brand of AAMP Global www.phoenixgold-eu.com... - Page 3 Band-pass (6dB) filter for use with a 2-way system. Low-pass (6dB) filter for use with a 3-way system with additional woofer. This filter is supplied in the ZX35C box, but is to be used with a compatible woofer. © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 4 Please follow the guide below and make sure you use these filters in the right way. High-pass (12dB) filter for use with a 2-way or 3-way system. © 2021 Phoenix Gold | A Brand of AAMP Global www.phoenixgold-eu.com...
- Page 5 Please follow the guide below and make sure you use these filters in the right way. High-pass (12dB) filter for use with tweeter in a 2-way system. Low-pass (6dB) filter for use with midrange woofer in a 2-way system. © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 6 High-pass (12dB) filter for use with tweeter in a 3-way system. Band-pass (6dB) filter for use with midrange speaker in a 3-way system. Low-pass (6dB) filter for use with midrange woofer in a 3-way system. © 2021 Phoenix Gold | A Brand of AAMP Global www.phoenixgold-eu.com...
- Page 7 4000Hz 4000Hz ZX653CS - ZX65C + ZX35C + ZX1TC ZX65C ZX65C ZX35C ZX35C 350Hz 350Hz ZX1TC ZX1TC 350-4000Hz 4000Hz 4000Hz * Wires used to adjust tweeter level. Disconnected = -2dB. Connected = 0dB damping. © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 8 LIMITED WARRANTY ON SPEAKERS Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only.
