USE, INSTALLATION AND MAINTENANCE
INSTRUCTIONS FOR ELECTRICAL
Dear User,
we are sincerely grateful to you for purchasing one of our products.
We are sure that the appliance modern, functional and easy to use, built with the finest materials
and components will satisfy all your needs.
We would ask that you read the instructions within this booklet very carefully so as to enable you
to obtain quality results from the outsets.
The appliance must be installed only by a qualified electrician in compliance with the
instructions provided. The manufacturer declines all responsability for improper installation.

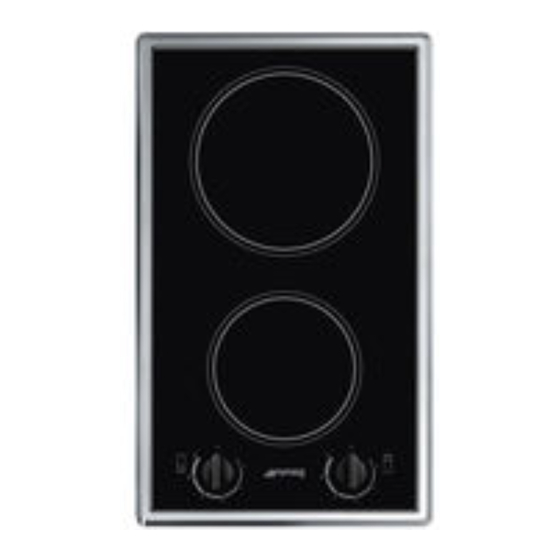

TYPE: PFVZ 02
MOD.: SE32CX
The manufacturer is not responsible for any transcription errors or misprints contained in this handbook and,
furthermore, reserves the right to make any modification on the products, which might be deemed
necessary or usefull, this being in the user's interest, without altering their basic operating or safety
features.
BUILT-IN HOT PLATES
SMEG S.p.A.
Via Leonardo da Vinci, 4
42016 GUASTALLA - ITALIA
Get other manuals https://www.bkmanuals.com
COD. 120116SMN1 (120116ING) - 26.10.2009
Advertisement
Related Manuals for Smeg PFVZ 02
Summary of Contents for Smeg PFVZ 02
- Page 1 The manufacturer declines all responsability for improper installation. SMEG S.p.A. Via Leonardo da Vinci, 4 TYPE: PFVZ 02 42016 GUASTALLA - ITALIA MOD.: SE32CX The manufacturer is not responsible for any transcription errors or misprints contained in this handbook and, furthermore, reserves the right to make any modification on the products, which might be deemed necessary or usefull, this being in the user’s interest, without altering their basic operating or safety...
- Page 2 DESCRIPTION OF THE HOT PLATES TYPE: PFVZ 02 1 Radiant electric heating element Ø 145 mm 1200 W 2 Radiant electric heating element Ø 180 mm 1700 W 9 Switch for electric element n. 1 14 Switch for electric element n. 2...
- Page 3 1) ELECTRIC HOB Connection of electric heating elements Heating elements are controlled by energy The hot plates are equipped with radiant heating regulators with 12 positions (fig. 1) that permit to elements with different powers and diameters. obtain a big range of different temperatures. Cooking zones are aesily identifiables thanks to the In Scheme 1, by way of information, we give circles (see illustration in description) on the top;...
- Page 4 SCHEME 1 Position for Possible Power and dimensions of the cooking regulation of the cookings zones knobs Zone Diameter Heating Power Energy n° in mm element regulators To melt butter, Radiant 1200 chocolate else. heat small Radiant 1700 1 - 4 quantities of liquid (1800 if and to keep dishes...
- Page 5 WARNINGS: Make sure that the handles of the pots are placed in the right way towards the interior. for a correct use, please look at fig. 2 and remind: Be aware that overheated fats and oils may - Switch on the electricity only after having become inflamed.
- Page 6 CLEANING Before any cleaning operation, disconnect the - Marks of liquid, overflowed from the pot, can be appliance from the electric circuit. removed using vinegar or lemon. 2) ELECTRIC HOB - Pay attention to not let fall sugar or element with sugar.
- Page 7 INSTALLATION TECHNICAL INSTRUCTIONS FOR THE Please keep children away from all packing INSTALLER elements ( carton, polystyrene, nails,..). Installation, transformations and maintenances Make a cutout in the worktop, according to the below listed, may only be carried out by a dimensions indicated in fig.
-
Page 8: Installation
INSTALLATION 4) FIXING - In order to avoid accidental touch with the overheating bottom of the hob, during the working, A special sealing strip underneath the hob for is necessary to put a wooden insert, fixed by damage. Make sure it is correctly positioned with no screws, at a minimum distance of 60 mm from the gaps;... - Page 9 INSTALLATION 5) ELECTRICAL CONNECTION - The input cable has to be located so that never reach the over temperature of 75K. The electrical connection has to be done in - Please do not use in the connection any accordance with all electrical and installation reduction, adaptation that may provoke a false requirements of the regulation.
-
Page 10: Maintenance
MAINTENANCE Before doing any action, disconnect the cautions paragraph "ELECTRICAL appliance from the input power. CONNECTION". To reassemble the appliance repeat the inverse 6) COMPONENTS SUBSTITUTION process. To replace the components lodged in the internal part, is necessary to take the appliance up from 7) TECHNICAL CHARACTERISTICS OF the furniture, overturn it, loosen the screws and THE ELECTRICAL COMPONENTS... -
Page 11: Technical Data
TECHNICAL DATA MODEL 2 HEATING ELEMENTS (2 RADIANTS) Voltage 230 – 240 V ~ Frequency 50/60 Hz Tot. Rating 2900 W Get other manuals https://www.bkmanuals.com... -
Page 12: Technical Assistance And Spare Parts
TECHNICAL ASSISTANCE AND SPARE PARTS This appliance, before leaving the factory, has been carefully tested and regulated by expert and specialized personnel in order to guarantee the best performances. Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.
