Baxton Studio BBT 6432 TWIN HB Assembly Instructions

MODEL : BBT 6432 TWIN HB
Read instructions carefully. See furniture and hardware part
list on the right for guidance.
Have all parts ready before assembly. Place all wooden furniture
parts on a clean and flat soft surface to prevent scratching.
Before you start, here are some words of caution:
1. Do not FULLY - TIGHTEN nuts and bolts until all nuts and bolts are partially tightened.
2. Do not FULLY - TIGHTEN nuts and bolts to avoid causing damage to the threading.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.

STEP 1

A
Align pre-drilled support stand holes over the
pre-drilled headboard holes according to your desired
headboard height

STEP 3

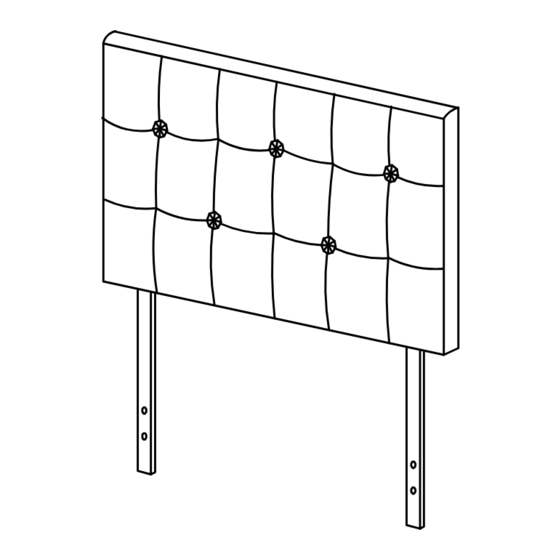

Your headboard assembly is complete.
Note: Hardware may loosen over time. Periodically
check that all connections are tight.
ASSEMBLY INSTRUCTIONS

FURNITURE PART LIST

ITEM
A
B

STEP 2

B
Secure each support stand by using 2x JCBB Bolt [1]
and 2x M8 Flat Washer [2].
Tighten with supplied Allen Key [3].
Repeat the same procedure to secure the other side.
QTY ITEM
DESCRIPTION
1
JCBB BOLT M8 x 40mm
HEADBOARD 1 PC
2
M8 FLAT WASHER
SUPPORT BOARD 2 PCS
3 M5 ALLEN KEY (BALL SHAPE)

HARDWARE PART LIST

QTY
DESCRIPTION
4 PCS
4 PCS
1 PC
3
1
2
