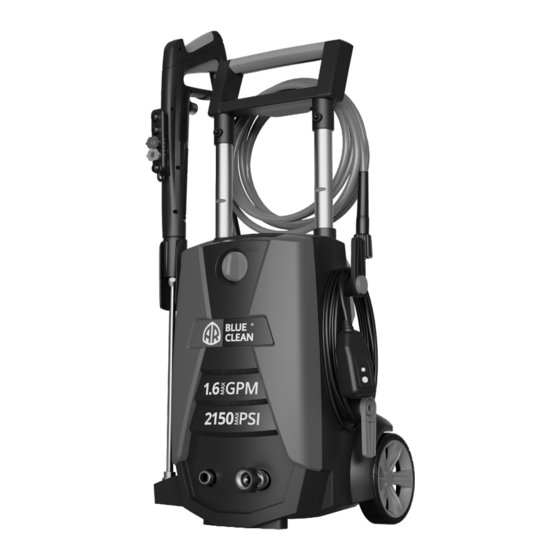

Blue Clean BC383HSS Assembly, Care And Use Instructions

2150 psi electric pressure washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2150 PSI
Electric Pressure Washer
95505-DK
ASSEMBLY, CARE AND
USE INSTRUCTIONS
Model BC383HSS
READ CAREFULLY
IMPORTANT:
RETAIN THESE INSTRUCTIONS
AND
ATTACH RECEIPT TO MANUAL FOR FUTURE
REFERENCE.
WARNING:
This product can expose you to
chemicals including lead, DEHP, DINP, which is
known to the State of California to cause cancer
and or lead to birth defects. For more information
go to www.P65Warnings.ca.gov
Questions, problems, missing parts?
Before returning to your retailer, call (1-866-235-5112)
or email (info@arnorthamerica.com) our customer
service department. They are available from 8:00 a.m. -
5:00 p.m., CST, Monday - Friday. www.arblueclean.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC383HSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blue Clean BC383HSS

Summary of Contents for Blue Clean BC383HSS

  • Page 1 2150 PSI Electric Pressure Washer ASSEMBLY, CARE AND USE INSTRUCTIONS Model BC383HSS READ CAREFULLY IMPORTANT: RETAIN THESE INSTRUCTIONS ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE. WARNING: This product can expose you to chemicals including lead, DEHP, DINP, which is known to the State of California to cause cancer and or lead to birth defects.
  • Page 2 THANK YOU LETTER Dear Valued Customer, My name is Michael Schaller and I wanted to thank you on behalf of AR Blue Clean for purchasing this AR Blue Clean electric pressure washer. We created this pressure washer from listening to our customers for the past 10 years on how they use their pressure washer for all kinds of cleaning projects.

  • Page 3: Table Of Contents

    Limited Warranty ......................17 Replacement Parts List ....................18 PRODUCT SPECIFICATIONS SPECIFICATIONS Model Max PSI Rated PSI Max GPM Rated GPM Cold Volts Frequency Amps Weight Water (lbs/sq. in.) (lbs/sq. in.) (Gal/per min) (Gal/per min) (Hz) (lbs.) BC383HSS 2150 1700 24.7...

  • Page 4: Package Contents

    PACKAGE CONTENTS PACKAGE CONTENTS PW95824 15°– Yellow 25°– Green PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Spray Gun Trigger Lock Power Washer Unit O-Ring Kit Spray Gun Holster Handle Nozzle Cleaning Wire Hose Hook High Pressure Hose High Pressure Foam Cannon Nozzle Tray Rotary Nozzle Zinc Steel Lance...

  • Page 5: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION Please read and understand this entire manual before 9. DO NOT use your power washer when you are under attempting to assemble and operate the product. carefully and only when you are alert. This manual contains information that relates to 10.
  • Page 6 SAFETY INFORMATION SAFETY INFORMATION 25. Protect eyes, lungs, and skin from exposure to 30. NEVER use a water supply to your power washer detergent. that exceeds 150 PSI maximum. 26. Warning-If connection is made to a potable water 31. NEVER disconnect the high pressure hose from the system, the system Should be protected against power washer while the system is pressurized.

  • Page 7: Assembly Instructions

    PREPARATION PREPARATION Before beginning assembly of product, make sure Tools Required for Assembly (not included): Phillips all parts are present. Compare parts with package screwdriver. contents list and hardware contents list. If any part is missing or damaged, DO NOT attempt to assemble the product.Please call customer service at 1-866-235- 5112.
  • Page 8 ASSEMBLY INSTRUCTIONS Pull back on collar at the other end of the high pressure High Pressure Hose Assembly gun by slightly pulling on them. The hose is now Screw high pressure hose (D) clockwise onto bottom securely attached to spray gun. front of power washer unit (A).
  • Page 9 ASSEMBLY INSTRUCTIONS Attach nozzles (H), rotary nozzle (O) or foam cannon (N) into end of lance (F) by pressing selected nozzle into place. It will make a “click” sound when firmly in place. Always turn the safety lock dial to lock trigger Note: when changing lances and nozzles to ensure that they Lance Installation...
  • Page 10 ASSEMBLY INSTRUCTIONS Attach garden hose to the garden hose adapter (G). Flush out garden hose before connecting Note: to garden hose adapter. Handle Assembly Install handle (L) to power washer unit (A). Secure with screws (BB). Note: Align the hole on both metal tube and handle before inserting the screws.

  • Page 11: Operating Instructions

    OPERATING INSTRUCTIONS • Begin power washing by squeezing the trigger on the spray gun all the way into the handle. • Release the spray gun trigger to stop the power washer. • Allow the motor to come to a complete stop before squeezing the trigger again.
  • Page 12 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Operation Tips • Note: Test the GFCI before each use: 1. Plug GFCI into power outlet. Indicator should turn green to show that cord has power. 2. Press test button, green indicator should turn off to verify that GFCI cut off power to the cord. 3.
  • Page 13 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Extending and Lowering Handle Using Power Cord • Extend the handle up by pressing the red button in the • Easily remove the power cord from side of unit by cord hook and pull handle up until it locks in place. swiveling the bottom red cord hook to the right or Note: If handle does not easily slide up, add some left until it faces up.

  • Page 14: Care And Maintenance

    OPERATING INSTRUCTIONS CARE AND MAINTENANCE Detergents Cleaning Nozzles • Use detergents designed for power washers. These • A clogged or partially clogged nozzle can cause can be purchased online at our website www. arblueclean.com. Hardware stores or home centers of the nozzle and/or cause the unit to pulsate while also have power washer detergents for different spraying.

  • Page 15: Pump Saver

    4) Squeeze bottle to help it into the pump. while being stored in ALL climates. It also assists with protection from internal corrosion. The Blue Clean part 5) Turn power off when pump saver exits the machine’s # is: PW64511 (16oz. bottle). Order online at www.

  • Page 16: Troubleshooting

    TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-866-235-5112. PROBLEM CORRECTIVE ACTION Unit will not turn on. 1. The GFCI module on the end of the power cord must be plugged directly into an outlet. 2.

  • Page 17: Limited Warranty

    TROUBLESHOOTING TROUBLESHOOTING PROBLEM CORRECTIVE ACTION The power washer turns on for the accessories are assembled properly, and the power switch is turned on, the power 2 seconds, shuts washer may turn on for 1 - 2 seconds to prime the pump. It automatically shuts off and off, and will not turn waits for the spray gun trigger to be pressed.

  • Page 18: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday or order online at www.arblueclean.com 15°– Yellow 25°– Green PW95824 PART DESCRIPTION PART # PART DESCRIPTION PART # High Pressure Foam PW4620594 Quick Connect Nozzle...
