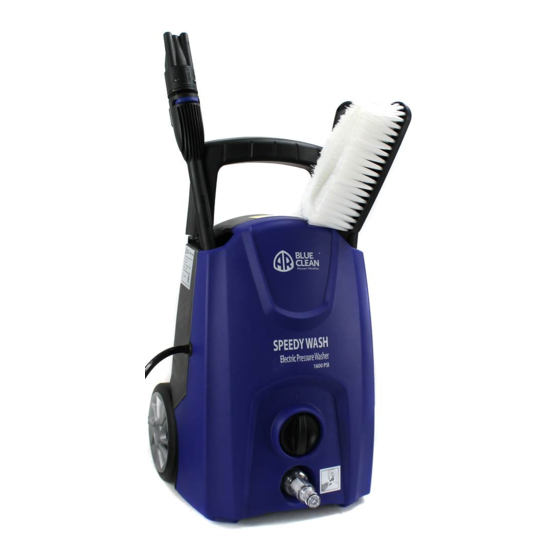

Model Speedy Wash
Customer Help Line
1-866-235-5112
WARNING:
before using this product.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
SpeedyWash-92141-AR
2
To reduce the risk of injury, the user must read and understand the instructions
www.arblueclean.com
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speedy Wash and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Blue Clean Speedy Wash

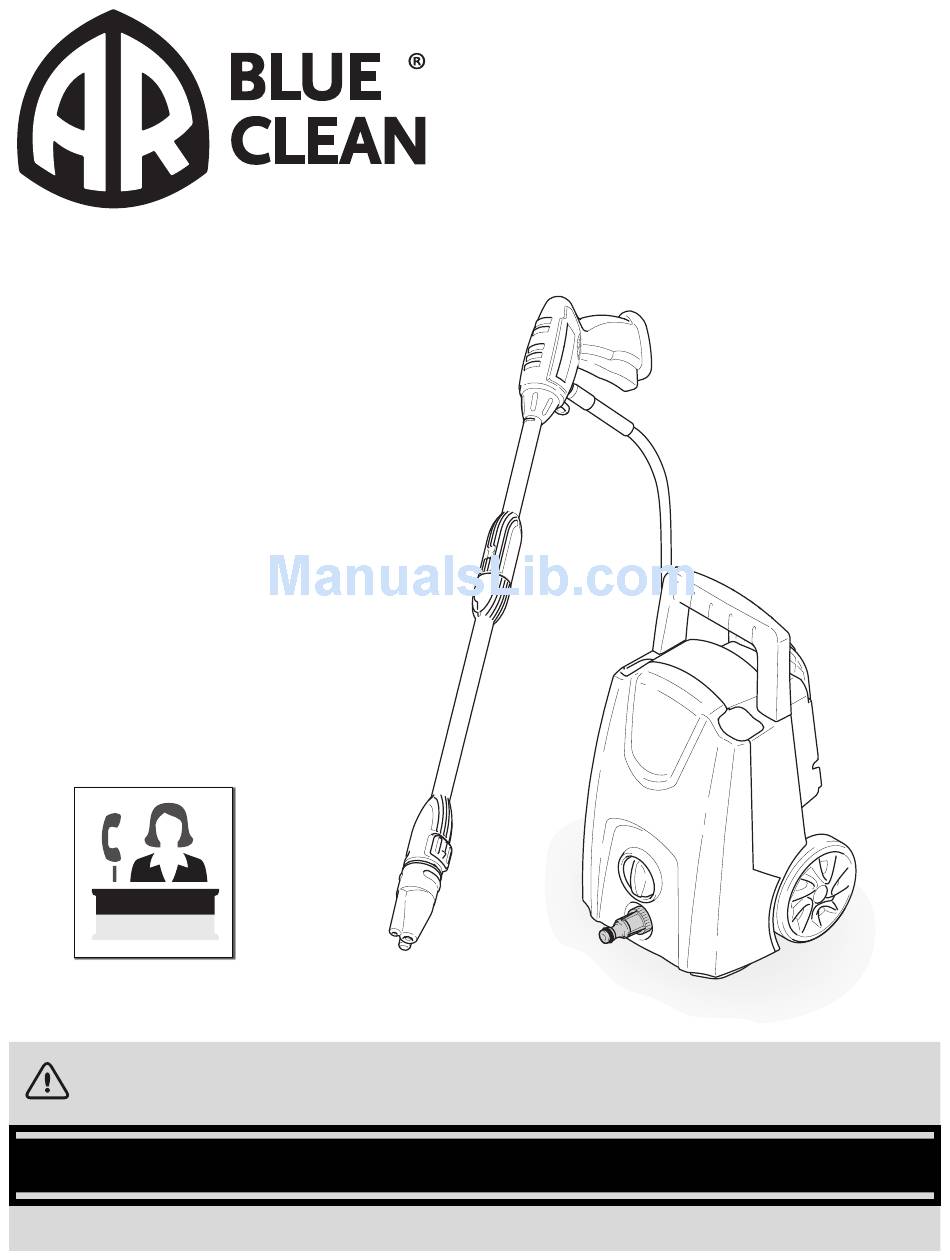

  • Page 1 Instruction Manual Model Speedy Wash Customer Help Line 1-866-235-5112 WARNING: To reduce the risk of injury, the user must read and understand the instructions before using this product. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE www.arblueclean.com SpeedyWash-92141-AR...
  • Page 2: Quick Start

    uick tart uide ackage ontent 1. Power washer unit 2. Handle attachment 3. Top cord holder 4. Manual 5. Nozzle cleaning wire - taped to the manual for safe keeping 6. 3 in 1 spray nozzle 7. Lance 8. High pressure hose 9.
  • Page 3: Trigger Lock

    Trigger Lock Trigger Unlock 6. Press front button to lock the spray gun and press the 7. Connect lances to spray gun, insert lance into spray gun, push together and at the same time twist back button to unlock it. Always make sure trigger is in the clockwise to lock in place.
  • Page 4 15. Select detergent setting on nozzle. Fill detergent into the detergent bottle, insert the detergent suction tube in to the bottle. 16. Select turbo setting for hard, 17. Select fan spray for cleaning 18. Select detergent setting to use uneven services like concrete and windows, patio furniture, etc.
  • Page 5 20. Remove nozzle and clean out tip by using a unbent 21. Clean the clear plastic quick connect adapter paper clip or the nozzle cleaner that came with the screen. Using a pen or pencil insert at tip to push out washer.
  • Page 6: Table Of Contents

    abLe of ontentS Quick Start ............2 Operating Tips and Maintenance....13 Specifications ..........6 How to Clean ..........15 Storage ............16 Limited Warranty ..........6 Warranty Process ..........6 Pump Saver ........... 17 Introduction ............7 Replacement Parts ........18 Safeguard, Warnings &...
  • Page 7: Introduction

    Congratulations on the purchase of your BLUE CLEAN POWER WASHER! Your BLUE CLEAN POWER WASHER is a power tool in every sense of the word that may be used outside your house and in. It is one of the finest most powerful home-use power washers in the marketplace today.
  • Page 8 • When you press the power switch to turn off • Never disconnect the high pressure hose the power washer, water pressure may remain from the power washer while the system is in the system. To discharge the pressure, pressurized. point the spray gun in a safe direction and •...
  • Page 9: Package Content

    & a nPacking SSembLy • After unpacking the BLUE CLEAN POWER WASHER, lay out the parts and accessories. Familiarize yourself with the parts in the package by comparing them to those listed on the “PACKAGE CONTENTS” page. • The BLUE CLEAN POWER WASHER requires some minor assembly, handle and top cord holder/detergent suction tube.
  • Page 10 High Pressure Hose • Connect high pressure hose to the outlet filter (Fig. 3). Make sure the connection clicks tightly in place. Failure to properly connecting the high pressure hose will result in the hose slipping or popping off immediately upon turning the unit on. Can also cause leaking. Fig.
  • Page 11 • Attach the garden hose adapter to the end of the garden hose (Fig. 11). • You have now completed the assembly of your BLUE CLEAN POWER WASHER and are now ready to begin using your electric power washer. Read and observe all safety instructions.
  • Page 12: Operating Instructions

    Perating nStrUctionS • Make sure the “ON/OFF” switch is in the “OFF” position. The power switch has international symbols for ‘on’ and ‘off’: On ( | ) (Fig. 12) Off (O) (Fig. 13). • Unwind the power cord completely and plug the GFCI into a grounded 120 volt outlet. Press the ‘reset’...
  • Page 13: Operating Tips And Maintenance

    • Turn the ‘ON’ knob. The motor and pump should now ready to run and provide a powerful spray. • Pull trigger on spray gun to activate the total stop system turning the machine on by pulling the trigger and machine will turn off when releasing the trigger. Detergent Operation • Place the detergent suction tube into a container (not included) with detergent.
  • Page 14 • Fan Setting: (Fig. 20) Use the fan spray when cleaning windows, patio furniture, siding etc. Place the nozzle approximately four to five feet away from the surface with the nozzle at a forty five degree angle. Squeeze the trigger and vary the fan spray pattern and angle until optimum cleaning efficiency is achieved.
  • Page 15: How To Clean

    furniture, automobiles, RVs, motorcycle, boat etc. • Use after applying soap to help get those tough spots, then use the fan spray nozzle to clean off the soap. Do not allow soap to dry on what you are cleaning which can cause the soap to dry and damage your property.
  • Page 16: Storage

    torage • When your power washing session has been completed. 1. Turn water supply off. 2. Disconnect the garden hose. 3. Pull the trigger on the spray gun for 30 seconds twice to release any remaining water pressure 4. Turn off the power switch located on the front of the power washer. Off (O) 5.
  • Page 17: Pump Saver

    Pump Saver is a product that protects and prolongs the life of the pump. This will keep the internal parts of the pump lubricated and protected from freezing while being stored in ALL climates. It also assists with protection from internal corrosion. The Blue Clean part # is: PW64511 (16oz. bottle). Order online at www.arblueclean.com Pump Saver Instructions Follow the previous storage instructions for your power washer.
  • Page 18: Replacement Parts

    ePLacement artS Pos. Description Part Number Qty. Spray Gun (Blue) PW3760851 Spray Gun (Grey) PW3760852 Spray Gun (Orange) PW3760853 Extension Lance (Blue) PW3761111 Extension Lance (Grey) PW3761112 Extension Lance (Orange) PW3761113 Fixed Brush Adapter PW40788 3 in 1 Nozzle PW3761700 Quick Connect Filter (clear plastic) PW3082130 Garden Hose Adapter (blue/black)
  • Page 19: Troubleshooting And Faq

    roUbLeSHooting and Unit will not turn on. Make sure the power washer is in the “OFF” position. Plug in the electrical cord to a grounded 120 volt outlet (no electrical extension cord should be used). If the electrical cord will not plug into your outlet, your electrical outlet is not properly grounded and should not be used.
  • Page 20 Model Speedy Wash Cleaning and troubleshooting tips, manuals and other helpful information are available on our website. For parts and accessories for your Blue Clean Washer, visit www.arblueclean.com. Ordering is easy and all major credit cards are accepted. A.R. NORTH AMERICA, INC.
