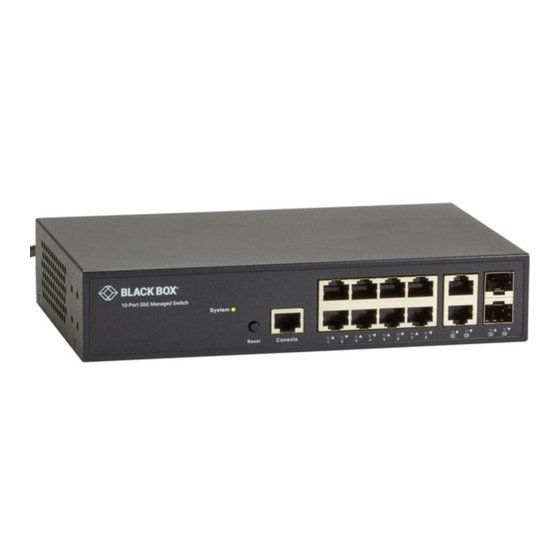

Black Box LGB1110A User Manual

Managed, 10/26/52-ports lgb11xx series
Hide thumbs Also See for LGB1110A:
Table of Contents

Advertisement

Quick Links

USER MANUAL
LGB11XX SERIES
GIGABIT
MANAGED
ENET SWITCH
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LGB1110A and is the answer not in the manual?

Questions and answers

Related Manuals for Black Box LGB1110A

Summary of Contents for Black Box LGB1110A

  • Page 1 USER MANUAL LGB11XX SERIES GIGABIT MANAGED ENET SWITCH 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM...

  • Page 2: Table Of Contents

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 REVISION HISTORY ..................................7 1. INTRODUCTION .................................... 8 1.1 Overview ........................................8 1.2 Available Models ......................................8 1.3 Features ........................................8 2. OPERATION OF WEB-BASED MANAGEMENT ..........................9 2.1 Initial Configuration ....................................9 3.

  • Page 3: Table Of Contents Live

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 3.5.3 AAA ............................................74 3.5.3.1 RADIUS ........................................74 3.5.3.2 TACACS+ ........................................76 3.6 Aggregation ......................................77 3.6.1 Static ...........................................77 3.6.2 LACP ...........................................79 3.7 Loop Protection ......................................80 3.8 Spanning Tree ......................................82 3.8.1 Bridge Setting ........................................83 3.8.2 MSTI Mapping ........................................84 3.8.3 MSTI Priorities ........................................86...
  • Page 4 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 3.18 QoS ........................................127 3.18.1 Port Classification ......................................127 3.18.2 Port Policing ........................................129 3.18.3 Port Schedulers ......................................130 3.18.4 Port Shaping ........................................132 3.18.5 Port Tag Remarking .....................................134 3.18.6 Port DSCP ........................................136 3.18.7 DSCP-Based QoS ......................................137 3.18.8 DSCP Translation ......................................139 3.18.9 DSCP Classification .....................................140...
  • Page 5 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 4.5 Security ......................................... 174 4.5.1 Access Management Statistics ..................................174 4.5.2 Network ..........................................175 4.5.2.1 Port Security ......................................175 4.5.2.2 NAS ...........................................178 4.5.2.3 ACL Status ......................................181 4.5.2.4 ARP Inspection .......................................183 4.5.2.5 IP Source Guard .....................................184 4.5.3 AAA ...........................................185 4.5.3.1 RADIUS Overview ....................................185...
  • Page 6 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 4.14 VCL ........................................226 4.14.1 MAC-based VLAN ....................................... 226 4.14.2 Protocol-based VLAN....................................227 4.14.2.1 Protocol to Group ....................................227 4.14.2.2 Group to VLAN ....................................228 4.14.3 IP Subnet-based VLAN ....................................

  • Page 7: Revision History

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 REVISION HISTORY TECHNICAL SUPPORT 1.877.877.2269 REVISION HISTORY RELEASE: V6.38 1.877.877.2269 BLACKBOX.COM...

  • Page 8: Introduction

    The switches are ideal for entry-level networking, including small business and enterprise applications. 1.2 AVAILABLE MODELS Three Gigabit Managed Ethernet Switch models are available: Š Gigabit Managed Ethernet Switch - 10-Ports (LGB1110A) Š Š Gigabit Managed Ethernet Switch - 26-Ports (LGB1126A-R2) Š...

  • Page 9: Operation Of Web-Based Management

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OPERATION OF WEB-BASED MANAGEMENT TECHNICAL SUPPORT 1.877.877.2269 2.1 INITIAL CONFIGURATION This chapter instructs you how to configure and manage the Gigabit Managed Ethernet Switch through the web user interface. It enables you to easily access and monitor, through any one port of the switch, MIBs status, each port activity, Spanning tree status, port aggregation status, multicast traffic, VLAN and priority status, illegal access records, and so on.
  • Page 10 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OPERATION OF WEB-BASED MANAGEMENT TECHNICAL SUPPORT 1.877.877.2269 NOTE: The Gigabit Managed Ethernet Switch enables DHCP, so If you do not have a DHCP server to provide ip addresses to the switch, use the Switch default ip 192.168.1.1 1.877.877.2269 BLACKBOX.COM...

  • Page 11: System Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 This chapter describes basic configuration tasks, including the System Information and switch management (e.g. Time, Account, IP, Syslog and NTP.) 3.1 SYSTEM You can identify the system by configuring the contact information, name, and location of the switch. 3.1.1 INFORMATION The switch system’s contact information is provided here.
  • Page 12 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.1.2 IP The IPv4 address for the switch can be obtained via DHCP Server for VLAN 1. To manually configure an address, you need to change the switch’s default settings to values that are compatible with your network.
  • Page 13 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: IP Configuration Š Mode: Configure whether the IP stack should act as a Host or a Router. In Host mode, IP traffic between interfaces will not be routed. Š...

  • Page 14: Ntp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 3: SYSTEM CONFIGURATION SUPPORT 1.877.877.2269 IP Routes Š Delete: Select this option to delete an existing IP route. Š Š Network: The destination IP network or host address of this route. Valid format is dotted decimal notation or a valid IPv6 notation. A Š...
  • Page 15 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-3. NTP CONFIGURATION SCREEN Parameter description: Š Mode: Indicates the NTP mode operation. Possible modes are: Š Š Enabled: Enable NTP client mode operation. Š...

  • Page 16: Time

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.1.4 TIME The switch provides manual and automatic ways to set the system time via NTP. Manual setting is simple—just input “Year”, “Month”, “Day”, “Hour” and “Minute” within the valid value range indicated in each item. WEB INTERFACE To configure Time in the web interface: 1.
  • Page 17 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-5. DAYLIGHT SAVINGS TIME CONFIGURATION SCREEN Parameter description: Time Configuration Š Clock Source: There are two modes for configuring how the Clock Source from. Select “Use Local Settings” : Clock Source from Local Š...
  • Page 18 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Daylight Savings Time Configuration Š Daylight Savings Time: Use this to set the clock forward or backward according to the configurations set below for a defined Daylight Š...

  • Page 19: Log

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.1.5 LOG The log is a standard for logging program messages . It allows separation of the software that generates messages from the system that stores them and the software that reports and analyzes them.

  • Page 20: Green Ethernet

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Buttons: These buttons are displayed on the NTP page: Š - Apply – Click to save changes. - Reset - Click to undo any changes made locally and revert to previously saved values. 3.2 GREEN ETHERNET EEE is a power-saving option that reduces the power usage when there is low or no traffic use.
  • Page 21 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Optimize EEE for: The switch can be set to optimize EEE for either best power saving or least traffic latency. Š Port: The switch port number of the logical port. Š...

  • Page 22: Ports Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.3 PORTS CONFIGURATION The section describes how to configure the detailed port parameters of the switch. You can use Port configure to enable or disable a switch port.
  • Page 23 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - 10-Mbps HDX - Forces the copper port to 10-Mbps half- duplex mode. - 10-Mbps FDX - Forces the copper port to 10-Mbps full-duplex mode. - 100-Mbps HDX - Forces the copper port to 100-Mbps half-duplex mode.

  • Page 24: Ports Description

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.3.2 PORTS DESCRIPTION The section describes how to configure the Port’s alias or any descriptions for the Port Identity. The user must provide an alphanumeric string describing the full name and version identification for the system’s hardware type, software version, and networking application.

  • Page 25: Dhcp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.4 DHCP The section describes how to configure the switch’s DHCP Snooping parameters. The DHCP Snooping can prevent attackers from adding their own DHCP servers to the network. 3.4.1 SERVER 3.4.1.1 MODE This page configures global mode and VLAN mode to enable/disable a DHCP server per system and per VLAN.

  • Page 26: Excluded Ip

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 On the other hand, if you want to disable an existing VLAN range, follow these steps: 1.Press “ADD VLAN Range” to add a new VLAN range. 2.

  • Page 27: Pool

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š IP Range: Define the IP range to be excluded IP addresses. The first excluded IP must be smaller than or equal to the second excluded Š...

  • Page 28: Snooping

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Pool Setting: Add or delete pools. Add a pool and give a name to create a new pool with the ”default” configuration. If you want to configure all settings including type, IP subnet mask and lease time, you can click the pool name to go into the configuration page.
  • Page 29 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 WEB INTERFACE To configure DHCP snooping in the web interface: 1. Click Configuration, DHCP, Snooping. 2. Select “Enabled” in the DHCP Snooping Configuration mode. 3.

  • Page 30: Relay

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.4.3 RELAY A DHCP relay agent is used to forward and to transfer DHCP messages between the clients and the server when they are not in the same subnet domain.

  • Page 31: Security

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - Drop: Drop the package when a DHCP message that already contains relay information is received. Š Buttons: Š - Apply – Click to save changes. - Reset - Click to undo any changes made locally and revert to previously saved values.

  • Page 32: Privilege Level

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š User Name: The name identifying the user. This is also a link to Add/Edit User. Š Š Password: Type the password. The allowed string length is 0 to 255, and the allowed content is the ASCII characters from 32 to 126. Š...

  • Page 33: Authentication Method

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Group Name: The name identifying the privilege group. In most cases, a privilege level group consists of a single module (e.g. LACP, Š...

  • Page 34: Ssh

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Client: The management client for which the configuration below applies. Š Š Authentication Method: Authentication Method can be set to one of the following values: Š...

  • Page 35: Https

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.5.1.5 HTTPS This section shows you how to use HTTPS to securely access the Switch. HTTPS is a secure communication protocol that combines authentication and data encryption to provide secure encrypted communication via the browser. WEB INTERFACE To set HTTPS Configuration in the web interface: 1.

  • Page 36: Access Management

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.5.1.6 ACCESS MANAGEMENT This section shows you how to configure the switch’s access management table HTTP/HTTPS, SNMP, and TELNET/SSH settings. You can manage the Switch over an Ethernet LAN, or over the Internet. WEB INTERFACE To configure Access Management in the web interface: 1.

  • Page 37: Snmp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.5.1.7 SNMP Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with an SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices.
  • Page 38 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Version: Indicates the SNMP supported version. Possible versions are: Š - SNMP v1: Set SNMP supported version 1. - SNMP v2c: Set SNMP supported version 2c. - SNMP v3: Set SNMP supported version 3.
  • Page 39 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 TRAP Configure SNMP trap on this page. Global Settings Configure SNMP trap on this page. WEB INTERFACE To display the configure SNMP Trap Configuration in the web interface: 1.
  • Page 40 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Version: Indicates the SNMP trap supported version. Possible versions are: Š Š SNMPv1: Set SNMP trap supported version 1. Š Š SNMPv2c: Set SNMP trap supported version 2c. Š...
  • Page 41 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-23. SNMPV1/V2 COMMUNITIES SECURITY CONFIGURATION SCREEN Parameter description: Š Delete: Check to delete the entry. It will be deleted during the next save. Š...
  • Page 42 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-24. SNMP USERS CONFIGURATION SCREEN Parameter description: Š Delete: Check to delete the entry. It will be deleted during the next save. Š Š...
  • Page 43 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 • Privacy Protocol: Indicates the privacy protocol that this entry should belong to. Possible privacy protocols are: - None: No privacy protocol. - DES: An optional flag to indicate that this user uses the DES authentication protocol. Š...
  • Page 44 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Security Name: A string identifying the security name that this entry should belong to. The allowed string length is 1 to 32, and the Š...
  • Page 45 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 In general, if a view entry’s view type is ‘excluded’, there should be another view entry existing with view type as ‘included’ and its OID subtree should overstep the ‘excluded’...
  • Page 46 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - usm: User-based Security Model (USM). Š Security Level: Indicates the security model that this entry should belong to. Possible security models are: Š - NoAuth, NoPriv: No authentication and no privacy.

  • Page 47: Rmon

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Syslog: Enable - Select this Group Name in Syslog. Š Š Trap: Enable - Select this Group Name in Trap. Š Š SMTP: Enable - Select this Group Name in SMTP. Š...
  • Page 48 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Interval: Indicates the interval in seconds for sampling the history statistics data. The range is from 1 to 3600, default value is 1800 Š...
  • Page 49 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 RMON Configure the RMON Alarm table on this page. The entry index key is ID. WEB INTERFACE To display the configure RMON Alarm in the web interface: 1.
  • Page 50 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - OutNUcastPkts: The number of broadcast and multicast packets that request to transmit. - OutDiscards: The number of outbound packets that are discarded even when the packets is normal. - OutErrors: The number of outbound packets that could not be transmitted because of errors.

  • Page 51: Network

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: These parameters are displayed on the RMON History Configuration page: Š Delete: Check to delete the entry. It will be deleted during the next save. Š...
  • Page 52 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-33. PORT SECURITY LIMIT CONTROL CONFIGURATION SCREEN 1.877.877.2269 BLACKBOX.COM...
  • Page 53 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: System Configuration Š Mode: Indicates if Limit Control is globally enabled or disabled on the switch. If globally disabled, other modules may still use the Š...

  • Page 54: Nas

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - Limit Reached: Indicates that the limit is reached on this port. This state can only be shown if Action is set to None or Trap. - Shutdown: Indicates that the port is shut down by the Limit Control module.
  • Page 55 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-34. NETWORK ACCESS SERVER CONFIGURATION SCREEN Parameter description: Š Mode: Indicates if NAS is globally enabled or disabled on the switch. If globally disabled, all ports are allowed to forward frames. Š...
  • Page 56 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 For MAC-based ports, reauthentication is only useful if the RADIUS server configuration has changed. It does not involve communication between the switch and the client, and therefore doesn’t imply that a client is still present on a port (see Aging Period below).
  • Page 57 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 The “Guest VLAN Enabled” checkbox provides a quick way to globally enable/disable Guest VLAN functionality. When checked, the individual port‘s ditto setting determines whether the port can be moved into a Guest VLAN. When unchecked, the ability to move to the Guest VLAN is disabled on all ports.
  • Page 58 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Single 802.1X: In port-based 802.1X authentication, once a supplicant is successfully authenticated on a port, the whole port is opened Š for network traffic. This allows other clients connected to the port (for instance through a hub) to piggyback on the successfully authenticated client and get network access even though they really aren’t authenticated.
  • Page 59 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 This option is only available for single-client modes, i.e. - Port-based 802.1X - Single 802.1X RADIUS attributes used in identifying a QoS Class: Refer to the written documentation for a description of the RADIUS attributes needed in order to successfully identify a QoS Class. The User-Priority-Table attribute defined in RFC4675 forms the basis for identifying the QoS Class in an Access-Accept packet.
  • Page 60 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Guest VLAN Operation: When a Guest VLAN enabled port‘s link comes up, the switch starts transmitting EAPOL Request Identity frames. If the number of transmissions of such frames exceeds Max. Reauth. Count and no EAPOL frames have been received in the meantime, the switch considers entering the Guest VLAN.

  • Page 61: Acl

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.5.2.3 ACL The L2+ Managed switch access control list (ACL) is probably the most commonly used object in the IOS. It is used for packet filtering but also for selecting types of traffic to be analyzed, forwarded, or influenced in some way.
  • Page 62 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Rate Limiter ID: Select which rate limiter to apply on this port. The allowed values are Disabled or the values 1 through 16. The default Š...
  • Page 63 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-36. ACL RATE LIMITER CONFIGURATION SCREEN Parameter description: Š Rate Limiter ID: The rate limiter ID for the settings contained in the same row. Š...
  • Page 64 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 WEB INTERFACE To configure Access Control List in the web interface: 1. Click Configuration, ACL, then Configuration. 2. Click the “+” button to add a new ACL, or use the other ACL modification buttons to specify the editing action (i.e., edit, delete, or moving the relative position of entry in the list).
  • Page 65 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Ingress Port: Indicates the ingress port of the ACE. Possible values are: Š - Any: The ACE will match any ingress port. - Policy: The ACE will match ingress ports with a specific policy.
  • Page 66 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Modification Buttons You can modify each ACE (Access Control Entry) in the table using the following buttons: + Inserts a new ACE before the current row. o Edits the ACE row.

  • Page 67: Ip Source Guard

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.5.2.4 IP SOURCE GUARD The section describes how to configure the IP Source Guard detail parameters of the switch. You could use the IP Source Guard configure to enable or disable a switch port.
  • Page 68 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 STATIC TABLE The section describes how to configure the Static IP Source Guard Table switch parameters. Use the Static IP Source Guard Table to manage the entries.

  • Page 69: Arp Inspection

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Buttons: Š - Apply – Click to save changes. - Reset- Click to undo any changes made locally and revert to previously saved values. 3.5.2.5 ARP INSPECTION The section describes how to configure the ARP Inspection parameters of the switch.
  • Page 70 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š ARP Inspection Configuration Mode: Enable the Global ARP Inspection or disable the Global ARP Inspection. Š Š Port Mode Configuration: Specify ARP Inspection as enabled on which ports. Only when both Global Mode and Port Mode on a given Š...
  • Page 71 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-41. VLAN MODE CONFIGURATION SCREEN Parameter description: Š VLAN Mode Configuration: Specify ARP Inspection as enabled on which VLANs. First, you have to enable the port setting on Port Š...
  • Page 72 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 STATIC TABLE The section describes how to configure the Static ARP Inspection Table parameters of the switch. You can use the Static ARP Inspection Table configure to manage the ARP entries. WEB INTERFACE To configure a Static ARP Inspection Table Configuration in the web interface: 1.
  • Page 73 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 DYNAMIC TABLE Entries in the Dynamic ARP Inspection Table are shown on this page. The Dynamic ARP Inspection Table contains up to 1024 entries, and is sorted first by port, then by VLAN ID, then by MAC address, and then by IP address.

  • Page 74: Aaa

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Buttons: Š - Apply – Click to save changes. - Reset- Click to undo any changes made locally and revert to previously saved values. - Auto-refresh: Check this box to refresh the page automatically.
  • Page 75 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Global Configuration These settings are common for all of the RADIUS servers. Š Timeout: Timeout is the number of seconds, in the range 1 to 1000, to wait for a reply from a RADIUS server before retransmitting the Š...

  • Page 76: Tacacs

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.5.3.2 TACACS+ WEB INTERFACE You can configure a Common Configuration of AAA, TACACS+ in the web interface. FIGURE 3-45. TACACS+ AUTHENTICATION SERVER CONFIGURATION SCREEN Parameter description: Global Configuration These settings are common for all of the TACACS+ servers.

  • Page 77: Aggregation

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Timeout: This optional setting overrides the global timeout value. Leaving it blank will use the global timeout value. Š Š Key: This optional setting overrides the global key. Leaving it blank will use the global key. Š...
  • Page 78 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-46. AGGREGATION MODE CONFIGURATION SCREEN Parameter description: Hash Code Contributors Š Source MAC Address: The Source MAC address can be used to calculate the destination port for the frame. Check to enable the use Š...

  • Page 79: Lacp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Aggregation Group Configuration Š Group ID: Indicates the group ID for the settings contained in the same row. Group ID “Normal” indicates there is no aggregation. Only Š...

  • Page 80: Loop Protection

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Port: The switch port number. Š Š LACP Enabled: Controls whether LACP is enabled on this switch port. LACP will form an aggregation when 2 or more ports are Š...
  • Page 81 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-48. LOOP PROTECTION CONFIGURATION SCREEN Parameter description: Š Enable Loop Protection: Controls whether loop protection is enabled (as a whole). Š Š Transmission Time: The interval between each loop protection PDU sent on each port. Valid values are 1 to 10 seconds. Š...

  • Page 82: Spanning Tree

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.8 SPANNING TREE The Spanning Tree Protocol (STP) can be used to detect and disable network loops, and to provide backup links between switches, bridges, or routers.

  • Page 83: Bridge Setting

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.8.1 BRIDGE SETTING The section describes how to configure the Spanning Tree Bridge and STP System settings. It allows you to configure STP System settings used by all STP Bridge instance in the switch.

  • Page 84: Msti Mapping

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Max Age: The maximum age of the information transmitted by the Bridge when it is the Root Bridge. Valid values are in the range 6 to Š...
  • Page 85 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-51. MSTI CONFIGURATION SCREEN Parameter description: Configuration Identification Š Configuration Name: The name identifying the VLAN to MSTI mapping. Bridges must share the name and revision, as well as the Š...

  • Page 86: Msti Priorities

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.8.3 MSTI PRIORITIES When you implement a Spanning Tree protocol on the switch as a bridge instance, the CIST is the default instance which is always active.

  • Page 87: Cist Ports

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.8.4 CIST PORTS When you implement a Spanning Tree protocol on the switch that is the bridge instance, you need to configure the CIST Ports. The section describes how to inspect the to inspect the current STP CIST port configurations, and possibly change them as well.

  • Page 88: Msti Ports

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Priority: Controls the port priority. This can be used to control priority of ports that have identical port cost. Š Š operEdge (state flag): Operational flag describing whether the port is connecting directly to edge devices. (No Bridges attached). Š...
  • Page 89 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-54. MSTI PORT CONFIGURATION SCREEN Parameter description: Š Port: The switch port number of the corresponding STP CIST (and MSTI) port. Š Š Path Cost: Controls the path cost incurred by the port. The Auto setting will set the path cost as appropriate by the physical link speed, Š...

  • Page 90: Ipmc Profile

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.9 IPMC PROFILE This page provides IPMC Profile related configurations. 3.9.1 PROFILE TABLE The IPMC profile is used to deploy the access control on IP multicast streams. It is allowed to create at maximum 64 profiles with at maximum of 128 corresponding rules for each.
  • Page 91 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Port: The switch port number of the corresponding STP CIST (and MSTI) port. Š Š Global Profile Mode: Enable/Disable the Global IPMC Profile. The system starts to do filtering based on profile settings only when the Š...

  • Page 92: Address Entry

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 • Buttons: - Add Last Rule – Click to add a new rule in the end of the specific profile’s rule list. Specify the address entry and configure the new entry.

  • Page 93: Mvr

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Reset – Click to undo any changes made locally and revert to previously saved values. Š - Refresh – Refreshes the displayed table starting from the input fields. <<...
  • Page 94 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š MVR Mode Enable/Disable the Global MVR. Unregistered Flooding control depends on the current configuration in IGMP/MLD Š Snooping. We suggest enabling Unregistered Flooding control when the MVR group table is full. Š...

  • Page 95: Ipmc

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.11 IPMC ICMP is an acronym for Internet Control Message Protocol. It is a protocol that generates the error response for diagnostic or routing purposes. ICMP messages generally contain information about routing difficulties or simple exchanges such as time-stamp or echo transactions.

  • Page 96: Vlan Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-58. IGMP SNOOPING CONFIGURATION SCREEN Parameter description: Š Snooping Enabled: Enable the Global IGMP Snooping. Š Š Unregistered IPMCv4 Flooding enabled: Enable unregistered IPMCv4 traffic flooding. Š...
  • Page 97 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 4. Click save to save the setting. 5. To cancel the setting, click the Reset button. It will revert to previously saved values. FIGURE 3-59. IGMP SNOOPING VLAN CONFIGURATION SCREEN Parameter description: Delete: Check to delete the entry.

  • Page 98: Port Filtering Profile

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š URI: Unsolicited Report Interval. The Unsolicited Report Interval is the time between repetitions of a host‘s initial report of membership Š in a group. The allowed range is 0 to 31744 seconds; default unsolicited report interval is 1 second. Š...

  • Page 99: Mld Snooping

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-60. IGMP SNOOPING PORT GROUP FILTERING PROFILE SCREEN Parameter description: Š Port: The logical port for the settings. Š Š Filtering Profile: Select the IPMC Profile as the filtering condition for the specific port. Summary about the designated profile will be Š...

  • Page 100: Basic Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-61. MLD SNOOPING ENABLED 3.11.2.1 BASIC CONFIGURATION The section explains how to configure the MLD Snooping basic configuration and the parameters. WEB INTERFACE To configure the MLD Snooping Configuration in the web interface: 1.
  • Page 101 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-62. MLD SNOOPING BASIC CONFIGURATION SCREEN Parameter description: Š Snooping Enabled: Enable Global MLD Snooping. Š Š Unregistered IPMCv6 Flooding enabled: Enable unregistered IPMCv6 traffic flooding. The flooding control takes effect only when MLD Š...

  • Page 102: Vlan Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Buttons: Š - Apply – Click to save changes. - Reset - Click to undo any changes made locally and revert to previously saved values. 3.11.2.2 VLAN CONFIGURATION When MLD snooping is enabled on a VLAN, the switch acts to minimize unnecessary multicast traffic.

  • Page 103: Port Filtering Profile

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Rv: Robustness Variable. The Robustness Variable allows tuning for the expected packet loss on a network. The allowed range is 1 to Š 255;...
  • Page 104 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-64. MLD SNOOPING PORT GROUP FILTERING CONFIGURATION SCREEN Parameter description: Š Port: The logical port for the settings. Š Š Filtering Profile: Select the IPMC Profile as the filtering condition for the specific port. To show a summary of the designated profile, Š...

  • Page 105: Lldp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.12 LLDP The switch supports the LLDP. For current information on your switch model, the Link Layer Discovery Protocol (LLDP) provides a standards-based method for enabling switches to advertise themselves to adjacent devices and to learn about adjacent LLDP devices.
  • Page 106 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: LLDP Parameters Š Tx Interval: The switch periodically transmits LLDP frames to its neighbors so the network discovery information is up-to-date. The Š...

  • Page 107: Lldp-Med Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Sys Capa: Optional TLV: When checked, the “system capability” is included in LLDP information transmitted. Š Š Mgmt Addr: Optional TLV: When checked, the “management address” is included in LLDP information transmitted. Š...
  • Page 108 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-66. LLDP-MED CONFIGURATION SCREEN Parameter description: Fast start repeat count Rapid startup and Emergency Call Service Location Identification Discovery of endpoints is a critically important aspect of VoIP systems in general.
  • Page 109 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 NOTE: The LLDP-MED and the LLDP-MED Fast Start mechanism is only intended to run on links between LLDP-MED Network Connectivity Devices and Endpoint Devices, and does not apply to links between LAN infrastructure elements, including Network Connectivity Devices, or other types of links.
  • Page 110 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: HEADLINE TECHNICAL SUPPORT 1.877.877.2269 Š Floor: Floor—Example: 4. Š Š Room no.: Room number—Example: 450F. Š Š Place type: Place type—Example: Office. Š Š Postal community name: Postal community name—Example: Leonia. Š...
  • Page 111 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: HEADLINE TECHNICAL SUPPORT 1.877.877.2269 4. Guest Voice Signaling (conditional) - for use in network topologies that require a different policy for the guest voice signaling than for the guest voice media. This application type should not be advertised if all the same network policies apply as those advertised in the Guest Voice application policy.

  • Page 112: Mac Table

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.13 MAC TABLE Switching of frames is based upon the DMAC address contained in the frame. The switch builds up a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame).
  • Page 113 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Aging Configuration: By default, dynamic entries are removed from the MAC table after 300 seconds. This removal is also called Š aging.

  • Page 114: Vlans

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.14 VLANS You can assign a specific VLAN for management purposes. The management VLAN is used to establish an IP connection to the switch from a workstation connected to a port in the VLAN. This connection supports a VSM, SNMP, and Telnet session. By default, the active management VLAN is VLAN 1, but you can designate any VLAN as the management VLAN using the Management VLAN window.
  • Page 115 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 The following example will create VLANs 1, 10, 11, 12, 13, 200, and 300: 1,10-13,200,300. Spaces are allowed in between the delimiters. Š Ethertype for Custom S-ports: This field specifies the ethertype/TPID (specified in hexadecimal) used for Custom S-ports. The setting Š...
  • Page 116 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - S-Custom-Port: On ingress, frames with a VLAN tag with a TPID = 0x8100 or equal to the Ethertype configured for Custom-S ports get classified to the VLAN ID embedded in the tag. If a frame is untagged or priority tagged, the frame gets classified to the Port VLAN.

  • Page 117: Private Vlans

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.15 PRIVATE VLANS In a private VLAN, communication between ports in that private VLAN is not permitted. A VLAN can be configured as a private VLAN.

  • Page 118: Port Isolation

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 A VLAN without any port members on any stack unit will be deleted when you click “Save.” The button can be used to undo the addition of new VLANs. Š...

  • Page 119: Vcl

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.16 VCL 3.16.1 MAC-BASED VLAN MAC address-based VLAN decides the VLAN for forwarding an untagged frame based on the source MAC address of the frame. The most common way of grouping VLAN members is by port, hence the name port-based VLAN.

  • Page 120: Protocol-Based Vlan

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 • Adding a New MAC-based VLAN: Click to add a new MAC-based VLAN entry. An empty row is added to the table, and the MAC- based VLAN entry can be configured as needed.
  • Page 121 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Delete: To delete a Protocol to Group Name map entry, check this box. The entry will be deleted on the switch during the next Save. Š...

  • Page 122: Group To Vlan

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.16.2.2 GROUP TO VLAN This section allows you to map an already configured Group Name to a VLAN for the selected stack switch unit switch. Web Interface To Display Group Name to VLAN mapping table configured in the web interface: 1.

  • Page 123: Ip Subnet-Based Vlan

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.16.3 IP SUBNET-BASED VLAN The IP subnet-based VLAN entries can be configured here. This page allows for adding, updating, and deleting IP subnet-based VLAN entries and assigning the entries to different ports.

  • Page 124: Voice Vlan

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.17 VOICE VLAN Voice VLAN is VLAN configured specially for voice traffic. By adding the ports with voice devices attached to voice VLAN, we can perform QoS-related configuration for voice data, ensuring the transmission priority of voice traffic and voice quality.
  • Page 125 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Mode: Indicates the Voice VLAN mode operation. We must disable MSTP feature before we enable Voice VLAN. It can avoid the Š...

  • Page 126: Oui

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.17.2 OUI The section describes how to configure the Voice VLAN OUI table. The maximum entry number is 16. Modifying the OUI table will restart auto detection of OUI process.

  • Page 127: Qos

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.18 QOS The switch supports four QoS queues per port with strict or weighted fair queuing scheduling. It supports QoS Control Lists (QCL) for advanced programmable QoS classification, based on IEEE 802.1p, Ethertype, VID, IPv4/IPv6, DSCP, and UDP/TCP ports and ranges.
  • Page 128 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Port: The port number for which the configuration below applies. Š Š CoS: Controls the default class of service. All frames are classified to a CoS. There is a one-to-one mapping between CoS, queue, and Š...

  • Page 129: Port Policing

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.18.2 PORT POLICING This section provides an overview of QoS Ingress Port Policers for all switch ports The Port Policing is useful in constraining traffic flows and marking frames above specific rates.

  • Page 130: Port Schedulers

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.18.3 PORT SCHEDULERS This section provides an overview of QoS Egress Port Schedulers for all switch ports and the ports belong to the currently selected stack unit, as reflected by the page header.
  • Page 131 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 If you select the scheduler mode with weighted, then the screen will change FIGURE 3-80. QOS EGRESS SCHEDULERS AND SHAPERS PORT 1 SCREEN Parameter description: Š...

  • Page 132: Port Shaping

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Port Shaper Unit: Controls the unit of measure for the port shaper rate as “kbps” or “Mbps.” The default value is “kbps.” Š Š...
  • Page 133 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 If you select the scheduler mode as weighted, then the screen will change. FIGURE 3-82. QOS EGRESS PORT SHAPERS PORT 1 SCREEN Parameter description: Š...

  • Page 134: Port Tag Remarking

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.18.5 PORT TAG REMARKING The section provides an overview of QoS Egress Port Tag Remarking for all switch ports. Otherwise, the ports belong to the currently selected stack unit, as reflected by the page header.
  • Page 135 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-84. QOS EGRESS PORT TAG REMARKING PORT 1 SCREEN Parameter description: Š Mode: Controls the tag remarking mode for this port. Š - Classified: Use classified PCP/DEI values. - Default: Use default PCP/DEI values.

  • Page 136: Port Dscp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.18.6 PORT DSCP The section will explain how to set the QoS Port DSCP configuration that allowed you to configure the basic QoS Port DSCP Configuration settings for all switch ports.

  • Page 137: Dscp-Based Qos

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Selected: Classify only the selected DSCP for which classification is enabled as specified in DSCP Translation window for the specific Š DSCP. Š All: Classify all DSCP. Š...
  • Page 138 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-86. DSCP-BASED QOS INGRESS CLASSIFICATION CONFIGURATION SCREEN Parameter description: Š DSCP: Maximum number of supported DSCP values are 64. Š Š Trust: Click to check if the DSCP value is trusted. Š...

  • Page 139: Dscp Translation

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.18.8 DSCP TRANSLATION The section describes how to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can be done in Ingress or Egress.

  • Page 140: Dscp Classification

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Buttons: Š - Apply – Click to save changes. - Reset - Click to undo any changes made locally and revert to previously saved values. Š...

  • Page 141: Qos Control List Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 3: SYSTEM CONFIGURATION SUPPORT 1.877.877.2269 Parameter description: Š QoS Class: Available QoS Class values range from 0 to 7. QoS Class (0–7) can be mapped to parameters. Š Š DPL: Drop Precedence Level (0-1) can be configured for all available QoS Classes. Š...
  • Page 142 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š QCE#: Indicates the index of QCE. Š Š Port: Indicates the list of ports configured with the QCE. Š Š DMAC: Indicates the destination MAC address. Possible values are: Š...
  • Page 143 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 x: Deletes the QCE. +: The lowest plus sign adds a new entry at the bottom of the QCE listings. Š Port Members: Check the checkbox button to make any port a member of the QCL entry. By default, all ports will be checked. Š...

  • Page 144: Storm Control

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Action Configuration: Class QoS Class: “class (0-7)”, default- basic classification. DP Valid DP Level can be (0-3)”, default- basic Š classification. DSCP Valid dscp value can be (0-63, BE, CS1-CS7, EF or AF11-AF43) Š...

  • Page 145: Mirror

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.19 MIRROR You can mirror traffic from any source port to a target port for real-time analysis. You can then attach a logic analyzer or RMON probe to the target port and study the traffic crossing the source port in a completely unobtrusive manner.

  • Page 146: Upnp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Mirror Port Configuration Š Port: The logical port for the settings contained in the same row. Š Š Mode: Select mirror mode. Š Š Rx only: Frames received on this port are mirrored on the mirror port. Frames transmitted are not mirrored. Š...

  • Page 147: Gcrp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: These parameters are displayed on the UPnP Configuration page: Š Mode: Indicates the UPnP operation mode. Possible modes are: Š - Enabled: Enable UPnP mode operation. - Disabled: Disable UPnP mode operation.
  • Page 148 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 WEB INTERFACE To configure the GVRP in the web interface: 1. Click Configuration, GVRP, Global Config. 2. Specify Join-time, Leave-time, Leave All-time, Max VLANs. 3.

  • Page 149: Port Config

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.21.2 PORT CONFIG This page allows you to configure the basic GVRP Configuration settings for all switch ports. The settings relate to the currently selected unit, as reflected by the page header.

  • Page 150: Sflow

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.22 SFLOW The sFlow Collector configuration for the switch can be monitored and modified here. The configuration is divided into two parts: Configuration of the sFlow receiver (a.k.a. sFlow collector) and configuration of per-port flow and counter samplers. sFlow configuration is not saved to non-volatile memory, which means that a reboot or master change will disable sFlow sampling.
  • Page 151 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Agent Configuration Š IP Address: The IP address is used as an Agent IP address in sFlow datagrams. It serves as a unique key that will identify this agent Š...

  • Page 152: Switch2Go

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.23 SWITCH2GO 3.23.1 SWITCH2GO SETTING Configure Switch2go management and link setting. WEB INTERFACE To configure Switch2go setting in the web interface: 1. Click Configuration, Switch2go, and and Switch2go setting. 2.

  • Page 153: User Link Management

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - Manual: Link Option is Manual. Š Link State: Report network information between the Switch and the Internet Gateway Device (IGN). Š Š External Port: When the Link Option is Manual, you should Set the External Port manually. Š...

  • Page 154: Port Name Service

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.23.3 PORT NAME SERVICE This page displays the current port name and role. WEB INTERFACE To configure Port Name Service in the web interface: 1.

  • Page 155: Smtp Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: SYSTEM CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3.24 SMTP CONFIGURATION The function is used to set an Alarm trap for the SMTP server to send you an alarm mail. WEB INTERFACE To configure the SMTP Configuration in the web interface: 1.

  • Page 156: Monitor

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 This chapter describes all of the basic network statistics, including Ports, Layer 2 network protocol (e.g. NAS, ACL, DHCP, AAA, and RMON etc.) and any switch settings. 4.1 SYSTEM After you login, the switch shows you the system information.

  • Page 157: Ip Status

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Model Name: Displays the factory defined model name for identification purposes. Š Š System Description: Displays the system description. Š Š Location: The system location configured in Configuration | System | Information | System Location. Š...
  • Page 158 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-2. IP STATUS SCREEN Parameter description: IP Interfaces Š Interface: Show the name of the interface. Š Š Type: Show the address type of the entry. This may be LINK or IPv4. Š...

  • Page 159: Log

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.1.3 LOG This section describes the switch’s system log information. WEB INTERFACE To display the log configuration in the web interface: 1. Click Monitor, System, and Log. 2.

  • Page 160: Detailed Log

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 - Clear: Clears the selected log entries. |<<: Updates the system log entries, starting from the first available entry ID. << : Updates the system log entries, ending at the last entry currently displayed. >>...

  • Page 161: Green Ethernet

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.2 GREEN ETHERNET 4.2.1 DETAILED LOG This page provides the current status for EEE. WEB INTERFACE To display the power Saving in the web interface: 1.

  • Page 162: Ports

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.3 PORTS The section describes how to configure the Port detail parameters of the switch. You can use the Port configure to enable or disable the Port of the switch. Monitor the ports content or status in the function. 4.3.1 TRAFFIC OVERVIEW The section describes provides an overview of general traffic statistics for all switch ports.

  • Page 163: Qos Statistics

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Buttons: Š - Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. - Refresh: Click to refresh the page. - Clear: Clears the counters for all ports.

  • Page 164: Qcl Status

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.3.3 QCL STATUS The section explains how to configure and show the QCL status for different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific QCE is not applied to the hardware due to hardware limitations.

  • Page 165: Detailed Statistics

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 NOTE: Conflict can be resolved by releasing the H/W resources required to add a QCL entry on pressing the Resolve Conflict button. Š Buttons: Š - Auto-refresh: Check this box to refresh the page automatically.
  • Page 166 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-10. RECEIVE QUEUE COUNTERS SCREEN Parameter description: Š Auto-refresh: Click Auto-Refresh to refresh the Port Statistics information automatically. Š Š Upper left scroll bar: To scroll a port to display the Port statistics with “Port-0”, “Port-1... Š...
  • Page 167 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Receive Error Counters Š Rx Drops: The number of frames dropped due to lack of receive buffers or egress congestion. Š Š Rx CRC/Alignment: The number of frames received with CRC or alignment errors. Š...

  • Page 168: Sfp Information

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.3.5 SFP INFORMATION The section describes how to display information for the SFP module connected to the switch. The information includes: Connector type, Fiber type, wavelength, baud rate and Vendor OUI etc. WEB INTERFACE To display the SFP information in the web interface: 1.

  • Page 169: Dhcp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Mon1 (Bias) mA: Show the Bias current of SFP module. Š Š Mon2 (TX PWR): Show the transmit power of SFP module. Š Š Mon3 (RX PWR): Show the receiver power of SFP module. Š...

  • Page 170: Binding

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Database Counters Š Automatic Binding: Number of bindings with network-type pools. Š Š Manual Binding: Number of bindings that an administrator assigns an IP address to a client. The pool is host type. Š...

  • Page 171: Declined Ip

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.4.1.3 DECLINED IP This page displays declined IP addresses. WEB INTERFACE To Display DHCP Server Declined IP in the web interface: Click DHCP, Server and Declined IP. FIGURE 4-14.

  • Page 172: Relay Statistics

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š IP Address: User IP address of the entry. Š Š IP Subnet Mask: User IP subnet mask of the entry. Š Š DHCP Server Address: DHCP Server address of the entry. Š...

  • Page 173: Detailed Statistics

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Client Statistics Š Transmit to Client: The number of relayed packets from server to client. Š Š Transmit Error: The number of packets that resulted in an error while being sent to servers. Š...

  • Page 174: Security

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Server Statistics Š Rx and Tx Discover: The number of discover (option 53 with value 1) packets received and transmitted. Š Š Rx and Tx Offer: The number of offer (option 53 with value 2) packets received and transmitted. Š...

  • Page 175: Network

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Interface: The interface type through which the remote host can access the switch. Š Š Received Packets: Number of received packets from the interface when access management mode is enabled. Š...
  • Page 176 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-19. PORT SECURITY SWITCH STATUS SCREEN Parameter description: Š User Module Legend: The legend shows all user modules that may request Port Security services. Š...
  • Page 177 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Indicates the number of currently learned MAC addresses (forwarding as well as blocked) on the port. If no user modules are enabled on the port, a dash (-) will be shown. Š...

  • Page 178: Nas

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Buttons: Š - Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. - Refresh: Click to refresh the page. 4.5.2.2 NAS SWITCH This section describes how to show the each port NAS status information of the switch.The status includes Admin State Port State,...
  • Page 179 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š QoS Class: QoS Class assigned to the port by the RADIUS server if enabled. Š Š Port VLAN ID: The VLAN ID that NAS has put the port in. The field is blank if the Port VLAN ID is not overridden by NAS. Š...
  • Page 180 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Port Counters Š EAPOL Counters: These supplicant frame counters are available for the following administrative states: Š    - Force Authorized    - Force Unauthorized    - Port-based 802.1X   - Single 802.1X   - Multi 802.1X Š...

  • Page 181: Acl Status

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Last Authentication: Shows the date and time of the last authentication of the client (successful as well as unsuccessful). Š Š Buttons: Š - Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. - Refresh: Click to refresh the page.
  • Page 182 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š User: Indicates the ACL user. Š Š Ingress Port: Indicates the ingress port of the ACE. Possible values are: All and Port. Š...

  • Page 183: Arp Inspection

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.5.2.4 ARP INSPECTION The section describes how to configure the Dynamic ARP Inspection Table parameters of the switch. The Dynamic ARP Inspection Table contains up to 1024 entries, and is sorted first by port, then by VLAN ID, then by MAC address, and then by IP address. WEB INTERFACE To configure a Dynamic ARP Inspection Table Configuration in the web interface: 1.

  • Page 184: Ip Source Guard

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.5.2.5 IP SOURCE GUARD Entries in the Dynamic IP Source Guard Table are shown on this page. The Dynamic IP Source Guard Table is sorted first by port, then by VLAN ID, then by IP address, and then by MAC address.

  • Page 185: Aaa

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.5.3 AAA 4.5.3.1 RADIUS OVERVIEW This section shows you an overview of the RADIUS Authentication and Accounting servers status to ensure the function is workable. WEB INTERFACE To configure a RADIUS Overview Configuration in the web interface: 1.

  • Page 186: Radius Details

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 RADIUS Accounting Servers Š #: The RADIUS server number. Click to navigate to detailed statistics for this server. Š Š IP Address: The IP address and UDP port number (in <IP Address>:<UDP Port> notation) of this server. Š...
  • Page 187 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-28. RADIUS ACCOUNTING STATISTICS FOR SERVER #1 Parameter description: RADIUS Authentication Statistics The statistics map closely to those specified in RFC4668 - RADIUS Authentication Client MIB. Use the server select box to switch between the backend servers to show details for.
  • Page 188 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 TABLE 4-1. RADIUS SIGNAL DESCRIPTIONS DIRECTION NAME RFC4668 NAME DESCRIPTION The number of RADIUS Access-Accept packets Access Accepts radiusAuthClientExtAccessAccepts (valid or invalid) received from the server. The number of RADIUS Access-Reject packets Access Rejects radiusAuthClientExtAccessRejects...
  • Page 189 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Other Info This section contains information about the state of the server and the latest round-trip time. TABLE 4-2. OTHER INFO NAME RFC4668 NAME DESCRIPTION IP address and UDP port for the authentication server in IP Address —...
  • Page 190 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 TABLE 4-3. PACKET COUNTERS DIRECTION NAME RFC4670 NAME DESCRIPTION The number of RADIUS packets (valid or invalid) Responses radiusAccClientExtResponses received from the server. The number of malformed RADIUS packets received from the server.
  • Page 191 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Other Info This section contains information about the state of the server and the latest round-trip time. TABLE 4-4. OTHER INFO NAME RFC4668 NAME DESCRIPTION IP address and UDP port for the authentication server in IP Address —...

  • Page 192: Switch

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.5.4 SWITCH 4.5.4.1 RMON STATISTICS This section provides an overview of RMON Statistics entries. Each page shows up to 99 entries from the Statistics table, default is 20, selected through the “entries per page”...
  • Page 193 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Over-size: The total number of packets received that were longer than 1518 octets. Š Š Frag.: The number of frames that were less than 64 octets received with invalid CRC. Š...
  • Page 194 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-30. RMON HISTORY OVERVIEW SCREEN Parameter description: Š History Index: Indicates the index of History control entry. Š Š Sample Index: Indicates the index of the data entry associated with the control entry. Š...
  • Page 195 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 ALARM This page provides an overview of RMON Alarm entries. Each page shows up to 99 entries from the Alarm table, default is 20, selected through the “entries per page” input field. When first visited, the web page will show the first 20 entries from the beginning of the Alarm table.
  • Page 196 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 EVENT This page provides an overview of RMON Event table entries. Each page shows up to 99 entries from the Event table, default is 20, selected through the “entries per page”...

  • Page 197: Lacp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.6 LACP 4.6.1 SYSTEM STATUS This section describes how to set LACP function on the switch, then it provides a status overview for all LACP instances. WEB INTERFACE To display the LACP System status in the web interface: 1.

  • Page 198: Port Status

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.6.2 PORT STATUS This section describes how to set LACP function on the switch, then it provides a Port Status overview for all LACP instances. WEB INTERFACE To display the LACP Port status in the web interface: 1.

  • Page 199: Port Statistics

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.6.3 PORT STATISTICS This section describes how to set LACP function on the switch, then it provides a Port Statistics overview for all LACP instances. WEB INTERFACE To display the LACP Port status in the web interface: 1.

  • Page 200: Loop Protection

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.7 LOOP PROTECTION This section displays the loop protection port status for the ports of the currently selected switch. WEB INTERFACE To display the Loop Protection status in the web interface: 1.

  • Page 201: Spanning Tree

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.8 SPANNING TREE 4.8.1 BRIDGE STATUS After you complete the MSTI Port configuration, the switch can display the Bridge Status. This section provides a status overview of all STP bridge instances.

  • Page 202: Port Status

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.8.2 PORT STATUS After you complete the STP configuration, the switch can display the STP Port Status. The explains how to display the STP CIST port status for physical ports of the currently selected switch.

  • Page 203: Port Statistics

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.8.3 PORT STATISTICS After you complete the STP configuration, then the switch can display the STP Statistics. This section explains how to display the STP Statistics detail counters of bridge ports in the currently selected switch. WEB INTERFACE To display the STP Port status in the web interface: 1.

  • Page 204: Mvr

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.9 MVR 4.9.1 STATISTICS The section describes how to display the MVR detail Statistics after you configure MVR on the switch. It provides detailed MVR Statistics Information.

  • Page 205: Mvr Channels Groups

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.9.2 MVR CHANNELS GROUPS The section describes how to display the MVR Groups detail information on the switch. Entries in the MVR Group Table are shown on this page.

  • Page 206: Mvr Sfm Information

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.9.3 MVR SFM INFORMATION The MVR SFM (Source-Filtered Multicast) Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port. Different source addresses that belong to the same group are treated as single entry.

  • Page 207: Ipmc

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Hardware Filter/Switch: Indicates whether a data plane destined to the specific group address from the source IPv4/IPv6 address Š could be handled by the chip or not. Š...
  • Page 208 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š VLAN ID: The VLAN ID of the entry. Š Š Querier Version: Currently Working Querier Version. Š Š Host Version: Currently Working Host Version. Š...

  • Page 209: Group Information

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.10.1.2 GROUP INFORMATION After you set the IGMP Snooping function, then the switch can display the IGMP Snooping Group Information. Entries in the IGMP Group Table are shown on this page. The IGMP Group Table is sorted first by VLAN ID, and then by group. The switch will use the last entry of the currently displayed table as a basis for the next lookup.

  • Page 210: Ipv4 Sfm Information

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.10.1.3 IPV4 SFM INFORMATION Entries in the IGMP SFM Information Table are shown on this page. The IGMP SFM (Source-Filtered Multicast) Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port. Different source addresses that belong to the same group are treated as single entry.

  • Page 211: Mld Snooping

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Buttons: Š - Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. - Refresh: Click to refresh the page. |<<: Updates the system log entries to the first available entry ID >>: Updates the system log entry to the next available entry ID 4.10.2 MLD SNOOPING...

  • Page 212: Group Information

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Querier Status: Show the Querier status is ACTIVE or IDLE. DISABLE denotes the specific interface is administratively disabled. Š Š Queries Transmitted: The number of Transmitted Queries. Š...

  • Page 213: Ipv6 Sfm Information

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Navigating the MLD Group Table Each page shows up to 99 entries from the MLD Group table, default is 20, selected through the “entries per page” input field. When first visited, the web page will show the first 20 entries from the beginning of the MLD Group Table.

  • Page 214: Lldp

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Navigating the MLD SFM Information Table Each page shows up to 99 entries from the MLD SFM Information table, default is 20, selected through the “entries per page” input field.
  • Page 215 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-49. LLDP NEIGHBORS INFORMATION SCREEN NOTE: If your network without any device supports LLDP, then the table will show “No LLDP neighbor information found.” Parameter description: Š...

  • Page 216: Lldp-Med Neighbor

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.11.2 LLDP-MED NEIGHBOR This page provides a status overview of all LLDP-MED neighbors. The displayed table contains a row for each port on which an LLDP neighbor is detected.
  • Page 217 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 LLDP-MED Endpoint Device Definition : LLDP-MED Endpoint Devices, as defined in TIA-1057, are located at the IEEE 802 LAN network edge, and participate in IP communication service using the LLDP-MED framework.
  • Page 218 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 7. Reserved Š Application Type: Application Type indicates the primary function of the application(s) defined for this network policy, advertised by Š an Endpoint or Network Connectivity Device. The possible application types are shown below. 1.

  • Page 219: Eee

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.11.3 EEE By using EEE, power savings can be achieved at the expense of traffic latency. This latency occurs because the circuits EEE turn off to save power and need time to boot up before sending traffic over the link.

  • Page 220: Port Statistics

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 The resolved value that is the actual “tx wakeup time “ used for this link (based on EEE information exchanged via LLDP). Š Resolved Rx Tw: The resolved Rx Tw for this link. Š...
  • Page 221 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Global Counters Š Neighbor entries were last changed at: It shows the time when the last entry was last deleted or added. It also shows the time elapsed Š...

  • Page 222: Mac Table

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.12 MAC TABLE Entries in the MAC Table are shown on this page. The MAC Table contains up to 8192 entries, and is sorted first by VLAN ID, then by MAC address.

  • Page 223: Vlans

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 MAC Table Columns Š Switch (stack only): The stack unit where the entry is learned. Š Š Type: Indicates whether the entry is a static or a dynamic entry. Š...
  • Page 224 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-54. VLAN MEMBERSHIP STATUS FOR COMBINED USERS SCREEN Parameter description: Š VLAN USER: VLAN User module uses services of the VLAN management functionality to configure VLAN memberships and VLAN Š...

  • Page 225: Vlan Port

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.13.2 VLAN PORT The function Port Status gathers the information of all VLAN status and reports it by Static NAS, MVRP, MVP, Voice VLAN, MSTP, GVRP Combined.

  • Page 226: Vcl

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Ingress Filtering: Shows the ingress filtering on a port. This parameter affects VLAN ingress processing. If ingress filtering is Š enabled and the ingress port is not a member of the classified VLAN, the frame is discarded. Š...

  • Page 227: Protocol-Based Vlan

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-56. MAC-BASED VLAN MEMBERSHIP STATUS FOR USER STATIC SCREEN Parameter description: Š MAC Address: Indicates the MAC address. Š Š VLAN ID: Indicates the VLAN ID. Š...

  • Page 228: Group To Vlan

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š Frame Type: Frame Type can have one of the following values: Š 1. Ethernet 2. LLC 3. SNAP NOTE: When you change the Frame type field, a valid value of the following text field will vary depending on the new frame type you selected.

  • Page 229: Ip Subnet-Based Vlan

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 4-58. MAC-BASED VLAN MEMBERSHIP STATUS FOR USER STATIC SCREEN Parameter description: Š Group Name: A valid Group Name is a string at the most 16 characters which consists of a combination of alphabetic characters (a-z Š...
  • Page 230 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š VCE ID: Indicates the index of the entry. It is user configurable. Its value ranges from 0–128. If a VCE ID is 0, the application will auto- Š...

  • Page 231: Sflow

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 4.15 SFLOW This section shows receiver and per-port sFlow statistics. WEB INTERFACE To Display MAC-based VLAN configuration in the web interface: 1. Click Monitor, sFlow. 2.
  • Page 232 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Timeout: The number of seconds remaining before sampling stops and the current sFlow owner is released. Š Š Tx Successes: The number of UDP datagrams successfully sent to the sFlow receiver. Š...

  • Page 233: Diagnostics

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 This chapter provides a set of basic system diagnosis. It let users know that whether the system is healthy or needs to be fixed. The basic system check includes ICMP Ping, Link OAM, ICMPv6, and VeriPHY Cable Diagnostics. 5.1 PING This section allows you to issue ICMP PING packets to troubleshoot IPv6 connectivity issues.

  • Page 234: Ping6

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 64 bytes from ::10.10.132.20: icmp_seq=2, time=0ms 64 bytes from ::10.10.132.20: icmp_seq=3, time=0ms 64 bytes from ::10.10.132.20: icmp_seq=4, time=0ms Sent 5 packets, received 5 OK, 0 bad 5.2 PING6 This section explains how to issue ICMPv6 PING packets to troubleshoot IPv6 connectivity issues.

  • Page 235: Veriphy

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 64 bytes from 10.10.132.20: icmp_seq=1, time=0ms 64 bytes from 10.10.132.20: icmp_seq=2, time=0ms 64 bytes from 10.10.132.20: icmp_seq=3, time=0ms 64 bytes from 10.10.132.20: icmp_seq=4, time=0ms Sent 5 packets, received 5 OK, 0 bad You can configure the properties of the issued ICMP packets.

  • Page 236: Traceroute

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 - Pair: The status of the cable pair. - Length: The length (in meters) of the cable pair. 5.4 TRACEROUTE This page allows you to issue ICMP, TCP, or UDP packets to diagnose network connectivity issues. WEB INTERFACE To configure an ICMPv6 PING Configuration in the web interface: 1.

  • Page 237: Maintenance

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 This chapter describes the entire switch Maintenance configuration tasks to enhance the performance of a local network including Restart Device, Firmware upgrade, Save/Restore, and Import/Export. 6.1 RESTART DEVICE This section describes how to restart the switch for any maintenance needs.

  • Page 238: Factory Defaults

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 6.2 FACTORY DEFAULTS This section describes how to reset the Switch configuration to Factory Defaults. Any configuration files or scripts will recover to factory default values. WEB INTERFACE To configure a Factory Defaults Configuration in the web interface: 1.

  • Page 239: Firmware

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 6.3 FIRMWARE This section describes how to upgrade the Firmware. The switch can be enhanced with more value-added functions by installing firmware upgrades. 6.3.1 FIRMWARE UPGRADE This page enables you to update the firmware controlling the switch..

  • Page 240: Firmware Selection

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 6.3.2 FIRMWARE SELECTION This page provides information about the active and alternate (backup) firmware images in the device, and allows you to revert to the alternate image.

  • Page 241: Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 Š Date: The date where the firmware was produced. Š Š Buttons: Š - Activate Alternate Image: Click to use the “Activate Alternate Image.” This button may be disabled depending on the system state. - Cancel: Cancel activating the backup image.

  • Page 242: Upload

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 6.4.2 UPLOAD The configuration upload function will back up and save the switch’s configuration into the running web browser PC. You can upload any of the files on the switch to the web browser. Select the file and click Upload running-config. This may take a little while to complete, as the file must be prepared for upload.

  • Page 243: Download

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 6.4.3 DOWNLOAD This section describes how to export the Switch Configuration for maintenance needs. Any current configuration files will be exported as text format. You can download a file from the web browser to all the files on the switch, except for default-config, which is read-only. Select the file to download, select the destination file on the target, then click .

  • Page 244: Activate

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 6.4.4 ACTIVATE You can activate any of the configuration files present on the switch, except for running-config, which represents the currently active configuration. Select the file to activate and click. This will initiate the process of completely replacing the existing configuration with that of the selected file.

  • Page 245: Delete

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 6.4.5 DELETE You can delete any of the writable files stored in flash, including startup-config. If you do this and the switch is rebooted without saving, this resets the switch to the default configuration.

  • Page 246: Dms Management

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 7: DMS MANAGEMENT TECHNICAL SUPPORT 1.877.877.2269 7.1 INFORMATION The Information page shows general system information for the switch including its DMS software version, the maximum number of devices it can manage, the MAC Address, and the IP Address. WEB INTERFACE To configure DMS Information in the web interface: 1.

  • Page 247: Device List

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 7: DMS MANAGEMENT TECHNICAL SUPPORT 1.877.877.2269 Parameter description: Š DMS Software Version: Displays the current DMS firmware version number. Š Š Total Device: Displays the number of devices in the topology. Š...
  • Page 248 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 7: DMS MANAGEMENT TECHNICAL SUPPORT 1.877.877.2269 Š Parameter description: Š Š Remove: Off-Line devices removed from the selected device. Š Š Status: Device link state (On/Off Line) Š Š Model Name: Device model name Š...

  • Page 249: Dms Graphic Monitoring

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 8: DMS GRAPHIC MONITORING TECHNICAL SUPPORT 1.877.877.2269 8.1 TOPOLOGY VIEW In this page, you can see a visual view of the topology in a cluster of networks. WEB INTERFACE To configure DMS Topology View in the web interface: 1.
  • Page 250 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 8: DMS GRAPHIC MONITORING TECHNICAL SUPPORT 1.877.877.2269 Parameter description: • Login: Login to this device. • Troubleshooting: Move to the troubleshooting page. • Find my switch: Allows administrators to quickly and easily find the Switch in their cabinet. •...

  • Page 251: Floor View

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 8: DMS GRAPHIC MONITORING TECHNICAL SUPPORT 1.877.877.2269 8.2 FLOOR VIEW In this page, the administrator can place a device per time onto the custom image, which you have already uploaded, by dragging- and-dropping markers in the device list.

  • Page 252: Map View

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 8: DMS GRAPHIC MONITORING TECHNICAL SUPPORT 1.877.877.2269 8.3 MAP VIEW In this page, you can view a realistic representation of a device in the network. To find one of devices within the network, enter the device name in the search bar.

  • Page 253: Dms Maintenance

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 9: DMS MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 9.1 FLOOR VIEW In this page, an administrator can add or delete a custom map or floor image. WEB INTERFACE To configure DMS Information in the web interface: 1.

  • Page 254: Troubleshooting

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 9: DMS MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 9.2 DIAGNOSTICS In this page, you can diagnose any issue you have with a device connected to the network. This feature is designed primarily for administrators to verify and test the link route between the switch and the device.

  • Page 255: Traffic Chart

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 9: DMS MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 9.3 TRAFFIC CHART This page displays a visual chart of network traffic of all the devices managed by DMS switch. WEB INTERFACE To configure DMS Information in the web interface: 1.

  • Page 256: Compliance

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 10: COMPLIANCE TECHNICAL SUPPORT 1.877.877.2269 10.1 FCC 10.1.1 FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 257 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ 1.877.877.2269 BLACKBOX.COM...
