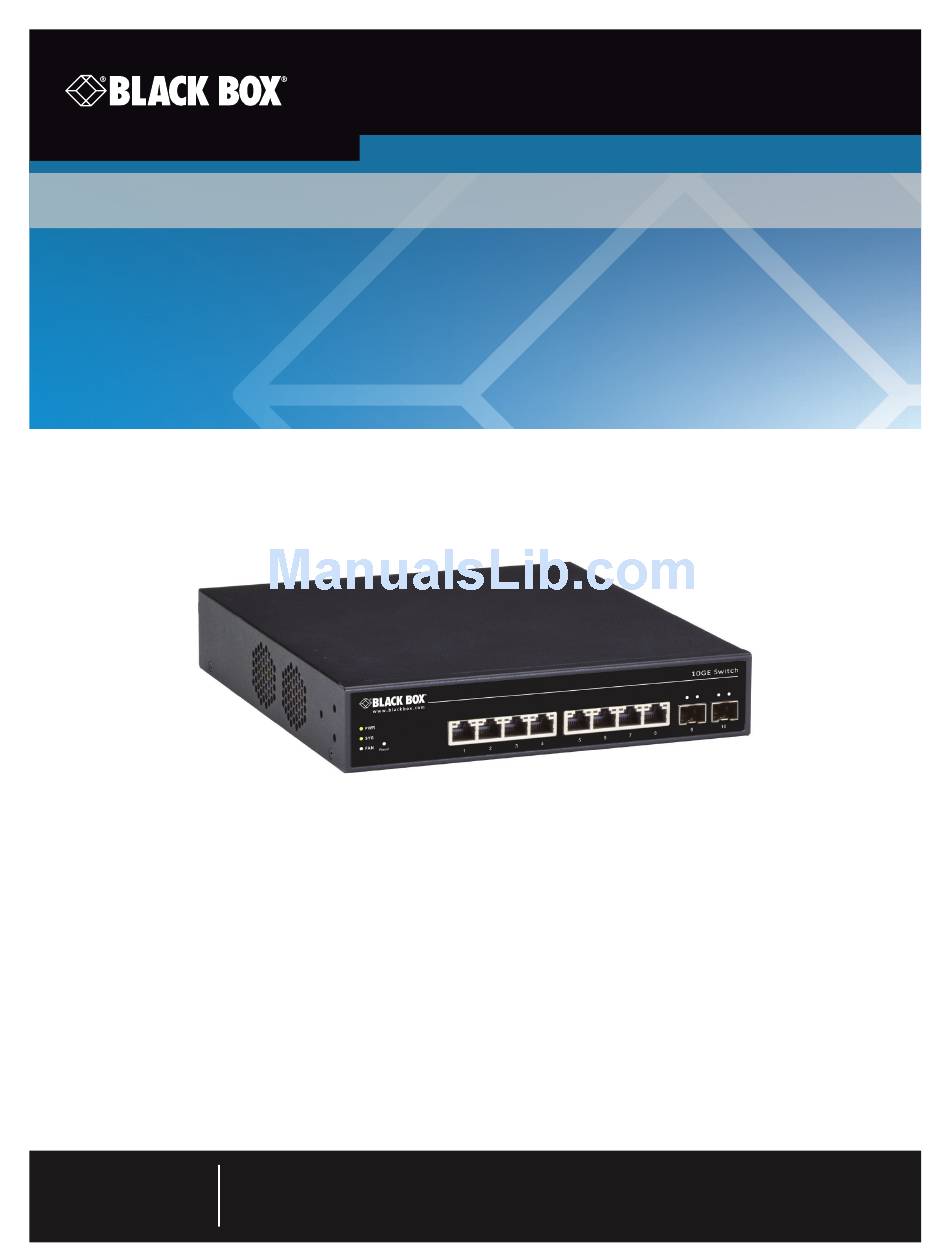

10-Gigabit Web Smart Switch - 10-Port
Command-Line Interface (CLI) Management Guide
Order toll-free in the U.S. or for FREE technical support 24/7: Call 877-877-BBOX
Contact
(outside U.S. call 724-746-5500)
Information
www.blackbox.com • info@blackbox.com
LGB5510A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LGB5510A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LGB5510A

Summary of Contents for Black Box LGB5510A

  • Page 1 LGB5510A 10-Gigabit Web Smart Switch - 10-Port Command-Line Interface (CLI) Management Guide Order toll-free in the U.S. or for FREE technical support 24/7: Call 877-877-BBOX Contact (outside U.S. call 724-746-5500) Information www.blackbox.com • info@blackbox.com...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents 1 CLI Management ...................................4 1-1 LOGIN .....................................4 1-2 COMMANDS OF CLI ...............................4 2 CLEAR of CLI ..................................7 3 CONFIGURE Commands of CLI .............................. ACCESS-LIST ..................................27 3-1 NO .....................................28 3-2 QOS .....................................43 3-3 SPANNING-TREE ................................45 COPY Commands of CLI ..............................47 DELETE Commands of CLI ..............................48 DIR Commands of CLI ................................49...

  • Page 3: Revision History

    BOUT UIDE This guide gives specific information on how to operate URPOSE and use the management functions of the switch. The guide is intended for use by network administrators who UDIENCE are responsible for operating and maintaining network equipment; consequently, it assumes a basic working knowledge of general switch functions, the Internet Protocol (IP), and Simple Network Management Protocol (SNMP).

  • Page 4: Cli Management

    CLI command has its privilege. Username: admin Password: LGB5510A# 1-2 Commands of CLI The CLI is divided into several modes. If a user has enough privileges to run a particular command, the user has to run the command in the correct mode. To see the commands of the mode, input “?” after the system prompt, then all commands will be listed in the screen.
  • Page 5 LGB5510A# Comments clear Reset functions configure Enter configuration mode copy Copy from source to destination delete Delete one file in flash file system Directory of all files in flash file system disable Turn off privileged commands exit Exit from the CLI...
  • Page 6 Exit from EXEC mode. Syntax: exit Parameter: None. Example: LGB5510A(config)# exit LGB5510A# Go back to EXEC mode. Syntax: Example: LGB5510A (config)# end LGB5510A# Publication date: , 2015 Revision A1...

  • Page 7: Clear Of Cli

    Access list. Syntax: Clear access-list ace statistics Parameter: Access list entry statistics Traffic statistics Example: LGB5510A# clear access-list ace statistics LGB5510A# logging Syslog. Syntax clear logging [ info ] [ warning ] [ error ] [ switch <switch_list> ] Parameter error...
  • Page 8 LGB5510A# clear mac address-table LGB5510A# statistics Clear statistics for a given interface Syntax clear statistics interface <port_type> <port_type_list> clear statistics <port_type> <port_type_list> Parameter <port_type_list> 1/1–10 for 10 Gigabit Ethernet EXAMPLE LGB5510A# clear statistics interface 10GigabitEthernet 1/1-5 LGB5510A# Publication date: , 2015 Revision A1...

  • Page 9: Configure Commands Of Cli

    CONFIGURE Commands of CLI Table : CONFIGURE Commands Command Function terminal Configure from the terminal access-list Access list aggregation Aggregation mode clock Configure time-of-day clock Run exec commands in config mode Go back to EXEC mode exit Exit from Configuration mode interface Select an interface to configure Internet Protocol...
  • Page 10 Set the SNMP server's configurations vlan VLAN commands terminal Configure from the terminal. Syntax configure Terminal EXAMPLE LGB5510A# configure terminal LGB5510A(config)# aggregation Aggregation mode. SYNTAX aggregation mode {dst-ip | dst-mac | src-dst-ip | src-dst-mac | src-ip | src-mac} Parameter mode...
  • Page 11 LGB5510A(config)# aggregation mode dst-ip LGB5510A(config)# clock Configure time-of-day clock. SYNTAX clock set <icliDate> <icliTime> clock summer-time mode_type <month> <week> <weekday> <hour> <month> <week number> <week to end> <hour to end> <offset minutes> clock timezone <word_var> <hour_var> [ <minute_var> ] Parameter...
  • Page 12 EXAMPLE LGB5510A(config)# clock set 2015/12/14 01:11:11 LGB5510A(config)# do show clock System Time : 2015-12-14 01:11:30 LGB5510A(config)# clock summer-time enable 1 1 1 1 1 1 1 1 1 LGB5510A(config)# To run exec commands in config mode. SYNTAX < LINE >{[< LINE >]} Parameter <LINE>...
  • Page 13 VLAN interface configurations <vlan_list> List of VLAN interface numbers, 1-4095 <port_type_list> 1/1-10 for 10 Gigabit Ethernet EXAMPLE LGB5510A(config)# interface vlan 1 LGB5510A(config-if-vlan)# ip address 192.168.1.22 255.255.255.0 LGB5510A(config-if-vlan)# exit LGB5510A(config)# interface 10GigabitEthernet 1/1-10 LGB5510A(config-if)# flowcontrol on LGB5510A(config-if)# Internet Protocol. SYNTAX ip arp inspection ip arp inspection entry interface <port_type>...
  • Page 14 ip igmp host-proxy [ leave-proxy ] ip igmp snooping ip igmp snooping vlan <v_vlan_list> ip igmp ssm-range <v_ipv4_mcast> <ipv4_prefix_length> ip igmp unknown-flooding ip name-server { <v_ipv4_addr> | dhcp [ interface vlan <v_vlan_id> ] } ip route <v_ipv4_addr> <v_ipv4_netmask> <v_ipv4_gw> ip source binding interface <port_type> <in_port_type_id> <vlan_var> <ipv4_var> <mac_var> ip verify source ip verify source translate Parameter...
  • Page 15 deny Log denied entries permit Log permitted entries Log all entries translate Arp inspection translate all entries vlan Arp inspection vlan setting <vlan_list> Arp inspection vlan list relay DHCP relay agent information information DHCP information option <Option 82> option DHCP option information DHCP information option(Option 82) policy...
  • Page 16 dhcp Dynamic Host Configuration Protocol interface Select an interface to configure vlan VLAN Interface <vlan_id> VLAN identifier(s): VID <ipv4_addr> Network <ipv4_netmask> Netmask <ipv4_addr> Gateway binding IP source binding interface IP source binding entry interface config All switches or All ports 10 Gigabitethernet 10 Gigabit Ethernet Port <port_type_id>...
  • Page 17 LGB5510A(config)# ip arp inspection LGB5510A(config)# ip dhcp relay LGB5510A(config)# ip helper-address 192.168.1.1 LGB5510A(config)# ip igmp snooping vlan 3 LGB5510A(config)# ip name-server 192.168.1.6 LGB5510A(config)# ip route 192.168.1.1 255.255.255.0 192.168.1.100 LGB5510A(config)# ip routing LGB5510A(config)# ip verify source translate IP Source Guard: Translate 0 dynamic entries into static entries.
  • Page 18 <1-65535> Parameter system-priority System priority <1-65535> Priority value, lower means higher priority EXAMPLE LGB5510A(config)# lacp system-priority 333 LGB5510A(config)# lldp LACP configurations. SYNTAX lldp holdtime <2-10> lldp med datum { wgs84 | nad83_navd88 | nad83_mllw } lldp med fast <1-10>...
  • Page 19 lldp timer <5-32768> lldp transmission-delay <1-8192> Parameter holdtime Sets LLDP hold time (The neighbor switch will discarded the LLDP information after "hold time" multiplied with "timer" seconds ). Media Endpoint Discovery. reinit LLDP tx reinitialization delay in seconds. timer Sets LLDP TX interval (The time between each LLDP frame transmitted in seconds).
  • Page 20 wgs84 World Geodetic System 1984 altitude Altitude parameter meter Altitude value floors Altitude value civic-addr Civic address information and postal information country The two-letter ISO 3166 country code in capital ASCII letters - Example: DK, DE or state National subdivisions (state, canton, region, province, prefecture). county County, parish, gun (Japan), district.
  • Page 21 place-type Place type - Example: Office. postal-community-name Postal community name - Example: Leonia. p-o-box Post office box (P.O. BOX) - Example: 12345. additional-code Additional code - Example: 1320300003. <string250> Value for the corresponding selected civic address. elin-addr Emergency Location Identification Number, (e.g. E911 and others), such as defined by TIA or NENA.
  • Page 22 Differentiated Services Code Point. <0-63> DSCP value 0-63. EXAMPLE LGB5510A(config)# lldp holdtime 5 LGB5510A(config)# lldp med fast 5 LGB5510A(config)# lldp reinit 3 LGB5510A(config)# lldp timer 555 LGB5510A(config)# lldp transmission-delay 333 Note: According to IEEE 802.1AB-clause 10.5.4.2 the transmission-delay must not be larger than LLDP timer * 0.25.
  • Page 23 EXAMPLE LGB5510A(config)# logging level error LGB5510A(config)# logging on LGB5510A(config)# loop-protect Loop protection configuration. SYNTAX loop-protect loop-protect shutdown-time <0-604800> loop-protect transmit-time <1-10> Parameter shutdown-time Loop protection shutdown time interval <0-604800> Shutdown time in second transmit-time Loop protection transmit time interval <1-10>...
  • Page 24 Select an interface to configure 10GigabitEthernet 10 Gigabit Ethernet Port <port_type_list> 1/1-10 for 10 Gigabit Ethernet EXAMPLE LGB5510A(config)# mac address-table aging-time 3333 LGB5510A(config)# monitor Set monitor configuration. SYNTAX monitor destination interface <port_type> <port_type_id> monitor source { interface <port_type> <port_type_list> | cpu } { both | rx | tx }...
  • Page 25 Setting source port to rx will mirror bothingress traffic. Setting source port to tx will mirror both egress traffic. <port_type_list> 1/1-10 for 10 Gigabit Ethernet EXAMPLE LGB5510A(config)# monitor source interface 10GigabitEthernet 1/1-2 both LGB5510A(config)# Configure NTP. SYNTAX ntp server <1-5> ip-address <word63>...
  • Page 26 Set the SNMP server's location string name Set the SNMP server's system model name string <line255> Maximum number of 255 character strings EXAMPLE LGB5510A(config)# system contact 222 LGB5510A(config)# system location 333 LGB5510A(config)# system name GE LGB5510A(config)# vlan VLAN commands. SYNTAX vlan <vlan_list>...

  • Page 27: Access-List

    <0x0-0xff> SSAP (Range: 0x00 - 0xFF) group Protocol-based VLAN group commands <word16> Group Name (Range: 1 - 16 characters) EXAMPLE LGB5510A(config)# vlan ip-subnet id 111 192.168.1.22 192.168.1.22 vlan 1 LGB5510A(config-vlan)# LGB5510A(config)# access-list Table : configure – access-list Commands Command Function...
  • Page 28 Bandwidth limitation on the traffic flow tag-priority Tag-priority VID field frame-type Frame type EXAMPLE LGB5510A(config)# access-list ace 111 action deny LGB5510A(config)# 3-1 no Negate a command or set its defaults Table : configure – no Commands Command Function access-list...
  • Page 29 Vlan commands access-list Access list SYNTAX no access-list ace <1~256> Parameter Access list entry <AceId : 1-256> ACE ID EXAMPLE LGB5510A(config)# no access-list ace 111 LGB5510A(config)# aggregation Aggregation mode SYNTAX no aggregation mode Publication date: , 2015 Revision A1...
  • Page 30 Configure time zone EXAMPLE LGB5510A(config)# no clock summer-time LGB5510A(config)# no clock timezone LGB5510A(config)# interface SYNTAX no interface vlan < vlan_list > Parameter vlan Vlan interface configurations <vlan_list> Vlan list EXAMPLE LGB5510A(config)# no interface vlan 10 LGB5510A(config)# Publication date: , 2015 Revision A1...
  • Page 31 Set system's network name. SYNTAX no ip arp inspection no ip arp inspection entry interface 10Gigabitethernet <port_type_id> <vlan_id> <mac_ucast> <ipv4_ucast> no ip arp inspection vlan <vlan_list> [logging] no dhcp execluded-address [<ip_address> [<ip_address>]] no dhcp pool <WORD> no ip dhcp relay [information {option| policy }] no ip dhcp snooping no ip igmp host-proxy [ leave-proxy ] no ip igmp snooping...
  • Page 32 dhcp Dynamic Host Configuration Protocol execluded-address Prevent DHCP from assigning certain address pool Configure DHCP address pools relay DHCP relay agent configuration server Enable DHCP server snoping DHCP snooping information DHCP information option(Option 82) option DHCP option policy Policy for handling the receiving DHCP packet already include the information option snooping DHCP snooping igmp...
  • Page 33 Select a subnet mask to configure <mac_ucast> Select a MAC address to configure verify Verify command source Verify source EXAMPLE LGB5510A(config)# no ip dhcp snooping LGB5510A(config)# no ip igmp snooping LGB5510A(config)# no ip arp inspection LGB5510A(config)# no ip name-server LGB5510A(config)# ipmc IPv4/IPv6 multicast configuration SYNTAX no ipmc mode no ipmc profile <Profilename : word16>...
  • Page 34 LACP settings SYNTAX no lacp system-priority <1-65535> Parameter system-priority System priority EXAMPLE LGB5510A(config)# no lacp system-priority LGB5510A(config)# lldp LLDP configurations.. SYNTAX no lldp {timer | holdtime | reinit | transmission-delay} no lldp med {datum | fast } no lldp med location-tlv {altitude | latitude | longitude | elin-addr}...
  • Page 35 timer Sets LLDP TX interval (The time between each LLDP frame transmitted in seconds). transmission-delay Sets LLDP transmision-delay. LLDP transmission delay (the amount of time that the transmission of LLDP frames will delayed after LLDP configuration has changed) in seconds.) datum Set datum to default value.
  • Page 36 Place type - Example: Office. postal-community-name Postal community name - Example: Leonia. <0~31> Policy to delete. EXAMPLE LGB5510A(config)# no lldp holdtime LGB5510A(config)# no lldp med media-vlan-policy 1 LGB5510A(config)# no lldp reinit LGB5510A(config)# no lldp timer LGB5510A(config)# no lldp transmission-delay LGB5510A(config)# logging Syslog.
  • Page 37 EXAMPLE LGB5510A(config)# no logging host LGB5510A(config)# no logging on LGB5510A(config)# loop-protect Loop protection configuration SYNTAX no loop-protect no loop-protect shutdown-time no loop-protect transmit-time Parameter shutdown-time Loop protection shutdown time interval transmit-time Loop protection transmit time interval EXAMPLE LGB5510A(config)# no loop-protect shutdown-time...
  • Page 38 The source port(s). That is the ports to be mirrored to the destination port.l Mirror CPU traffic. interface Mirror Interface traffic. 10GigabitEthernet 10 Gigabit Ethernet Port <port_type_list> 1/1-10 for 10 Gigabite thernet EXAMPLE LGB5510A(config)# no monitor destination LGB5510A(config)# no monitor source interface * LGB5510A(config)# Publication date: , 2015 Revision A1...
  • Page 39 Parameter server Configure NTP server interval Configure NTP interval EXAMPLE LGB5510A(config)# no ntp server LGB5510A(config)# no ntp interval LGB5510A(config)# spanning-tree STP Bridge. SYNTAX no spanning-tree mode no spanning-tree mst <instance> priority no spanning-tree mst <instance> vlan...
  • Page 40 Max bridge age before timeout name Name keyword EXAMPLE LGB5510A(config)# no spanning-tree mode LGB5510A(config)# no spanning-tree mst max-age LGB5510A(config)# no spanning-tree mst forward-time LGB5510A(config)# no spanning-tree mst 1 vlan LGB5510A(config)# upnp Set UPnP's configurations. SYNTAX no upnp no upnp advertising-duration...
  • Page 41 SYNTAX no username <Username : word31> Parameter <Username : word31> User name allows letters, numbers and underscores EXAMPLE LGB5510A(config)# no username admin LGB5510A(config)# vlan Vlan commands. SYNTAX no vlan <vlan_list> no vlan protocol { { eth2 { <0x600-0xffff> | arp | ip | ipx | at } } | { snap { <0x0-0xffffff> | rfc_1042 | snap_8021h } <0x0-0xffff>...
  • Page 42 Protocol-based VLAN group commands <word16> Group Name (Range: 1 - 16 characters) <vlan_list> Vlan list ethertype s-custom-port EXAMPLE LGB5510A(config)# no vlan 1 LGB5510A(config)# no vlan ethertype s-custom-port LGB5510A(config)# no vlan mac 12:12:12:12:12:12 vlan 1 LGB5510A(config)# Publication date: , 2015 Revision A1...

  • Page 43: Qos

    Police unicast frames <Rate : 1,2,4,8,16,32,64,128,256,512,1024> Policer rate (default fps) kfps Rate is kfps EXAMPLE LGB5510A(config)# qos storm broadcast 256 kfps LGB5510A(config)# basic_wred Weighted Random Early Discard. SYNTAX qos basic_wred < Boolean choice > Parameter < Boolean choice >...
  • Page 44 Drop Down Level 0 dpl1 Drop Down Level 1 dpl2 Drop Down Level 2 <threshold value> Rate is 0..100 (0..100) <slope value> Rate is 3..90 (3..90) EXAMPLE LGB5510A(config)# qos wred_config 1 queue 1 dpl0 11 5 LGB5510A(config)# Publication date: , 2015 Revision A1...

  • Page 45: Spanning-Tree

    Multiple Spanning Tree (802.1s) rstp Rabid Spanning Tree (802.1w) 802.1D Spanning Tree EXAMPLE LGB5510A(config)# spanning-tree mode stp LGB5510A(config)# STP bridge instance. SYNTAX spanning-tree mst <Instance : 0-7> priority <Prio : 0-61440> spanning-tree mst < Instance : 0-7> vlan <vlan_list>...
  • Page 46 Range in seconds <Maxage : 6-40> Range in seconds <Maxhops : 6-40> Hop count range <Name : word32> Name of the bridge revision Revision keyword <0-65535> Revision number EXAMPLE LGB5510A(config)# spanning-tree mst 7 vlan 10 LGB5510A(config)# Publication date: , 2015 Revision A1...

  • Page 47: Copy Commands Of Cli

    { startup-config | running-config | < flash:filename | tftp://server/path-and-filename > } Parameter flash:filename | tftp://server/path-and-filename File in FLASH or on TFTP server running-config Currently running configuration startup-config Startup configuration EXAMPLE LGB5510A# copy startup-config running-config Publication date: , 2015 Revision A1...

  • Page 48: Delete Commands Of Cli

    DELETE Commands of CLI Delete one file in flash: file system SYNTAX Delete <Path : word> Parameter <Path : word> Name of file to delete EXAMPLE LGB5510A# delete text LGB5510A# Publication date: , 2015 Revision A1...

  • Page 49: Dir Commands Of Cli

    DIR Commands of CLI Directory of all files in flash: file system SYNTAX EXAMPLE LGB5510A# dir default-config startup-config LGB5510A# Publication date: , 2015 Revision A1...

  • Page 50: Disable Commands Of Cli

    DISABLE Commands of CLI Turn off privileged commands SYNTAX disable EXAMPLE LGB5510A# disable LGB5510A> Publication date: , 2015 Revision A1...

  • Page 51: Firmware Of Cli

    < TFTPServer_path_file : word> Parameter upgrade Firmware upgrade <TFTPServer_path_file : word> TFTP Server IP address, path and file name for the server containing the new image. EXAMPLE LGB5510A# firmware upgrade tftp://192.168.1.1/path/GEL2706 Programming image... LGB5510A# Publication date: , 2015 Revision A1...

  • Page 52: Ping Of Cli

    PING of CLI Send ICMP echo messages Syntax ping ip <word1-255> [ repeat <Count : 1-60> ] [ size <Size : 2-1452> ] [ interval <Seconds : 0-30> ] ping ipv6 <ipv6_addr> [ repeat <Count : 1-60> ] [ size <Size : 2-1452> ] [ interval <Seconds : 0-30> ] [ interface vlan <vlan_id>...
  • Page 53 VLAN Interface <vlan_id> VLAN identifier(s): VID EXAMPLE LGB5510A# ping ip 192.168.1.68 repeat 3 size 4 PING 192.168.1.68 (192.168.1.68): 4 data bytes --- 192.168.1.68 ping statistics --- 3 packets transmitted, 0 packets received, 100% packet loss LGB5510A# Publication date: , 2015...

  • Page 54: Reload Of Cli

    % Reloading defaults. Please stand by. LGB5510A# reload cold % Cold reload in progress, please stand by. LGB5510A# +M25PXX : Init device with JEDEC ID 0x20BA19. Luton26 board detected (VSC7427 Rev. D). RedBoot(tm) bootstrap and debug environment [ROMRAM] Non-certified release, version 1_15a-Vitesse - built 18:36:46, Sep 9 2014 Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Free Software Foundation, Inc.

  • Page 55: Show Of Cli

    SHOW of CLI Show running system information Table : SHOW Commands Command Function access-list Access list aggregation Aggregation port configuration clock Configure time-of-day clock interface Interface status and configuration Internet Protocol ipv6 IPv6 configuration commands lldp Display LLDP neighbors information. logging Syslog loop-protect...
  • Page 56 Access list entry <AceId : 1~384> ACE ID EXAMPLE LGB5510A# show access-list ace 111 Switch access-list ace number: 0 LGB5510A# aggregation Aggregation port configuration. SYNTAX show aggregation [ {aggregators/lacp/mode/status]] Parameter aggregators Aggregator status lacp Lacp local and neighbor info mode...
  • Page 57 LGB5510A# show aggregation mode Aggregation Hash Mode : src-dst-mac LACP System Priority : 333 LGB5510A# show aggregation status Trunk Port Setting Trunk Port Status ----------------------------------------- ----------------- port Method Group LACP Role Timeout Aggregator Status ========== ====== ===== ========= ======= ========== ======...
  • Page 58 EXAMPLE LGB5510A# show interface vlan 1 VLAN1 Link: 00-40-c7-00-00-01 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 IPv4: 192.168.1.22/24 IPv6: fe80::240:c7ff:fe00:1/64 LGB5510A# show interface 10GigabitEthernet 1/1-3 status Interface Speed & Duplex Rx Flow Control Max Frame Link ---------------------- -------------- --- --- ------------...
  • Page 59 Internet Protocol. SYNTAX show ip arp show ip arp inspection interface {<port_type> <port_type_list>} vlan <vlan_list> show ip arp inspection entry [ dhcp-snooping| interface | static ] [ interface <port_type> <port_type_list> ] show ip arp inspection vlan [ <vlan_list> ] show ip dhcp snooping [ interface <port_type> <port_type_list> ] show ip dhcp snooping table show ip igmp snooping [ detail | group-database | mrouter | vlan ] show ip interface brief...
  • Page 60 statistics Traffic statistics snooping DHCP snooping http Hypertext Transfer Protocol server HTTP web server secure Secure status Status igmp Internet Group Management Protocol snooping Snooping IGMP vlan Search by VLAN <vlan_list> VLAN identifier(s): VID group-database Multicast group database from IGMP detail Detail running information/statistics of IGMP snooping mrouter...
  • Page 61 VLAN VLAN Mode VLAN Log Type ---- --------- ------------- 1 Disabled None LGB5510A# show ip dhcp snooping interface * 1/1-2 10GigabitEthernet 1/1 trusted 10GigabitEthernet 1/2 trusted LGB5510A# show ip igmp snooping vlan IGMP Snooping is disabled to stop snooping IGMP control plane.
  • Page 62 IPv6 routes statistics Traffic statistics system IPv6 system traffic EXAMPLE LGB5510A# show ipv6 interface vlan 1 brief IPv6 Vlan1 interface is up. Internet address is fe80::240:c7ff:fe00:1/64 IP stack index (IFID) is 2 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 LGB5510A# lldp Display LLDP neighbors information.
  • Page 63 SYNTAX show lldp interface [ interface <port_type> <port_type_list> ] show lldp med media-vlan-policy [ <0~31> ] show lldp med remote-device [ interface <port_type> <port_type_list> show lldp neighbors [ interface <port_type> <port_type_list> ] show lldp statistics [ interface <port_type> <port_type_list> ] Parameter Display LLDP-MED neighbors information.
  • Page 64 LGB5510A# show lldp interface * 1/1-2 LLDP Configuration ====================================== TX Interval : 30 sec TX Hold : 4 sec TX Delay : 2 sec TX Reinit : 2 sec 10GigabitEthernet 1/1 ------------------------------ TX/RX Mode : Disabled CDP Aware : Disable...
  • Page 65 Information notice Notice warning Warning EXAMPLE LGB5510A# show logging alert crit debug emerg error info notice warning Switch logging host mode is disable Switch logging host address is Number of entries on Switch 1: Level Time Message ---- ------ ------------------------- -----------------------------...
  • Page 66 All Switches or All ports 10GigabitEthernet 10 Gigabit Ethernet Port <port_type_list> 1/1-10 for 10 Gigabit Ethernet EXAMPLE LGB5510A# show loop-protect interface * 1/1-2 Loop Protection Configuration ====================================== Loop Protection : Disable Transmission Time : 5 sec Shutdown Time : 180 sec...
  • Page 67 Mac Address Table information. SYNTAX show mac address-table [ conf | static | aging-time | { { learning | count } [ interface <port_type> <port_type_list> ] } | { address <mac_addr> [ vlan <vlan_id> ] } | vlan <vlan_id> | interface <port_type> <port_type_list>...
  • Page 68 LGB5510A# show mac address-table count interface * 1/1-2 Port Dynamic addresses Total learned dynamic addresses for the switch: 1 Total static addresses in table: 0 LGB5510A# show NTP. SYNTAX show ntp status Parameter status status EXAMPLE LGB5510A# show ntp status...
  • Page 69 <port_type > 10 Gigabit Ethernet All Switches or All ports 10GigabitEthernet 10 Gigabit Ethernet Port <port_type_list> 1/1-10 for 10 Gigabit Ethernet EXAMPLE LGB5510A# show pvlan isolation interface 10GigabitEthernet 1/1-2 Port Isolation -------------------------------- --------- 10GigabitEthernet 1/1 Disabled 10GigabitEthernet 1/2 Disabled LGB5510A# Quality of Service.
  • Page 70 Map for dscp classify enable dscp-cos Map for dscp to cos dscp-egress-translation Map for dscp egress translation dscp-ingress-translation Map for dscp ingress translation EXAMPLE LGB5510A# show qos storm Storm Configuration interface 10GigabitEthernet 1/1 Broadcast : disabled Multicast : disabled...
  • Page 71 Show running system information. SYNTAX show running-config EXAMPLE LGB5510A# show running-config username admin privilege 15 password none clock summer-time enable 1 1 1 1 12 1 1 1 123 clock timezone 1234 -12 system name LGB5510A ip igmp ssm-range 232.0.0.0 8...
  • Page 72 MST port status <0-4904> Choose vlan configuration MST port configuration EXAMPLE LGB5510A# show spanning-tree mst configuration Multiple Spanning Tree Protocol : Disable Force Version : MSTP Region Name : 00-40-C7-00-00-01 Revision Level : 0 MSTI 0 (CIST) : vlan 1-4094...
  • Page 73 Parameter None EXAMPLE LGB5510A# show system Model Name System Description : 8-Port 10G Copper + 2-Port 10G SFP+ Web Smart Ethernet Switch Firmware Version : v0.83.2 MAC Address : 00-40-c7-00-00-01 Serial Number : XYZ0123456789A Location Contact System Name : LGB5510A...
  • Page 74 vlan VLAN status. SYNTAX show vlan brief show vlan id <vlan_list> show vlan ip-subnet id <ip-subnet value> show vlan protocol [ eth2 { <0x600-0xffff> | arp | ip | ipx | at } ] [ snap { <0x0-0xffffff> | rfc_1042 | snap_8021h } <0x0-0xffff>...
  • Page 75 Show the VLANs configured by Voice VLAN. interface Show the VLANs configured for a specific interface(s). 10GigabitEthernet 10 Gigabit Ethernet Port <port_type_list> 1/1-10 for 10 Gigabit Ethernet EXAMPLE LGB5510A# show vlan VLAN Name Interfaces ---- -------------------------------- ---------- default Gi 1/1-48 LGB5510A# Publication date: , 2015...

  • Page 76: Terminal Of Cli

    TERMINAL of CLI Set terminal line parameters Syntax terminal exec-timeout <0-1440> [ <0-3600> ] Parameter exec-timeout Set the EXEC timeout <0-1440> Timeout in minutes EXAMPLE LGB5510A# terminal exec-timeout 1 LGB5510A# Publication date: , 2015 Revision A1...

  • Page 77: Traceroute

    Specify protocol including icmp, udp and tcp Specify max TTL wait Specify wait time EXAMPLE LGB5510A# traceroute ip 192.168.1.1 protocol icmp wait 1 traceroute to 192.168.1.1 (192.168.1.1), 30 hops max, 60 byte packets 1 * * * 2 * * * 3 * * *...

  • Page 78: Cli Command Reference

    CLI COMMAND REFERENCE This chapter introduces the CLI privilege level and command modes. The privilege level determines whether or not the user could run the particular commands  If the user could run the particular command, then the user has to run the command in the ...

  • Page 79: Publication Date

    Command Summary COMMAND DESCRIPTION show access management Use the show access management user EXEC EXEC command without keywords to display the access management configuration, or use the statistics keyword to display statistics, or use the <AccessId> keyword to display the specific access management entry.
  • Page 80 access-list rate-limiter ID . The access-list interface configuration will affect the received frames if it doesn't match any ACE. no access-list rate-limiter Use the no access-list rate-limiter INTERFACE_PORT_LIST interface configuration command to disable the access-list rate-limiter. The access-list interface configuration will affect the received frames if it doesn't match any ACE.
  • Page 81 configuration will affect the received frames if it doesn't match any ACE. access-list evc-policer <1-256> Use the access-list evc-policer interface INTERFACE_PORT_LIST configuration command to configure the access-list evc-policer ID. The access-list interface configuration will affect the received frames if it doesn't match any ACE.
  • Page 82 the default setting of access-list rate-limiter. access-list ace [update] <1-256> [next Use the access-list ace global GLOBAL_CONFIG {<1-256>|last}] [ingress {switch configuration command to set the <switch_id>|switchport {<1-53>|<1~53>}|interface access-list ace. The command without {<port_type_id>|<port_type_list>}|any}] [policy the update keywrod will creates or <0-255>...
  • Page 83 [tcp-flag [tcp-fin {<0-1>|any}] [tcp-syn {<0-1>|any}] [tcp-rst {<0-1>|any}] [tcp-psh {<0-1>|any}] [tcp-ack {<0-1>|any}] [tcp-urg {<0-1>|any}]]| ipv6 [next-header {<0-5,7-16,18-57,59-255>|any}] [sip {<ipv6_addr> [sip-bitmask <uint>]|any}] [hop-limit {<0-1>|any}]| ipv6-icmp [sip {<ipv6_addr> [sip-bitmask <uint>]|any}] [icmp-type {<0-255>|any}] [icmp-code {<0-255>|any}] [hop-limit {<0-1>|any}]| ipv6-udp [sip {<ipv6_addr> [sip-bitmask <uint>]|any}] [sport {<0-65535> [to <0-65535>]|any}] [dport {<0-65535>...
  • Page 84 configuration. clear access-list ace statistics Use the clear access-list ace statistics EXEC privileged EXEC command to clear the statistics maintained by access-list, including access-list interface statistics and ACE's statistics. show access-list ace-status [ static ] [ link-oam ] Use the show access-list ace-status EXEC [ loop-protect ] [ dhcp ] [ ptp ] [ upnp ] privilege EXEC command without...
  • Page 85 arp_inspection_port_mode Use the ip ARP inspection trust interface INTERFACE_PORT_LIST configuration command to configure a port as trusted for ARP inspection purposes. Use the no form of this command to configure a port as untrusted. arp_inspection_port_check_vlan Use the ip ARP inspection check-vlan INTERFACE_PORT_LIST interface configuration command to configure a port as VLAN mode for ARP...
  • Page 86 command to configure the global RADIUS retransmit value. no radius-server retransmit Use the no radius-server retransmit GLOBAL_CONFIG command to reset the global RADIUS retransmit value to default. radius-server deadtime <1-1440> Use the radius-server deadtime GLOBAL_CONFIG command to configure the global RADIUS deadtime value.
  • Page 87 deadtime value to default. tacacs-server key <line1-63> Use the tacacs-server key command to GLOBAL_CONFIG configure the global TACACS+ key. no tacacs-server key Use the no tacacs-server key command GLOBAL_CONFIG to remove the global TACACS+ key. tacacs-server host <word1-255> [ port Use the tacacs-server host command to GLOBAL_CONFIG <0-65535>...
  • Page 88 no clock timezone GLOBAL_CONFIG show clock detail EXEC show ip dhcp detailed statistics { server | client | Use the show ip dhcp detailed statistics EXEC snooping | relay | normal-forward | combined } user EXEC command to display [ interface <port_type_list> ] statistics.
  • Page 89 address of DHCP relay server. ip dhcp relay information option Use the ip dhcp relay information option GLOBAL_CONFIG global configuration command to enable the DHCP relay information option. Use the no form of this command to disable the DHCP relay information option. The option 82 circuit ID format as "[vlan_id][module_id][port_no]".
  • Page 90 expired} ] show ip dhcp server binding <ipv4_ucast> EXEC show ip dhcp server EXEC show ip dhcp server statistics EXEC show ip dhcp server declined-ip EXEC show ip dhcp server declined-ip <ipv4_addr> EXEC clear ip dhcp server binding <ipv4_ucast> EXEC clear ip dhcp server binding { automatic | manual | EXEC expired }...
  • Page 91 no netbios-node-type DHCP_POOL netbios-scope <line128> DHCP_POOL no netbios-scope DHCP_POOL nis-domain-name <word128> DHCP_POOL no nis-domain-name DHCP_POOL nis-server <ipv4_ucast> [<ipv4_ucast> DHCP_POOL [<ipv4_ucast> [<ipv4_ucast>]]] no nis-server DHCP_POOL host <ipv4_ucast> <ipv4_netmask> DHCP_POOL no host DHCP_POOL client-identifier { fqdn <line128> | mac-address DHCP_POOL <mac_addr> } no client-identifier DHCP_POOL hardware-address <mac_ucast>...
  • Page 92 ip dhcp snooping Use the ip dhcp snooping global GLOBAL_CONFIG configuration command to globally enable DHCP snooping. Use the no form of this command to globally disable DHCP snooping. dhcp_snooping_port_mode Use the ip dhcp snooping trust interface INTERFACE_PORT_LIST configuration command to configure a port as trusted for DHCP snooping purposes.
  • Page 93 ip http secure-redirect Use the http secure-redirect global GLOBAL_CONFIG configuration command to enable the secure HTTP web redirection. When the secure HTTP web server is enabled, the feature automatic redirect the none secure HTTP web connection to the secure HTTP web connection. Use the no form of this command to disable the secure HTTP web redirection.
  • Page 94 no ip address IP address configuration INTERFACE_VLAN ip route <ipv4_addr> <ipv4_netmask> Add new IP route GLOBAL_CONFIG <ipv4_addr> no ip route <ipv4_addr> <ipv4_netmask> Delete an existing IP route GLOBAL_CONFIG <ipv4_addr> show interface vlan [<vlan_list>] Vlan interface status EXEC show ip interface brief Brief IP interface status EXEC show ip arp...
  • Page 95 show ip igmp snooping [ vlan <vlan_list> ] EXEC [ group-database [ interface <port_type_list> ] [ sfm-information ] ] [ detail ] ip igmp snooping GLOBAL_CONFIG ip igmp unknown-flooding GLOBAL_CONFIG ip igmp host-proxy [ leave-proxy ] GLOBAL_CONFIG ip igmp ssm-range <ipv4_mcast> <4-32> GLOBAL_CONFIG no ip igmp ssm-range GLOBAL_CONFIG...
  • Page 96 ipv6 mld snooping GLOBAL_CONFIG ipv6 mld unknown-flooding GLOBAL_CONFIG ipv6 mld host-proxy [ leave-proxy ] GLOBAL_CONFIG ipv6 mld ssm-range <ipv6_mcast> <8-128> GLOBAL_CONFIG no ipv6 mld ssm-range GLOBAL_CONFIG ipv6 mld snooping vlan <vlan_list> GLOBAL_CONFIG no ipv6 mld snooping vlan [ <vlan_list> ] GLOBAL_CONFIG ipv6 mld snooping immediate-leave INTERFACE_PORT_LIST...
  • Page 97 no ipv6 mld snooping unsolicited-report-interval INTERFACE_VLAN ip verify source GLOBAL_CONFIG i ip verify source INTERFACE_PORT_LIST ip verify source limit <0-2> INTERFACE_PORT_LIST no ip verify source limit INTERFACE_PORT_LIST ip verify source translate GLOBAL_CONFIG show ip verify source [interface <port_type_list>] EXEC show ip source binding [ dhcp-snooping | static ] EXEC [interface <port_type_list>] ip source binding interface <port_type_id>...
  • Page 98 system-description | system-name} lldp transmit Sets if switch shall transmit LLDP INTERFACE_PORT_LIST frames. lldp receive Sets if switch shall update LLDP entry INTERFACE_PORT_LIST table with incoming LLDP information. show lldp neighbors [ interface <port_type_list> ] Shows the LLDP neighbors information. EXEC show lldp statistics [ interface <port_type_list>...
  • Page 99 landmark | additional-info | name | zip-code | building | apartment | floor | room-number | place-type | postal-community-name | p-o-box | additional-code } <string250> no lldp med location-tlv civic-addr { country | state | GLOBAL_CONFIG county | city | district | block | street | leading-street-direction | trailing-street-suffix | street-suffix | house-no | house-no-suffix | landmark | additional-info | name | zip-code |...
  • Page 100 <0-63>] no lldp med media-vlan-policy <0~31> GLOBAL_CONFIG lldp med media-vlan policy-list <range_list> Use the media-vlan policy-list to assign INTERFACE_PORT_LIST policy to the interface. loop-protect Loop protection configuration GLOBAL_CONFIG loop-protect transmit-time <1-10> Loop protection transmit time interval GLOBAL_CONFIG no loop-protect transmit-time GLOBAL_CONFIG loop-protect shutdown-time <0-604800>...
  • Page 101 debug resume debug EXEC debug kr-conf [ cm1 <-32-31> ] [ c0 <-32-31> ] debug INTERFACE_PORT_LIST [ cp1 <-32-31> ] [ ampl <300-1275> ] [ { ps25 | ps35 | ps55 | ps70 | ps120 } ] [ en-ob | dis-ob ] [ ser-inv | ser-no-inv ] show spanning-tree [ summary | active | { interface EXEC...
  • Page 102 spanning-tree link-type { point-to-point | shared | INTERFACE_PORT_LIST auto } no spanning-tree link-type INTERFACE_PORT_LIST spanning-tree restricted-role INTERFACE_PORT_LIST spanning-tree restricted-tcn INTERFACE_PORT_LIST spanning-tree bpdu-guard INTERFACE_PORT_LIST spanning-tree mst <0-7> cost { <1-200000000> | INTERFACE_PORT_LIST auto } no spanning-tree mst <0-7> cost INTERFACE_PORT_LIST spanning-tree mst <0-7> port-priority <0-240> INTERFACE_PORT_LIST no spanning-tree mst <0-7>...
  • Page 103 no mvr vlan <vlan_list> GLOBAL_CONFIG mvr vlan <vlan_list> mode { dynamic | compatible } GLOBAL_CONFIG mvr name <word16> mode { dynamic | GLOBAL_CONFIG compatible } no mvr vlan <vlan_list> mode GLOBAL_CONFIG no mvr name <word16> mode GLOBAL_CONFIG mvr vlan <vlan_list> igmp-address <ipv4_ucast> GLOBAL_CONFIG mvr name <word16>...
  • Page 104 retransmissions. no dot1x timeout tx-period GLOBAL_CONFIG dot1x authentication timer inactivity <10-1000000> Time in seconds between check for GLOBAL_CONFIG activity on successfully authenticated MAC addresses. no dot1x authentication timer inactivity GLOBAL_CONFIG dot1x timeout quiet-period <10-1000000> Time in seconds before a MAC-address GLOBAL_CONFIG that failed authentication gets a new authentication chance.
  • Page 105 enter the Guest VLAN if an EAPOL frame has not been received on the port for the life-time of the port. If enabled (checked), the switch will consider entering the Guest VLAN even if an EAPOL frame has been received on the port for the life-time of the port.
  • Page 106 10M} debug phy reset debug INTERFACE_PORT_LIST debug phy gpio <0-13> mode debug INTERFACE_PORT_LIST {output|input|alternative} debug phy gpio <0-13> get debug INTERFACE_PORT_LIST show interface <port_type_list> statistics Shows the statistics for the interface. EXEC [ { packets | bytes | errors | discards | filtered | { priority [<0~7>] } } ] [ { up | down } ] show interface <port_type_list>...
  • Page 107 show web privilege group [ <cword> ] level EXEC web privilege group <cword> level { [ cro <0-15> ] GLOBAL_CONFIG [ crw <0-15> ] [ sro <0-15> ] [ srw <0-15> ] }*1 no web privilege group [ <cword> ] level GLOBAL_CONFIG show port-security port [ interface Show MAC Addresses learned by Port...
  • Page 108 [ <1-256> ] } ] qos map dscp-cos { <0~63> | <dscp> } cos <0-7> GLOBAL_CONFIG dpl <dpl> no qos map dscp-cos { <0~63> | <dscp> } GLOBAL_CONFIG qos map dscp-ingress-translation { <0~63> | GLOBAL_CONFIG <dscp> } to { <0-63> | <dscp> } no qos map dscp-ingress-translation { <0~63>...
  • Page 109 { <0-0xff> | any } ] [ control { <0-0xff> | any } ] } | { snap [ { <0-0xffff> | any } ] } | { ipv4 [ proto { <0-255> | tcp | udp | any } ] [ sip { <ipv4_subnet> | any } ] [ dip { <ipv4_subnet>...
  • Page 110 no qos shaper INTERFACE_PORT_LIST qos queue-shaper queue <0~7> <uint> [ excess ] INTERFACE_PORT_LIST no qos queue-shaper queue <0~7> INTERFACE_PORT_LIST qos tag-remark { pcp <0-7> dei <0-1> | mapped } INTERFACE_PORT_LIST no qos tag-remark INTERFACE_PORT_LIST qos map cos-tag cos <0~7> dpl <0~1> pcp <0-7> INTERFACE_PORT_LIST dei <0-1>...
  • Page 111 [<0-65535>] falling-threshold <-2147483648-2147483647> [<0-65535>] {[rising | falling | both]} no rmon alarm <1-65535> GLOBAL_CONFIG rmon event <1-65535> [log] [trap <word127>] GLOBAL_CONFIG {[description <line127>]} no rmon event <1-65535> GLOBAL_CONFIG rmon collection stats <1-65535> INTERFACE_PORT_LIST no rmon collection stats <1-65535> INTERFACE_PORT_LIST rmon collection history <1-65535> [buckets INTERFACE_PORT_LIST <1-65535>] [interval <1-3600>] no rmon collection history <1-65535>...
  • Page 112 the receiver and all its configuration is reset to defaults. sflow collector-address [receiver <range_list>] Collector address GLOBAL_CONFIG [<word>] no sflow collector-address [receiver <range_list>] GLOBAL_CONFIG sflow collector-port [receiver <range_list>] Collector UDP port. Valid range is GLOBAL_CONFIG <1-65535> 0-65536. no sflow collector-port [receiver <range_list>] Collector UDP port.
  • Page 113 smtp server <word47> GLOBAL_CONFIG smtp level <0-7> GLOBAL_CONFIG show snmp EXEC show snmp community v3 [ <word127> ] EXEC show snmp user [ <word32> <word10-32> ] show snmp security-to-group [ { v1 | v2c | v3 } <word32> ] show snmp access [ <word32> { v1 | v2c | v3 | any } { auth | noauth | priv } ] show snmp view [ <word32>...
  • Page 114 exclude } no snmp-server view <word32> <word255> GLOBAL_CONFIG snmp-server contact <line255> To specify the system contact string. GLOBAL_CONFIG no snmp-server contact To clear the system contact string. GLOBAL_CONFIG snmp-server location <line255> To specify the system location string. GLOBAL_CONFIG no snmp-server location To specify the system location string.
  • Page 115 [ interface ] [ aaa ] switch stack re-elect Config commands for the switches in EXEC the stack switch stack priority {local | <1-16>} <1-4> Configure master election priority GLOBAL_CONFIG switch stack swap <1-16> <1-16> Swap switch ID GLOBAL_CONFIG no switch stack <1-16> GLOBAL_CONFIG switch stack <1-16>...
  • Page 116 <uint> } | selected | nonrevertive | revertive | sources holdover | freerun } no network-clock selector GLOBAL_CONFIG network-clock clk-source <range_list> priority Priority of nominated clock sources. GLOBAL_CONFIG <0-1> no network-clock clk-source <range_list> priority GLOBAL_CONFIG network-clock wait-to-restore <0-12> WTR time (0-12 min) '0' is disable GLOBAL_CONFIG no network-clock wait-to-restore GLOBAL_CONFIG...
  • Page 117 configuration command to configure the host address of logging server. no logging host Use the no logging host global GLOBAL_CONFIG configuration command to clear the host address of logging server. logging level { info | warning | error } Use the logging level global GLOBAL_CONFIG configuration command to configure what level of message will send to...
  • Page 118 thermal-protect port-prio <0-3> Sets temperature at which to turn ports INTERFACE_PORT_LIST with the corresponding priority off. no thermal-protect port-prio Sets temperature at which to turn ports INTERFACE_PORT_LIST with the corresponding priority off. show upnp EXEC upnp GLOBAL_CONFIG upnp ttl <1-255> GLOBAL_CONFIG no upnp ttl GLOBAL_CONFIG...
  • Page 119 {<0x600-0xffff>|arp|ip|ipx|at}] [snap command to add group to vlan mapping. {<0x0-0xffffff>|rfc-1042|snap-8021h} <0x0-0xffff>] [llc <0x0-0xff> <0x0-0xff>] show vlan mac [address <mac_ucast>] EXEC show vlan ip-subnet [id <1-128>] EXEC switchport vlan ip-subnet id <1-128> INTERFACE_PORT_LIST <ipv4_subnet> vlan <vlan_id> no switchport vlan ip-subnet id <1~128> INTERFACE_PORT_LIST debug vcl policy <uint>...
  • Page 120 switchport hybrid egress-tag {none | all Set hybrid characteristics of the INTERFACE_PORT_LIST [except-native]} interface no switchport hybrid egress-tag Set hybrid characteristics of the INTERFACE_PORT_LIST interface switchport trunk vlan tag native Set trunk characteristics of the interface INTERFACE_PORT_LIST switchport trunk allowed vlan {all | none | [add | Set trunk mode characteristics of the INTERFACE_PORT_LIST remove | except] <vlan_list>}...
  • Page 121 configuration command to configure voice vlan vid. no voice vlan vid Use the no voice vlan vid global GLOBAL_CONFIG configuration command to restore the default voice vlan vid. voice vlan aging-time <10-10000000> Use the voice vlan aging-time global GLOBAL_CONFIG configuration command to configure default voice vlan aging-time.
