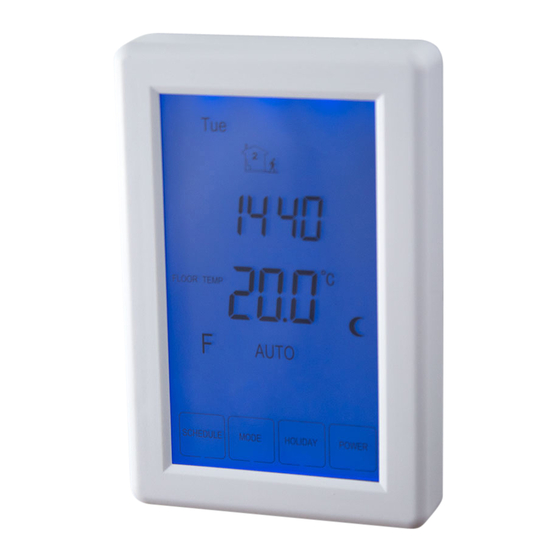

TS8100 - TH - V THERMOSTAT INSTRUCTIONS
TS8100-TH-V Thermostat Instructions

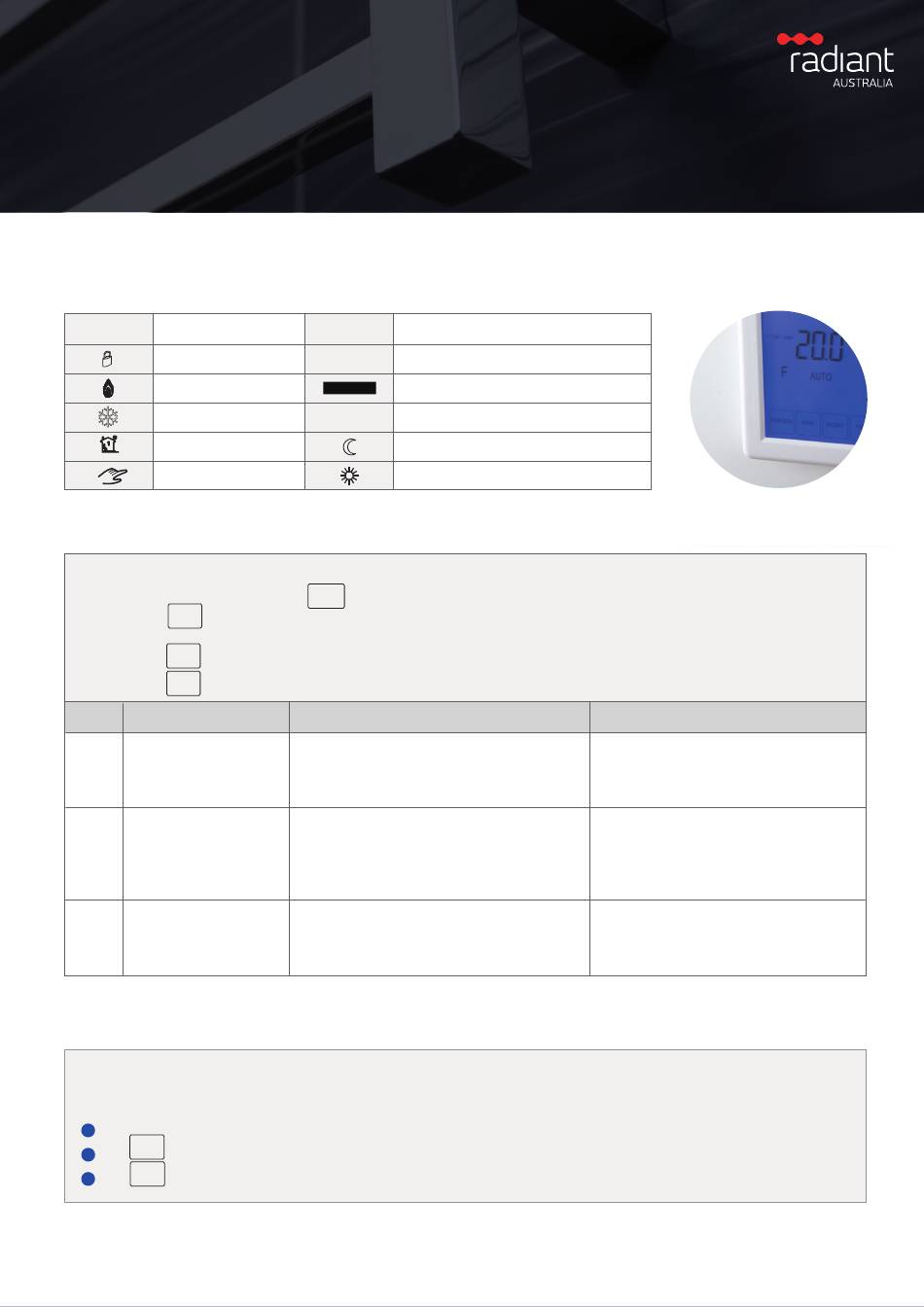

LCD SYMBOLS

LCD symbols
Symbol
Event
The buttons are locked
Heating is turned on
Frost protection activated
Program number
Manual mode

Configuration Menu

CONFIGURATION MENU
To enter into the setting menu please follow the steps below:
Step 1, Turn the thermostat off by pressing
Step 2, Press
, you will then see menu 01.
MENU
Step 3, Use the up and down arrows to adjust the "sensor selection" which is Menu 01(Air sensing, Air and Floor, or Floor only)
NEXT
Step 4, Press
to move to the next Menu and once you have all the menu options set,
Setp 5, Press to accept and store.
DONE
Menu # Feature
01
Mode/Sensor selection
Maximum Floor Temp
02
( AF mode only)
03 5+2 / 7 Day Mode

Setting the clock and day of the week

SETTING THE CLOCK + DAY OF THE WEEK
This thermostat is fitted with a real time clock. It is essential that the clock time and day are set accurately if you require your programmed events to start
on time. To set follow the steps below:
Touch the time display and the time will start flashing. Use the up and down arrows to set the time.By holding the arrow down the time will change faster.
1
NEXT
2 Press to move to the Day setting and use the up and down arrows to get to the correct day.
DONE
3
Press to store and exit.
Symbol
Event
Automatic mode,
AUTO
executes the programmed schedules
Override
Temporary Temperature Override
Err
The floor sensor is not being read by the thermostat
Economy temperature
Comfort temperature
;
POWER
Explanation
This thermostat is a combination model which allows you to
choose 3 different modes.
A mode=Air Sensing Only(Has built in sensor)
AF mode=Air & Floor sensing(Floor probe must be installed)
F mode=Floor Sensing(Floor probe must be installed)
This is to protect the floor surface.
This allows you to program either 5 days at once, then the 2
days of the weekend separately, or a full 7 days at the same
time or 7 days separately
ver 1.2
Adjustment
（press up & down buttons to adjust）
A, AF, F
20 °C~ 40 °C (40 °C by default)
01 = 5+2 day programmable
02 = 7 day programmable
See overleaf for further instructions >>>
