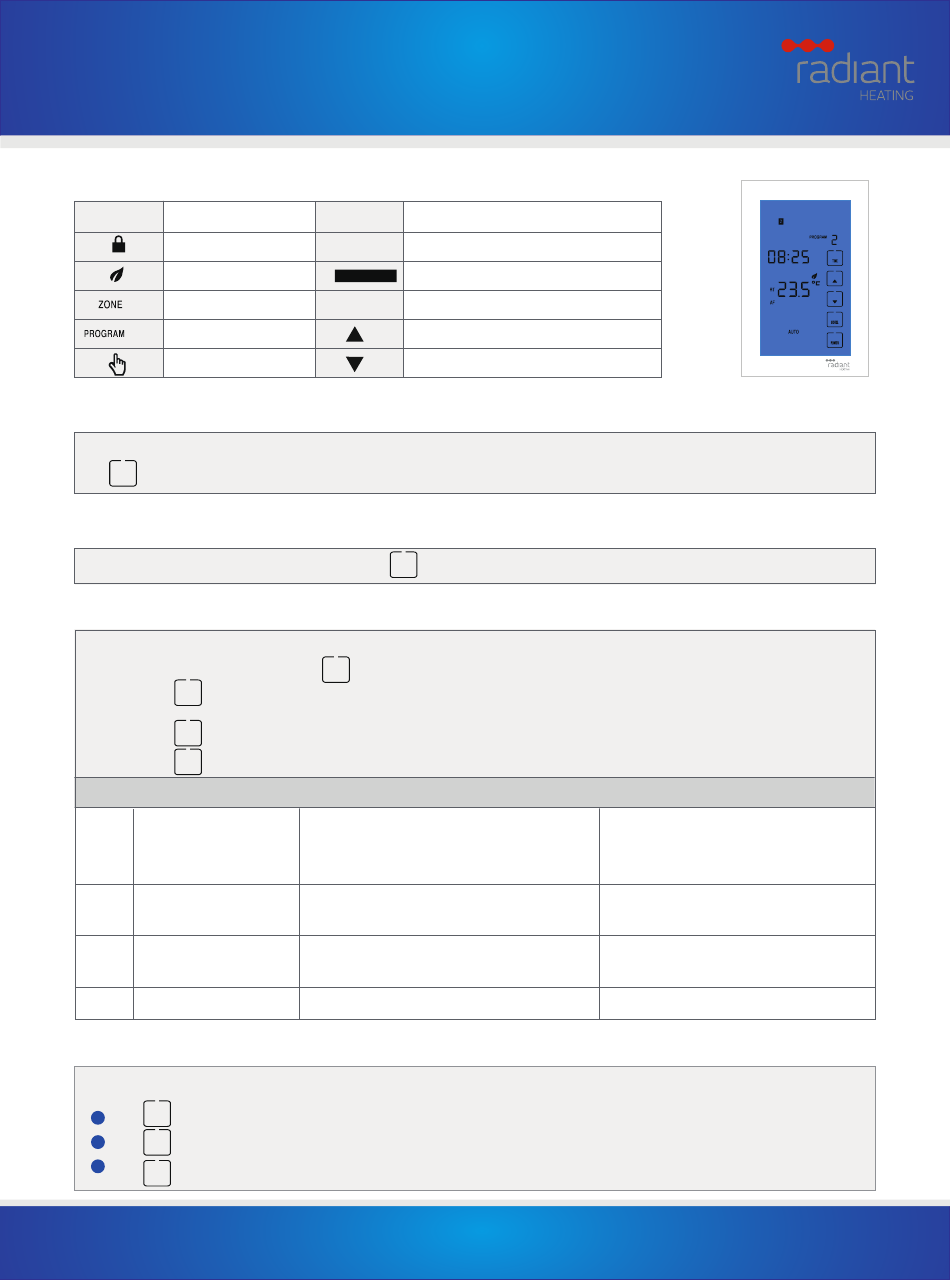

Radiant GTS-DUAL-V Instructions

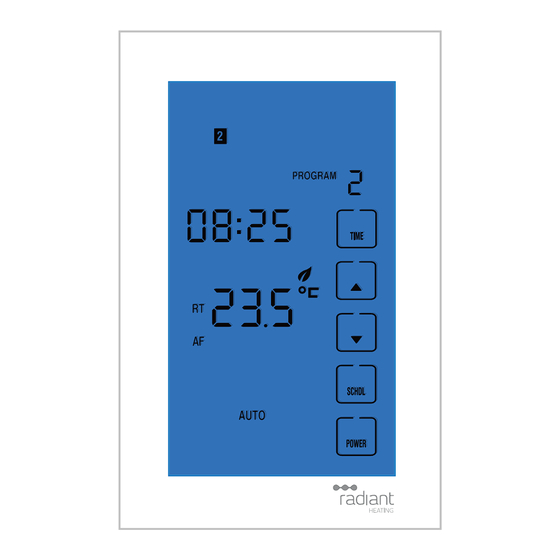

GTS-DUAL-V Thermostat
Timer Instructions
ver 1.0
LCD symbols
Symbol
Event
The buttons are locked
Heating is turned on
1,2 Zone number
1,2,3,4
Program number
Manual mode

Turning On/Off the Thermostat

When your thermostat is first connected to mains power, wait for about 30 seconds until the touch pad has self-adjusted.
Press to turn on/off the thermostat. When thermostat is turned off，the LCD will display OFF. The outputs for all zones will be turned off.
POWER

Alternating the Zones

In order to alternate between the zones you should press and hold

Configuration Menu

To enter into the setting menu please follow the steps below:
Step 1, Turn the thermostat off by pressing
Step 2, Press , you will then see menu 1. At this step, if you press and hold "MENU", you will access to MENU 4 directly.
MENU
Step 3, Use the up and down arrows to adjust the "sensor selection" which is Menu 1(Air sensing, Air and Floor, or Floor only)
NEXT
Step 4, Press to move to the next menu and once you have all the menu options set,
Setp 5, Press to accept and store.
OK
Menu # Feature
Mode/Sensor selection(Zone 1 only)
1
Maximum Floor Temp
2
( AF mode only) (Zone 1 only)
3 5+2 / 7 Day Mode
4
Reset

Setting the clock and day of the week

This thermostat is fitted with a real time clock. It is essential that the clock time and day are set accurately if you require your programmed events to start
on time. To set follow the steps below:
TIME
Touch and the time will start flashing. Use the up and down arrows to set the time.By holding the arrow down the time will change faster.
1
2 Press NEXT to move to the Day setting and use the up and down arrows to get to the correct day.
3
Press to store and exit.
OK
Page1
Symbol
Event
Automatic mode,
AUTO
executes the programmed schedules
OVERRIDE
Temporary temperature override
Er The floor sensor is not being read by the thermostat
Increase
Decrease
, the LCD will display ZONE 1 or ZONE 2 at top right corner.
TIME
;
POWER
Explanation
This thermostat is a combination model which allows you to
choose 3 different modes.
A mode=Air Sensing Only(Has built in sensor)
AF mode=Air & Floor sensing(Floor probe must be installed)
F mode=Floor Sensing(Floor probe must be installed)
This is to protect the floor surface.
This allows you to program either 5 days at once, then the 2
days of the weekend separately, or a full 7 days at the same
time or 7 days separately
This allows you to reset your thermostat to factory default
Adjustment
（press up & down buttons to adjust）
A, AF, F (F by default)
20 °C~ 40 °C (40 °C by default)
01 = 5+2 day programmable
02 = 7 day programmable
Press and hold down button until you see RES on screen
