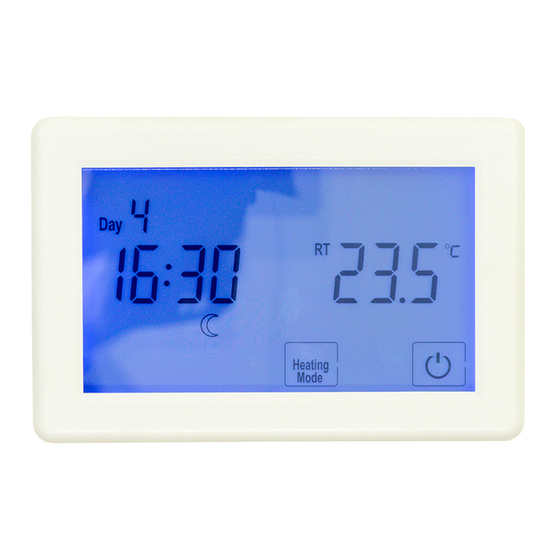

TS8100 - TH - H THERMOSTAT INSTRUCTIONS
TS8100-TH-H Thermostat Instructions
LCD symbols
LCD SYMBOLS
Symbols Description
Symbols Description
Turning on/off the thermostat
Turning on/off the thermostat
The buttons are locked
The buttons are locked
Heating is turned on
Heating is turned on
Frost protection activated
Frost protection activated
RT Room temperature
Room temperature
RT
FT Floor temperature
Floor temperature
FT
AUTO Automatic mode, executes the programmed schedules
AUTO Automatic mode, executes the programmed schedules
Temporary temperature override
Temporary temperature override
O / RIDE
O / RIDE
Err The sensor is not being read by the thermostat
The sensor is not being read by the thermostat
Err
Configuration Menu
CONFIGURATION MENU
To enter into the setting menu please follow the steps below:
Step 1, Turn the thermostat off by pressing
Step 2, Press , you will then see menu 01.
MENU
Step 3, Use the up and down arrows to adjust the "sensor selection" which is Menu 01(Air sensing, Air and Floor, or Floor only)
NEXT
Step 4, Press to move to the next Menu and once you have all the menu options set,
Setp 5, Press to accept and store.
DONE
Menu # Feature
01 Mode/Sensor selection
02 Maximum Floor Temp
( AF mode only)
03 5+2 / 7 Day Mode
Setting the clock and day of the week
SETTING THE CLOCK AND DAY OF THE WEEK
This thermostat is fitted with a real time clock. It is essential that the clock time and day are set accurately if you require your programmed events to start on time. Follow below steps,
1) Touch time display. Use or
2) Touch day display . Use or
Select the required operating mode
SELECT THE REQUIRED OPERATING MODE
Auto - Automatic mode, the thermostat executes the preprogrammed schedules. To adjust these schedules, see page 2 the program section.
In addition to Automatic mode, this thermostat has 3 extra manual modes, i.e
- Comfort temperature mode, the highest temperature you want to achieve, this is the temperature that will be required when the room is in use. Default is 22 °C.
- Economy temperature mode, the lowest temperature, the temperature you want to go no lower than when the room is not in use. Default is 16 °C.
- Vacation temperature mode, this is set to stop your floor from going below the set temperature. Default is 10 °C.
To change the set temperatures, touch temperature display. Use
Program 1,2,3,4
Program 1,2,3,4
;
POWER
Explanation
This thermostat is a combination model which allows you to
choose 3 different modes.
A mode=Air Sensing Only(Has built in sensor)
AF mode=Air & Floor sensing(Floor probe must be installed)
F mode=Floor Sensing(Floor probe must be installed)
This is to protect the floor surface.
This allows you to program either 5 days at once, then the 2
days of the weekend separately, or a full 7 days at the same
time or 7 days separately
to change the time. Press and hold
to change the day. Touch to store and exit.(or touch Day display to cancel and exit).
Done
Symbols Description
Symbols Description
Day of the week. Day 1= Monday, Day 2= Tuesday... etc.
Day of the week. Day 1= Monday, Day 2= Tuesday... etc.
Day
Day
The program number
The program number
Reminding the user to connect the floor sensor (AF and F model only)
Reminding the user to connect the floor sensor (AF and F model only)
Comfort temperature mode
Comfort temperature mode
Economy temperature mode
Economy temperature mode
Vacation temperature mode
Vacation temperature mode
Touch to view floor temperature for 5 seconds (AF model only)
Touch to view floor temperature for 5 seconds (AF model only)
Touch to start programming of your thermostat
Touch to start programming of your thermostat
Set
Set
Schedule
Schedule
Touch to switch among Auto
Touch to switch among Auto
Heating
Heating
Mode
Mode
or to change the time faster. Touch
Done
, each of these manual modes maintains a constant set temperature set by the user.
or to adjust to the required temperature. Touch
See overleaf for further instructions >>>
ver 1.2
Adjustment
（press up & down buttons to adjust）
A, AF, F
20 °C~ 40 °C (40 °C by default)
01 = 5+2 day programmable
02 = 7 day programmable
to store and exit( or touch time display to cancel and exit).
to store and exit.
Done
