Baxton Studio BBT 6917 Assembly Instructions

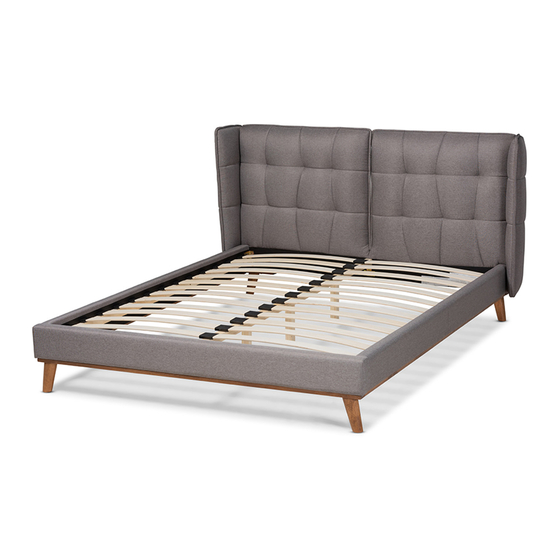

MODEL : BBT 6917 QUEEN BED
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver & Rubber Mallet (not provider).

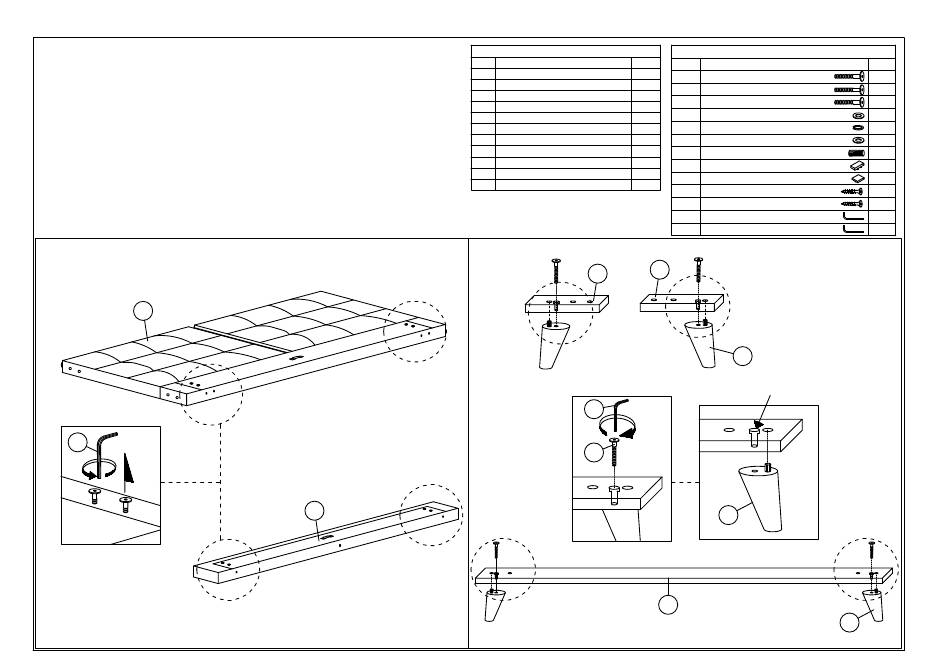

STEP 1

A
13
Loosen the pre-inserted
bolt on the
headboard and
footboard using Allen
key ball shape (13)
ASSEMBLY INSTRUCTIONS
ITEM
A
B
C
D
E
F
G
H
I
J
K

STEP 2

B

PART LIST

DESCRIPTION QTY
ITEM
HEADBOARD 1 PC
FOOTBOARD 1 PC
HEADBOARD LEG SUPPORT WOOD 2 PCS
FOOTBOARD LEG SUPPORT WOOD 1 PC
BED LEG 4 PCS
SIDE RAIL 2 PCS
HEADBOARD WING 2 PCS
CENTER RAIL 1 PC
CENTER SUPPORT LEG 3 PCS
CENTER SUPPORT WOOD 2 PCS
BED SLAT 26 PCS
C
C
x 4
12
1

STEP 2.2

D
1 of 3

HARDWARE LIST

DESCRIPTION
1
JCBC BOLT M6 x 40mm
2 JCBC BOLT M6 x 45mm
3 JCBB BOLT M8 x 40mm
4 M6 FLAT WASHER
5 M8 SPRING WASHER
6 M8 FLAT WASHER
7 WOOD DOWEL M8 x 30mm
8 BED SLAT SIDE FITTER
9 BED SLAT CENTER FITTER
10 WOOD SCREW M3.5 x 16mm
11
WOOD SCREW M4 x 20mm
12 M4 ALLEN KEY (BALL SHAPE)
M5 ALLEN KEY (BALL SHAPE)
13
E
Remark : Big hole face up,
small hole face down.
x 4
E

STEP 2.1

E
QTY
4 PCS
4 PCS
7 PCS
4 PCS
7 PCS
7 PCS
4 PCS
26 PCS
13 PCS
8 PCS
2 PCS
1 PC
1 PC
